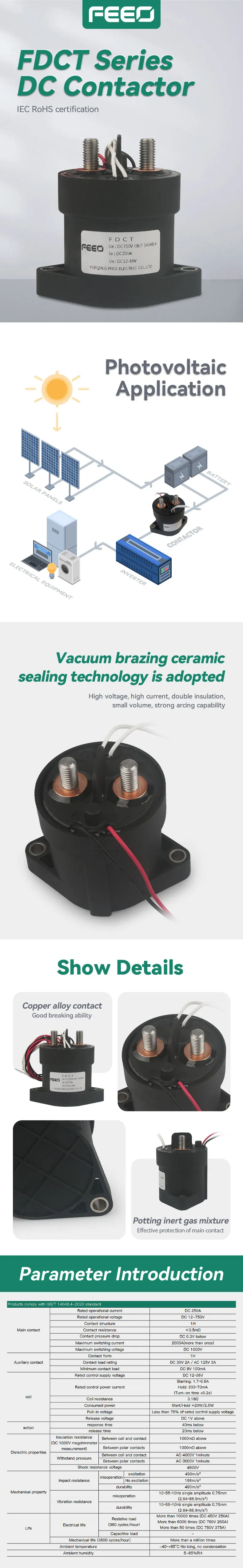

Постоянного тока высокого напряжения EV реле 12V постоянного до 750V или 900V DC свяжитесь 12Vdc 24Vdc 250A высоковольтный

Описание и отзывы

Характеристики

Specifications:

Rated operational current:DC250A

operational voltage:DC 12-750V

Maximum switching current: 2000A(more than once)

Maximum switching voltage:DC 1000V

Contact form: 1H

Contact load rating:DC 30V 2A / AC 125V 3A

Minimum contact load:DC 8V 100mA

Mechanical life (3600 cycles/hour):More than a million times

Parameters	Standard Type Voltage
	12VDC	24VDC
Work voltage	9~16	18~32
Max voltage	16	32
Action voltage	≤9	≤18
Release voltage	≥1	≥2
Coil Resistance	25	94
Min start current	0.48A	0.26A
Transient surge current	-	-
Average holding current	0.48A	0.26A
steady state time	5.8W	6W
Actuation time	≤50ms	≤50ms
Release time	≤10ms	≤10ms
Bounce time	≤5	≤5

250A High Voltage DC Contactor Features:

· DC 12-750V rated load voltage of contact circuit.

· SPST-NO of contact form, 12 volt, 24 volt coil for selecting.

· Main contact voltage drop at 250A, not above 100mV.

· The connection of contact and coil need to be nonpolarity.

· Efficient coil, retentive power is only 2-2.3W, counter electromotive force is 0V.

· The joint way of the coil is very convenient.

· The coil has no counter force of electromagnetism.

· Compare to the similar products, this product is smallest and lightest.
