5-тонное гидравлическое лебедка Лебедка для грузовика
US $900.00-$1000
Производитель Китай новый дизайн промышленной мельницы на перекрещивающимся ремешком; Медленной скорости фабричная поставка строительства Электрический 5 Тонн
- Категории: Winches >>>
- Поставщик: Henan,Qiangli,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Remote Control Electric Wire Electric Power Cable Pulling Fast Speed Jk Electric Winch

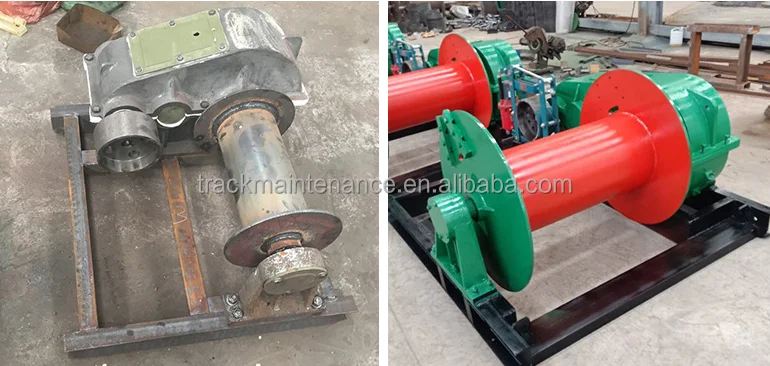

1)Introduction of the winch
Winch is driven by human or mechanical power drum, winding ropes to complete the traction device for work, which can be vertical, horizontal or inclined pulling heavy objects. Divided into manual and electric winch.
Winch is driven by human or mechanical power drum, winding ropes to complete the traction device for work, which can be vertical, horizontal or inclined pulling heavy objects. Divided into manual and electric winch.

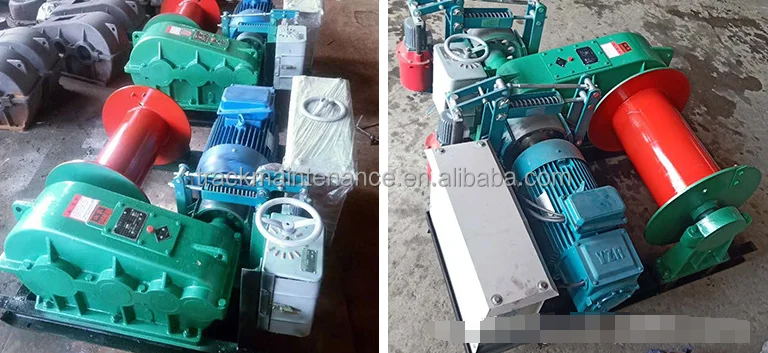

Electric winch is powered by electric, and it composed by electric motor, coupling, brake, gear box,drum and frame.
Types of the winch
1. According to the working speed, the hoist winch can be divides into 2 types, fast speed electric winch (JK type) and slow speed electric winch (JM type) .
2. JK type high speed electric winch mainly is used for materials lifting and traction the low weight duty contruction. It also
used for crane as main hoist; it is the special winch of derrick and gantry frame and lifting trolley. It is suitable for construction and small equipment installation of construction mine area lifting factory. 1 year warranty factory supply 5ton slipway electric winch for pulling boat
3. JM type slow speed electric winch can lift heavy weight in the Construction Site and Port pier; it also can be used as traction power in installing of the factories and mines. It is not only can single use, but also can combined with other large-scale and complex machine.
2. JK type high speed electric winch mainly is used for materials lifting and traction the low weight duty contruction. It also
used for crane as main hoist; it is the special winch of derrick and gantry frame and lifting trolley. It is suitable for construction and small equipment installation of construction mine area lifting factory. 1 year warranty factory supply 5ton slipway electric winch for pulling boat
3. JM type slow speed electric winch can lift heavy weight in the Construction Site and Port pier; it also can be used as traction power in installing of the factories and mines. It is not only can single use, but also can combined with other large-scale and complex machine.
Parameter
Parameter of JM Electric Winch | ||||||||||||
Model | Rated Line Pull(KN) | Capacity of drum(m) | Wire rope | Motor | ||||||||
Diameter (mm) | lifting speed (m/min) | Motor model | Motor rating (KW) | |||||||||
JM1 | 10 | 100 | 9.3 | 15 | Y112M-6 | 3 | ||||||
JM2 | 20 | 150 | 13 | 16 | Y160M-6 | 7.5 | ||||||
JM3.2 | 32 | 200 | 15.5 | 12 | YZR160M-6 | 7.5 | ||||||
JM5 | 50 | 250 | 21.5 | 9.5 | YZR160L-6 | 11 | ||||||
JM8 | 80 | 250 | 26 | 8 | YZR180L-6 | 15 | ||||||
JM10 | 100 | 250 | 30 | 8 | YZR200L-6 | 22 | ||||||
JM12 | 120 | 300 | 32 | 8 | YZR225M-6 | 30 | ||||||
JM16 | 160 | 500 | 37 | 10 | YZR250M-8 | 37 | ||||||
JM20 | 200 | 600 | 42 | 10 | YZR280M-8 | 45 | ||||||
JM25 | 250 | 800 | 48 | 9 | YZR280S-8 | 55 | ||||||
JM32 | 320 | 700 | 50 | 9 | YZR315S-8 | 75 | ||||||
JM50 | 500 | 700 | 60 | 9 | YZR315M-8 | 90 | ||||||
Parameter of JK Electric Winch | ||||||||||||
Model | Rated Line Pull(KN) | Capacity of drum(m) | Wire rope | Motor | ||||||||
Diameter (mm) | lifting speed (m/min) | Motor model | Motor rating (KW) | |||||||||
JK1 | 10 | 80 | 9.3 | 22 | Y112M-4 | 4 | ||||||
JK2 | 20 | 110 | 13 | 24 | Y132M-4 | 7.5 | ||||||
JK3.2 | 32 | 250 | 15.5 | 30 | YZR180L-6 | 15 | ||||||
JK5 | 50 | 200 | 21.5 | 30 | YZR225M-6 | 30 | ||||||
JK8 | 80 | 250 | 26 | 30 | YZR280S-8 | 45 | ||||||
JK10 | 100 | 300 | 30 | 30 | YZR315S-8 | 55 | ||||||
Application

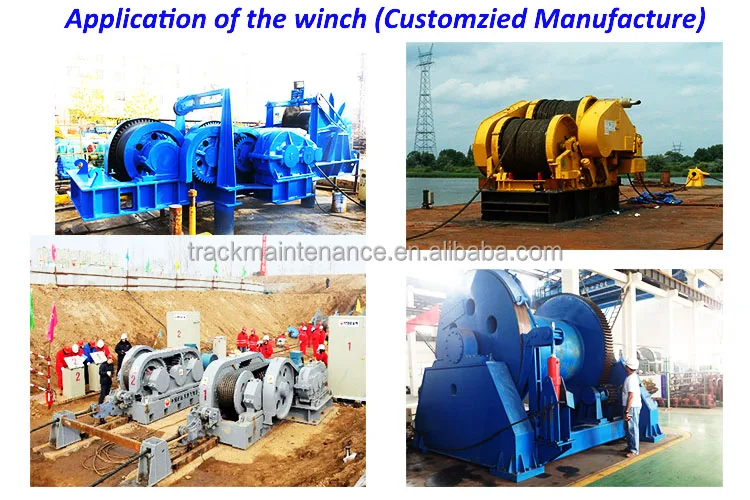

Application of the winch
Electric power cable pulling sgs fast speed jk electric winch 12 ton is usually used for hoisting and unloading the middle and heavy weight materials, such as all kinds of large and middle coal mine, concrete construction of steel, installation and disassembly of mechanical equipment, it is suitable for construction and installation engineering of construction, mining area, factory and so on.
Main features of the winch
1,It has fast and slow speed ;
2,The standard capacity high speed winch:1t-2t,3t,5t,6t,8t,10t,12t,16t,20t, 32t, etc;
3,Wire rope capacity:20~3600m or customzied design;
4,Working speed:5~20 m/min or customized design;
5,Power supply:220~470V,50/60HZ,three phase or customized design.
6,Top quality with competitive price.
2,The standard capacity high speed winch:1t-2t,3t,5t,6t,8t,10t,12t,16t,20t, 32t, etc;
3,Wire rope capacity:20~3600m or customzied design;
4,Working speed:5~20 m/min or customized design;
5,Power supply:220~470V,50/60HZ,three phase or customized design.
6,Top quality with competitive price.

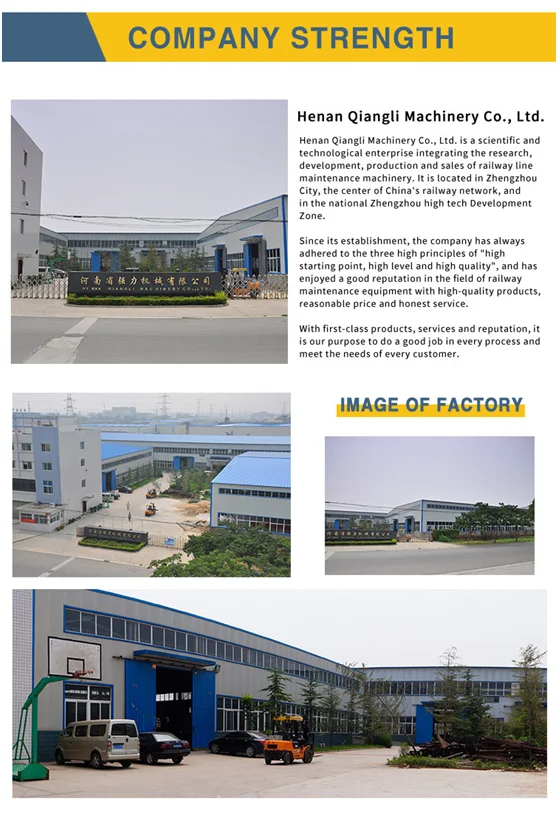

Company Profile
PURCHASING GUIDE
1,Application? Lifting or pulling what matrial/cargo?
2,What capacity do you need?
3,Winch's working direction:horizontal or vertical?
4,How about the working speed?
5,How many of the working distance?
6, Whether need us providing wire rope?
2,What capacity do you need?
3,Winch's working direction:horizontal or vertical?
4,How about the working speed?
5,How many of the working distance?
6, Whether need us providing wire rope?
FAQ
1. who are we?
We are based in Henan, China, start from 1995,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Petrol Rail Cutting Machine and grinding machine,Rail drilling machine and Bolt Wrench,Ballast Tamper And Pulling Machine For Sleeper Screw,mining machine,construction machine
4. why should you buy from us not from other suppliers?
We have more than 30 years experience in machinery manufacturing . Our products all is popular in inner markst and outer market . We have professional engineers and many departsments ,it is strong support to our factory and company business .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Henan, China, start from 1995,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Petrol Rail Cutting Machine and grinding machine,Rail drilling machine and Bolt Wrench,Ballast Tamper And Pulling Machine For Sleeper Screw,mining machine,construction machine
4. why should you buy from us not from other suppliers?
We have more than 30 years experience in machinery manufacturing . Our products all is popular in inner markst and outer market . We have professional engineers and many departsments ,it is strong support to our factory and company business .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
