Горячая Распродажа 2023 новейший продукт ультразвуковой аппарат для сварки пластика pp pe pc pvc
- Категории: Plastic Welders >>>
- Поставщик: Hangzhou,Altrasonic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Because of national lockdown in 2020, we stay at home or office more time compare previous, Ultrasonic products more popular, pls follow us first and then click “send inquiry” or “contact supplier”, we will recommend our hot sale and suitable item to you.
If purchase as gift or personal use or interesting, also welcome, We wish develop with customer instead of look down upon, we will check best shipping with alibaba.com after received your inquiry.
If purchase as gift or personal use or interesting, also welcome, We wish develop with customer instead of look down upon, we will check best shipping with alibaba.com after received your inquiry.
Specification
Item No | HS-W20B |
Frequency | 20Khz |
Power | 1500W |
Voltage | 200-240V, Alternating current |
50-60hz, Single phase | |
Electric current | 10A |
Range of welding time | 0.05-10/sec |
Environment Temperature | 5-50℃ |
Air supply requirements | Clean dry compressed air, maximum pressure 7kg |
Maximum pressure | 1.96KN |
Maximum stroke | 100MM |
Beats | 80/Min |
Triggered Dynamic range | 67-890N |
Weight | 66Kgs |
Dimension | 476mm(L)*736mm(W)*1524mm(H) |
Product Description
Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a ~20 kHz low-amplitude acoustic vibration is emitted. (Note: Common frequencies used in ultrasonic welding of thermoplastics are 15 kHz, 20 kHz, 30 kHz, 35 kHz, 40 kHz and 70 kHz). When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs. It is typically used with small parts (e.g. cell phones, consumer electronics, disposable medical tools, toys, etc.) but it can be used on parts as large as a small automotive instrument cluster.
Recommend Products

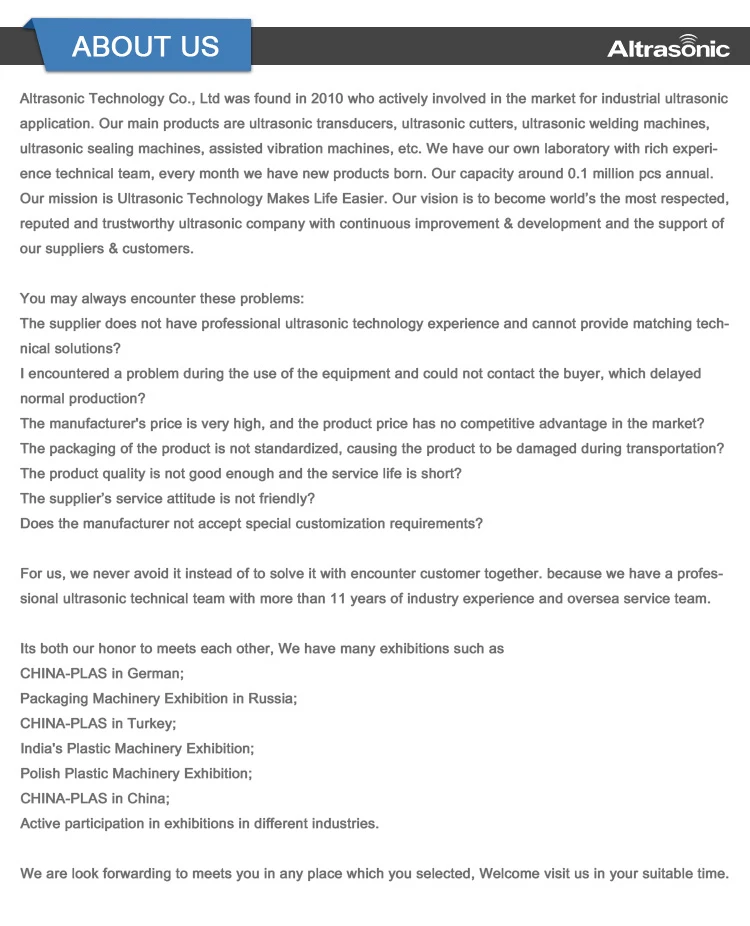

Company Profile
FAQ
Q: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through
communication.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together.
Also we will upload video in youtube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our
main markets is USA and European etc
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just
send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through
communication.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together.
Also we will upload video in youtube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our
main markets is USA and European etc
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just
send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
