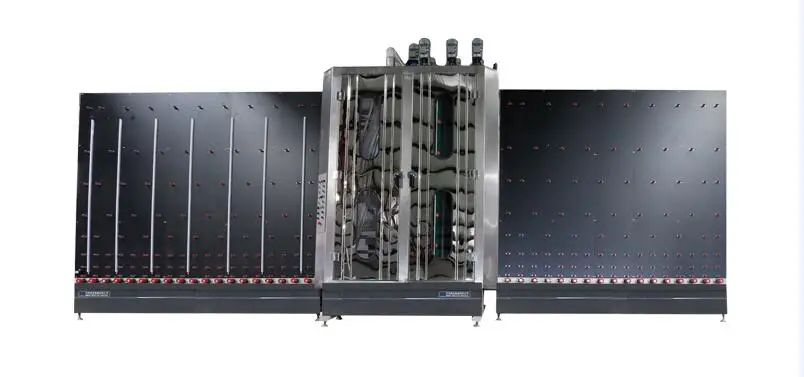

Glass Production Making Machinery Vertical Easy Operation Glass Washing Machine Glass Cleaning Machine
Equipment Features:
1. Equipment Features-Washing section and water system adopt complete stainless steel or rotproof material.2. It has excellent effect on washing and drying.
3. Drying section adopts rubber roller to scrape off the water, and use the hot wind to dry the glass.
4. The transmit system of washing machine adopts unlimited speed adjustment to realize high efficiency of application.
Technical Data | ||||||||
Model | JY-1600 | JY-1800 | JY-2000 | JY-2500 | ||||
Power Supply | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | ||||
Power | 14KW | 15KW | 19KW | 23KW | ||||
Work pressure | 0.5-0.8MPa | 0.5-0.8MPa | 0.5-0.8MPa | 0.5-0.8MPa | ||||
Max glass size | 1600*2000mm | 1800*2500mm | 2000*2500mm | 2500*3000mm | ||||
Min glass size | 280*450mm | 280*450mm | 280*450mm | 280*450mm | ||||
Glass thickness | 3-18mm | 3-18mm | 3-18mm | 3-18mm | ||||
Washing speed | 0-6m/min | 0-8m/min | 0-8m/min | 0-12m/min | ||||
Total weight | 1500kg | 2500kg | 3000kg | 4000kg | ||||
Boundary dimension | 6000*1300*2800mm | 7000*2100*3000mm | 7600*2100*3200mm | 8800*2100*3800mm | ||||
Machine Details
This section including two parts
1, all two parts are made by stainless steel.
2, with 3 pairs of brushes 2 pairs of air knives.
Two pairs of soft brushes for Low-E glass and coated glass, one pair of hard brush for normal float glass.
2, with 3 pairs of brushes 2 pairs of air knives.
Two pairs of soft brushes for Low-E glass and coated glass, one pair of hard brush for normal float glass.
The brushes and rollers
with 3 pairs of brushes 2 pairs of air knives.
Two pairs of soft brushes for Low-E glass and coated glass, one pair of hard brush for normal float glass.
Two pairs of soft brushes for Low-E glass and coated glass, one pair of hard brush for normal float glass.
The drying parts with two pair air knives
English panel of washing and drying part
(We can customized in different language)
(We can customized in different language)
The water spraying nozzle
It can be open by hand which makes it easy to clean.
The beautiful stainless tell and structure
The blower behind the washing and drying section
Water tank behind the washing and drying section
Sensors at the front of the washing and drying section identify the type and thickness of the glass, and the brushes inside will automatically spread to the appropriate width
The structure in the aluminum spacer location part can adjust the in width according to
the aluminum spacer width
the aluminum spacer width
The body of the machine is thickened
Beautiful looking after powder painting
Control box is produced by ourselves
This is the core of the whole machine
It is including PLC, electric components, etc
It is including PLC, electric components, etc
Packed with film and load into a full container
Packing Details :
1.Simple stretch film packaging;
2.Professional export wooden packing.
Delivery Details : 15-20 Days after receive the first deposit.
2.Professional export wooden packing.
Delivery Details : 15-20 Days after receive the first deposit.
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass making machines, glass edging and beveling machines, glass cutting machines, tempered glass furnace, etc, with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.
We believe that "IT'S THE BEST THAT FITS MOST".
Every machines can be customized to meet your special requirements.
Hope we can cooperate with you.
Pre-sales Service
1. Fastly and professional reply to you about your questions for our napkin folding paper production machine.
2. Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines.
3. Detailed and clearly explain to you when you come to our factory for visiting before contract.
In-sales service
1. One-stop and customize service for you, all napkin paper processing related machines are available from us.
2. 24 Hours online service, 7 Days one week support for you if any technical questions or problems about toilet tissue paper making machine.
After sales service
1.Engineers overseas installation and training, all our engineers are rich experience for overseas working
2.Guarantee you steady supply for the spare parts with the lower prices
1. What will be the process after i make the payment?
Answer: After we confirm the receipt of the deposit, we will arrange the production asap. When we finish the production and the test of the machine, we will take a video for you to show the performance of the machine and wait for your feedback. And after the confirmation of the finished products we will start to pack the machine and wait for customer’s requirement for shipment.
2.How will you install our machine after we receive the machine?
Answer:We used to send technician to install machine for customer before. But now due to the COVID-19 virus, it’s very difficult for us to go abroad. However, for all our machines, we have specific manuals and explanation videos to follow and install the machine.Every customer we also have one special wechat/ whatsapp group chat with technician inside to offer all necessary help on line.
3.What will happen if the machine does not work?
Answer: If the machine does not work, you can send us an email or call us.We will form a group and our engineers will be inside to guide how to solve the problem. Video call or video conference will all be available 7*24.
4.Can the machine change to our voltage?
Answer: YES! We can customize our machine to your local voltage.
5. Can you help us to arrange the shipment?
Answer: YES! We have our cooperated shipping partner who can provide fast delivery and good price. We can arrange the shipment for our clients based on customer’s requirement.
Answer: After we confirm the receipt of the deposit, we will arrange the production asap. When we finish the production and the test of the machine, we will take a video for you to show the performance of the machine and wait for your feedback. And after the confirmation of the finished products we will start to pack the machine and wait for customer’s requirement for shipment.
2.How will you install our machine after we receive the machine?
Answer:We used to send technician to install machine for customer before. But now due to the COVID-19 virus, it’s very difficult for us to go abroad. However, for all our machines, we have specific manuals and explanation videos to follow and install the machine.Every customer we also have one special wechat/ whatsapp group chat with technician inside to offer all necessary help on line.
3.What will happen if the machine does not work?
Answer: If the machine does not work, you can send us an email or call us.We will form a group and our engineers will be inside to guide how to solve the problem. Video call or video conference will all be available 7*24.
4.Can the machine change to our voltage?
Answer: YES! We can customize our machine to your local voltage.
5. Can you help us to arrange the shipment?
Answer: YES! We have our cooperated shipping partner who can provide fast delivery and good price. We can arrange the shipment for our clients based on customer’s requirement.
