Высокоотражающая зеркальная ПЭТ-пленка из майлара 100 микрон для светодиодного светильника в качестве
- Категории: >>>
- Поставщик: Shijiazhuang,Dadao,Packaging,Materials,Co.,ltd.Shijiazhuang,ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

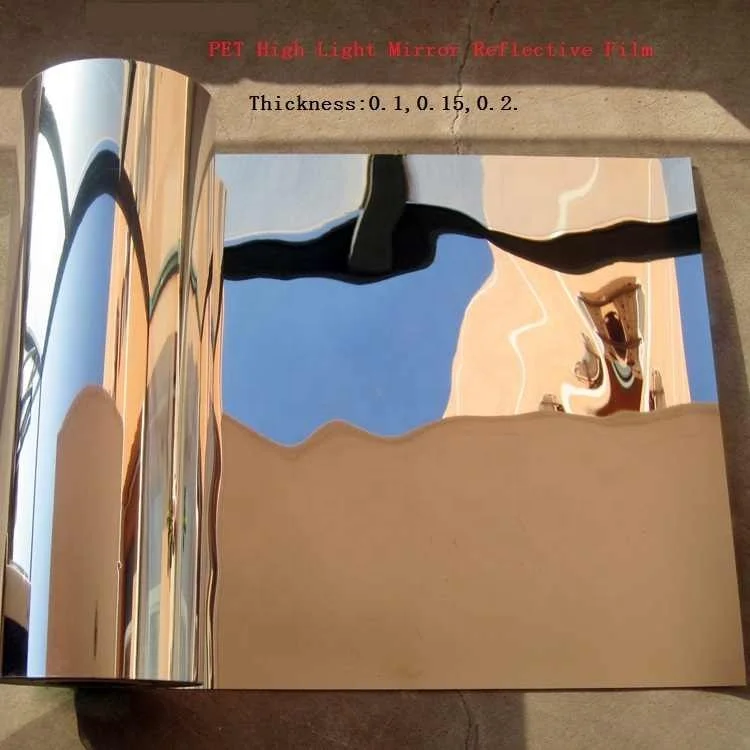

100micron High reflective mirrored PET Mylar Film For LED luminaire as reflector
High reflective mirrored PET Mylar Film have Low heat shrinkage, well tensile strength, aluminium coating is well-proportioned has very high luster degree, light reflectivity reach 98%. it can be used For LED luminaire as reflector.Features:
a) Raw material: polyester film, metallized with aluminum
b) Maximum width: 2450mm
c) Thickness: usually is 50mic, 75mic, 100mic,150mic 188mic ect Of course,it is adjustable to customer's requirements
d) Uses: packaging, printing, laminating, and decorating
Specification
Production Capacity:500tons per month above
quantity :20FCL :12-16tons 40FCL:22-24tons
Core diameter:3"(76mm) and 6"(152mm)
Packaging: Wooden pallet.
quantity :20FCL :12-16tons 40FCL:22-24tons
Core diameter:3"(76mm) and 6"(152mm)
Packaging: Wooden pallet.
Metallized PET film | ||||||||
Properties | Units | Typical Values | Test Methods | |||||
Thickness | μm | 50 | DIN53370 | |||||
Tensile Strength | MD | MPa | 218 | DIN53455-6-5 | ||||
TD | 231 | |||||||
Elongation at Break | MD | % | 111 | DIN53455-6-5 | ||||
TD | 114 | |||||||
Coefficient of Friction | F/F-μs | - | 0.48 | DIN53375 | ||||
F/F-μk | 0.48 | |||||||
Heat Shrinkage | MD | % | 2.0 | BMSTT11 | ||||
TD | 0.8 | |||||||
Thickness of Aluminum Layer | Ω/ | 2.0 | Resistance Tester | |||||
Optical Density | OD | 2.0 | MACBETH TD904 | |||||
Adhesion of Aluminum Layer | % | 100 | 3M Gummed Tape | |||||
Tolerace of Aluminum Layer | % | 6 | Resistance Tester | |||||
Gloss | % | 132.6 | ASTM D2457 | |||||
Surface tension | Dyne/cm | 60 | ASTM D2578 | |||||

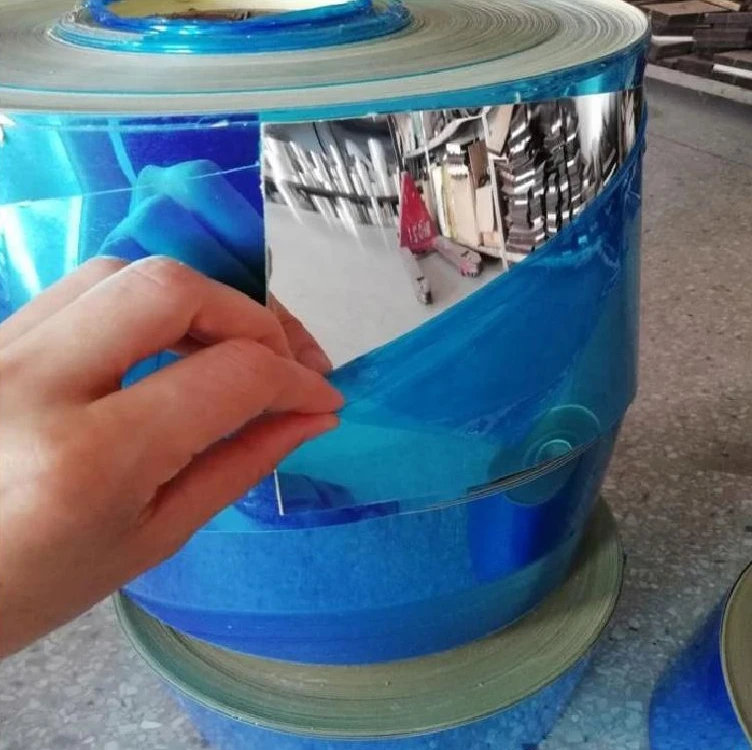

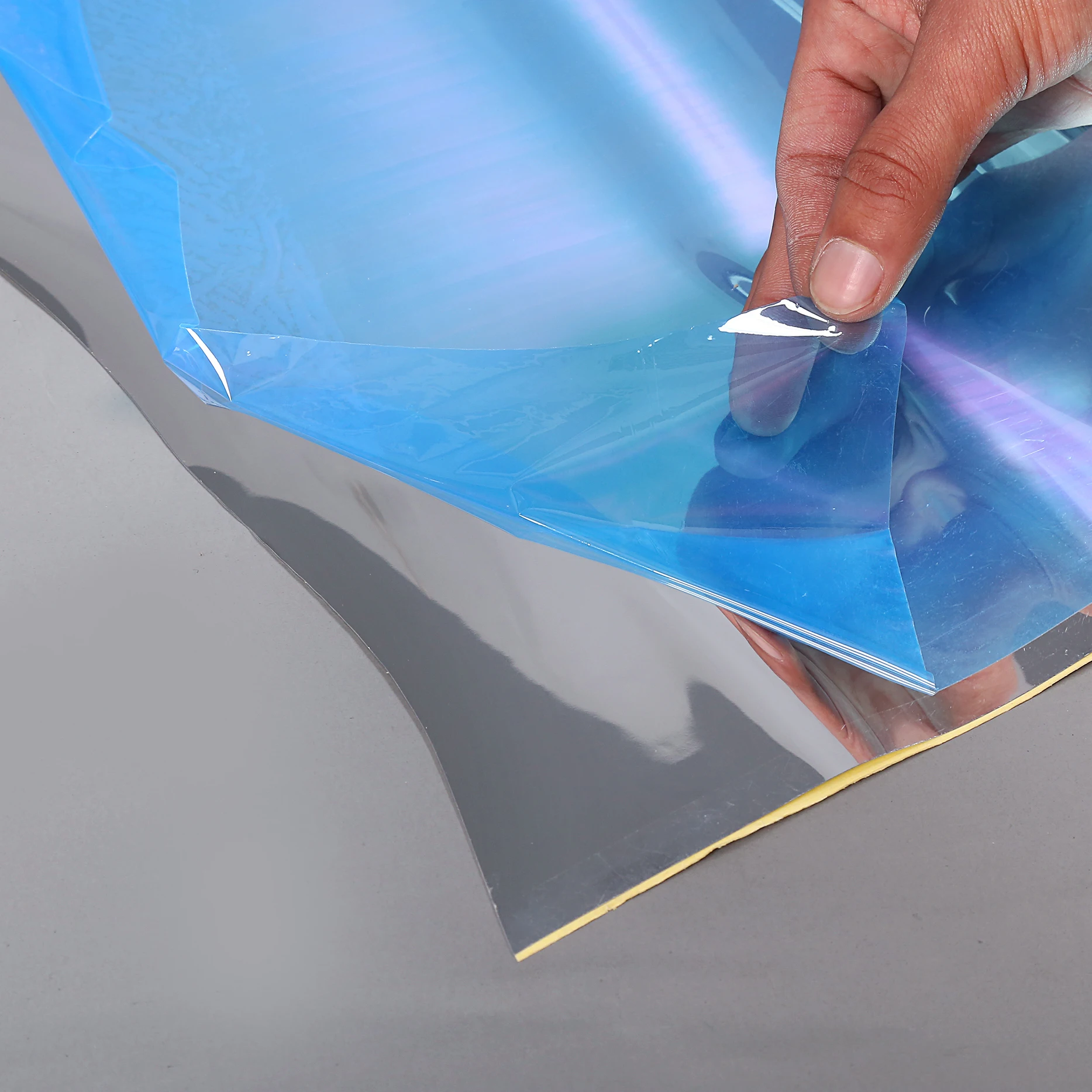

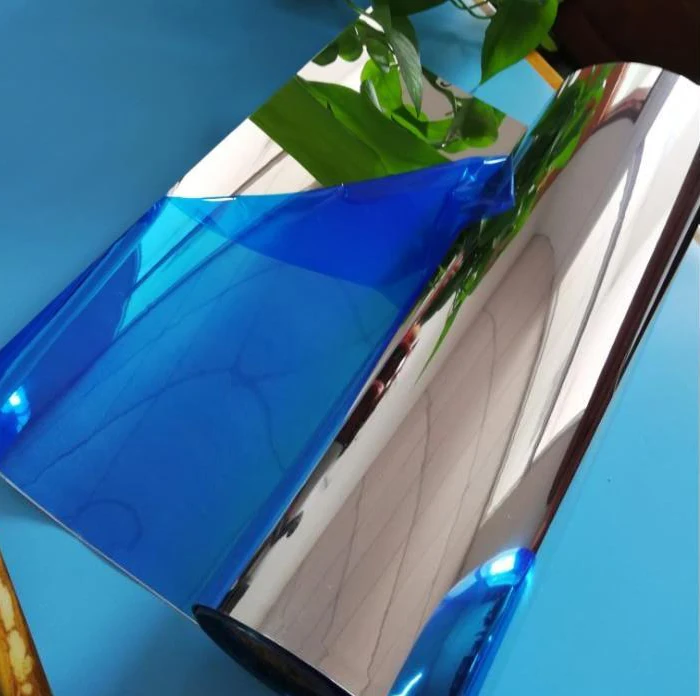

Details Images
Application
Packing & Delivery
Company Profie
Contact us
