Тележки 3 тонны подъемник Цена Электрическая цепная
- Категории: Hoists >>>
- Поставщик: Tianjin,Konovi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
chain block hoists lift electric hoist 5 ton pulley hoist
Specification

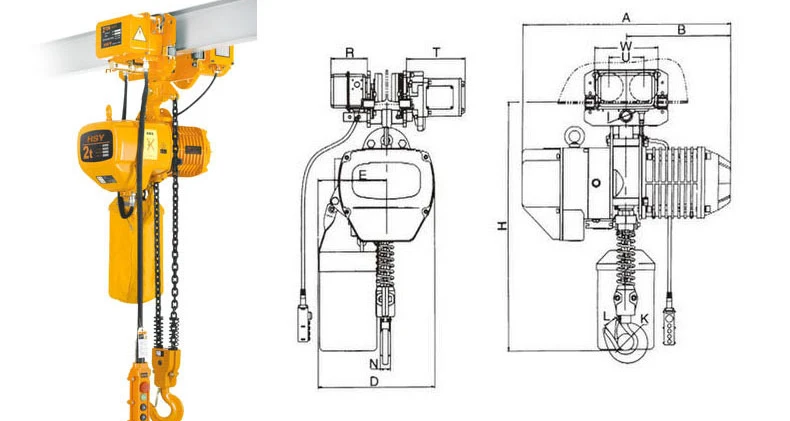

HOIST WITH ELECTRIC TROLLEY | ||||||||||
Model | Unit(mm) | |||||||||
H | A | B | D | E | ||||||
HSY0.5-01S | 635 | 460 | 230 | 288 | 165 | |||||
HSY 0.5-01D | 635 | 545 | 260 | 288 | 165 | |||||
HSY01-01S | 650 | 520 | 260 | 300 | 176 | |||||
HSY01-01D | 650 | 582 | 280 | 300 | 176 | |||||
HSY01-02S | 660 | 460 | 230 | 288 | 165 | |||||
HSY01-02D | 660 | 545 | 260 | 288 | 165 | |||||
HSY1.5-01S | 770 | 615 | 295 | 430 | 265 | |||||
HSY1.5-01D | 770 | 670 | 313 | 430 | 265 | |||||
HSY02-01S | 770 | 615 | 295 | 430 | 265 | |||||
HSY02-01D | 770 | 670 | 313 | 430 | 265 | |||||
HSY02-02S | 815 | 520 | 260 | 300 | 236 | |||||
HSY02-02D | 815 | 582 | 280 | 300 | 236 | |||||
HSY2.5-01S | 830 | 615 | 295 | 430 | 265 | |||||
HSY2.5-01D | 830 | 670 | 313 | 430 | 265 | |||||
HSY03-01S | 830 | 615 | 295 | 430 | 265 | |||||
HSY03-01D | 830 | 670 | 313 | 430 | 265 | |||||
HSY03-02S | 930 | 615 | 295 | 430 | 320 | |||||
HSY03-02D | 930 | 670 | 313 | 430 | 320 | |||||
HSY03-03S | 940 | 520 | 260 | 350 | 205 | |||||
HSY03-03D | 940 | 582 | 280 | 350 | 205 | |||||
HSY05-02S | 1015 | 615 | 295 | 430 | 325 | |||||
HSY05-02D | 1015 | 670 | 313 | 430 | 325 | |||||
Packing & Delivery
Company Profile
chain block hoists lift electric hoist 5 ton pulley hoist
Our Advantages
1. own hoist factory support any customized order
2. Well-known Chinese brand, quality and after-sales guarantee
3. Fast delivery, multi-channel transportation, one-stop solution
FAQ
1.Is your product hoists customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2.How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
3.What’s the information should I provide when I need a product?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated.
The space of my workshop is limited, can the crane is suitable ?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2.How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
3.What’s the information should I provide when I need a product?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated.
The space of my workshop is limited, can the crane is suitable ?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
