Бесконтактный высокоточный пневматический струйный распределительный клапан с высокой
- Категории: Other Machinery & Industry Equipment >>>
- Поставщик: Anosin,Technology,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

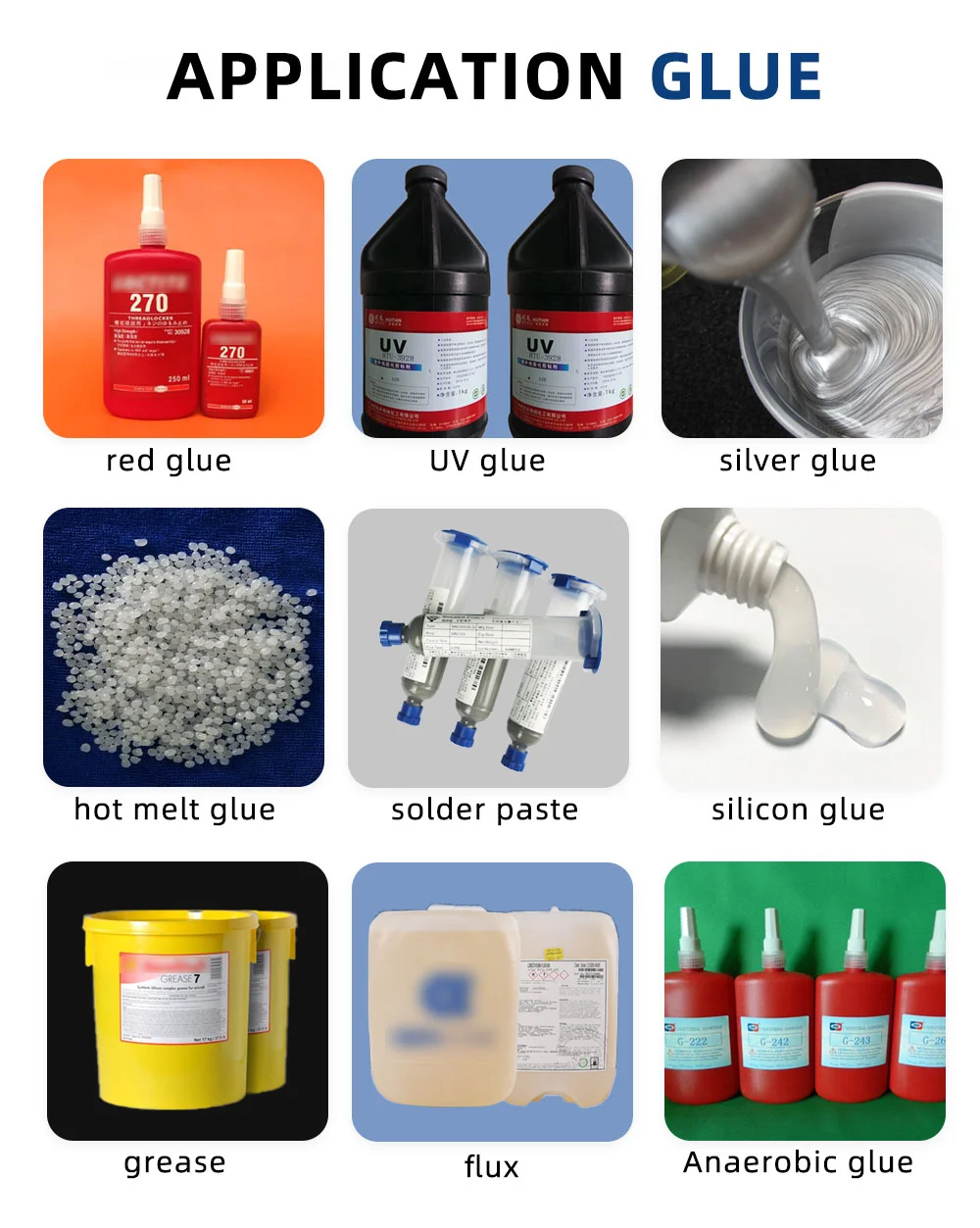

AV-1200 is a non-contact high-speed jet dispensing valve.It is suitable for epoxy, UV, silicone, acrylic, conductive adhesive, tuffy glue and other common glue dispensing applications.It is applicable to applications requiring high-speed or non-contact dispensing, such as PCBA, under-fill, sealing of components, CCM, VCM assembly, LED, semi-conductor packaging, lubricating and life technology fields. Need to be used with controller AJC-20.
AV-1200 | ||||
No. | Item | Data | ||
1 | Dimensions (LxDxH) | 76mmx59mmx130mm | ||
2 | Net weight | 0.8kg | ||
3 | The highest dispensing speed | 200 points/sec | ||
4 | Minimum dispensing diameter | 200μm | ||
5 | Nozzle diameter | 0.05mm ~0.6mm | ||
6 | Valve opening presure | Min.0.6Mpa | ||
AJC-20 | ||||
1 | Dimensions (LxDxH) | 242mmx304mmx98mm | ||
2 | Net weight | 3.5kg | ||
3 | Input power | 220V±10%/50HZ | ||
4 | Air pressure input | Min. 0.6Mpa | ||
5 | Air pressure output | 0~0.7Mpa | ||
6 | Trigger input | 24V pulse or short circuit signal | ||
7 | Cycle dispensing times | 1~9,999 | ||
8 | Communication interface | RS232 | ||

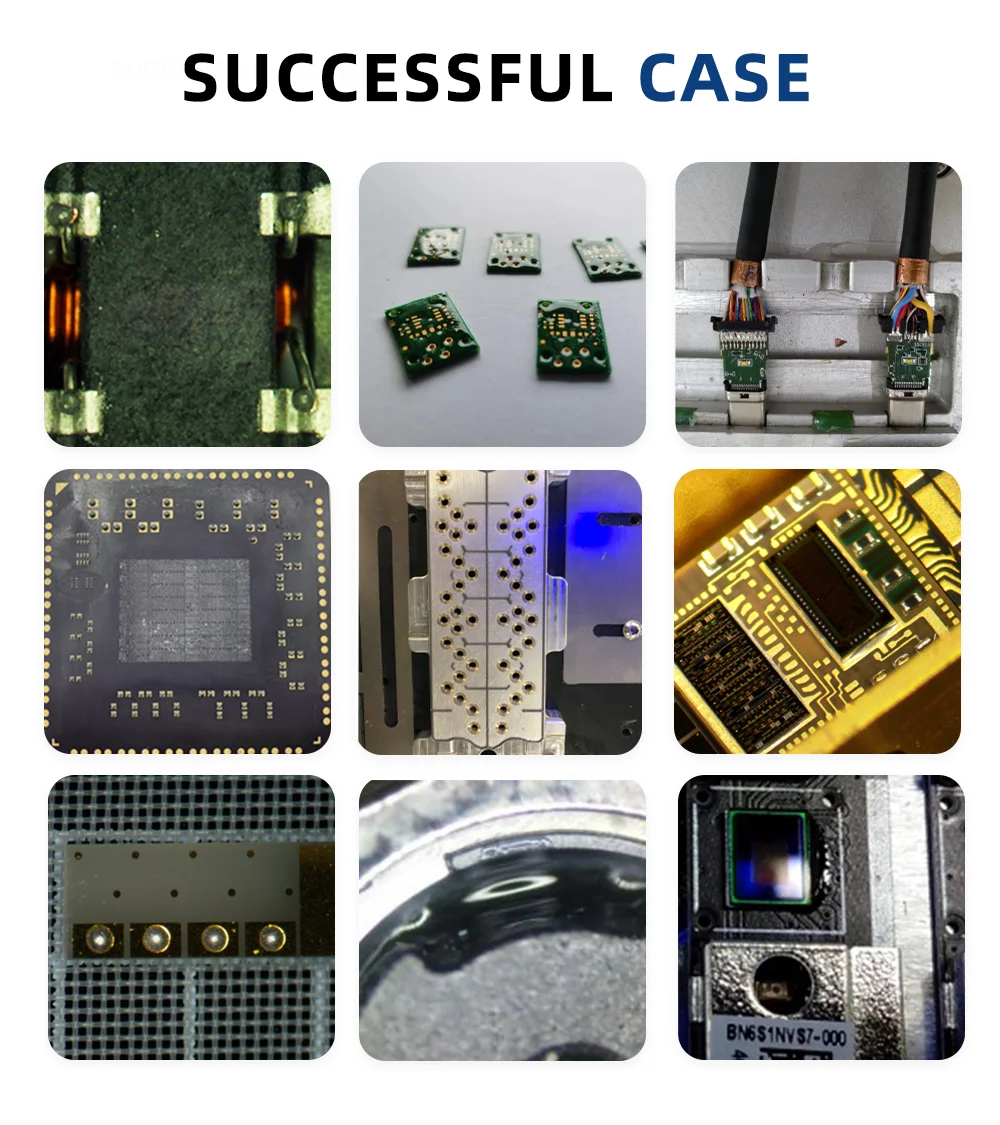

Typical application
1.Flip-chip and BGA underfill
2.Die Attach Epoxy3.Conformal Coating
4.Camera module lens fixing
5.Encapsulation
6.Surface Mounted Package
7.Fingerprint sensor dispensing application
