Лидер продаж машина для сверления метлы и
- Категории: Home Product Manufacturing Machinery >>>
- Поставщик: Cissco,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
VM70-15D contains 2 drilling heads and a tufting head, modular design, easy to solve many varieties, small batch
production needs, can be used as the primer brush-making factory equipment, replaced platform production broom,
toilet brush, disc brush, roller brush, and other products
1. Tufting way：Flat wire or round wire
2. The human-machine touch screen control system, Chinese and English display, convenient operation;
3. Allows stored program 1000 different models of the brush, set up a new program is also very simple
4. Wearing and spare parts are standardized designs, replace and maintenance is very convenient,
5. Can produce the brush with 1 to 3 colors.
6. Optional different platforms for different types brush.
7. Optional platform types is
8. Can choose the platform types are:
●Platform in produce slope /vertical angle of brush；
●Platform in produce spherical toilet brush and semi-spherical dish brush；
●Platform in produce tubular industrial brush and hair brush
production needs, can be used as the primer brush-making factory equipment, replaced platform production broom,
toilet brush, disc brush, roller brush, and other products
1. Tufting way：Flat wire or round wire
2. The human-machine touch screen control system, Chinese and English display, convenient operation;
3. Allows stored program 1000 different models of the brush, set up a new program is also very simple
4. Wearing and spare parts are standardized designs, replace and maintenance is very convenient,
5. Can produce the brush with 1 to 3 colors.
6. Optional different platforms for different types brush.
7. Optional platform types is
8. Can choose the platform types are:
●Platform in produce slope /vertical angle of brush；
●Platform in produce spherical toilet brush and semi-spherical dish brush；
●Platform in produce tubular industrial brush and hair brush
Model | VM70-15D | VM120-15D | VM170-15D |
Axis | 5 | 5 | 5 |
Drilling Head | 1 | 1 | 1 |
Tufting Head | 2 | 2 | 2 |
processing method | Continuous production | Continuous production | Continuous production |
Tufting Head Journey | 70 | 120 | 170 |
Max speed (hole/min) | 500 | 380 | 300 |
Max Length of Brush Plate | 600 | 600 | 600 |
Filament length range | 50-240 | 50-360 | 80-600 |
Hole diameter range | 2.5-8.0 | 3.0-10.0 | 4.0-10 |
Machine power | 4.5 | 5.5 | 7.5 |
Weight | 3000 | 3200 | 3400 |
Size (WxLxH:mm) | 2750X1750X2050 | 3100X2000X2200 | 3500X2350X2350 |
Specification
item | value |
Application | Brush Making Machine |
Condition | New |
Production Capacity | 500 holes/min |
Automatic Grade | Automatic |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2019 |
Warranty of core components | 1 Year |
Core Components | PLC, Motor |
Place of Origin | China |
Shanghai | |
Brand Name | Broom Tufting Machine |
Voltage | 380V/220V |
Power | 5KW |
Dimension(L*W*H) | 2750*1750*2050mm |
Weight | 3 |
Warranty | 1 Year |
Applicable Industries | Manufacturing Plant |
Showroom Location | None |
Brushes | roller,hair ,bowl,radial/parallel tufted brushes |
Spinder quantity | 5 Axis |
Material of Brush Filaments | Bristle/coconut/vegetable fiber |
Packing & Delivery

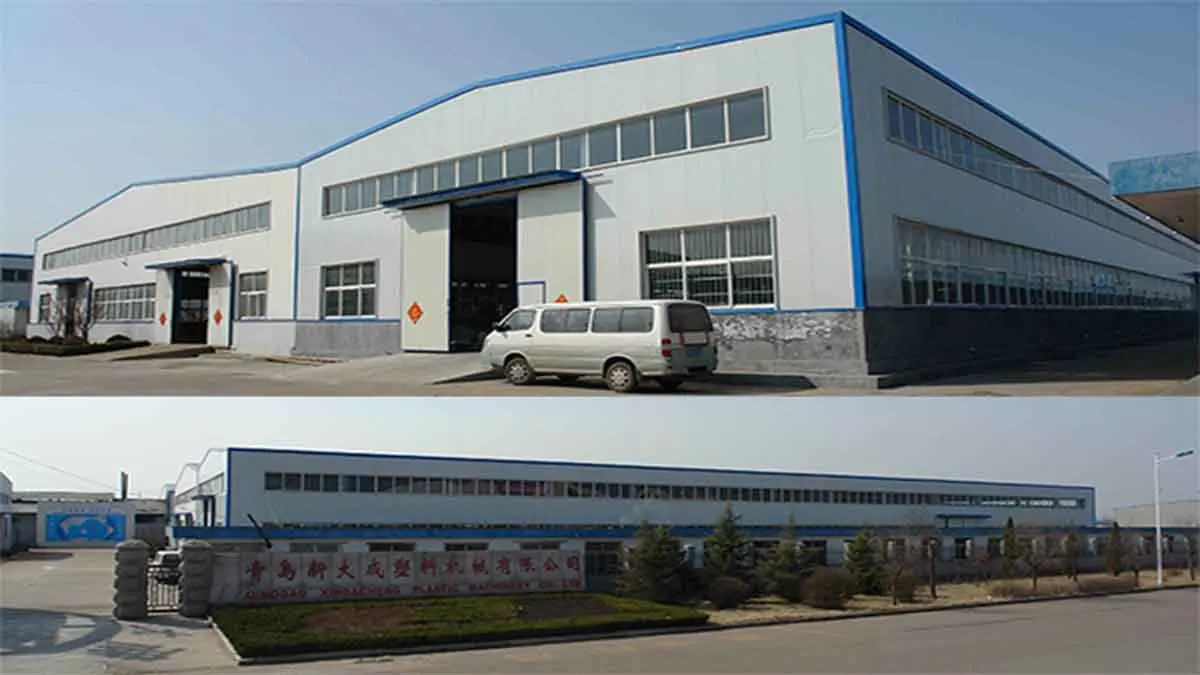

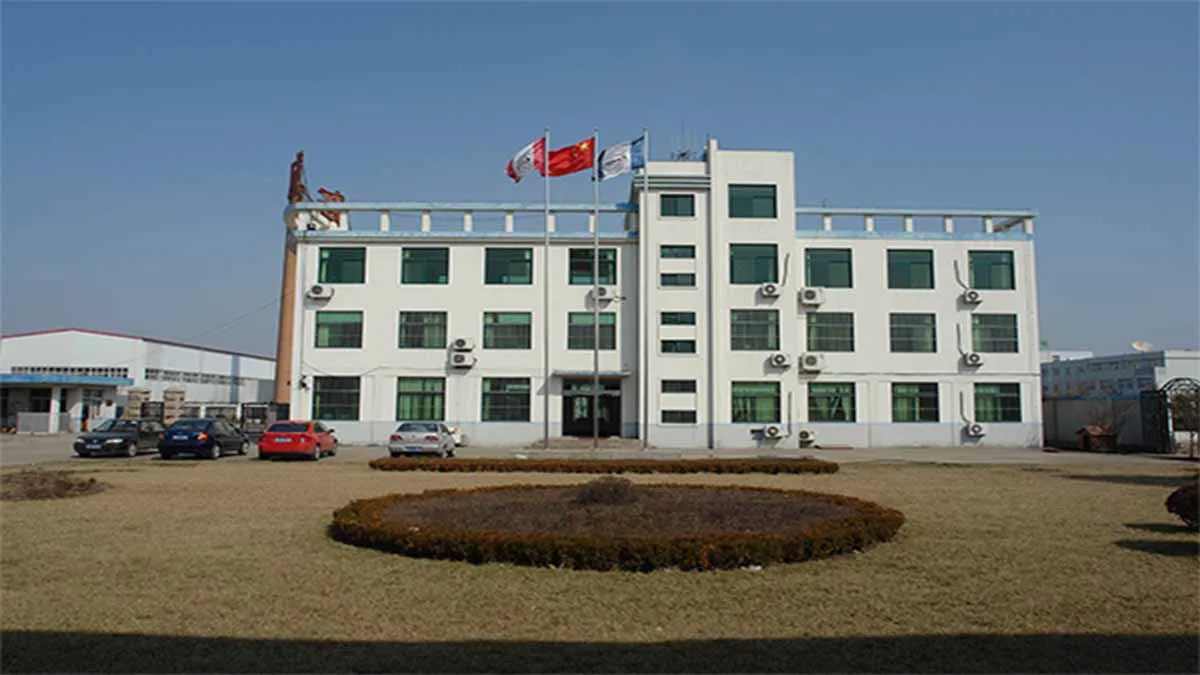

Company Profile
CissCo Machinery is a fast forward professional supplier of face mask making machine, tape coating machine, corona, etc.
At CissCo, we design, engineer and manufacture customized face mask making machine, tape coating machine, corona. There is a proven CissCo technology for virtually every production line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.
To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals.
We are using the high technology from European. Our technical advantages are as follows,
1. European machinery technology;
2. 20 years textile machinery experiences;
3. Easy to operate, Stable production performance, Low production cost, Good quality products;
4. Quicker production speed, bigger output;
5. Good steel material and well-known brand electrical parts;
6. Good appearance of machine, beautiful;
7. Free training for technical process, formula and know-how;
8. Full time and high level after-sale services.
At CissCo, we design, engineer and manufacture customized face mask making machine, tape coating machine, corona. There is a proven CissCo technology for virtually every production line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.
To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals.
We are using the high technology from European. Our technical advantages are as follows,
1. European machinery technology;
2. 20 years textile machinery experiences;
3. Easy to operate, Stable production performance, Low production cost, Good quality products;
4. Quicker production speed, bigger output;
5. Good steel material and well-known brand electrical parts;
6. Good appearance of machine, beautiful;
7. Free training for technical process, formula and know-how;
8. Full time and high level after-sale services.
FAQ
1. How can we be sure that your machine can make the products we need?
You can send your sample to us then we can use machine to make samples.
2. How long is the lead time ?
60 days.
3.What products can this machine produce?
Broom,toilet brush, disc brush, roller brush, and other products
4. Is this machine including drilling and tufting?
Yes .
You can send your sample to us then we can use machine to make samples.
2. How long is the lead time ?
60 days.
3.What products can this machine produce?
Broom,toilet brush, disc brush, roller brush, and other products
4. Is this machine including drilling and tufting?
Yes .
