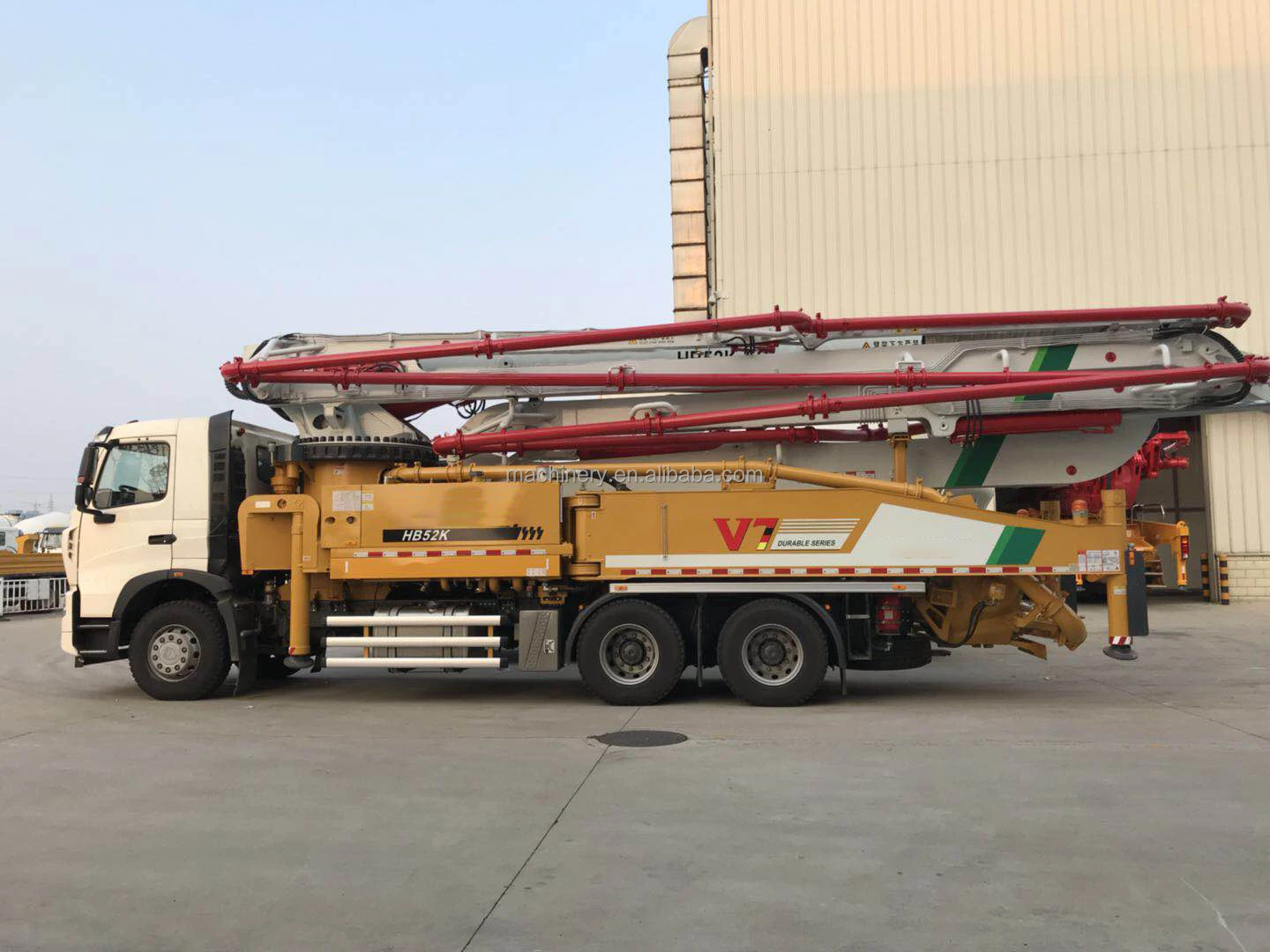

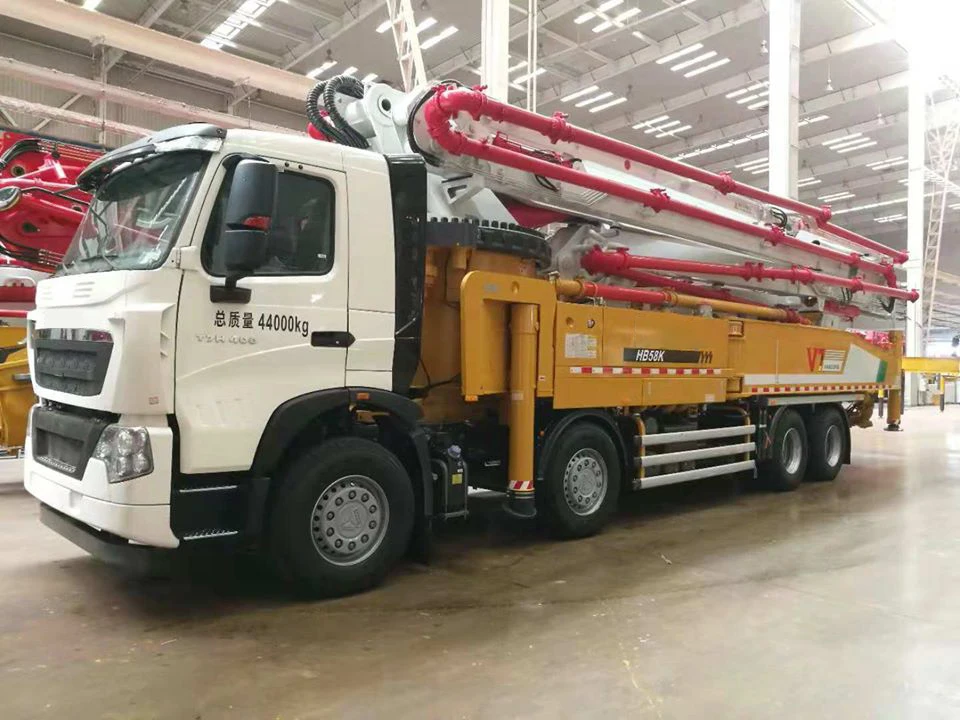

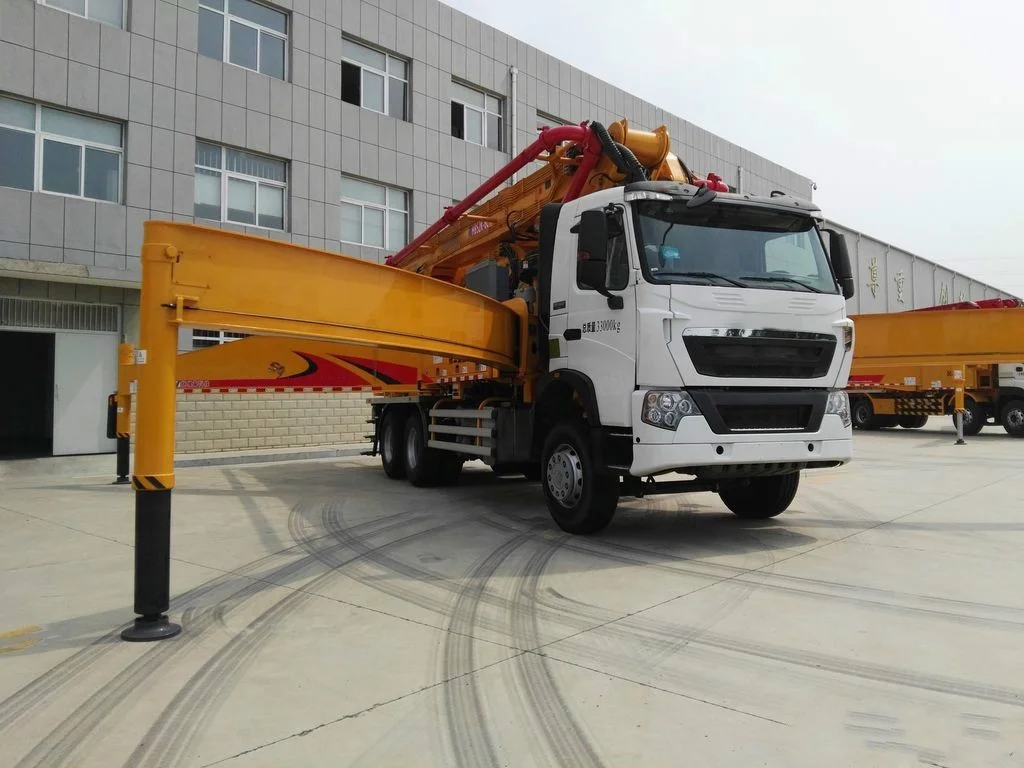

China 40m Truck mounted concrete Boom Pump HB40V
Products Description
1. The adoption of new multi-section boom design optimized by bionic technology effectively reduces placing blind zone and better adapts to placing in high-rise and narrow space.
2. On the basis of the design concept of high rigidity structure, simulative calculation and testing of full-work-condition loading make chassis structure deformation smaller and overall work stability higher.
3. Based on laser guide, coaxial assembly makes piston head’s moving track more precise, with smaller resistance and higher efficiency.
4. SCHWING Germany’s hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero pollution.
2. On the basis of the design concept of high rigidity structure, simulative calculation and testing of full-work-condition loading make chassis structure deformation smaller and overall work stability higher.
3. Based on laser guide, coaxial assembly makes piston head’s moving track more precise, with smaller resistance and higher efficiency.
4. SCHWING Germany’s hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero pollution.
Product Paramenters
Category | Item | Unit | HB40V |
Overall | Outline dimension | mm | 11200×2525×3850 |
Overall weight | kg | 27200 | |
Brand | / | Sinotruk | |
Chassis | Model | / | ZZ5347V524HE1 |
Wheelbase | mm | 4800+1400 | |
Max.power | kW | 294 | |
Engine | Emission | / | ChinaV |
Theoretical | m³/h | 130 | |
Pumping system | Concrete pumping pressure | Mpa | 8 |
Theoretical pumping times | Times/min | 24~27 | |
Placing boom | Reach height | m | 39.1 |
Reach depth | m | 26.8 | |
Slewing radius | m | 35.1 | |
Others | Transfer tuble | / | Rock valve |
