Цена:9,60 $ - 14,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Why Choose Us

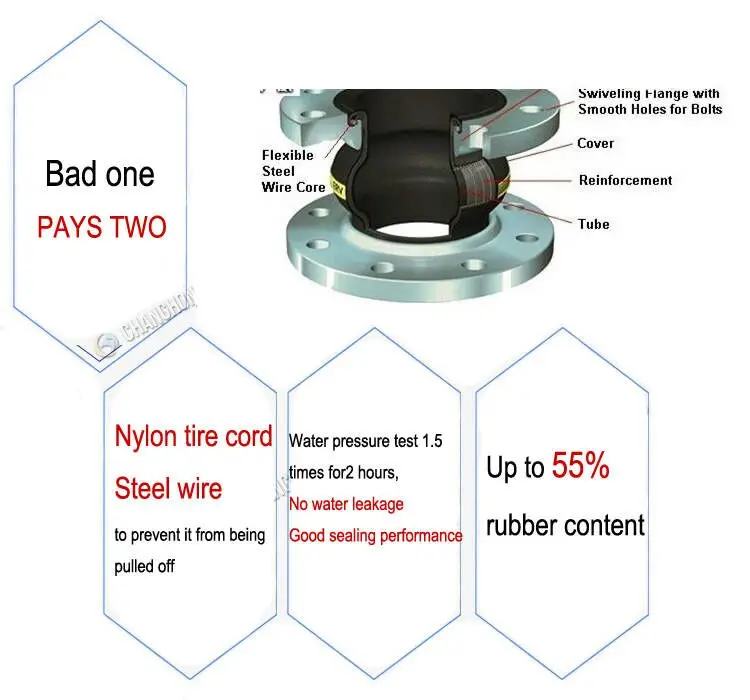

Product Description






Outer/inner rubber
NR,NBR,EPDM
Key frame
Nylon cord fabric
Pressurized ring
Steel wire strand
Flange
Carbon steel,SS316,SS304,Cast Iron


Certifications

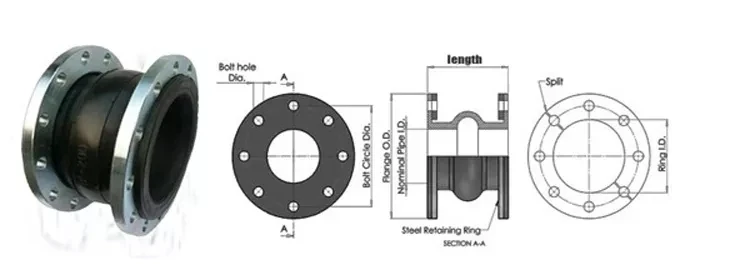

Size
Length(mm)
Extension displacement (mm)
Compression displacement   (mm)
Horizontaldisplacement(mm)
Deflexion angle
DN32
95/130/150
6
9
9
15°
DN40
95/130/150/200
6
10
9
15°
DN50
105/130/150
7
10
10
15°
DN65
115/130/150
7
13
11
15°
DN80
130/150
8
15
12
15°
DN100
130/150
10
19
13
15°
DN125
165/130/150
12
19
14
15°
DN150
180/130/150/200
12
20
22
15°
DN200
210/130/150/200
16
25
22
15°
DN250
230/130/150/200
16
25
22
15°
DN300
245/130/150/200
16
25
22
15°
DN350
255/130/150/200
16
25
22
15°
DN400
255/130/150/200
16
25
22
15°
DN450
255/200
16
25
22
15°
DN500
255/200
16
25
22
15°
DN600
260/200
16
25
22
15°
DN700
260
16
25
22
15°
DN800
260
16
25
22
15°
DN900
260
16
25
22
15°
DN1000
260
18
26
24
15°
DN1200
260
18
26
24
15°
DN1400
350
20
28
26
15°
DN1600
350
25
35
30
20°
DN1800
350
25
35
30
20°
DN2000
420
25
35
30
20°
DN2200
420
25
35
30
20°
DN2400
420
25
35
30
20°
DN2600
450
25
35
30
20°
DN2800
450
25
35
30
20°
DN3000
500
25
35
30
20°


Data above is only for reference,.We have More than 1600 sets of molds with diameter from DN15-DN4000,can meets customized need 100%.multiple sets rubber vulcanizing equipment, which can meet mass production and customization requirements.

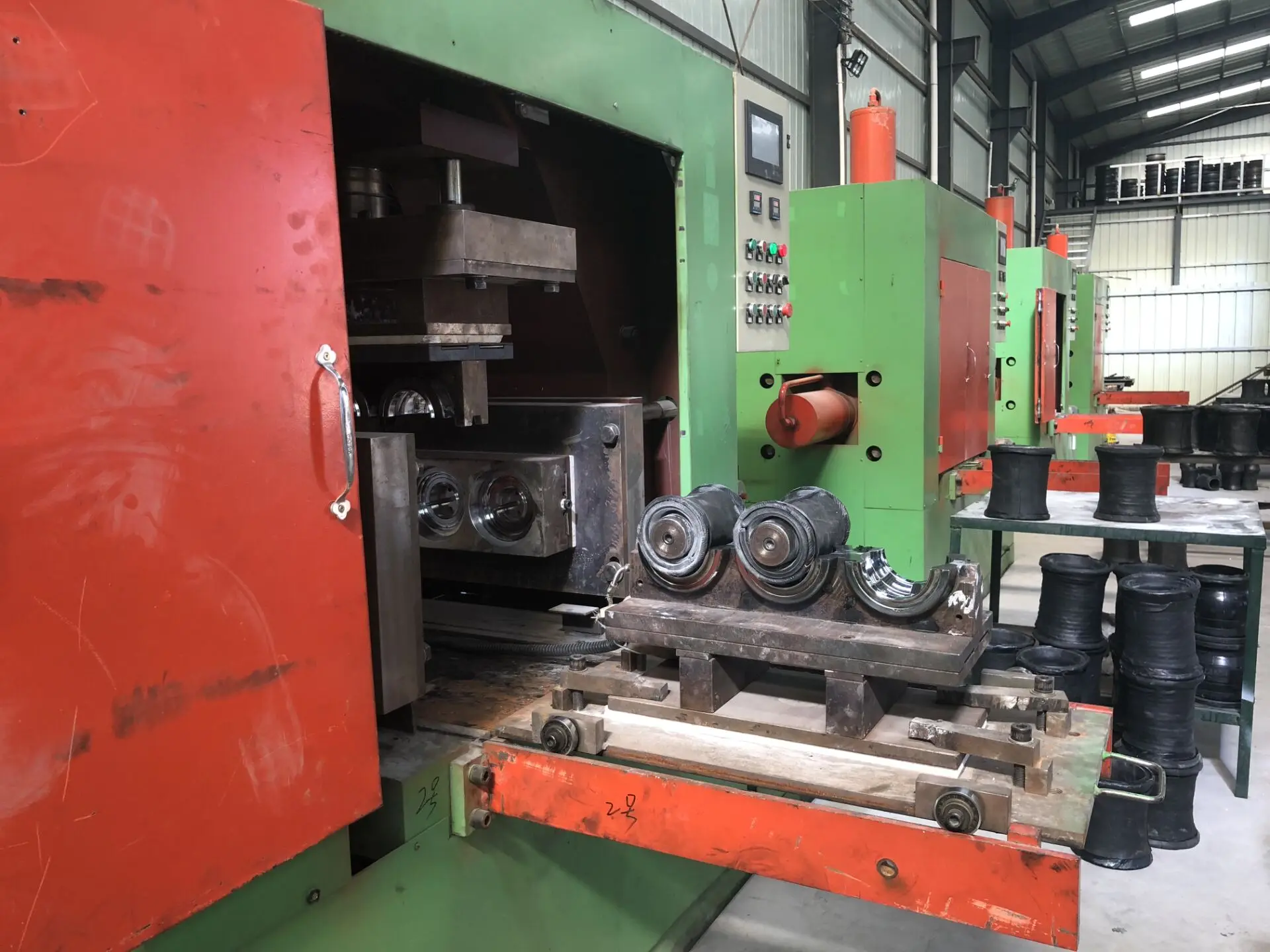

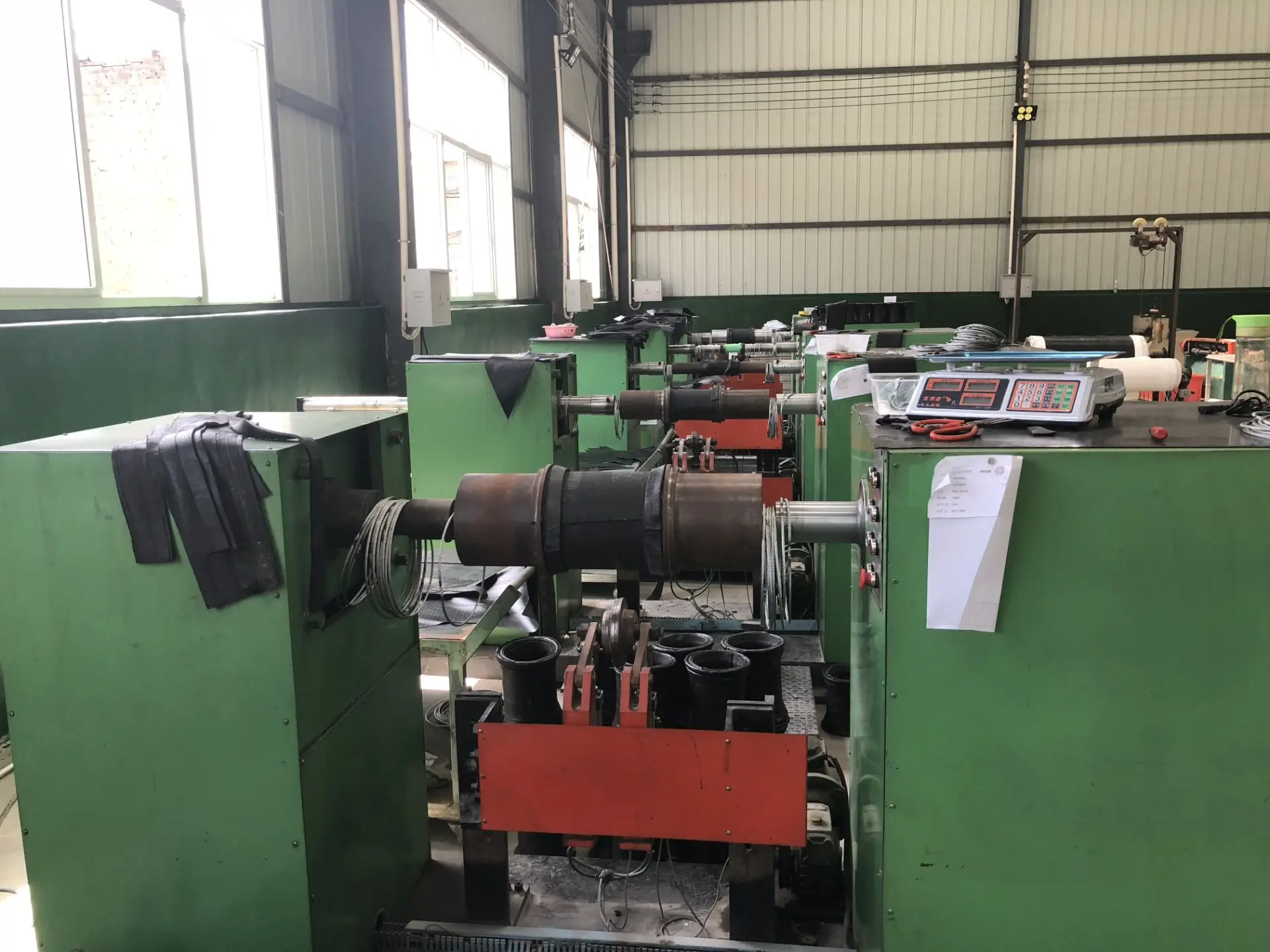

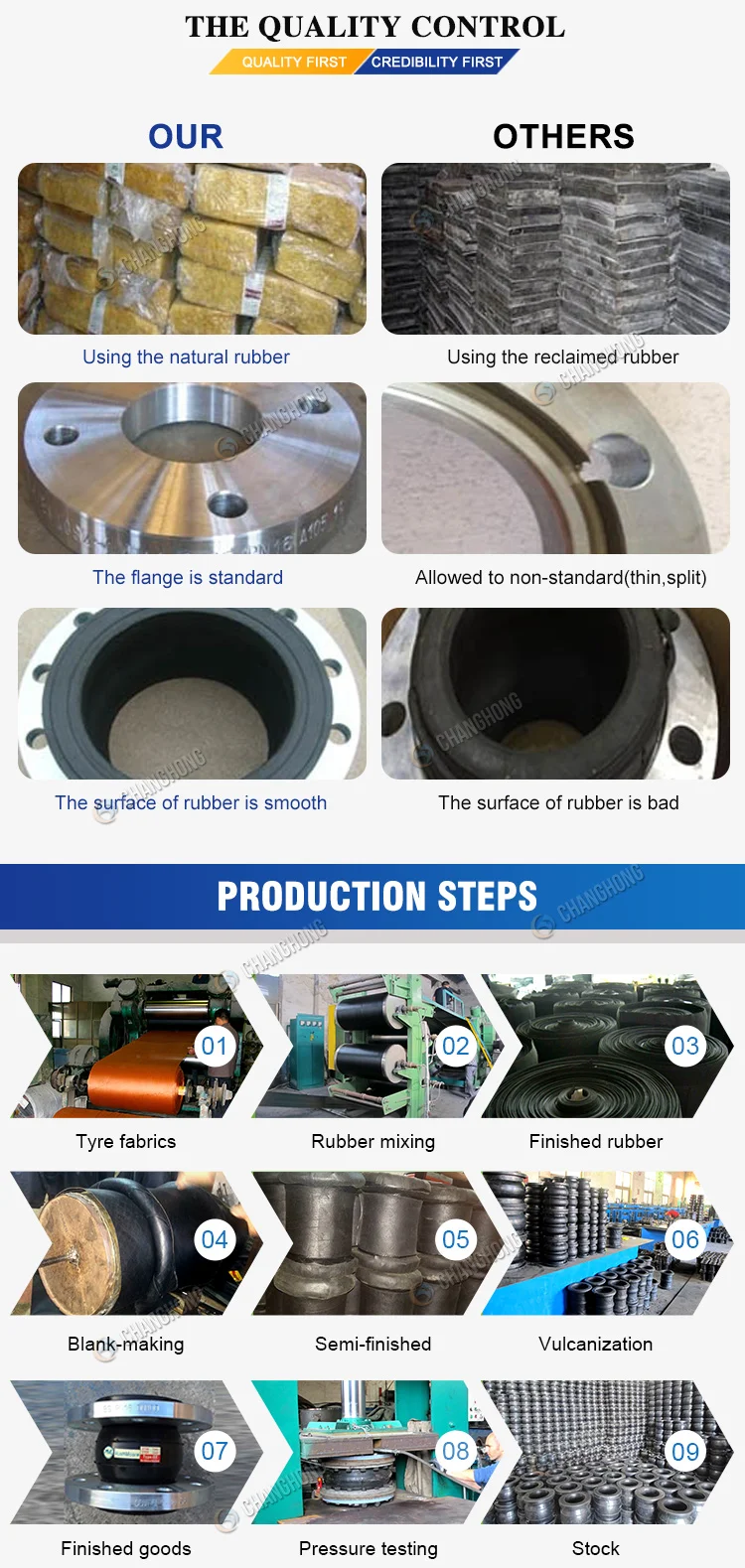

Production


We can sent you video for every steps!
If you want any steps of the video,please click to contact us

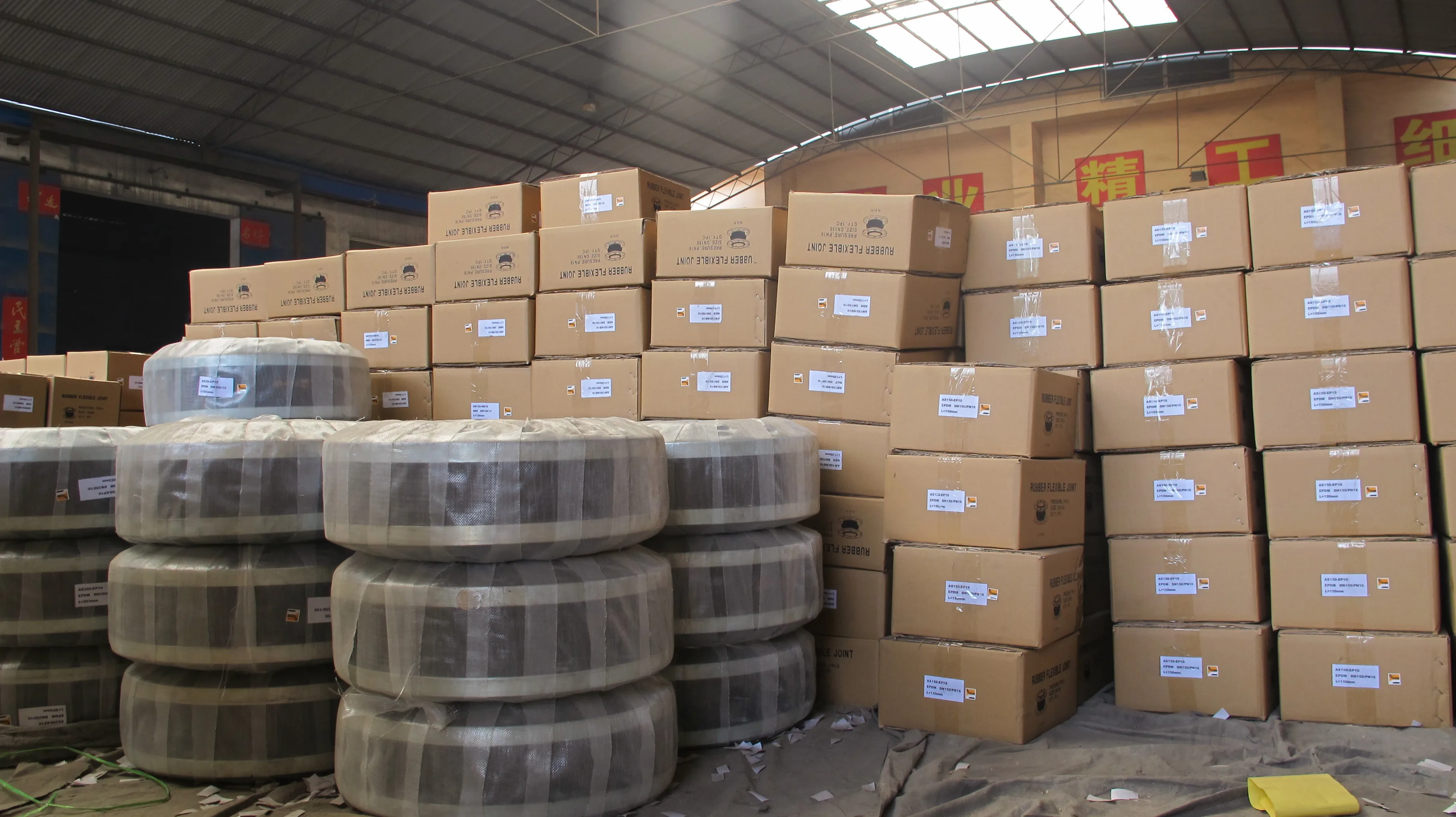

Packing & Delivery




Inner package:plastic bag & carton cases one pcs/box (different size depending on the size )
Outer package :wooden cases (mix packing or every size packing:in usually the size of 1100mm*1100mm*1100mm ,the 20 feet container can hold 18 wooden cases .) pack all goods in wooden case or pallet and cover it with plastic sheet,to avoid carton damage and rain and container condensation water

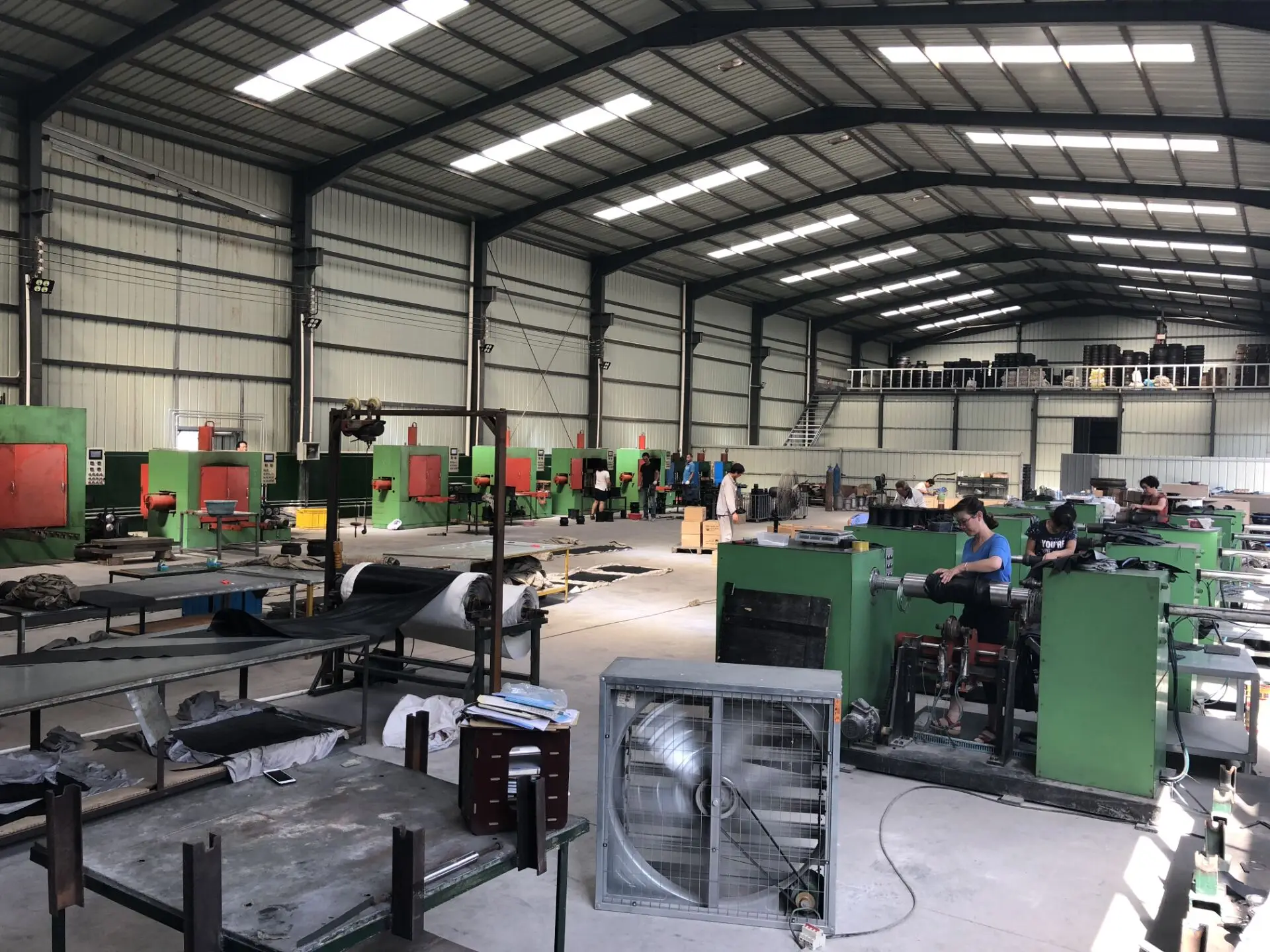

Company Profile

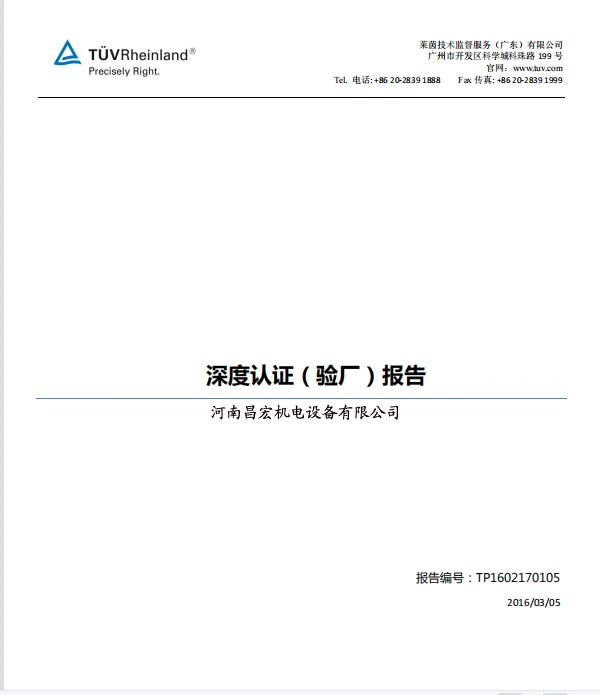

CCIC ISO TUV CE
.


Problems In Use and Solutions

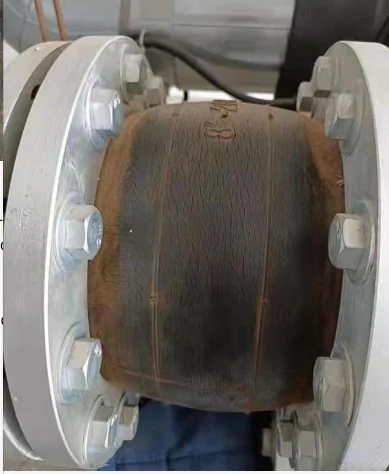

Problem:

Crack in the rubber ball- long storage time and short service life.

Solution:
1.For products stored for a long time,check the appearance before use.If they are damaged or old,they cannot be installed and used again.

2.Check the site installation environment,If it's installed outdoors without shelter,it is recommended to install a protective cover to protect the rubber joint from wind,sun and rain and prolong the service life of the rubber joint.

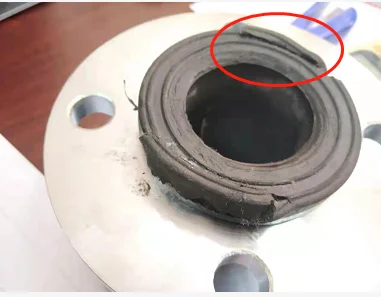

Problem:

Rubber pull off and nylon cord fabric leaked out .

Solution:
Added the limit rod.It can protect expansion joint from Over-expansion joint and Over-compression.It can prevent squirming on
longer expansion joint.


Problem:

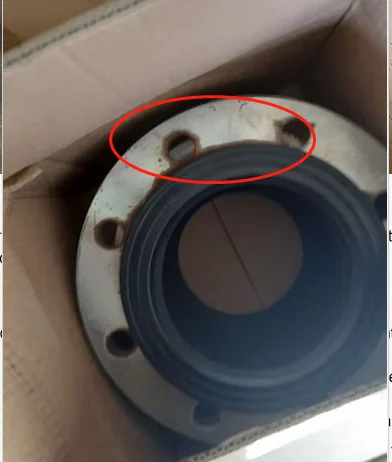

The flange holes are rusty

Solution:
1.Enhanced flange galvanizing technology
2.When storing rubber joints,avoid placing them in rain,sun exposure or wet place.


FAQ


1. Is the flange galvanized?
Yes, carbon steel flange not painting anticorrosive paint must be galvanized in order to avoid rusting. Usually, we choose
electronic galvanized and hot dip galvanized, and most of our customers will choose hot galvanizing.

2. What kind of standard of your drilled flange?
Besides Chinese national standard, we also support American standard, German standard, British standard, Japanese standard,
European standard and Australia standard. If you can give us the center distance of the hole, the number and diameter, we can also produce customized flange.

3 Can the inner layer rubber and outside layer rubber be made using different rubber?
Yes, we can produce the rubber joint according to the environment the rubber joint is used in, and we will choose different rubber for the inner layer and outside layer.

4. Can I only buy ball without the flange?
Yes, and the price will be cheaper. For small diameter rubber joint, we have goods in stock and we can offer you a free for your test,but for large diameter rubber joint you need order.

5. How long is your product’s warranty?
24 month. From the day the customer receiving the goods, we grant a free replacement if the products have any problems during the guarantee period.

6. Does the rubber joint have inspection report?
Yes, all of our product will be conducted hydro test and leave the factory with a qualified inspection report.

7. Can you offer the drawing?
Yes, we have a excellent engineer team, and they will offer your professional drawing and technical support.
