Золотистая серебристая медная свинцовая цинковая никелевая марганцевая железная руда шаровая мельница небольшого размера для горных
- Категории: >>>
- Поставщик: Shanghai,Clirik,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Introduction
【Feeding size】：≤25
【Discharging size】：0.074-0.4
【Application】：ball mill be suitable for grinding(wet or dry) all kinds of ores and other materials. Applied industries, building materials, chemical, electric power, coal, traffic, light industry, etc.
【Discharging size】：0.074-0.4
【Application】：ball mill be suitable for grinding(wet or dry) all kinds of ores and other materials. Applied industries, building materials, chemical, electric power, coal, traffic, light industry, etc.
Introduction
Layers Puzzle Type Parking Equipment
2 layers puzzle type are very popular in China, it makes your parking spaces quantity much more than it was with low cost and short installation time.
With the lifting and sliding movements of pallets, the cars could be parked and retrieved. The driver only needs to swipe a card or push the buttons at operational box, the retrieving process will be applied automatically.
Parameters
Model | Cylinder rotary speed（r/min） | Loading ball weight(t) | Input size(mm) | Discharge size(mm) | Capacity(t/h) | Motor power (kw) | Weight (t) |
Ф900×1800 | 30 | 1.5 | ≤20 | 0.075-0.89 | 0.8-2 | 18.5 | 4.6 |
Ф900×3000 | 39 | 2.7 | ≤20 | 0.075-0.89 | 1-4 | 22 | 5.6 |
Ф1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
Ф1200×4500 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
Ф1500×3000 | 27 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
Ф1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
Ф1830×3000 | 25 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
Ф1830×6400 | 24 | 21 | ≤25 | 0.074-0.4 | 7-16 | 210 | 34 |
Ф1830×7000 | 24 | 23 | ≤25 | 0.074-0.4 | 8-18 | 245 | 36 |
Ф2100×3600 | 23 | 19 | ≤25 | 0.074-0.4 | 10-36 | 210 | 46 |
Ф2200×4500 | 21 | 27 | ≤25 | 0.074-0.4 | 12-23 | 280 | 48.5 |
Ф2200×6500 | 21 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
Ф2200×7000 | 21 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
Ф2200×7500 | 21 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
Ф2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 18-45 | 320 | 65 |

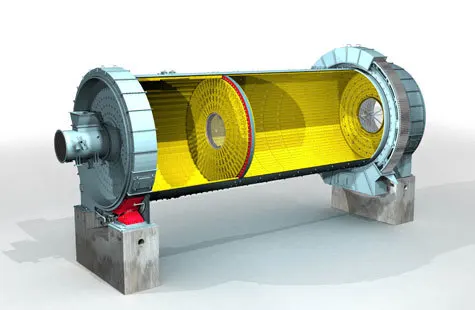

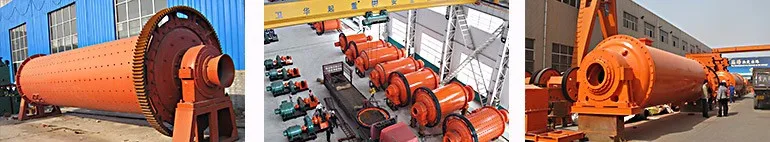

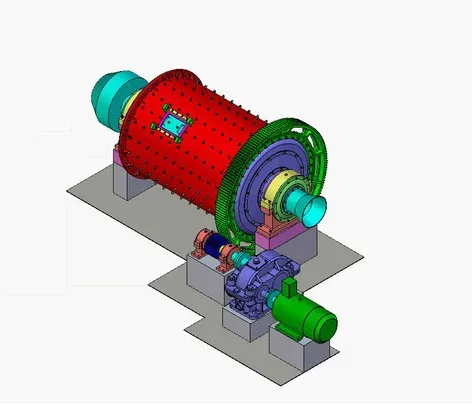

Details Show
Why Choose Us
Product Processing

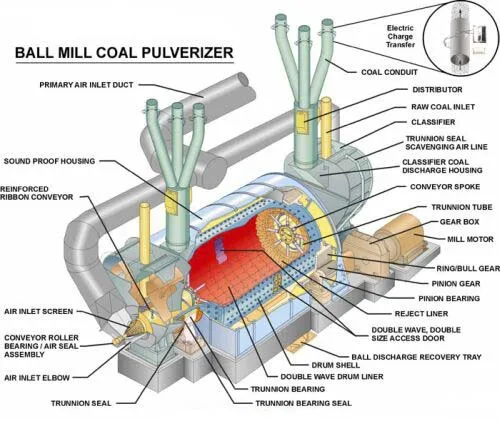

After the material is roughly broken, it enters the ultra-fine ball mill by the lifting and conveying equipment.
The grinding medium in the mill relies on the energy obtained when the mill rotates to impact and grind the material.
The pulverized material enters the self-split micro powder classifier through the unloading bin for classification to realize the separation of coarse and fine powder.
The qualified fine powder is collected by the collector, and the coarse particles are re-entered into the ball mill from the lower end of the classifier to be crushed.
The purified gas is discharged by the induced draft fan.
The grinding medium in the mill relies on the energy obtained when the mill rotates to impact and grind the material.
The pulverized material enters the self-split micro powder classifier through the unloading bin for classification to realize the separation of coarse and fine powder.
The qualified fine powder is collected by the collector, and the coarse particles are re-entered into the ball mill from the lower end of the classifier to be crushed.
The purified gas is discharged by the induced draft fan.
Contact Us
Shanghai Clirik Machinery Co. Ltd.,
As a professional enterprise which is specializing in research, manufacture and sales all kinds of mining equipment, We have many agents sell our products all over the world.Our products are widely used in the industry of mining, construction materials,
chemicals, metallurgy, transportation, hydraulic engineering and so on.
chemicals, metallurgy, transportation, hydraulic engineering and so on.
More details welcome to visit our Store

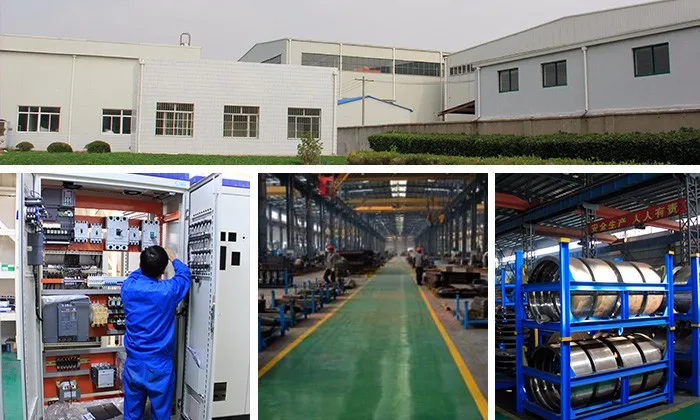

Our Working Site
Customer Visite
Our Exhibition
Our Service
FAQ
1. Are you manufacture or trading company?
We are factory local in Shanghai, China.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
We are factory local in Shanghai, China.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
