UHF 860-960 МГц RFID библиотека ворота противоугонная система uhf rfid считыватель ворот для
- Категории: Access Control Card Readers >>>
- Поставщик: Huizhou,Chenxin,Intelligence,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

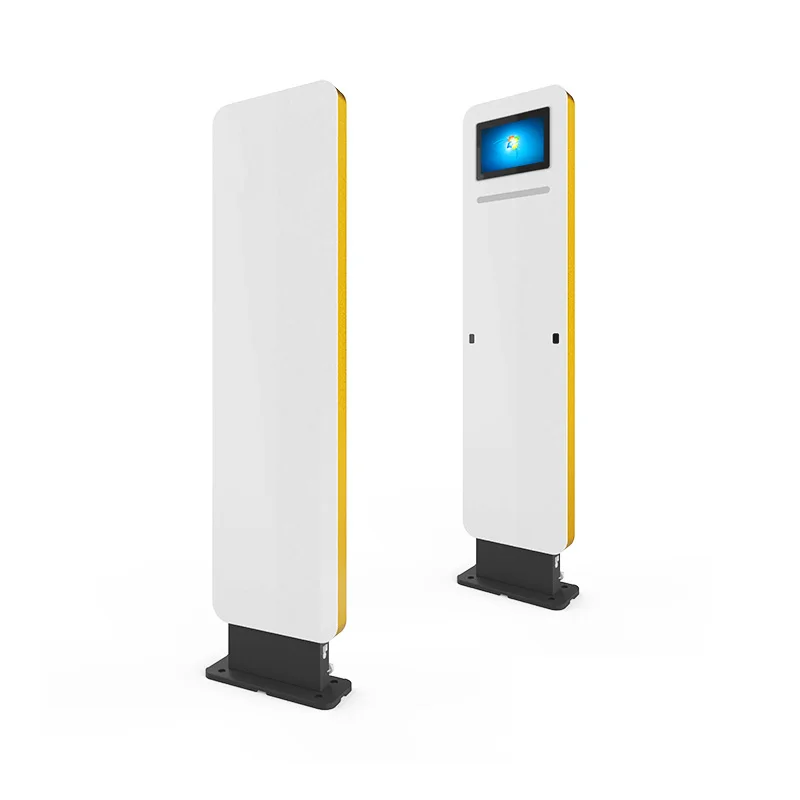

UHF 860-960 MHZ RFID library gate Anti theft system uhf rfid reader gate for super market
1. Based on independent intellectual property development, adapt reader to work with global frequency range.
2. RFID gate reader is combined by RFID antennas, reader, EAS sound and light alarm system, power supply and
other assistant equipments. When goods or person attached with RFID tag go through the channel, RFID antenna
Features
1. Support tags conforming to standards EPC global UHF ISO-18000-6C (EPC G2), TK900;
2. Frequency range 902~928MHZ(or customized);
3. Support multi communication interfaces (LAN, RS232, RS485, Wiegand26/34);
4. 4 SMA antenna ports, 7dbi circular polarization antenna, the height of antenna adjustable;
5. RF output power 20 ~ 30dBm adjustable, support auto, command, trigger work modes;
6. Reliable industry structure design, workable in varied severe environment.
2. RFID gate reader is combined by RFID antennas, reader, EAS sound and light alarm system, power supply and
other assistant equipments. When goods or person attached with RFID tag go through the channel, RFID antenna
will read the information and real time send to reader and related processor, to achieve the goods or person management.

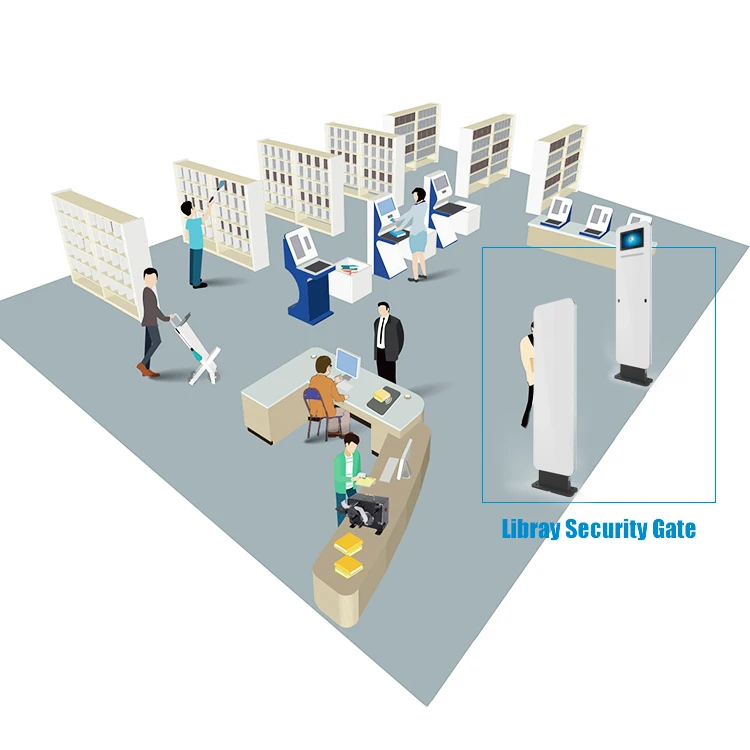

3. Application: warehouse assets management, meeting attendance, clothes industry, books and files industry, manufacturing control and other open fields with big flows.
3. Application: warehouse assets management, meeting attendance, clothes industry, books and files industry, manufacturing control and other open fields with big flows.
Features
1. Support tags conforming to standards EPC global UHF ISO-18000-6C (EPC G2), TK900;
2. Frequency range 902~928MHZ(or customized);
3. Support multi communication interfaces (LAN, RS232, RS485, Wiegand26/34);
4. 4 SMA antenna ports, 7dbi circular polarization antenna, the height of antenna adjustable;
5. RF output power 20 ~ 30dBm adjustable, support auto, command, trigger work modes;
6. Reliable industry structure design, workable in varied severe environment.
Working Frequency | 902～928 MHz or 865~868MHz |
Chip | Impinj R2000 |
SDK | C++, JAVA,C# |
Software | Provides a DEMO(Reading and writing tags automatically) |
IProtocol | ISO18000-6C/EPC C1G2, ISO18000-6B, GB/T29768-2013 (expandable support); ISO15693 |
Size | (screen)1496*370*54mm,(base)137mm |
Working temperature | -10℃~+50℃ |
Communication port | RJ45; RS232 (WiFi/4G optional) |
Power | AC220V±10％ |
RF power | 0dBm~33dBm |
Reading distance | 0~6m(depend on antenna gain, tag and environment) |
Clock | Real time saved when power off |
Frequency method | Fixed or hopping |
Material | Alloy profile; Acrylic surface material |
Working method | Sound and light alarm |
Product application
1.Vehicle management：monitoring and managing autos and containers
2.Customs management：great speed up the customs’ process
3.Logistics management：parcels and whale house management
4.Access control：including car access and personal access
5.Production line management：monitoring products from end to end
6.Asset management：dramatically improved the security level
1.Vehicle management：monitoring and managing autos and containers
2.Customs management：great speed up the customs’ process
3.Logistics management：parcels and whale house management
4.Access control：including car access and personal access
5.Production line management：monitoring products from end to end
6.Asset management：dramatically improved the security level
