product Description

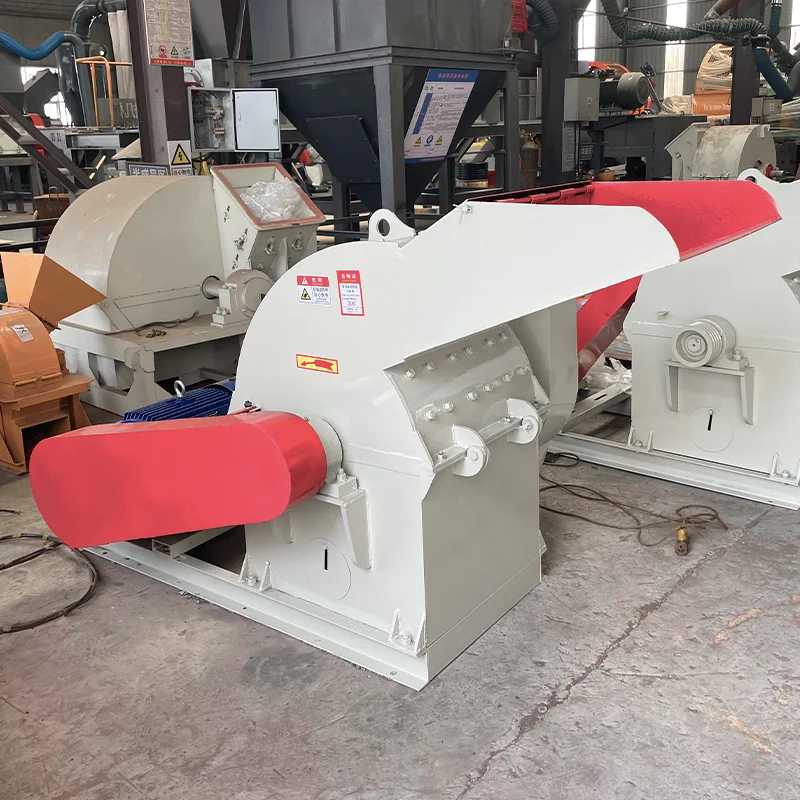

Factory supply Charcoal Crusher coconut shell charcoal crusher machine
coconut shell charcoal crusher machine is composed of machine body, knife chipping part, chips re-crush part and sieving part ,ect. It combines both chipping and crushing in one machine, can make sawdust in one passage, no need to use wood chipper for preprocessing of wood logs.To ensure security, the feed inlet of this crushing equipment adopts self-sction design to avoid serious damage to operators.

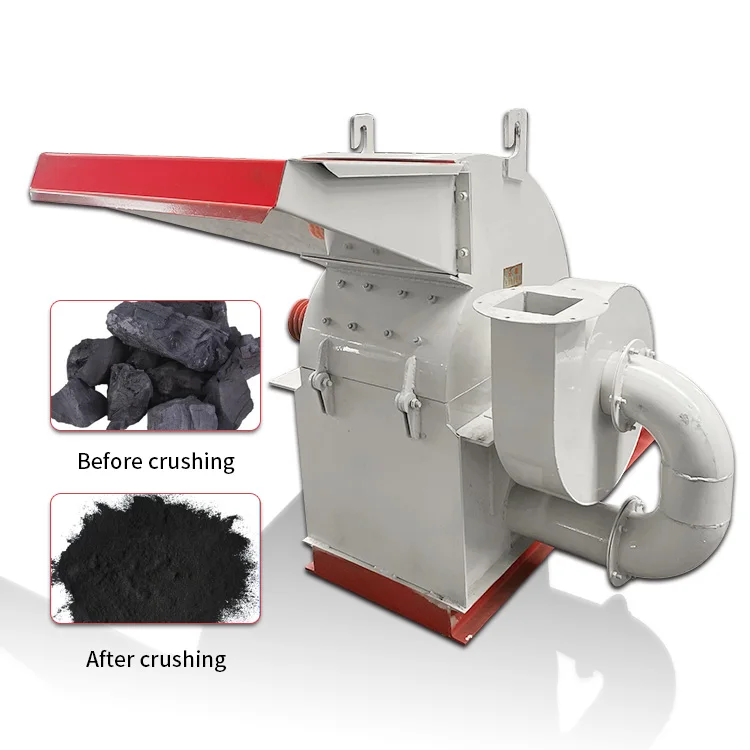

Comparison of effect pictures before and after crushing
The coconut shell charcoal crusher machine for charcoal is especially suitable for charcoal powder processing, it’s maked up by cutting device,crushing device and fan. It mainly processing wood charcoal,coconut shell, bamboo charcoal,peanut charcoal, carbonized wood chips or small wood log, etc.The final discharged powder is from 80-100 mesh. Without drying can be sent to the crushing device for further crushing. It with high crushing ratio, equal product granularity, simple structure, reliable working condition, low consumption and convenient maintenance.

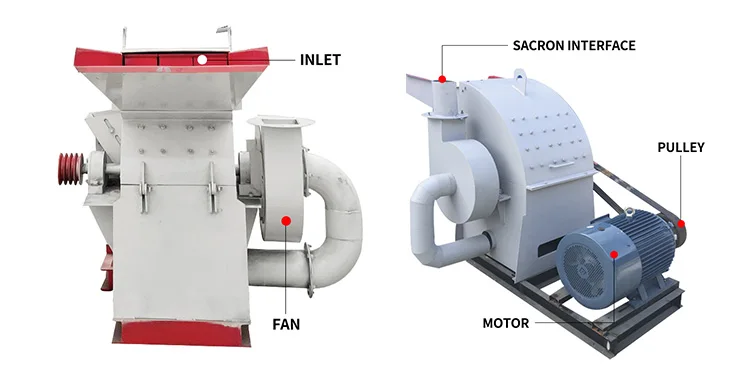

Product details
Materials from the hopper into the crushing chamber, there have been high speed rotating hammer crushingblow, under the action of centrifugal force to break the material along the outer edge of the rotor, continuous by the hammer, tooth plate, screen film extrusion, collision, combat, rubbed and was quickly crushed,crushed powder after the centrifugal rotor by the pressure and suction force of the fan sent outside through the sieve, sieve the powder through repetition but on top process until the machine through the sieve was sent to the far outside.
Model | 400 | 600 | 800 | 1000 |
Dics diameter(mm) | 400 | 600 | 800 | 1000 |
Blade quantity | 4 | 4 | 6 | 6 |
Blade length(mm) | 80 | 100 | 150 | 200 |
Fineness | 80-100 mesh | 80-100 mesh | 80-100 mesh | 80-100 mesh |
Power(Kw) | 15 | 18.5 | 22 | 30 |
Output(Kg/h) | 500-600 | 600-800 | 1000-1200 | 1500-2000 |
Work Process
The crusher adopts blade cutting and high-speed flow, collision and double crushing functions can be completed on one machine, and particles can be separated at the same time.
During the cutting process, the rotor generates a high-speed airflow. As the cutting direction of the blade rotates, the material is accelerated in the airflow and repeatedly impacted to make the material double crush and accelerate the material crushing speed.
During the cutting process, the rotor generates a high-speed airflow. As the cutting direction of the blade rotates, the material is accelerated in the airflow and repeatedly impacted to make the material double crush and accelerate the material crushing speed.

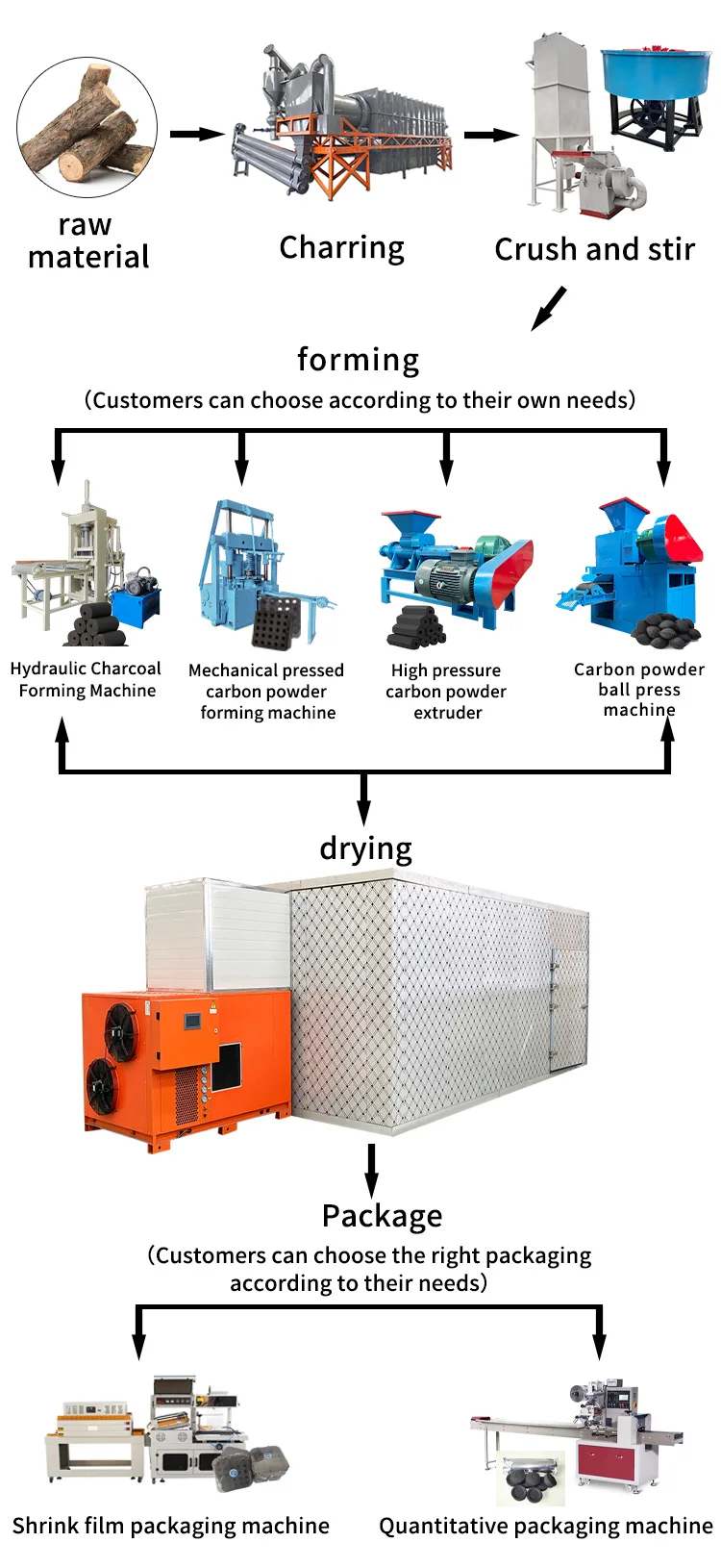

1. Carbonized raw materials
2. Crush + Stir
3. Forming
Suggestions for putting in raw materials:
1) The size is 3-5 mm (may require a crusher)
2) The content of MOisture is within 8-12% (a dryer may be required)
deal with:
Screw mold opening and heating ring and forming tube, high temperature and pressure to make briquette
Shape options: square, pentagonal and hexagonal
4. Drying
5. Packaging
2. Crush + Stir
3. Forming
Suggestions for putting in raw materials:
1) The size is 3-5 mm (may require a crusher)
2) The content of MOisture is within 8-12% (a dryer may be required)
deal with:
Screw mold opening and heating ring and forming tube, high temperature and pressure to make briquette
Shape options: square, pentagonal and hexagonal
4. Drying
5. Packaging
Company Profile
Henan Chengjinlai Machinery Manufacturing Co., Ltd. is a professional manufacturer of charcoal manufacturing machinery in China.
