Product Overview
Brand | Jinchuan |
Name | AA high precision Er collet |
Specification | ER8 |
Size | 1mm-5mm |
Accuracy | within 0.008mm |
Features | 65 fierce steel material, not easy to deform, high hardness and strong elasticity |

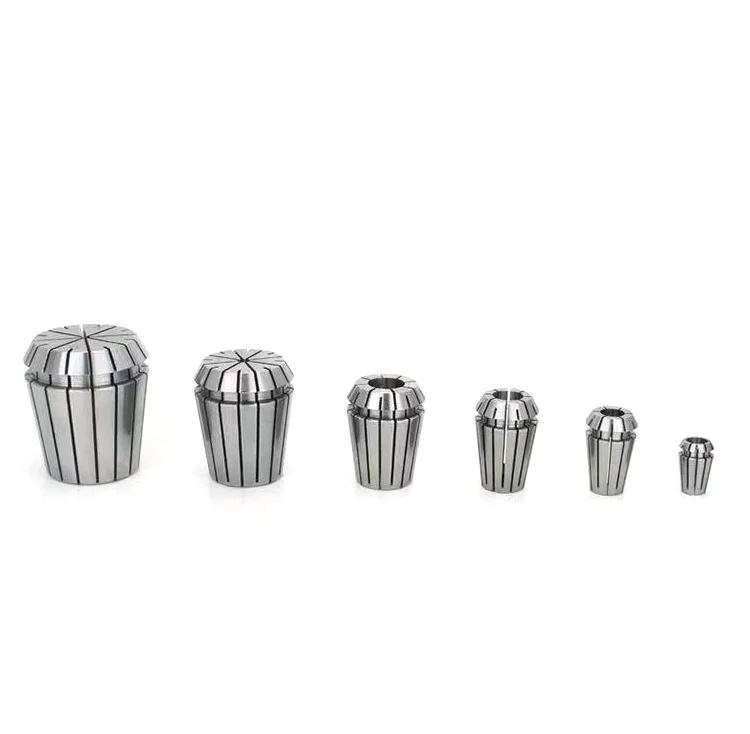

PRODUCT SIZE PARAMETERS
Er11 clamping range 1-7mm
Er16 clamping range 1-10mm
Er20 clamping range 1-13mm
Er25 clamping range 1-16mm
Er32 clamping range 1-22mm
Er40 clamping range 3-26mm
CHUCK HANDLING INSTRUCTIONS

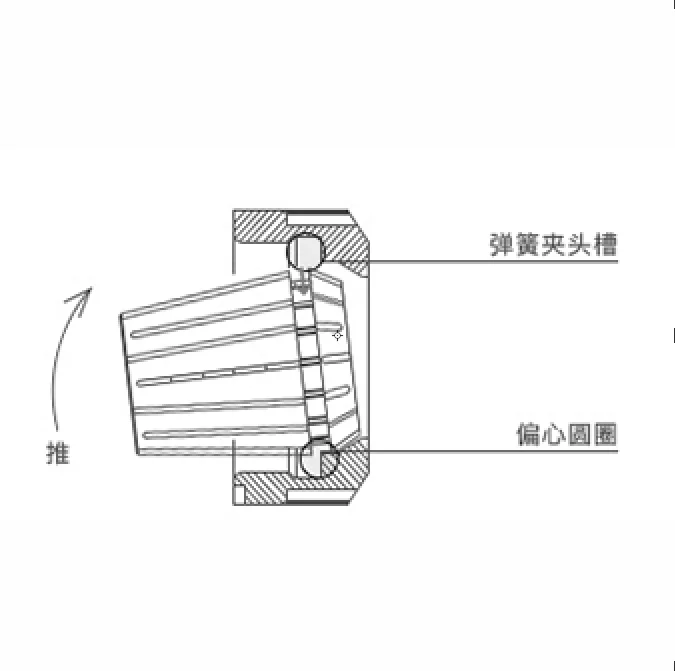

1. Install the groove of the spring collet into the eccentric circle position of the nut, and push the spring collet in the direction indicated by the arrow until a click is heard, which means that the spring collet is in place.
2. Install the spring collet on the tool and make sure it is in place,
3. Install the nut on the tool handle and lock it with a wrench.

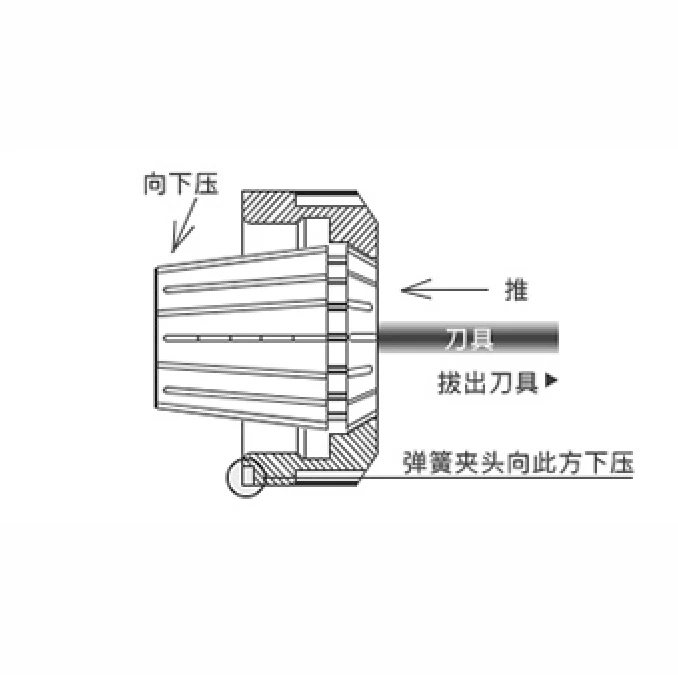

After unscrewing the nut from the tool handle, pull out the tool, push it inward from the front of the spring collet, press it downward against the bottom of the eccentric circle at the same time, and push the spring collet obliquely until the spring collet and nut are disassembled.

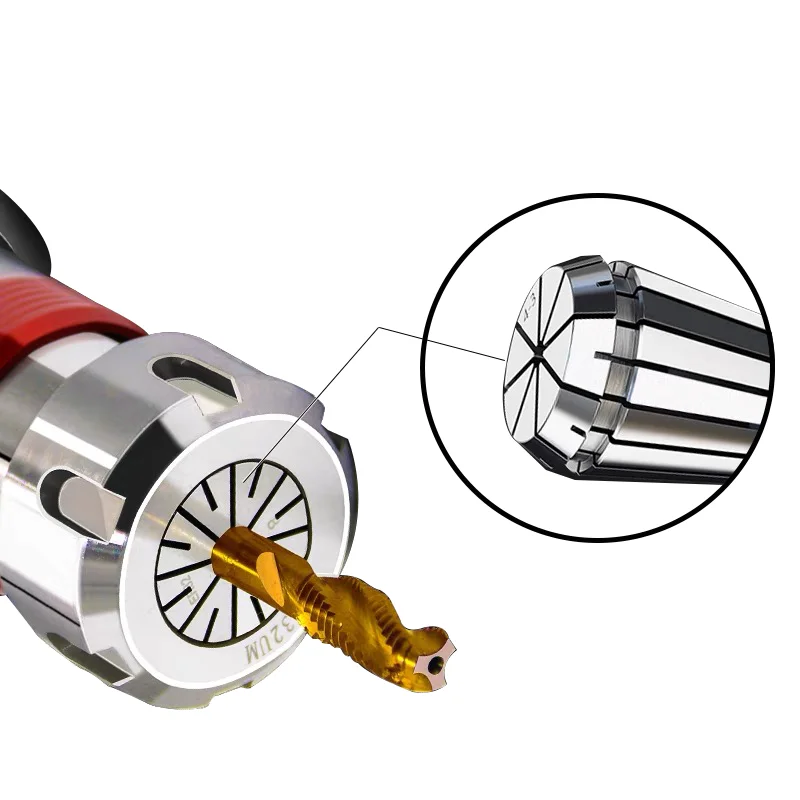

Effect after installation

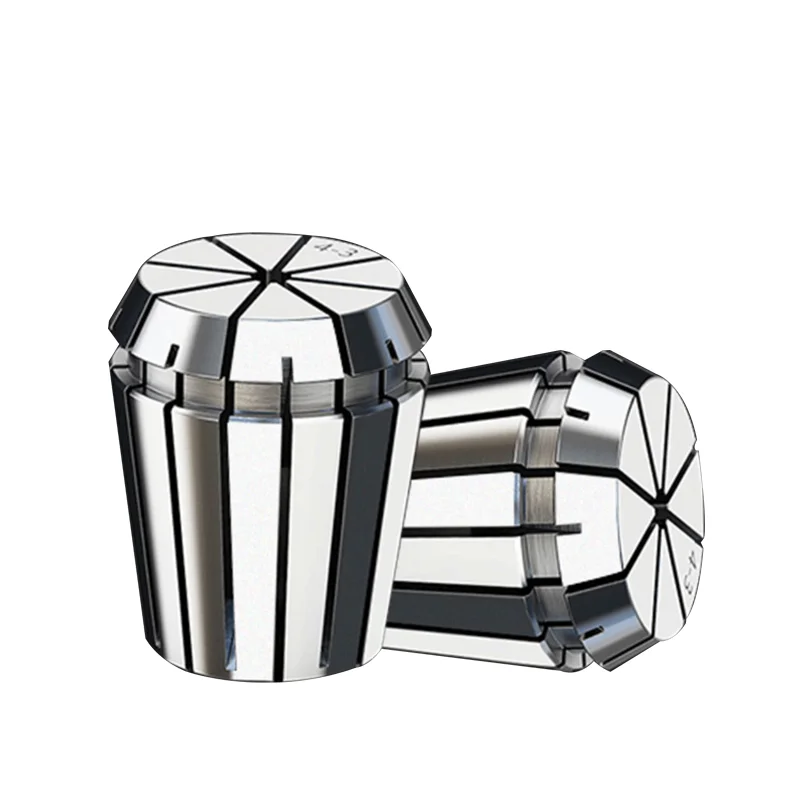

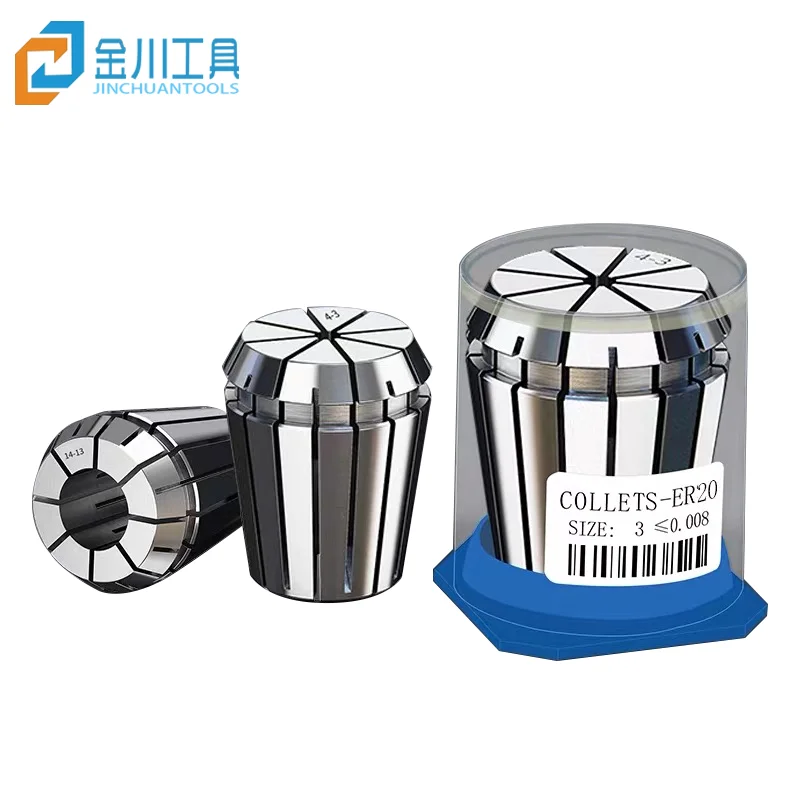

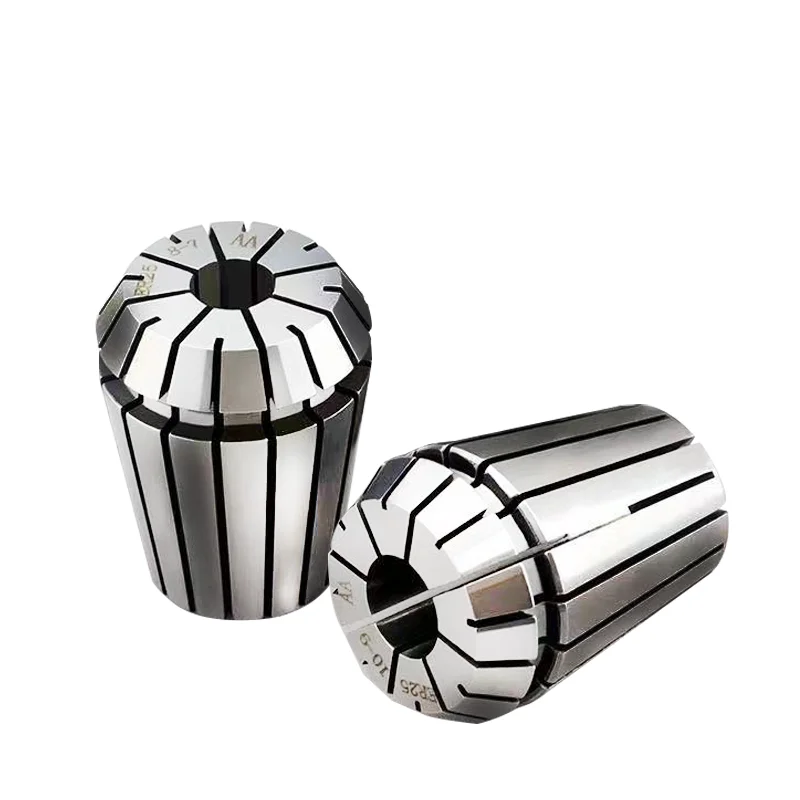

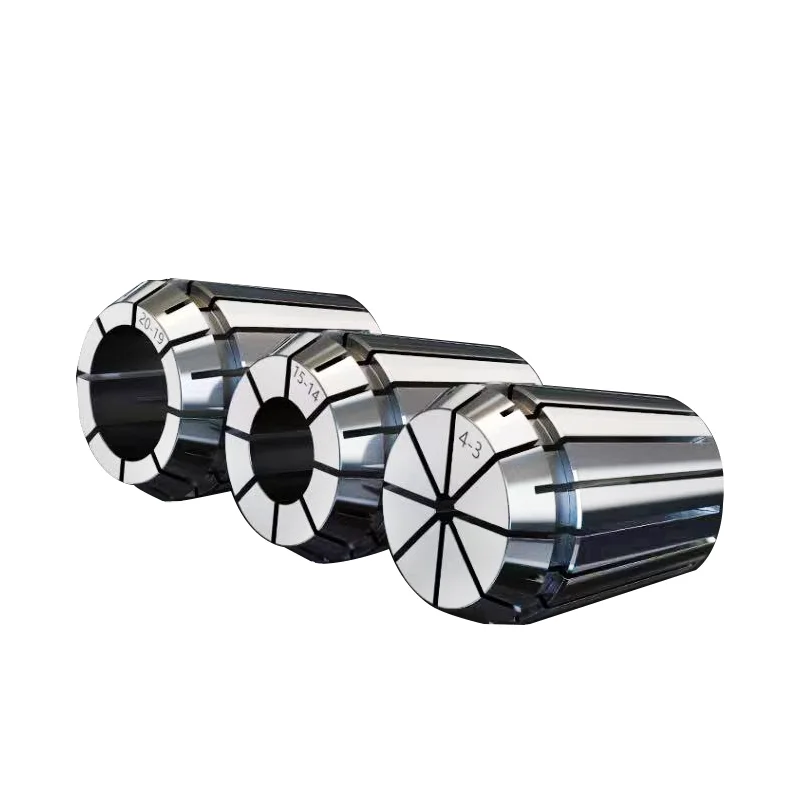

REAL PHOTOS OF PRODUCTS
STRENGTH INTRODUCTION OF JINCHUAN COMPANY
Company Profile
Warm welcome to visit our factory
Shenzhen Jinchuan Precision Tools Co., Ltd. is a CNC carbide blade, turning tool, CNC milling cutter, CNC engraving tool, advertising engraving tool, woodworking router bits, PCD diamond bits and diamond polish end mills manufacturer, which integrates R&D, design and sales. We adhere to the principle of "high quality, competitive price and excellent service."Our company has more than 1,500 square meters of workshops and warehouses. We have many years of leading OEM and ODM manufacturing experience in this field, all of our products have passed ISO9001 certificates.
We have a variety of products, and 70% of them are exporting to overseas. Our customers come from all over the world, such as North America, Europe, South America, the Middle East, East Asia and Africa.
There are many advanced automated processing centers and complete testing methods to control all aspects of the product in our company. We follow standard procedures and have an excellent team of designers, constantly launching innovative product designs to meet the needs of the international market.
Provide you with quality products and excellent service! Let’s Win-win !
COMPANY ESHIBITION
Delivery way
FAQ
Q1：What is the processing speed of this tool?
A1：We recommend 22000-24000rpm/Min, Feed rate is 1-5m/Min
Q2: Can PVC soft glass be processed?
Q2: Can PVC soft glass be processed?
A2: Yes, it can cut PVC, Acrylic, PP board
Q3: Can cut PS sheets ?
A3: Yes, but it is easy to
stick to the tools
stick to the tools
Q4: Can mill bakelite?
A4: Yes, you need slow down feed speed , it is not recommended to use, it is easy to
break we recommend to process the bakelite with a PCB corn milling cutter
break we recommend to process the bakelite with a PCB corn milling cutter
Q5: Is it okay to mill the iron keyway
A5: No, it cancut aluminum alloy, mainly for PVC, Acrylic, PC, PMMA, PP Sheets
Q6: Can it drill ?
A6: Yes, it can.
Q7: Can it be used on an electric drill
A7: No, Only applicable to machining centers above 20,000 rpm
