Пользовательский тестовый разъем BTB FFC / FPC с шагом от 0 20 мм или выше и номером контактов 2 до 200
- Категории: Other Connectors & Terminals >>>
- Поставщик: Sireda,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

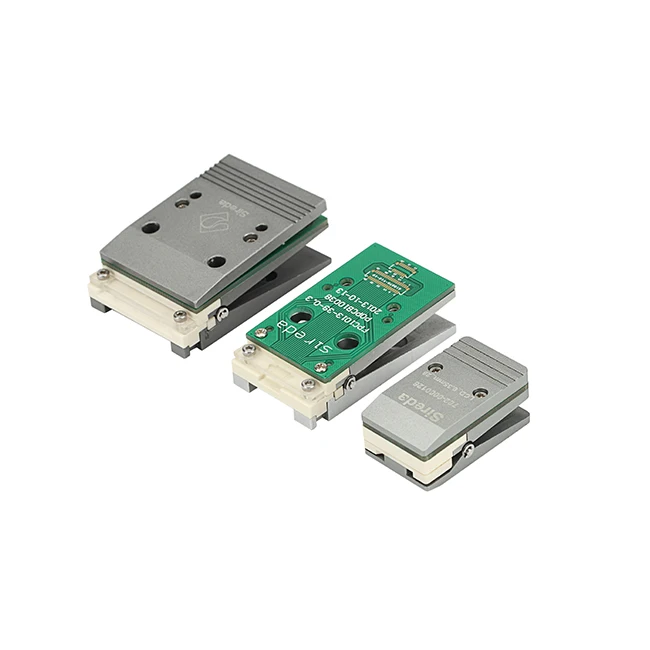

BTB, FPC /FFC Test Connector
＞ Test, debug and validation for BTB, FPC, FFC and connectors
＞ Conduction verification of connectors on main board
＞ Apply for camera module, fingerprint module, drive motor, etc
＞ Apply for camera module, fingerprint module, drive motor, etc
＞Pitch can be as small as 0.20mm
Product Details
Mechanical | ||
Material Socket Body | Torlon/PPS/PEEK Ceramic | |
Material Socket Lid | AL, POM | |
Contact | Pogo Pin | |
Operation Temperature | -40 ~ 140 ℃ | |
Life Span | 100 Cycles | |
Spring Force | 20g ~ 30g per Pin | |
Electrical | ||
Current Rating | 1.0A | |
DC Resistance | Max. 50mΩ | |
⏩ Available Solutions Example

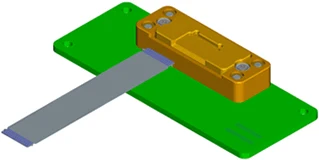

ATE Test Socket
Test Socket by Hand
Pacakge | BTB, FPC, FFC |
Nb of Pins | 2~200 |
Pitch | 0.20mm or above |

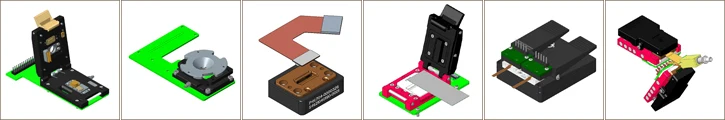

⏩ Other Custom Design Example
＞ BTB,FPC test socket is designed for test, validation of FPC, FFC, BTB related products
＞ Apply for camera module, fingerprint module, drive motoer as well.
＞ Provide two options of manual test and automatic test. solutions according to customer's application.
＞ Pitch can be 0.20, 0.25, 0.30, 0.40mm or above.
＞ Realize multi-connectors test or validation simultaneously.
＞ Fast response to customer's requirements.

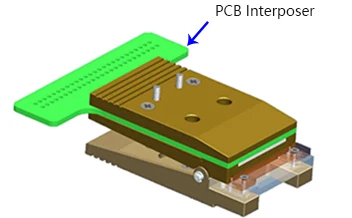

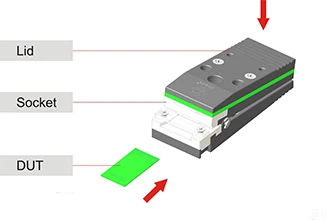

HOW IT WORKS
_______________________________________________________________________________________________________
How It Works
Press the lid by hand and open the socket.
Insert DUT into clip.
Release the lid.
Now it is ready for use
Relative Products
List of Some FFC & FPC & BTB Test Sockets
Part Number | Name | Description | Package | Pin No | Remark | |||||
702-0000125 | Test Socket | BTB42 0.4mm | BTB | 42 | Manual | |||||
702-0000170 | Test Socket | FFC24 0.5mm | FFC | 24 | Manual | |||||
702-0000655 | Test Socket | FFC10 0.5mm | BTB | 10 | Manual | |||||
702-0001696 | Test Socket | BTB100 0.5mm | BTB | 100 | Manual | |||||
702-0001709 | Test Socket | FPC50 0.5mm NA 27.1x7.25mm | BTB | 50 | Manual | |||||
702-0001755 | Test Socket | FPC51 0.3mm | BTB | 51 | Manual | |||||
702-0001861 | Test Socket | FPC51 0.25mm | BTB | 51 | Manual | |||||
702-0000803 | Test Socket | FPC 0.3mm 29 FH36-29S-0.3SHW(50) | FPC | 29 | Automatic | |||||
702-0000839 | Test Socket | FPC34 1.0mm FH65-34S-0.5H 4.5x19.1mm | FPC | 34 | Automatic | |||||
702-0001406 | Test Socket | FPC68 0.5mm PRI-LDHR68-V1E(7.2mm) ATE | FPC | 68 | Automatic | |||||
Not all sockets listed in this list, please contact us for more test sockets or customize a socket to fit your own application. | ||||||||||
Why Choose Us
Be the world’s leading socket supplier
As an IC testing socket supplier, we focus on Semiconductor Testing Research and Innovations, has Achieved a lot of Patents. And also get the certificate of ISO9001:2015 & National High-tech.
Creat value for our customer
To provide ground solutions that are well engineered, pramatic and innovative, using the specialist skills and experience for our team, to meet and excced the expectations of our clients.
Pursue details, profession,efficiency, responsibility
We are committed to provide the most competitive price, highest quality, best custom design, shortest lead time, and most
professional service for our customer all over the world. Work closely with customer and enable them to achieve greater
manufacturing efficiency and productivity.
professional service for our customer all over the world. Work closely with customer and enable them to achieve greater
manufacturing efficiency and productivity.
Integrity, honesty and openness in everything we do
Recognising the vital importance of listening and valuing the opinion of others. Creating a fulfilling working enviroment where our people to realise their potential.

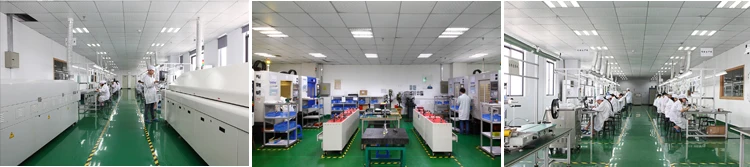

Company Profile
