1kva 2kva 3kva 6kva 10kva источники бесперебойного питания ups Резервный источник солнечных электростанций
- Категории: Uninterruptible Power Supply (UPS) >>>
- Поставщик: Guangdong,Techfine,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

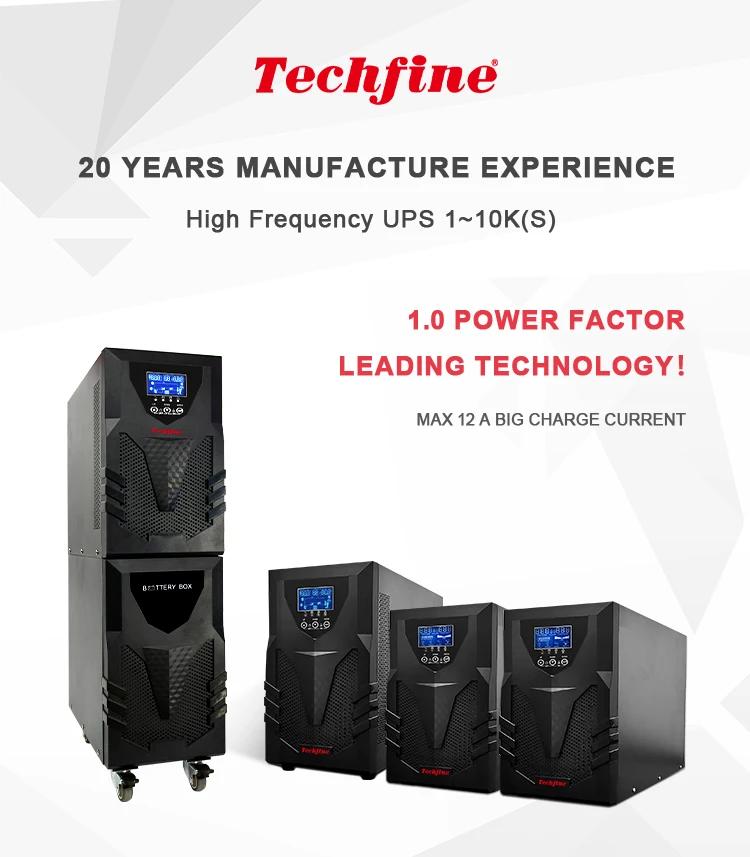

Products Description
Product Parameter
Models | CQ1K (S) | CQ2K (S) | CQ3K (S) | CQ6K (S) | CQ10K (S) | |||||||
Phase | Single-phase | |||||||||||
Capacity | 1000 VA / 1000 W | 2000 VA / 2000 W | 3000 VA /3000 W | 6000 VA / 6000 W | 10000 VA / 10000 W | |||||||
Input | ||||||||||||
Voltage range | 110 - 300VAC | |||||||||||
Frequency range | 50HZ/60HZ | |||||||||||
Power factor | 1.0 | |||||||||||
Output | ||||||||||||

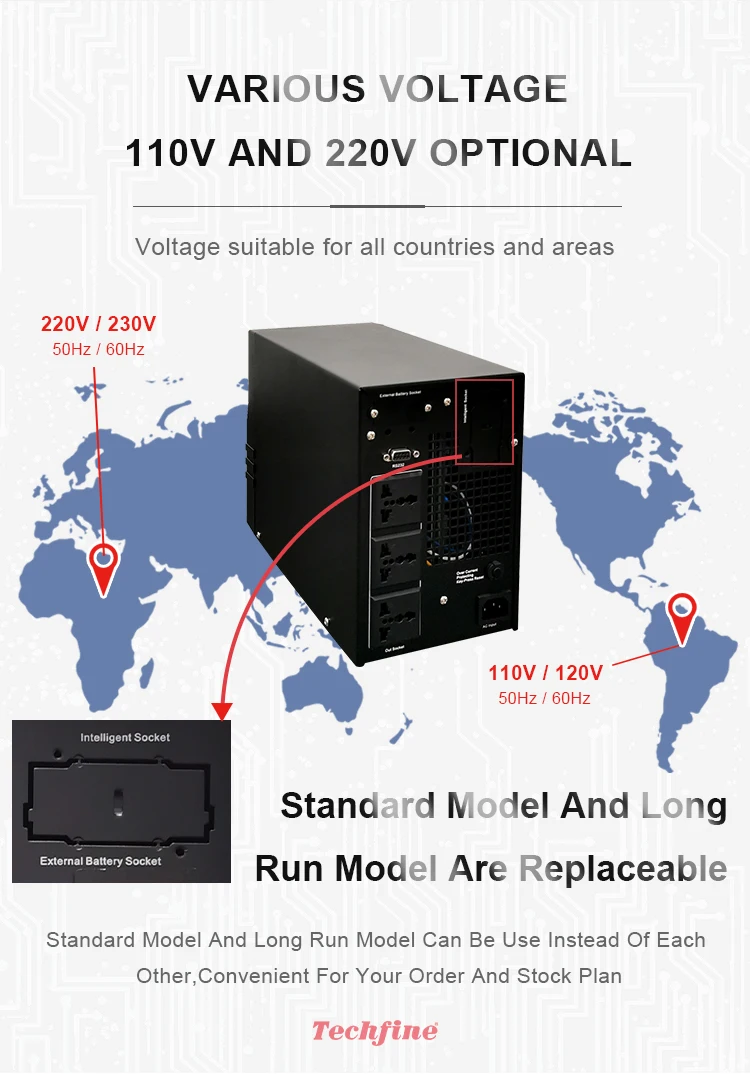

Output voltage | 220VAC±1% (208, 220, 230, 240 adjustable on LCD screen), 110VAC±1% Optional | |||||||||||
Frequency range (battery mode) | 50 Hz （60HZ selectable）± 0.25 Hz | |||||||||||
Transfer time | 0ms | |||||||||||
Wave form | Pure sine wave | |||||||||||
Battery | ||||||||||||
Standard | Battery model | 12V / 7AH（Standar) 12V /9AH（Optional) | ||||||||||
Quantity/DC Voltage | 2PCS/24VDC | 4PCS/48VDC | 6PCS/72VDC | 12PCS/144VDC | 16PCS/192VDC | |||||||
Max. charging current | 1.0A (Maximum) | 1A, 2A, 3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A adjustable | ||||||||||
Long-run | Battery model | Depends on the users | ||||||||||
DC Voltage | 36VDC | 72VDC | 96VDC | 192VDC | 192VDC | |||||||

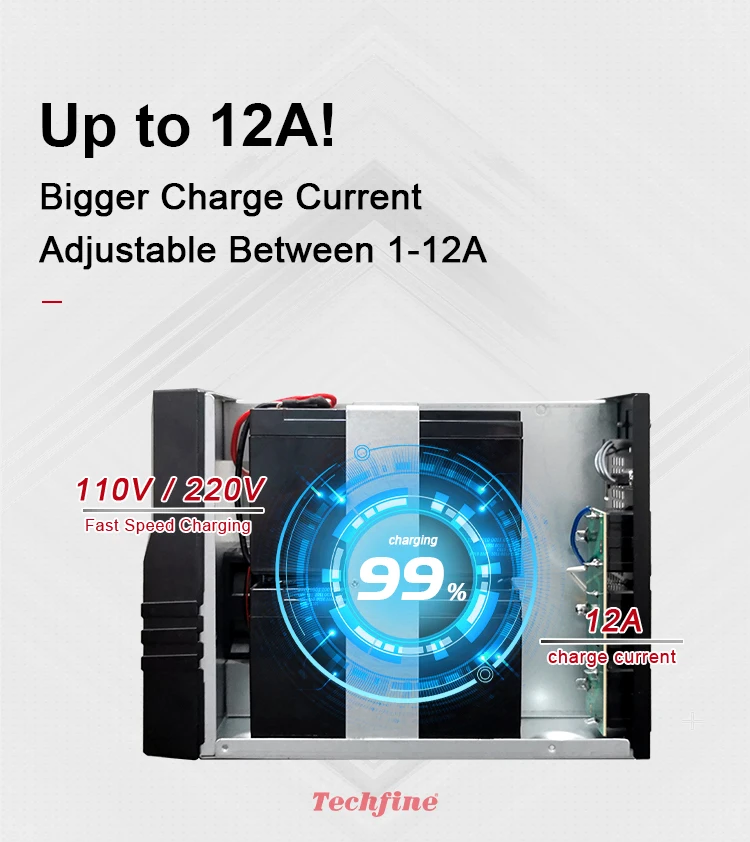

Max. charging current | 1A, 2A ,3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A adjustable | |||||||||||
LCD or LED display | Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication | |||||||||||
Control management | Smart RS-232、SNMP optional | |||||||||||

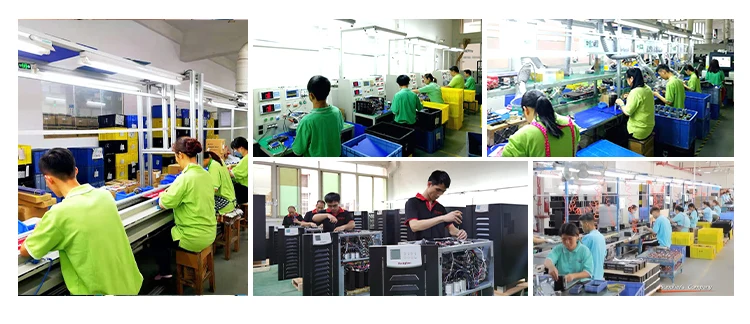

Our Factory
Marketing Campaign

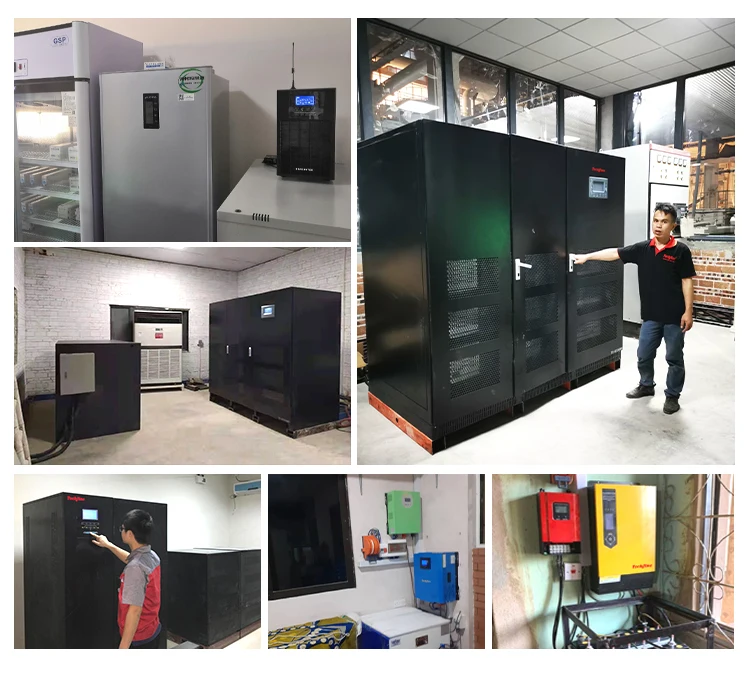

Projekt

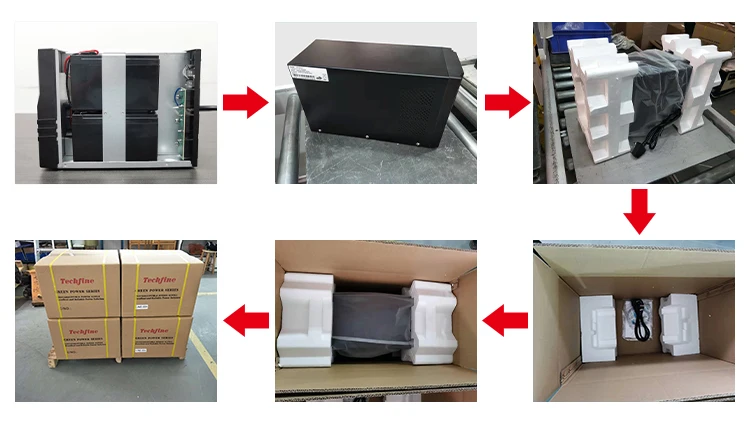

Packing&Delivery
High Frequency Online UPS Package: | ||||||||||||
MODEL | CQ1K | CQ1KS | CQ2K | CQ2KS | CQ3K | CQ3KS | ||||||
QTY/CTN | 2PCS/CTN | 1PCS/CTN | ||||||||||
Unit Size | 284x145x213 | 284x145x213 | 395x145x213 | 395x145x213 | 450x192x335 | 380x145x213 | ||||||
Net Weight | 8.8 | 5.8 | 12.1 | 6.2 | 23.7 | 6.9 | ||||||
Carton Size | 460x400x343 | 460x400x343 | 495x240x340 | 495x240x340 | 597x335x483 | 495x240x340 | ||||||
Gross Weight | 20 | 12 | 13.1 | 7.2 | 25.6 | 7.53 | ||||||
20ft Container | 903 | 903 | 706 | 706 | 295 | 706 | ||||||
MODEL | CQ6K | CQ6KS | CQ10K | CQ10KS | |||
QTY/CTN | 1PCS/CTN | ||||||
Unit Size | 450x192x730 | 450x192x335 | 450x192x730 | 450x192x335 | |||
Net Weight | 29.5 | 14.6 | 33.7 | 15 | |||
Carton Size | 465x273x773 | 500x318x460 | 465x273x773 | 500x318x460 | |||
Gross Weight | 32.5 | 17.6 | 36.7 | 18 | |||
20ft Container | 290 | 390 | 290 | 390 | |||
FAQ
Q1: Why you should choose us?
---More than 20 years UPS factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series UPS pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q7. Do you support OEM?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years UPS factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series UPS pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q7. Do you support OEM?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
