Factory direct sales wear resistance ptfe turcite b slydeway with glue
Product Properties
Material | PTFE+bronze | ||||
Colour | Blue | Red | Green | ||
Density (g/cm3) | 3.4 | 3.3 | 3.2 | ||
Coefficient of linear expansion (40-120°C) | 7.7 | 7.62 | 7.5 | ||
Tensile strength (Mpa) | 17 | 16 | 14 | ||
Elongation (%) | 180 | 170 | 150 | ||
Compressive strength (Mpa) | 33--42 | 30--40 | 28---38 | ||
Bending strength (Mpa) | 25-30 | 25-30 | 23--29 | ||
Non-notched impact strength (KJ/m2) | >16 | >15 | >14 | ||
Wear(PV=0.7N/mm2.m/s) | 0.010-0.020 | 0.010-0.020 | 0.010-0.020 | ||
Friction loss performance (dry friction) Friction coefficient (μ) | 0.13--0.20 | 0.15-0.21 | 0.16-0.23 | ||
Turcite is a thermoplastic resin used in industrial applications that require reduction of friction on bearings and moving parts.Due to the nano ultra-fine formula, the material of the guide rail soft belt is more uniform and dense, eliminating internal stress, cutting without deformation, and has a straighter appearance, no "fluff", and stronger wear resistance.It has been widely used in all kinds of ordinary machine tools. And textile, printing, paper, food, chemical, woodworking machinery and other mechanical sliding guide manufacturing and maintenance, especially suitable for all kinds of precision machine tools, CNC machine tools and processing centers with high precision.
Product introduction
Turcite B® 12" Wide | Turcite B® 24" Wide | ||||||||
Fraction | Decimal | Metric | Fraction | Decimal | Metric | ||||
1/64" | (0.016") | (.406mm) | 1/64" | (0.016") | (.406mm) | ||||
1/32" | (0.032") | (.813mm) | 1/32" | (0.032") | (.813mm) | ||||
3/64" | (0.047") | (1.193mm) | 3/64" | (0.047") | (1.193mm) | ||||
1/16" | (0.063") | (1.6mm) | 1/16" | (0.063") | (1.6mm) | ||||
3/32" | (0.094") | (2.38mm) | 3/32" | (0.094") | (2.38mm) | ||||
1/8" | (0.125") | (3.175mm) | 1/8" | (0.125") | (3.175mm) | ||||
3/16" | (0.187") | (4.750mm) | 3/16" | (0.187") | (4.750mm) | ||||
1/4" | (0.250") | (6.350mm) | 1/4" | NA | 12" size only | ||||
Property Characteristics | ||
1 | High Wearing Resistance: normally ten times of cast iron guide,good accuracy | |
2 | Low Friction: friction coefficient<0.04,only 1/3 of cast iron guide,reducing the driving-energy consumption | |
3 | No Creeping: moving steadily | |
4 | Good Shock-absorbing Ability: improving processing accuracy | |
5 | Good Lubrication | |

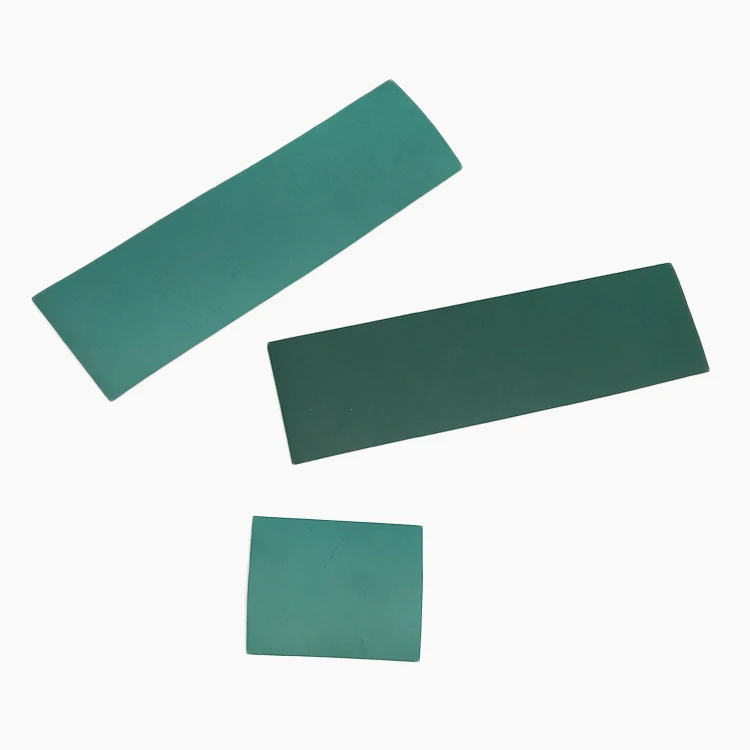

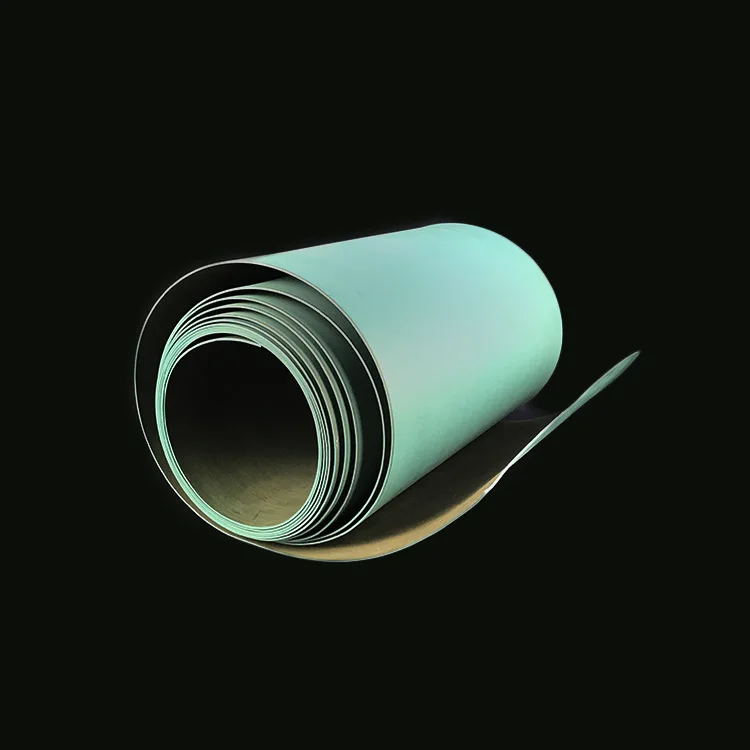

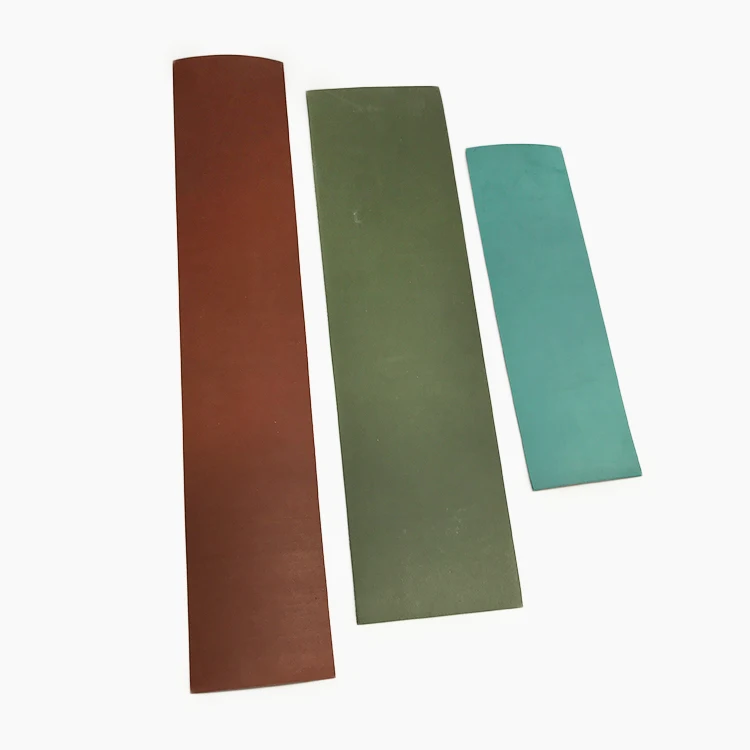

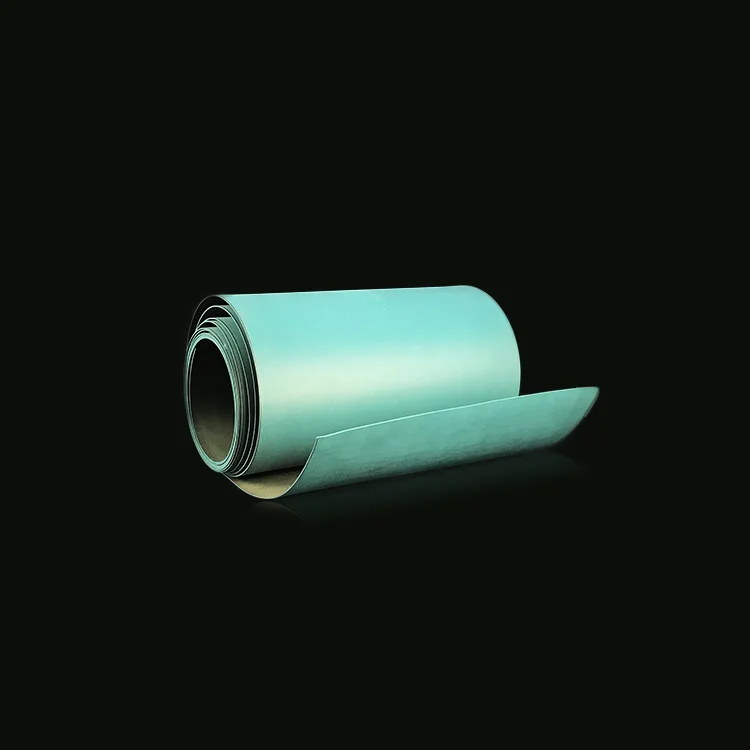

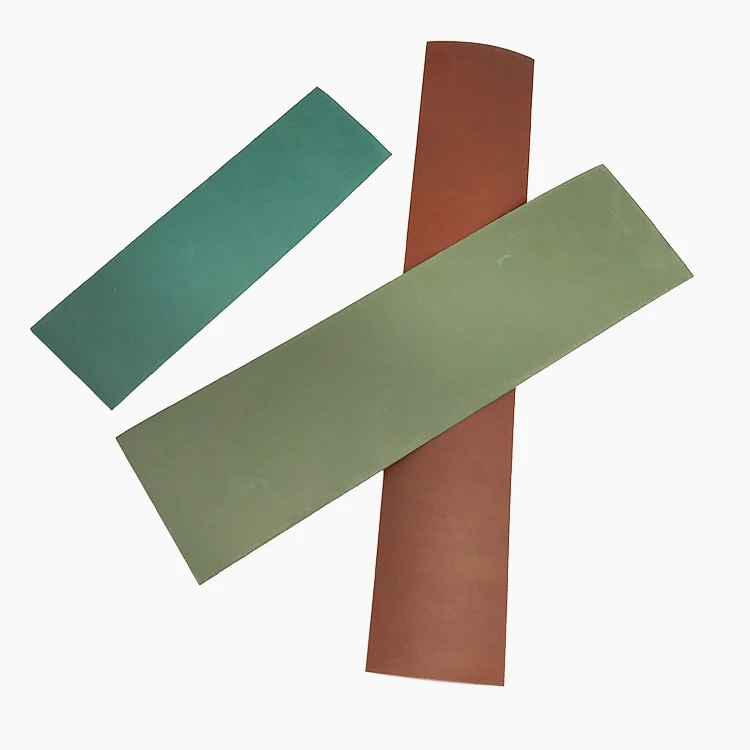

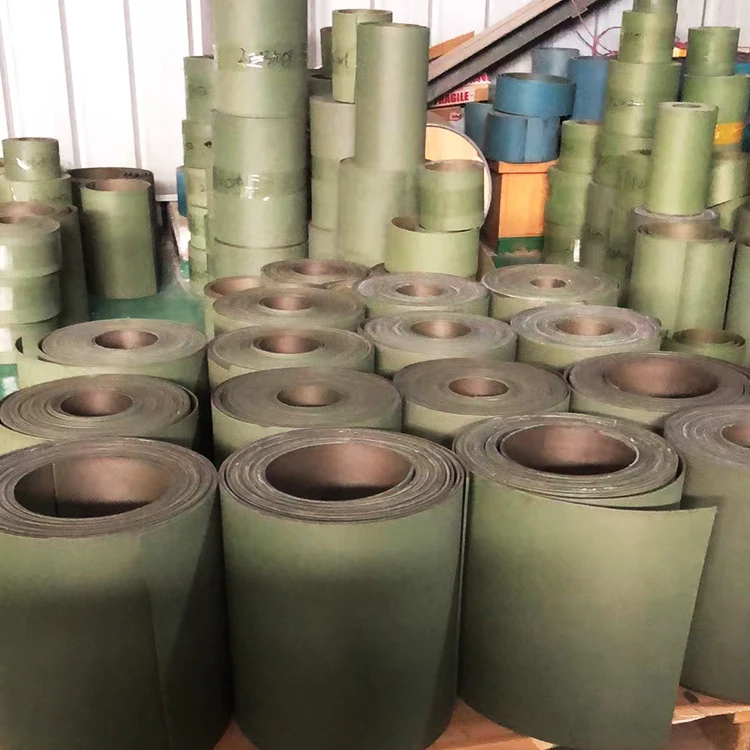

Turcite B Sheet
Turcite is PTFE (polytetrafluoroethylene) resins with added fillers such as bronze, that are extruded into solid billets as opposed to compression molding. Billets are then skived to a nominal thickness in 24" wide rolls, with lengths varying depending on thickness. One side or both sides are etched depending on application to accept the adhesive.

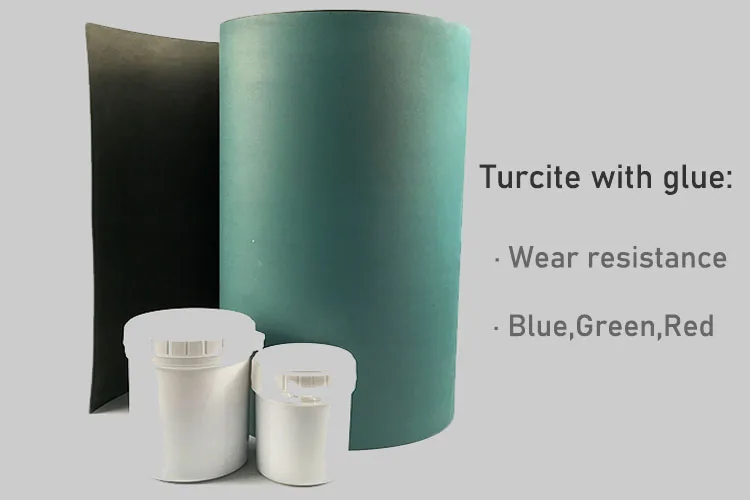

Glue A and B for turcite sheet
A+B is 1.1KG/set
1 set is for about 2 Meters or so, various a bit for different width.
1 set is for about 3KG turcite or so, but various a bit for different thickness.
You can tell me the turcite size and ask me for calculate how much you need.
1 set is for about 2 Meters or so, various a bit for different width.
1 set is for about 3KG turcite or so, but various a bit for different thickness.
You can tell me the turcite size and ask me for calculate how much you need.
