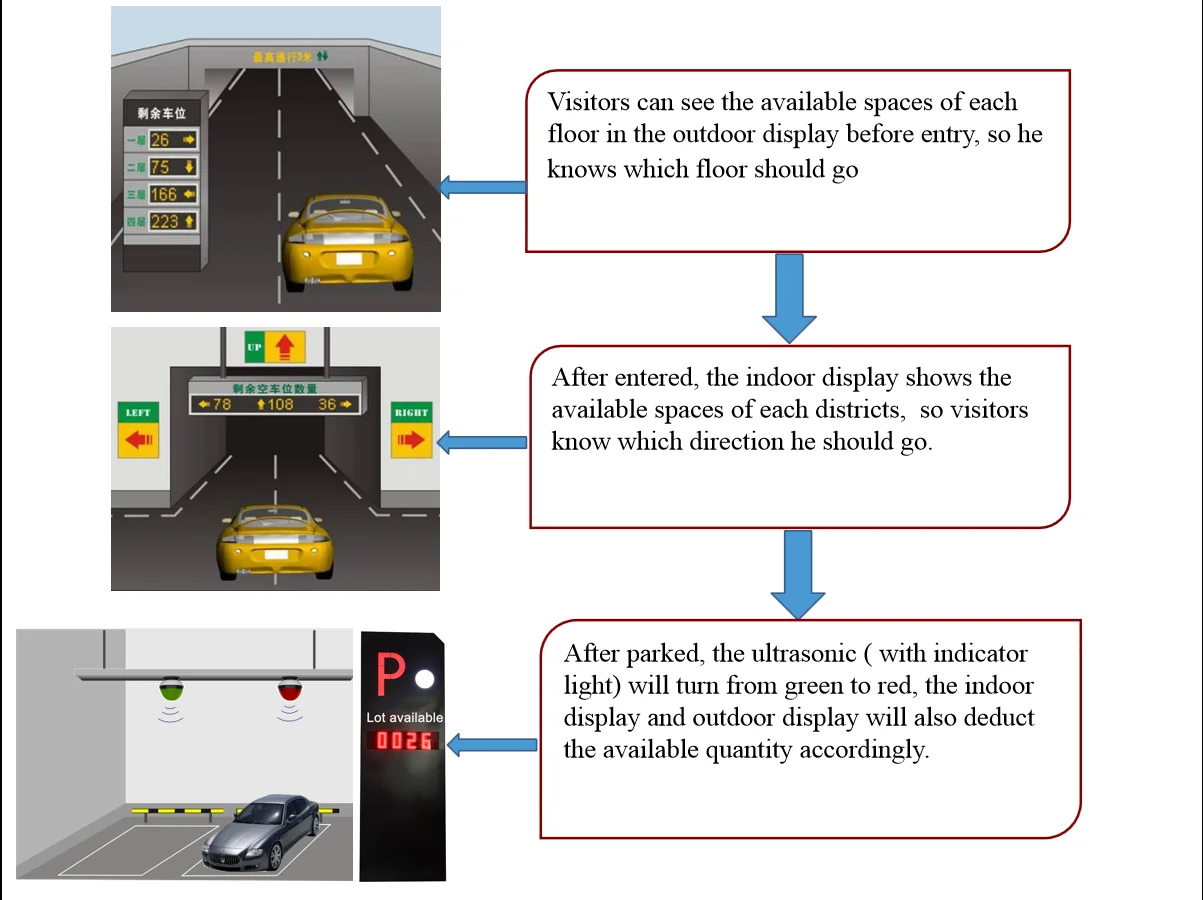

        Through the front-mounted ultrasonic parking space detector installed directly above each parking space line, the parking space information of each parking space in the parking lot can be collected in real time. When a vehicle is parked in the current parking space, the indicator light integrated with the front-mounted ultrasonic parking space detector changes from green to red. The area controller connected to the detector will collect the information of each connected detector according to the polling method, and according to certain rules, the data will be compressed and encoded and then fed back to the central controller. The central controller completes the data processing, and The processed parking space data is sent to each parking space guide screen of the parking lot to display the empty parking space information, so as to realize the function of guiding the vehicle into the empty parking space. The system transmits data to the computer at the same time, and the computer stores the data to the database server. The user can query the real-time parking space information of the parking lot and the year, month, and day statistics of the parking lot through the computer terminal.

2.Node Controller

The node controller cyclically detects the status of the connected detectors and uploads the relevant information to the central controller. We recommend that each node controller be connected to control up to 62 terminals.

The node controller is used to connect the central controller and parking detectors, LED display screens, etc., using RS485, CAN bus hybrid communication mechanism, to solve the problem of unreliable long-distance communication, network node expansion, group management, etc.

3.Central controller

The central controller is the core of the entire system, and is the collection and control center of the entire intelligent parking guidance system. It realizes the guidance function of the vehicle by updating the real-time data of the parking guidance screen. A central controller can control up to 62 node controllers.

 4.Indoor LED Display

A parking guidance display screen is installed at important intersections in the parking lot. The guidance screen is composed of high-brightness LED modules, drive units, brackets and other parts. It receives the output information of the centralized controller, displays the number of empty parking spaces in the area in the form of numbers, arrows, etc., guides car owners to find empty parking spaces quickly, and ensures unblocked parking and full use of parking spaces.

5.Outdoor Guide LED Display

A large parking guide screen is installed at each entrance of the parking lot to display information about the remaining parking spaces in the parking lot. The display screen is composed of high-brightness LED modules, drive circuits, brackets and other parts. It receives the parking statistics information of the centralized controller, and displays the current number of empty parking spaces in the parking lot in numbers and texts in real time, prompting the vehicle drivers who are ready to enter. Use it 24 hours a day.

 6.Software

        Shenzhen TGW Technology Co.,Ltd is the leading parking solution provider for vehicle intelligent parking system, license plate recognition system, RFID/Ticket parking system and parking guidance system solution.

        Founded in 2001, TGW is committed to the development of smart parking systems, continuously analyzing and solving problems in existing requirement and potential demand, and is committed to meeting the new functional requirements in security industry.

 1. Is there any warranty?

    Yes we have warranty with 12 months, if there is any quality issue within warranty date, the new replacement will be provided.

2. What is the interface?

The interface for each other is connect is RS485.

3. It needs WAN to work?

No, just LAN is OK.

4. How many sensors can work with one node controller?

one node controller can works with MAX 62pcs sensor

5. How many node controller can work with one central controller?

One central controller can works with MAX 62pcs node controller.

6. It needs to charge the software?

No, the software is free for you.
