Product Paramenters
Features：

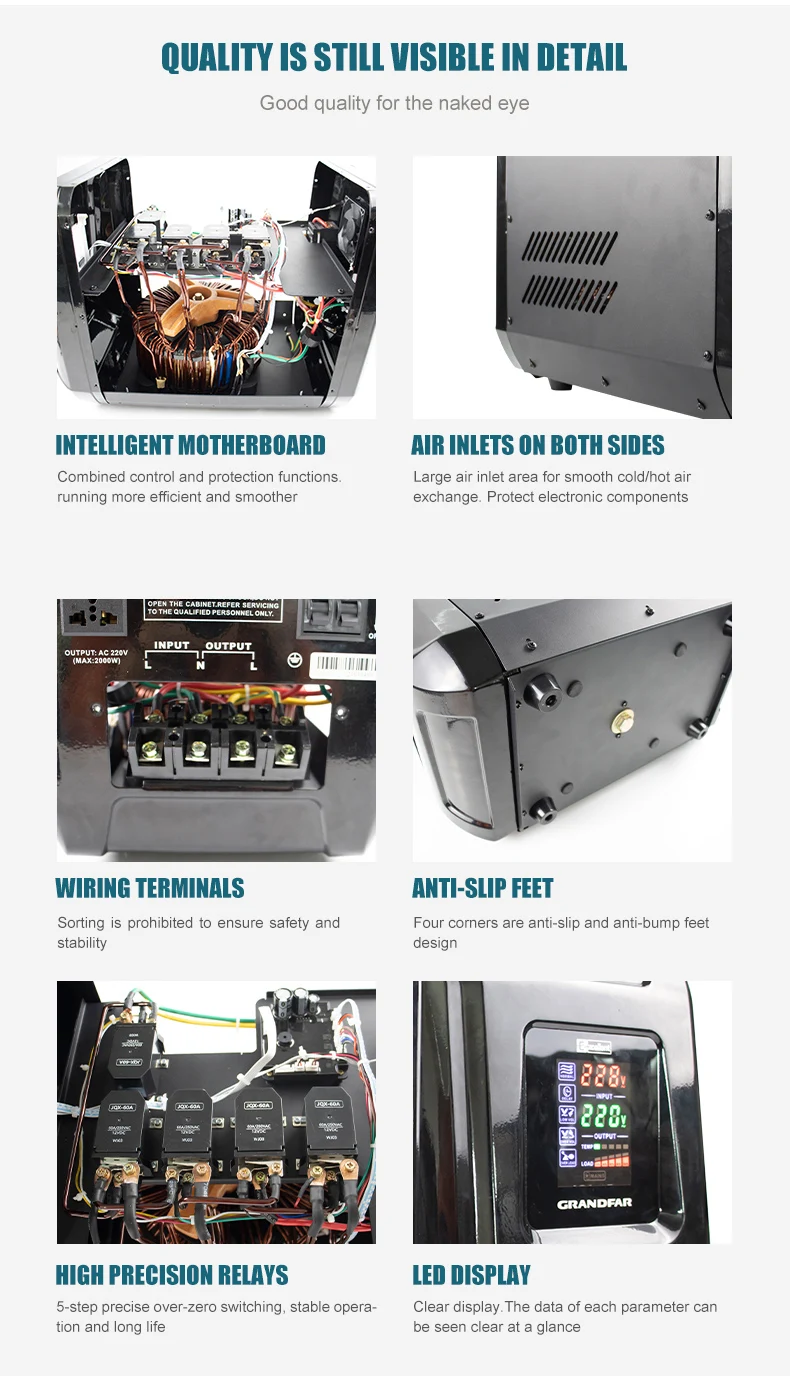

1. All windings are made of 220°C aluminum high temperature enameled wire to ensure maximum power output. 2. Precise control of
relay over-zero switching, stable work and long service life.

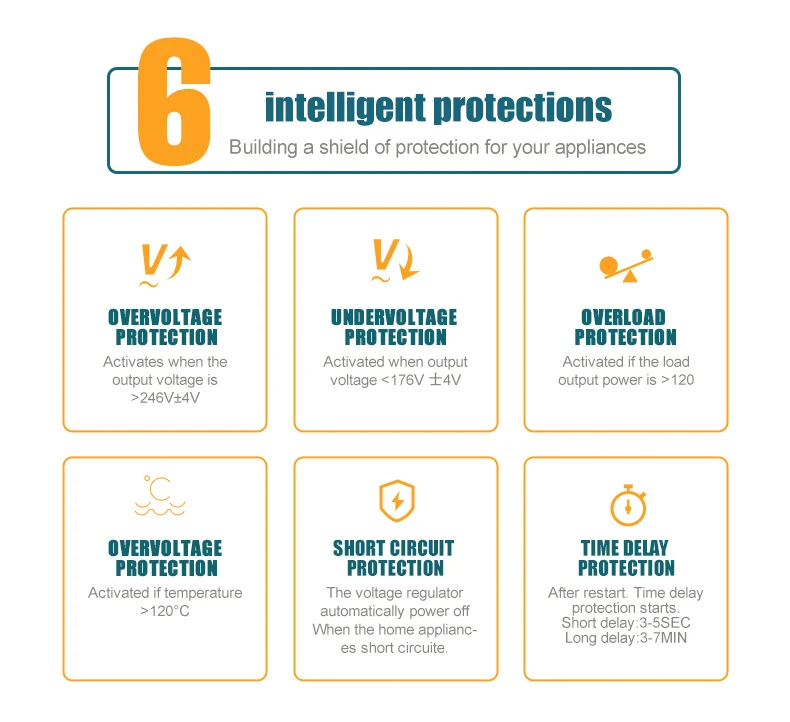

3. 6 levels intelligent protection, giving customers a superb using experience.
4. LED display, working status is clear at a glance.
relay over-zero switching, stable work and long service life.
3. 6 levels intelligent protection, giving customers a superb using experience.
4. LED display, working status is clear at a glance.
Specification:
Model:GFRH-8000VA-C
Output power:3000VA(W)
Input voltage:AC 95V-280V
Output voltage:220V±10%
Frequency: 50HZ/60HZ
Over-voltage protection:246V±4V
Undervoltage protection:176V±4V(optional)
Delay:Short:3-5sec Long:3-7min
Efficiency: >98%
Wire pack material: aluminium
Wire wrap power: 100%
Diameter of enamelled wire: 2.15/3.2 mm
Number of relays: 5PCS
Relay current:40A
Display: LED-3B
Power wiring:Terminal block
Housing: Iron
Input voltage:AC 95V-280V
Output voltage:220V±10%
Frequency: 50HZ/60HZ
Over-voltage protection:246V±4V
Undervoltage protection:176V±4V(optional)
Delay:Short:3-5sec Long:3-7min
Efficiency: >98%
Wire pack material: aluminium
Wire wrap power: 100%
Diameter of enamelled wire: 2.15/3.2 mm
Number of relays: 5PCS
Relay current:40A
Display: LED-3B
Power wiring:Terminal block
Housing: Iron

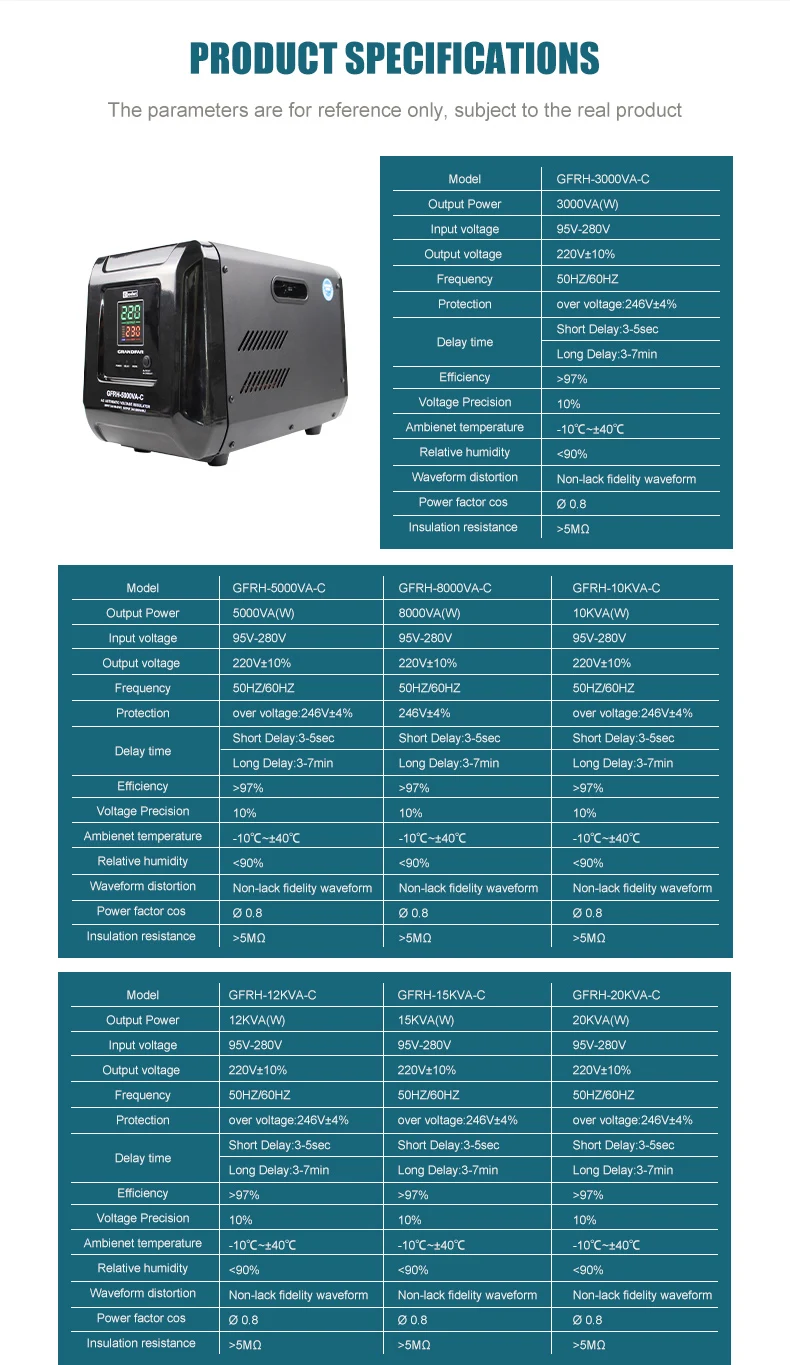

model | Output power | Input voltage | Output voltage | Frequency | Over-voltage protection | Undervoltage protection | Delay | Efficiency |
GFRH-3000VA-C | 3000VA(W) | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRH-5000VA-C | 5000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRH-8000VA-C | 8000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRH-10KVA-C | 10000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRH-12KVA-C | 12000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRH-15KVA-C | 15000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRH-20KVA-C | 20000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
model | Wire pack material | Wire wrap power | Housing | Power wiring | Relay current | Number of relays | Diameter of enameled wire | Display |
GFRH-3000VA- | aluminium | 100% | Iron | Terminal block | 30A（T93） | 5PCS | 1.35/1.6 mm | LED-4 |
GFRH-5000VA-C | aluminium | 100% | Iron | Terminal block | （40A) P98 | 5PCS | 1.8/2.5 mm | LED-4 |
GFRH-8000VA-C | aluminium | 100% | Iron | Terminal block | 40A | 5PCS | 2.15/3.2 mm | LED-3B |
GFRH-10KVA-C | aluminium | 100% | Iron | Terminal block | 60A | 5PCS | 2.8/3.6 mm | LED-3B |
GFRH-12KVA-C | aluminium | 100% | Iron | Terminal block | 70A | 5PCS | 3.4/4.2 mm | LED-3 |
GFRH-15KVA-C | aluminium | 100% | Iron | Terminal block | 90A | 5PCS | 4.0/4.3 mm | LED-3B |
GFRH-20KVA-C | aluminium | 100% | Iron | Terminal block | 150A | 5PCS | 4.3/4.3mm | LED-3B |
