110 to 220 Step up down voltage converter 1500va , 220/110v transformer
Product Display
110 to 220 Step up down voltage converter 1500va , 220/110v transformer

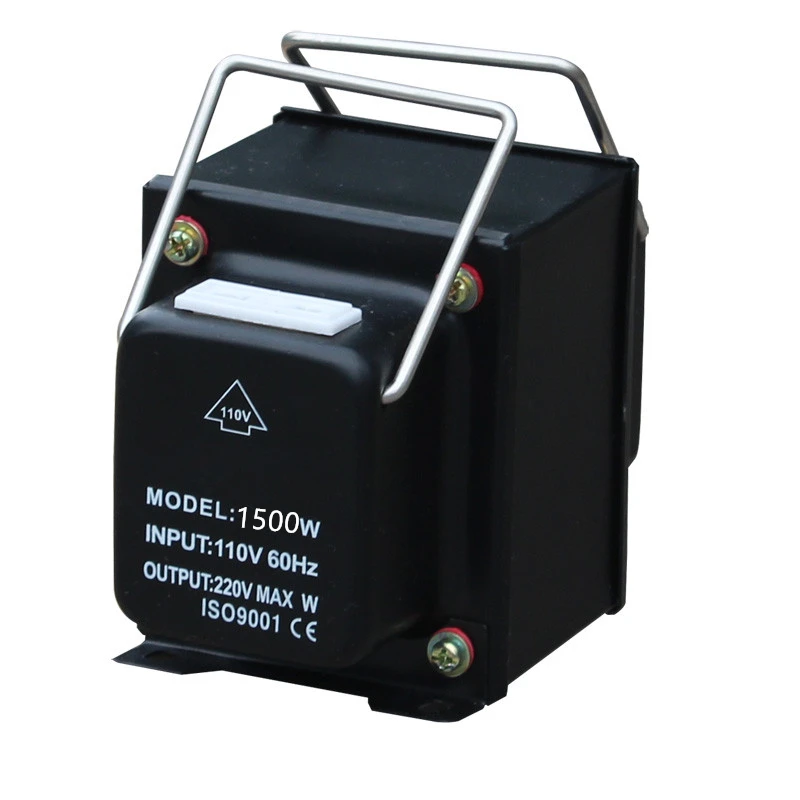

1500w tc transformer/step up and down transformer/transformer 110v to 220v
Quick Reply Professional Consultation Continued Cooperation
ST /TC type 1500w tc transformer/step up and down transformer/transformer 110v to 220v is specially designed for such electronic equipment whose rated AC voltage different from that of the local net voltage. They are safe for use within the rated voltage range. 1500w tc transformer/step up and down transformer/transformer 110v to 220v
1. Feature
This series step-up & step-down transformer is an AC voltage converting device.
Using it is to convert the multi-kind net voltages into a general output voltage
under which all the electronic units are
safe for use within the rated power range.
transformer 200v to 110v 220v to 110v step down voltage converter Power Supply Transformer
2. Main Technical Data
Phase no.: Single-phase
Input voltage: AC110V or 200V or 220V or 240V
Output voltage: AC110V & 220V.
transformer 200v to 110v 220v to 110v step down voltage converter Power Supply Transformer
With fuse protector or with over current protector
Main features:
1. Heavy duty suitable for continuous use.
2. Terminal connection or plug & socket connection.

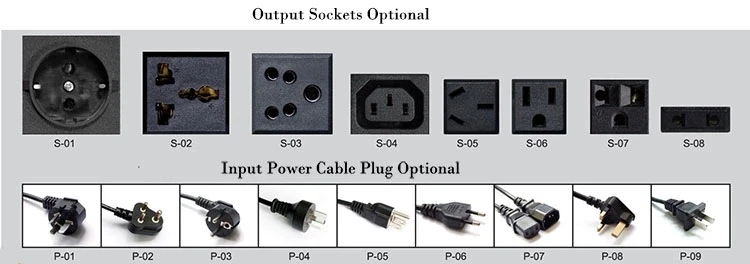

3. Various types of plug & socket, US, European, Schuko, VDE, UK, Asian, Australian, or as request.
4. Output up to 3 sockets.
5. Input voltage range: 110V/117V/120V/220V/230V/240V
6. Output voltage range: 220V/230V/240V/110V/117V/120V
7. Typical capacity: 100/200/300/500/800/1000/1500/2000/3000/5000/8000/10000VA, or customized
8. Frequency: 50/60HZ
9. Protection : fuse protector or over current protector.
Technical parameters:
| Type | Product size(cm) | Package size(cm) | QTY |
| TC-100VA | 10*6.9*8.2 | 27*27*19 | 12 |
| TC-200VA | 11*6.9*8.2 | 27*27*19 | 12 |
| TC-300VA | 12.3*6.9*8.2 | 27*27*19 | 12 |
| TC-500VA | 12.7*8.5*10.1 | 30.5*22.5*23 | 8 |
| TC-800VA | 13.7*8.5*10.1 | 30.5*22.5*23 | 8 |
| TC-1000VA | 14.7*8.5*10.1 | 30.5*22.5*23 | 8 |
| TC-1500VA | 15*13*15.5 | 31.5*17.5*18 | 4 |
| TC-2000VA | 16.5*13*15.5 | 31.5*17.5*18 | 4 |
| TC-3000VA | 19*13*15.5 | 29.8*24*20.5 | 2 |
| TC-5000VA | 22*13*15.5 | 29.8*24*20.5 | 2 |
Company Information
FAQ
Q:Are you a manufacturer or a trading company?
We have been a professional transformer manufacturer for 30 years.The factory address is no. 22, XingGuang Avenue, XingGuang Industrial Zone, Liushi Town, Wenzhou City, Zhejiang Province.
Q:What certificates and type test reports do you have?
100% of our products have passed the test before leaving the factory. All products have passed the ISO9001 and CE certification. The products have passed the national independent laboratory inspection and can pass the test test report. 11KV and 33KV current transformers and voltage transformers passed THE KEMA test and obtained the experiment report.
Q:How can get your products catalogue?
Please send us your email, we can send you our catalogue ASAP. Let's start our win-win cooperation.
Q:What kind of your company payment terms?
A: 30% should be paid by T/T as down payment in advance, the balance will be paied before shipment.
B: L/C amount above 50000 usd, you can use 50% L/C at sight.
C: Amount lower than 5000usd, you can pay by Paypal or West Union.
Packaging & Shipping
