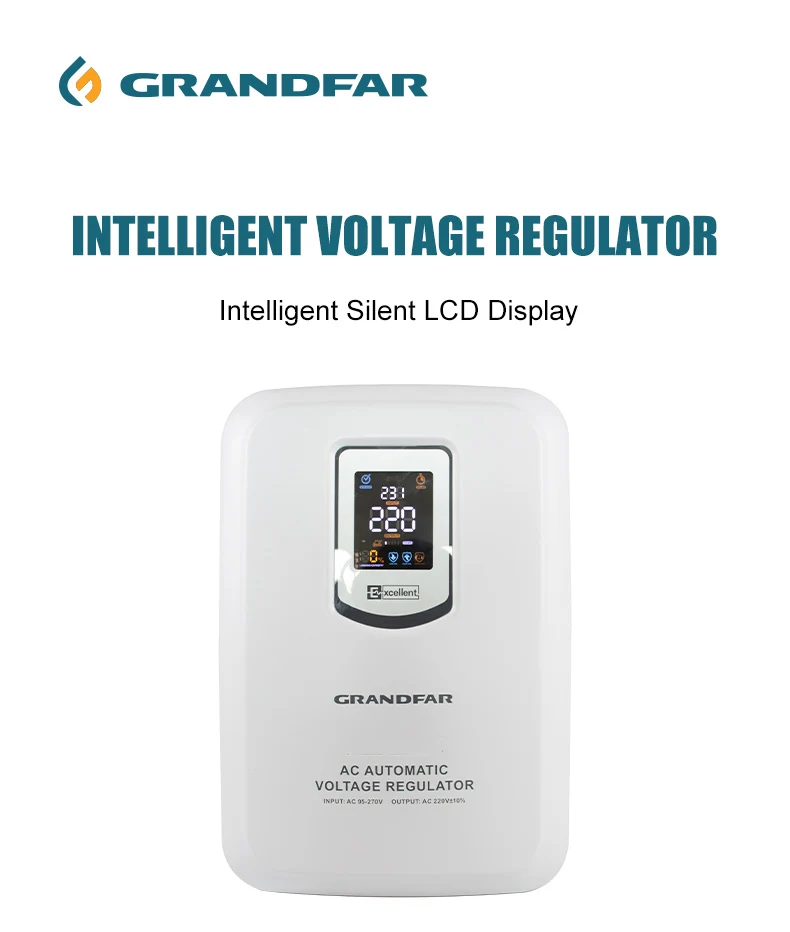

Grandfar GFRH-20KVA-C воздушный компрессор фильтр Регулятор газа регулятор цены автоматический давления регуляторы
- Категории: Voltage Regulators\/Stabilizers >>>
- Поставщик: Taizhou,Leading,Machinery,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters
Features：

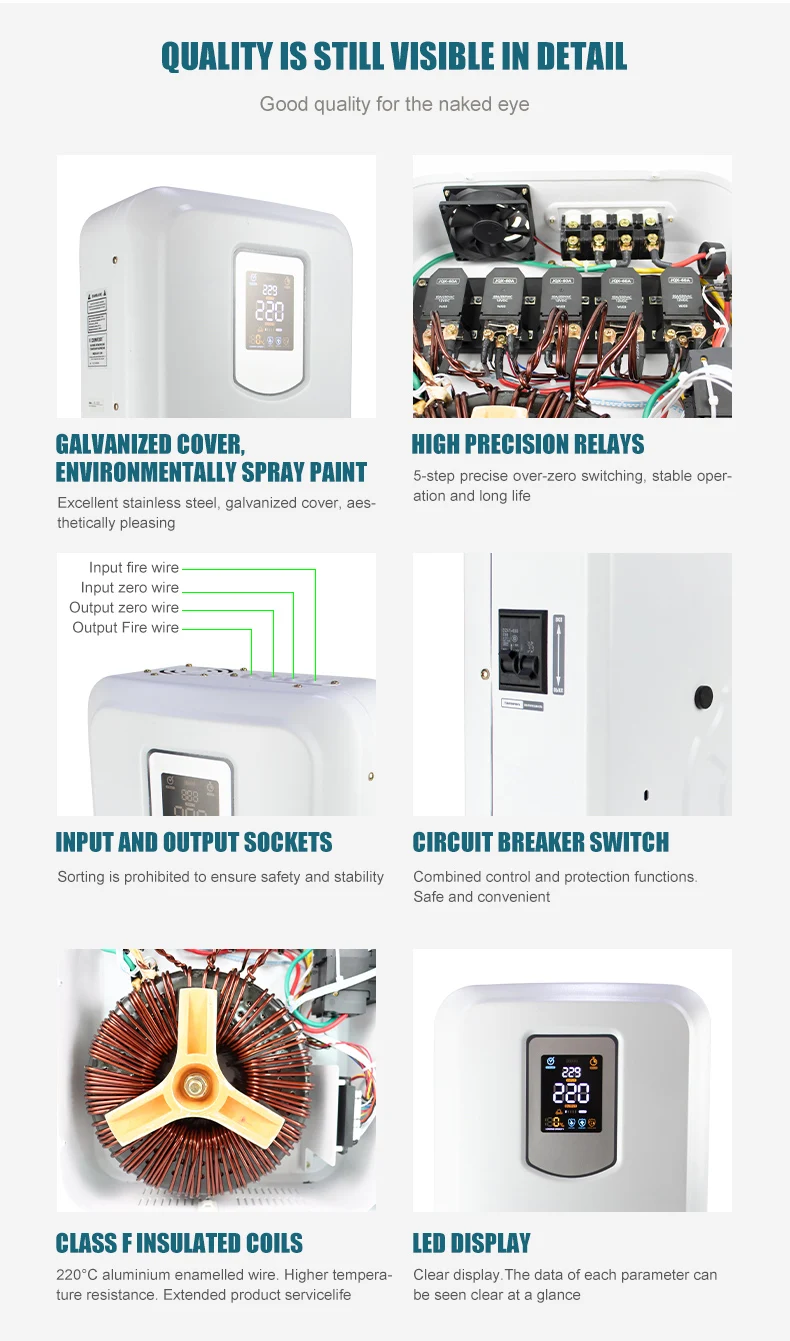

1. All windings are made of 220°C aluminum high temperature enameled wire to ensure maximum power output. 2. Precise control of
relay over-zero switching, stable work and long service life.
3. 6 levels intelligent protection, giving customers a superb using experience.
4. LED display, working status is clear at a glance.
relay over-zero switching, stable work and long service life.
3. 6 levels intelligent protection, giving customers a superb using experience.
4. LED display, working status is clear at a glance.
Features:
Model:GFRW-20KVA-C
Output power:20000VA（W）
Input voltage:AC 95V-280V
Output voltage:220V±10%
Frequency: 50HZ/60HZ
Over-voltage protection:246V±4V
Undervoltage protection:176V±4V(optional)
Delay:Short:3-5sec Long:3-7min
Efficiency: >98%
Wire pack material: aluminium
Wire wrap power: 100%
Diameter of enamelled wire: 4.0/4.3 mm
Number of relays: 5PCS
Relay current: 90A
Display: LED-3B
Power wiring: Terminal block
Housing: Iron
Input voltage:AC 95V-280V
Output voltage:220V±10%
Frequency: 50HZ/60HZ
Over-voltage protection:246V±4V
Undervoltage protection:176V±4V(optional)
Delay:Short:3-5sec Long:3-7min
Efficiency: >98%
Wire pack material: aluminium
Wire wrap power: 100%
Diameter of enamelled wire: 4.0/4.3 mm
Number of relays: 5PCS
Relay current: 90A
Display: LED-3B
Power wiring: Terminal block
Housing: Iron

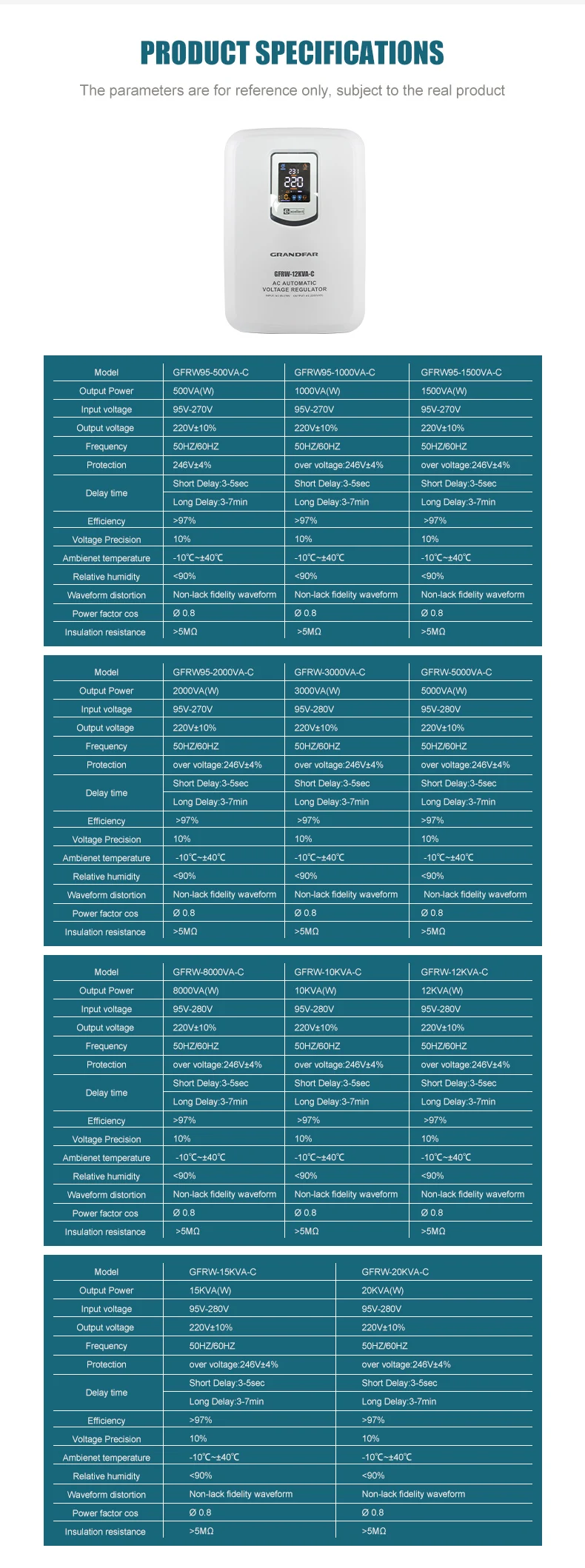

Model | Output power | Input voltage | Output voltage | Frequency | Over-voltage protection | Undervoltage protection | Delay | Efficiency |
GFRW-5000VA-C | 5000VA(W) | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRW-8000VA-C | 8000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRW-10KVA-C | 10000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRW-12KVA-C | 12000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRW-15KVA-C | 15000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
GFRW-20KVA-C | 20000VA（W） | AC 95V-280V | 220V±10% | 50HZ/60HZ | 246V±4V | 176V±4V(optional) | Short:3-5sec Long:3-7min | >98% |
Model | Relay current | Wire pack material | Display | Housing | Power wiring | Wire wrap power | Diameter of enamelled wire | Number of relays |
GFRW-5000VA-C | 40A | aluminium | LED-3B | Iron | Terminal block | 100% | 1.8/2.5 mm | 5PCS |
GFRW-8000VA-C | 40A | aluminium | LED-3B | Iron | Terminal block | 100% | 2.15/3.2 mm | 5PCS |
GFRW-10KVA-C | 60A | aluminium | LED-3B | Iron | Terminal block | 100% | 2.5/3.4 mm | 5PCS |
GFRW-12KVA-C | 60A | aluminium | LED-3B | Iron | Terminal block | 100% | 2.8/3.6 mm | 5PCS |
GFRW-15KVA-C | 70A | aluminium | LED-3B | Iron | Terminal block | 100% | 3.4/4.2 mm | 5PCS |
GFRW-20KVA-C | 90A | aluminium | LED-3B | Iron | Terminal block | 100% | 4.0/4.3 mm | 5PCS |

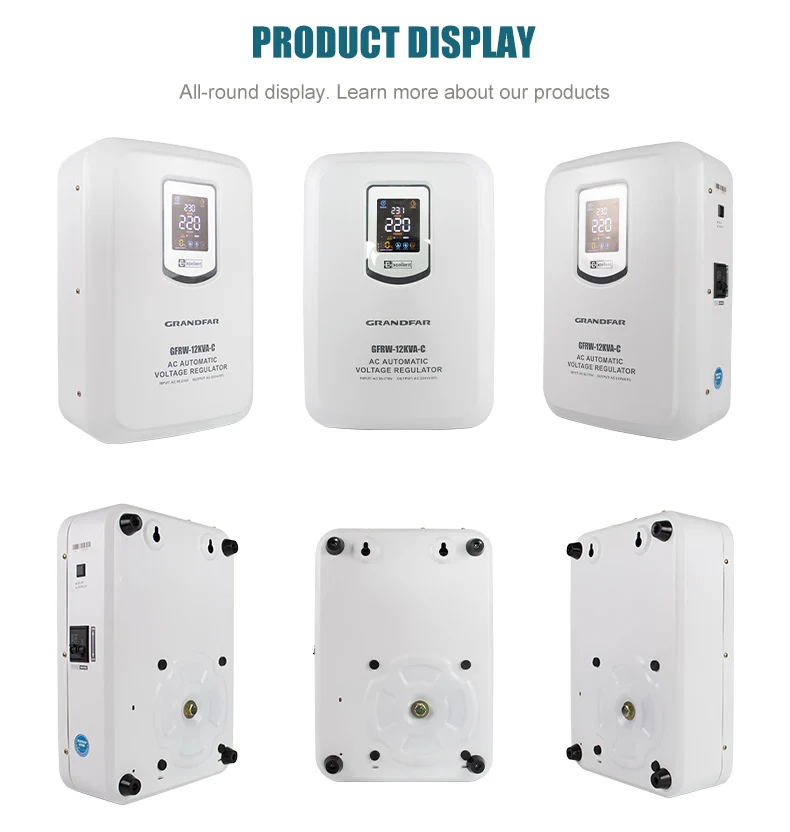

Products Show
Company Profile
Taizhou Leading Machinery Industry CO.,LTD
Taizhou Leading Machinery Industry CO.,LTD specialized in the production and development of generator ,air compressor ,high pressure washer,water pump ect..The brand already obtain good reputation after 10 years exploration and temper in the market.
Grandfar products nearly 30 series and more than 10,000 specifications,The products and designs are conform to the International
standard such as ISO9001, IEC60335-1, CE, ROHS etc. We have established long term cooperation and business relationship with customers and partners from over 50 countries & areas,including world famous machinery manufacturers and wholesalers. We have established subsidiaries in Uzbekistan and Kazakhstan, tobetter service our customers & partners.
Grandfar products nearly 30 series and more than 10,000 specifications,The products and designs are conform to the International
standard such as ISO9001, IEC60335-1, CE, ROHS etc. We have established long term cooperation and business relationship with customers and partners from over 50 countries & areas,including world famous machinery manufacturers and wholesalers. We have established subsidiaries in Uzbekistan and Kazakhstan, tobetter service our customers & partners.
FAQ
Are you a manufactory or trading company?
We are Manufacture and trading company.dedicated to develop and manufacture efficient pump and power tools.
Can you do OEM brand?
yes,but if you use our brand,you will get the amazing price and provide more support for all kind of advertising products.
Can you accept the customized products?
yes, of course .we accept your specific order if you can provide us your special requirements or special samples
What's the delivery time ?
20 to 30 days after receiving your payment in advance.
How about your service?
we have Pre-sale service, In-sale service ,and After-sale service, what we pursue is long-time cooperation, so our principle iscustomer first.
We are Manufacture and trading company.dedicated to develop and manufacture efficient pump and power tools.
Can you do OEM brand?
yes,but if you use our brand,you will get the amazing price and provide more support for all kind of advertising products.
Can you accept the customized products?
yes, of course .we accept your specific order if you can provide us your special requirements or special samples
What's the delivery time ?
20 to 30 days after receiving your payment in advance.
How about your service?
we have Pre-sale service, In-sale service ,and After-sale service, what we pursue is long-time cooperation, so our principle iscustomer first.
