Product Description
Edge Span S230L-EG60
Edge Span U230L-EG60 is derived from the Edge Span U200 series design, with an edge computing unit added to achieve more applications. And make the solar power as the main source of the system. The computing unit model EG-IC60, the configuration is as follows:
* CPU: 2 Cores Intel Celeron Processor N2830 1M Cache, up to 2.41 GHz
* Memory: DDR3L-1600 MHz Up to 16 GB
* Graphic Engine: Intel Atom Processor Z3700 Series
* OS: Linux 18.04 or 20.04 or Windows 10 64Bits
The Edge Span S230L fully natural heat dissipation structure guarantees the heat dissipation and long-term reliable operation of this edge computing unit.
The product includes MPPT 500W Solar Controller, 48V 25AH LiFePO4 lithium battery, industrial grade POE switch module and complete system monitoring module. The product concept is mainly to design an All in One solar plant edge computing node with simple plug and play design.
The overall ingress protection of Edge Span S230L-EG60 reaches IP65. For load deployment environments, such as outdoor deployment in desert areas, outdoor deployment in rainforest areas, and outdoor deployment in seaside high-salinity environments, it can play a long-term protective defense, anti-corrosion, and long-term reduction of OPEX.
Edge Span U230L-EG60 is embedded with powerful industrial-grade switch modules. It has 8*10/100/1000M Base-T interface (if the monitoring module is configured, it can reach 7*10/100/1000M Base-T). All downstream interfaces have POE/POE+ functions. If customers need POE++, we can also add corresponding modules. The uplink interface can be configured as 1*10/100/1000M Base-T and 1*10/100/1000M Base-X according to requirements. With the help of these interfaces, customers can easily deploy different devices under the Edge Span U230-EG60 edge computing node. For example, deploy cameras and deploy AI programs in the computing unit of Edge Span U230-EGIC60 to achieve rich functions.
Edge Span U230L-EGIC60 is built with a powerful solar controller unit can be remotely monitored and controlled by Edgeware software platform Convergence Software Platform.
* CPU: 2 Cores Intel Celeron Processor N2830 1M Cache, up to 2.41 GHz
* Memory: DDR3L-1600 MHz Up to 16 GB
* Graphic Engine: Intel Atom Processor Z3700 Series
* OS: Linux 18.04 or 20.04 or Windows 10 64Bits
The Edge Span S230L fully natural heat dissipation structure guarantees the heat dissipation and long-term reliable operation of this edge computing unit.
The product includes MPPT 500W Solar Controller, 48V 25AH LiFePO4 lithium battery, industrial grade POE switch module and complete system monitoring module. The product concept is mainly to design an All in One solar plant edge computing node with simple plug and play design.
The overall ingress protection of Edge Span S230L-EG60 reaches IP65. For load deployment environments, such as outdoor deployment in desert areas, outdoor deployment in rainforest areas, and outdoor deployment in seaside high-salinity environments, it can play a long-term protective defense, anti-corrosion, and long-term reduction of OPEX.
Edge Span U230L-EG60 is embedded with powerful industrial-grade switch modules. It has 8*10/100/1000M Base-T interface (if the monitoring module is configured, it can reach 7*10/100/1000M Base-T). All downstream interfaces have POE/POE+ functions. If customers need POE++, we can also add corresponding modules. The uplink interface can be configured as 1*10/100/1000M Base-T and 1*10/100/1000M Base-X according to requirements. With the help of these interfaces, customers can easily deploy different devices under the Edge Span U230-EG60 edge computing node. For example, deploy cameras and deploy AI programs in the computing unit of Edge Span U230-EGIC60 to achieve rich functions.
Edge Span U230L-EGIC60 is built with a powerful solar controller unit can be remotely monitored and controlled by Edgeware software platform Convergence Software Platform.

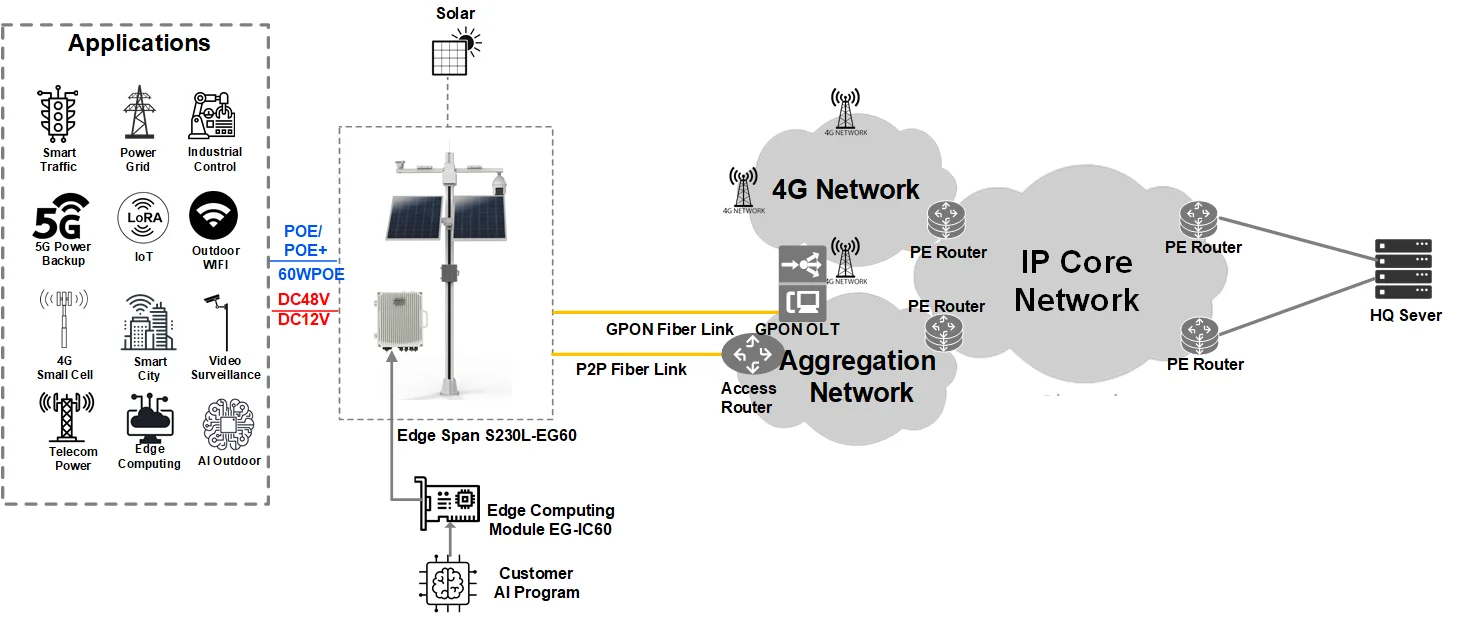

Application Scenario
333
Specification
item | value |
Dimension | W*H*D 450mm*371.3mm*234mm |
Weight | 19.5kg(with all system） |
Material | Aluminum |
Ingress Protection | IP65, NEMA4X |
Heat Dissipation | No fan design, natural heat dissipation |
System Operating Temperature | -20~+75°C, 5%~90% RH Non condensing |
Solar Controller | MPPT Solar Controller 500W DC48V 10A |
Battery | 48V25AH LiFePO4 Lithium Battery with BMS |
Network and System Surge Suppression | 20KVA |
Application | Security / Monitoring / Alarm |
Computing Unit | * CPU: 2 Cores Intel Celeron Processor N2830 1M Cache, up to 2.41 GHz * Memory: DDR3L-1600 MHz Up to 16 GB * Graphic Engine: Intel Atom Processor Z3700 Series * OS: Linux 18.04 or 20.04 or Windows 10 64Bits |
Network Module: | GE Downlink: 7*10/100/1000M Base-T ports GE Uplink : (1-2) *10/100/1000M Base-X or Base T port Layer 2 POE switch module manageable or non-manageable Port number can be customized |
PoE: | Downlink ports support 802.3 at/af, max PoE power 180W when configured with 200W DC UPS, 240W when configured with 300W DC UPS 802.3 bt 60W POE module optional. |
Output Power | DC12V DC48 can be customized based on requirement |
Output and Input Signal | DI/DO RS485 can be customized based on requirement |
System Monitoring and Management | Work with Edgeware Convergence software platform to perform system monitoring and management |
Environment Monitoring | System temperature, humidity. Box open and close status |
Solar Status Monitoring | Solar power generation statistics Battery charge statistics Load power usage statistics Surge suppressor status monitoring Input voltage, input current , output voltage output current Key function unit status |
Solar System Remote Control | Remote turn on and off (Can scheduled by time ) Remote turn on and off load output ( Can scheduled by time) |
Battery Status Monitoring | Battery voltage , current, remaining capacity, temperature Battery working status, battery charge and discharge current Battery health estimation( Battery life time estimation ) |
External Light Control | External light control |
Typical Application Scenario | cctv cabinet, video surveillance cabinet, IoT Cabinet, IoT device enclosure, IoT enclosures, Industrial Enclosed UPS, Power backup enclosure, Emergency Backup Power, emergency backup power supply, outdoor emergency backup power |
Network Module Switching Capacity | 128Gbps |
MAC | 8K |
Network Module Protocol Supported | 4K VLAN based on port, IEEE802.1q VLAN based on the protocol, VLAN based on MAC QinQ configuration, Port configuration of Access, Trunk, Hybrid LACP, Static aggregation, Max 3 aggregation groups and 8 ports per group. STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s) MLD Snooping v1/v2,Multicast VLAN IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out Bidirectional data mirroring based on port Flow-based Rate Limiting Flow-based Packet Filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR,) Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc IP-MAC-VLAN-Port binding ARP inspection,Anti-DoS attack AAA & RADIUS,MAC learning limit Mac black holes,IP source protection IEEE802.1X & MAC address authentication Broadcast storm control,Backup for host datum SSH 2.0,SSL,Port isolation,ARP message speed limit User hierarchical management and password protection DHCP Client,DHCP Snooping,DHCP Server,DHCP Relay |
Packing & Delivery
Carton Dimension: 54cm*48.7cm*33cm(W*H*D) 20.4kg
