Китайский домашний провод 2x4 0 мм2 Электрический медный кабель питания от солнечной энергии XLPE
- Категории: >>>
- Поставщик: Zhejiang,Pntech,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

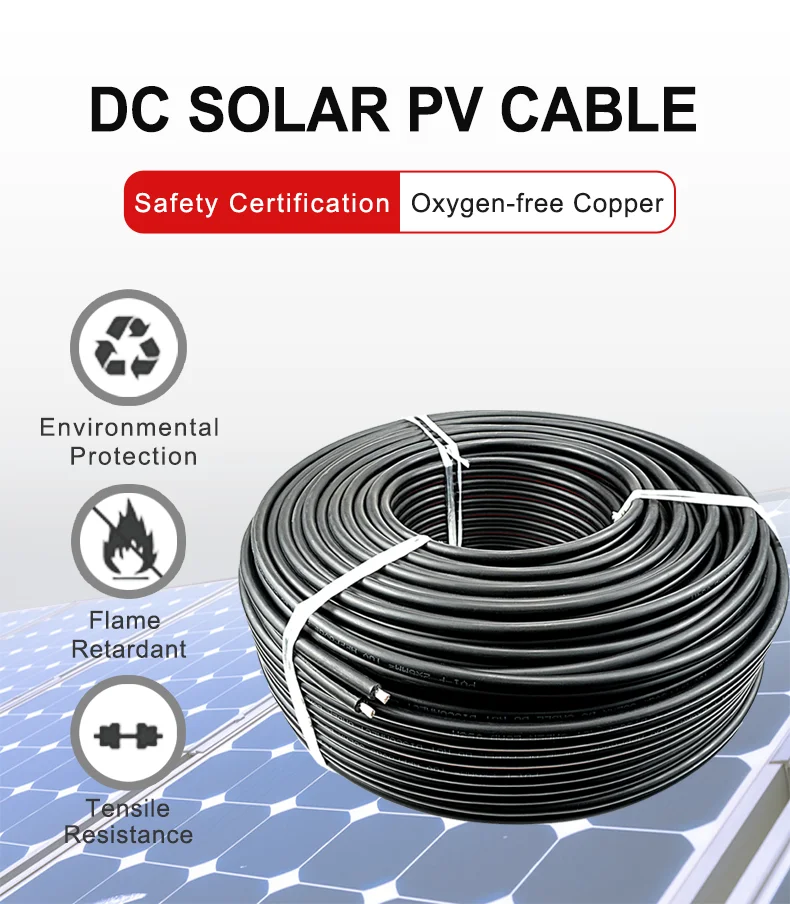

Product Name | DC Solar PV Cable |
Origin | China |
Color | Black and Red or Customized |
Specification | 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2 |
Number of Cores | Twins Core |
Transport Package | Drum or Roll |
Conductor | Oxygen-free Tinned Copper Wire |
Insulating Layer | 125℃XLPO |
Sheath Layer | 125℃ XLPO |
Special Process | lirradiated Cross-linked |
Rated Voltage | DC:1.8KV AC;0.6/1.0kv |
Adaptive Temperature | -40℃～+ 90℃ |
Product Standards | EN 50618:2014 |
Max Conductor Temperature | +120℃ |
Service Life | Expected Service Life Is 25 Years |
Short-circuit Temperature | 200℃, 5 Second Cycle |
Bending Radius | ≥4×φ (D<8mm),≥6×φ (D<8mm) |
Acid And Alkali Resistance | VDE-AR-E 2283-4:2011 |
Cold Bending Test | VDE-AR-E 2283-4:2011 |
Weathering/UV Resistance | VDE-AR-E 2283-4:2011 |
Ozone Resistance | VDE-AR-E 2283-4:2011 |
Fire Test | VDE-AR-E 2283-4:2011 |
Halogen Free Performance | EN 60754-1/EN 60754-2 |

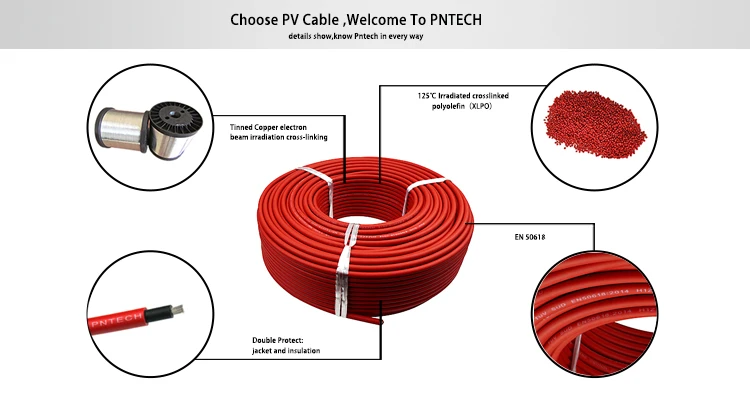

Product Details
Specification
Cross Section | Conductor Size | Conductor Stranded OD | Cable OD | DC Resistance | Carrying Capacity | Picking |
mm² | number/mm±0.015 | mm±0.01 | mm±0.01 | Ω/km,20ºC | ≤60ºC | mater/roll |
2x2.5 | 36/0.29 | 1.98 | 5.2x10.6 | 8.21 | 36 | 100/100 |
2x4.0 | 56/0.29 | 2.35 | 5.6x11.5 | 5.09 | 44 | 100/100 |
2x6.0 | 84/0.29 | 3.06 | 6.6x13.5 | 3.39 | 60 | 100/100 |
2x10 | 80/0.4 | 4.60 | 7.8x15.8 | 1.95 | 82 | 100/100 |
Other Products

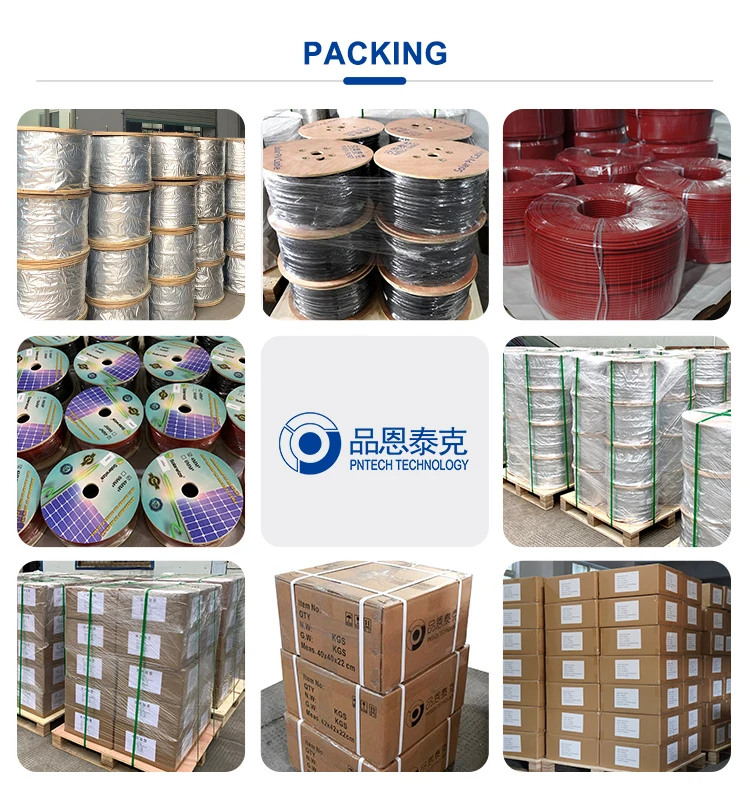

Product packaging

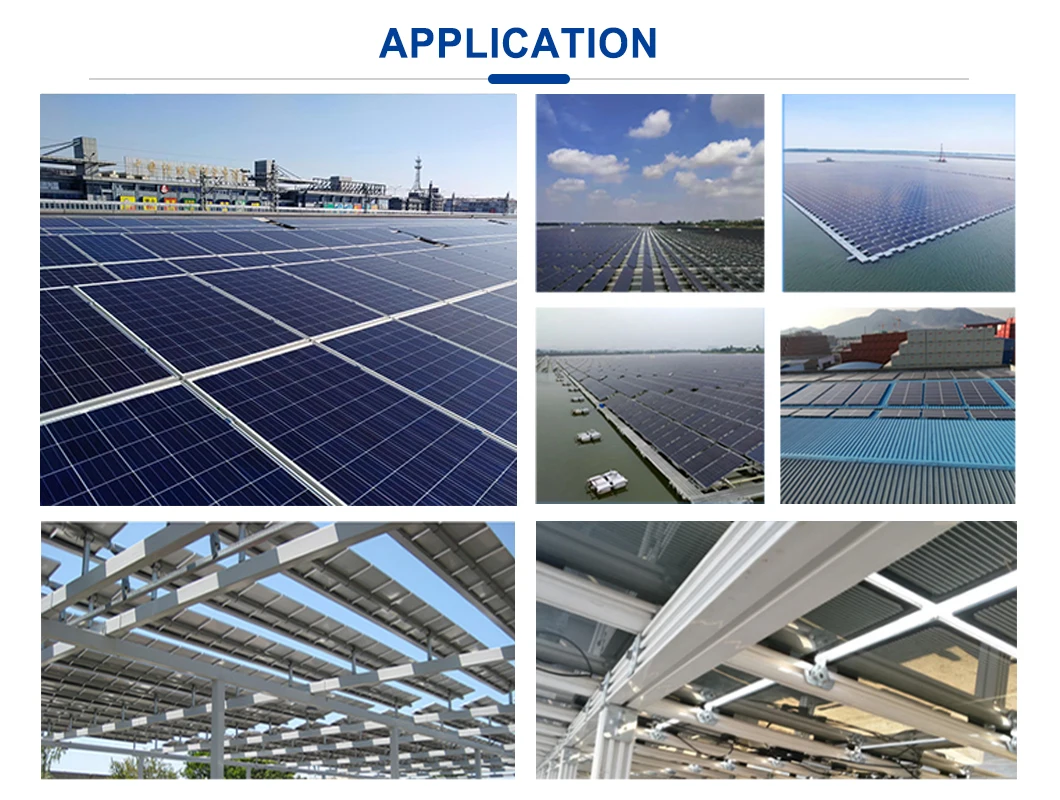

Application

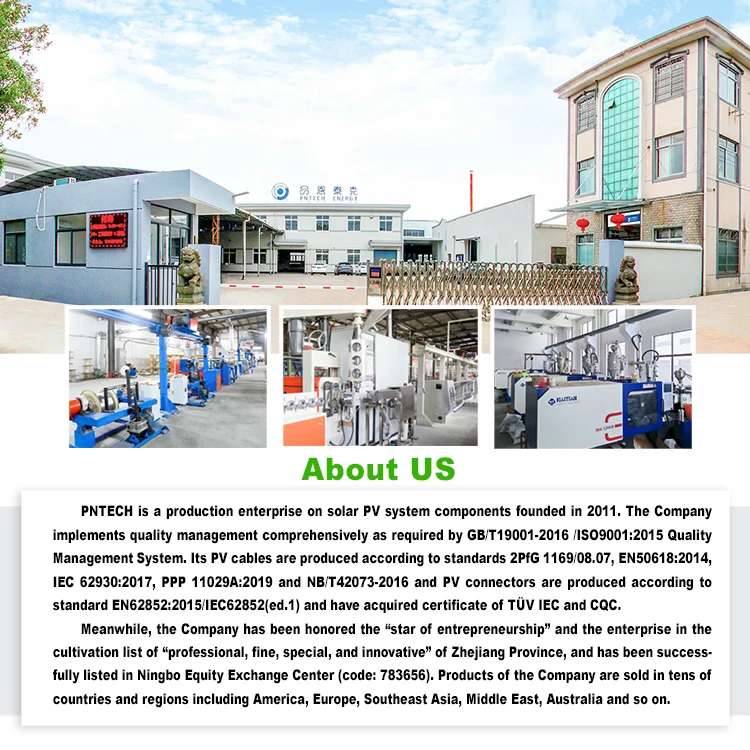

Company Profile
Certificates

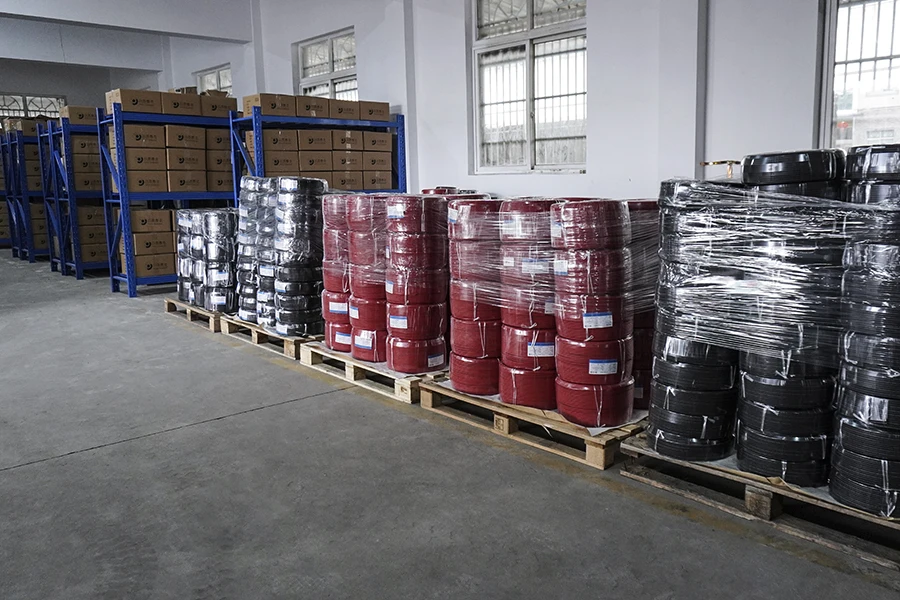

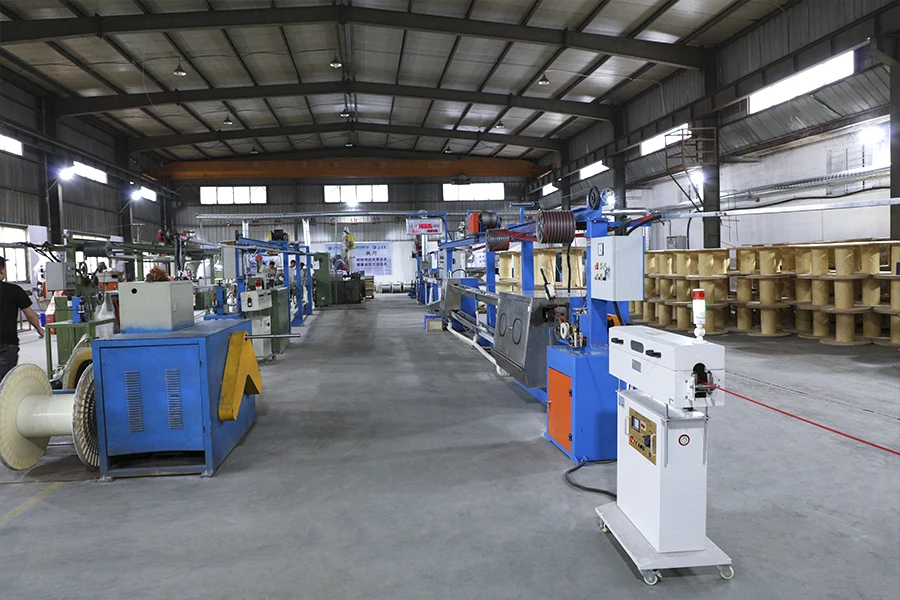

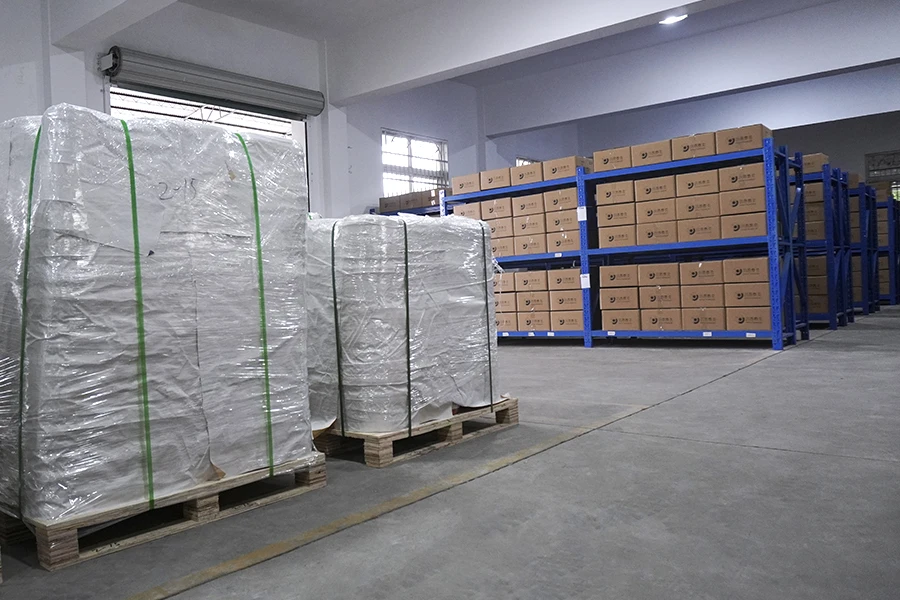

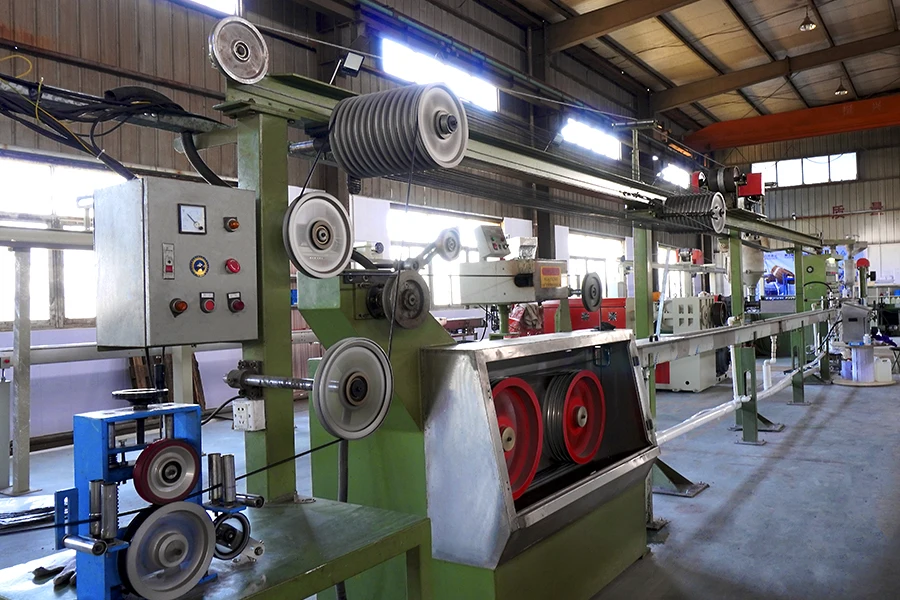

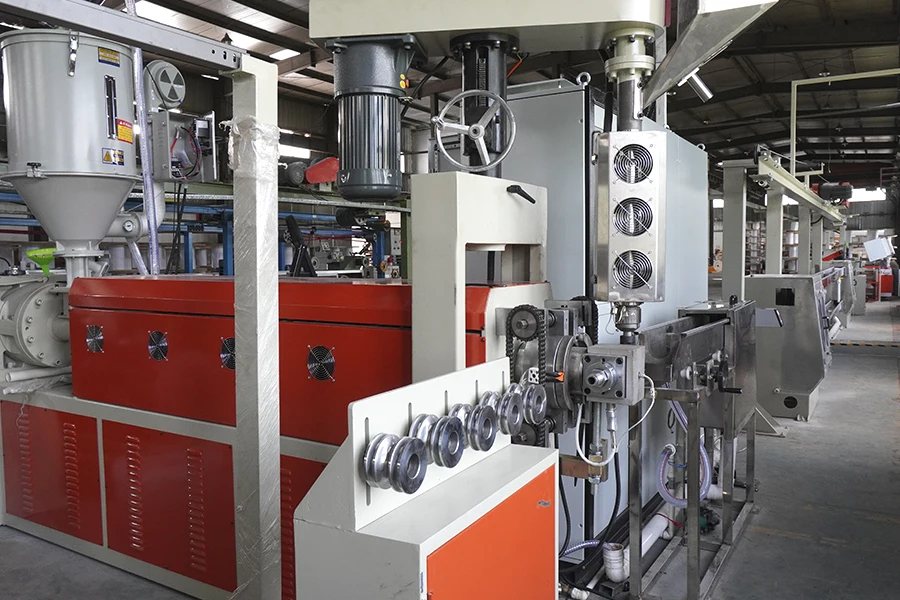

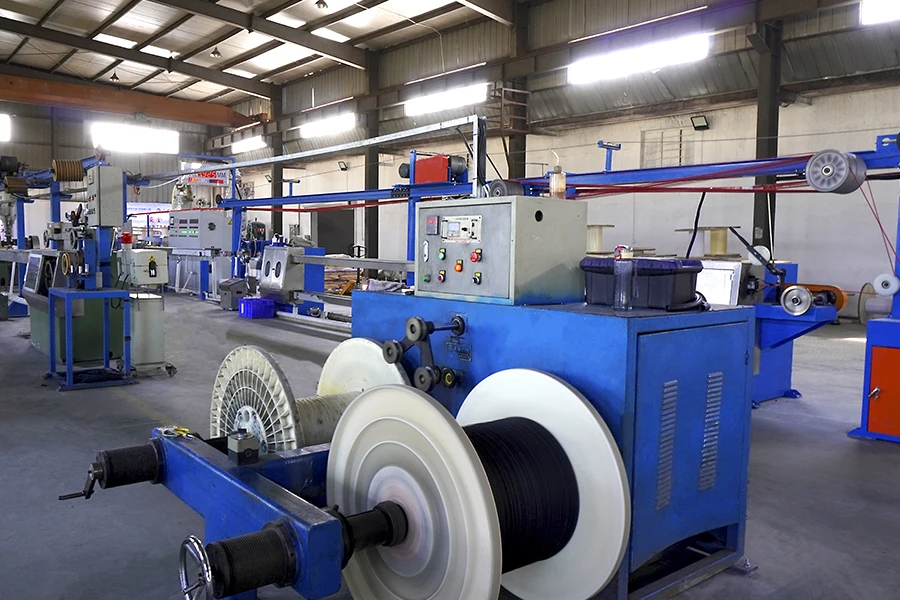

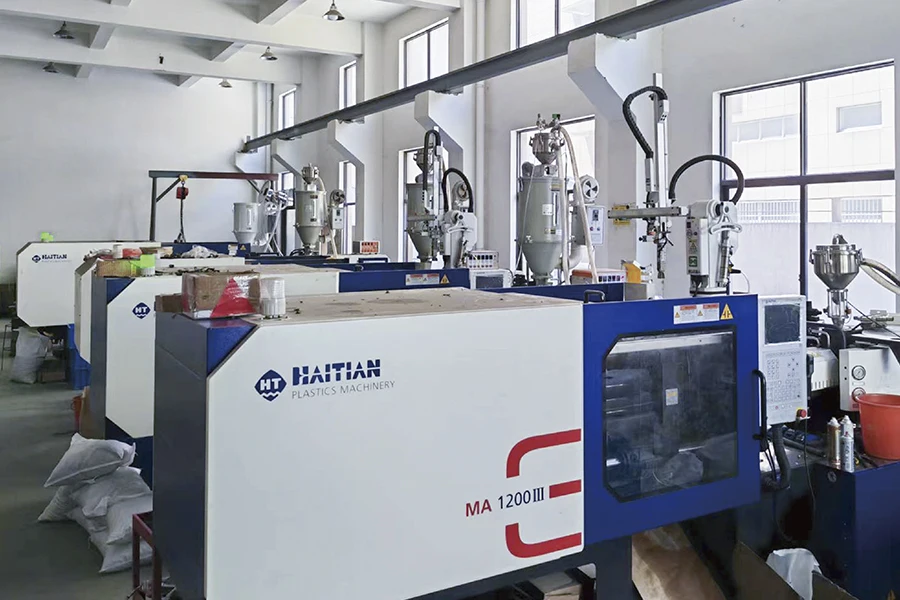

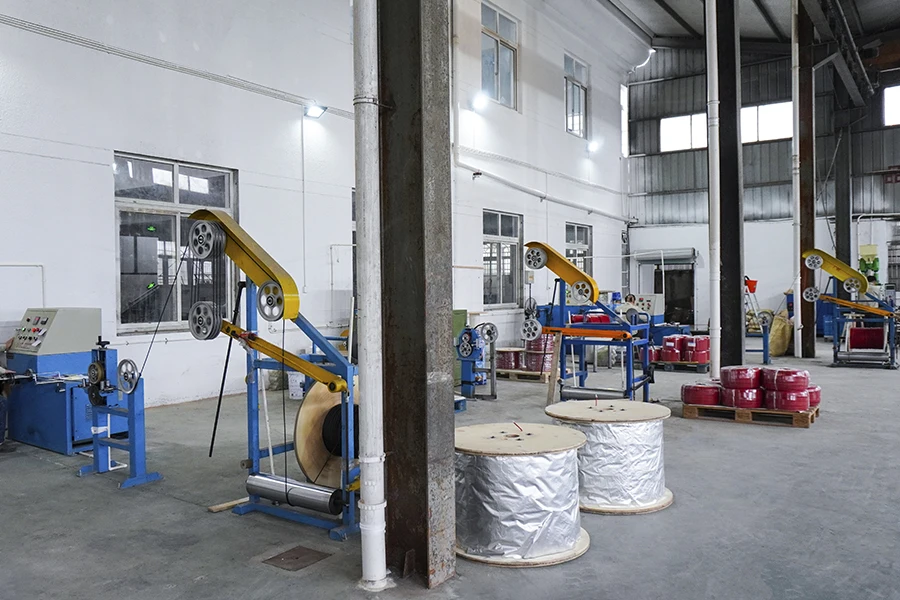

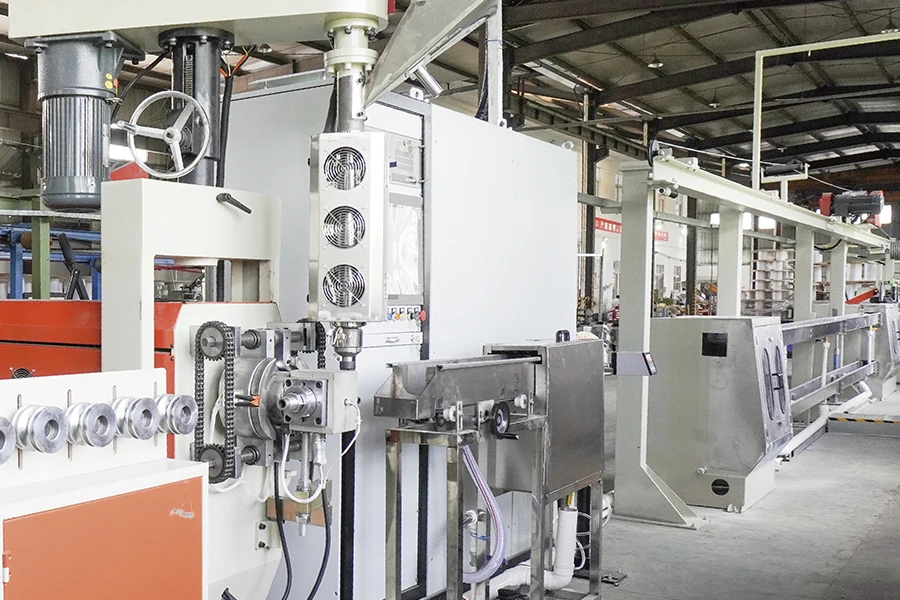

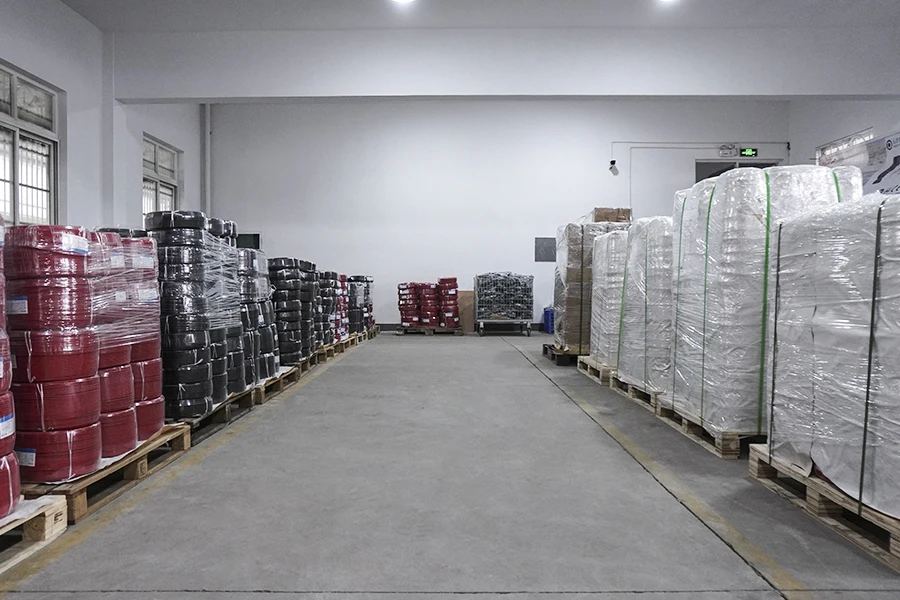

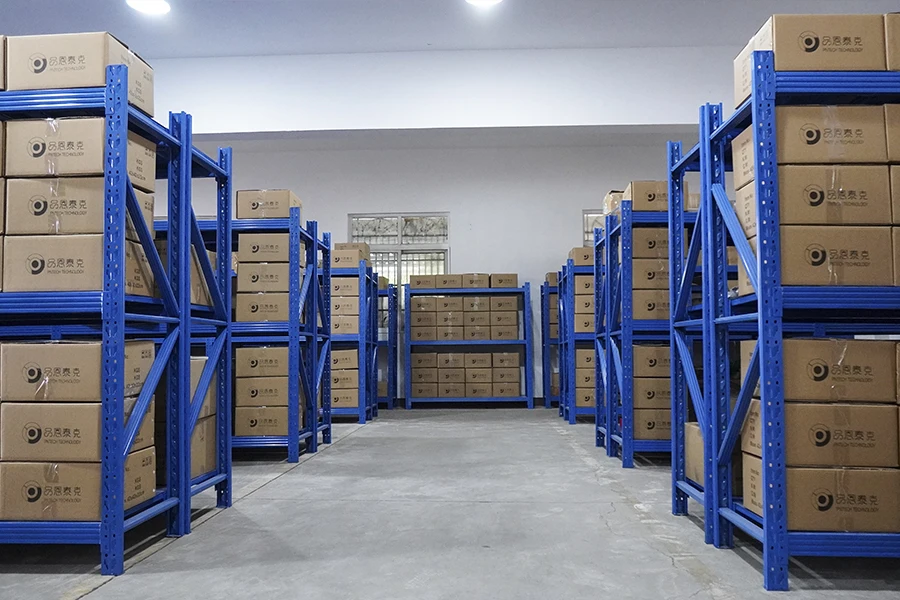

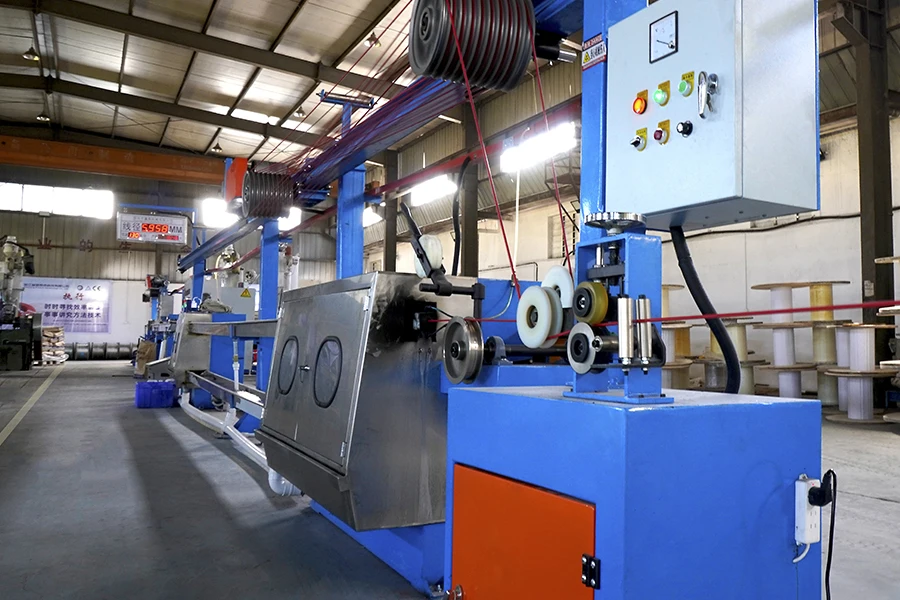

Factory
Exhibition
FAQ
Q1：Where are the photovoltaic cables used ?
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
Q2：How to choose the type and specification of photovoltaic cable ?
A2：Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2（orpv1-f）.
Q3：What is the difference between h1z2z2-k and pv1-f ?
A3：H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4：Which size of cables should I choose ?
A4：4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5：How long is the service life of photovoltaic cable ?
A5：Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6：What other features do photovoltaic cables have ?
A6：Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
Q2：How to choose the type and specification of photovoltaic cable ?
A2：Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2（orpv1-f）.
Q3：What is the difference between h1z2z2-k and pv1-f ?
A3：H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4：Which size of cables should I choose ?
A4：4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5：How long is the service life of photovoltaic cable ?
A5：Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6：What other features do photovoltaic cables have ?
A6：Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
