Product Description
Product Application

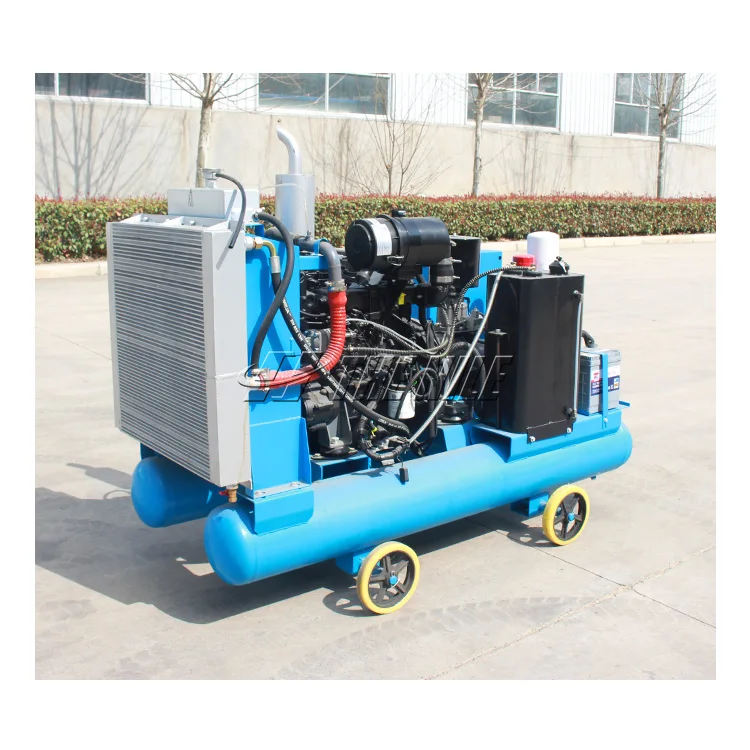

Portable diesel Mining Air Compressor for miningSmall Portable W3.5/5 Piston air compressor with jack hammer, are mainly used to supply stable and clean compressed air to the pneumatic tools and keep them working smoothly and efficiently.
Description:
1.Valve plate and spring strip:made of special steel from Sweden and after special treatment;high efficient and reliable
2.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption
3.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition
4.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance
5. Simple structure light weight easy to move
6. Energy saving Low cost
7.Easy operating and maintenance
1.Valve plate and spring strip:made of special steel from Sweden and after special treatment;high efficient and reliable
2.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption
3.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition
4.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance
5. Simple structure light weight easy to move
6. Energy saving Low cost
7.Easy operating and maintenance
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Technical Data
Model | W3128 | W3118 | W3108 |
Gas Displacement | 3.5 m3/min | 3.0 m3/min | 2.0 m3/min |
Discharge Pressure | 0.7 Mpa | 0.7 Mpa | 0.7 Mpa |
Speed of Crankshaft | 990 r/min | 1080 r/min | 1150 r/min |
Quantity of Cylinder | 3 | 3 | 3 |
Diameter of Cylinder | 128mm | 118mm | 108mm |
Piston Stroke | 110mm | 100mm | 80mm |
Tank Capacity | 230L | 200L | 130L |
Matched Power | S1125 Diesel Engine/ 18.5kw 2-pole Motor | S1115 Diesel Engine/ 15kw 2-pole Motor | S1105 Diesel Engine/ 11kw 2-pole Motor |
Pressure Control Mode | Shut Down Air Intake | Shut Down Air Intake | Auto Exhaustion |
Lubrication Type | Splash | Splash | Splash |
Cooling Type | Air Cooling | Air Cooling | Air Cooling |
Driving Method | Clutch, Triangle Belt | Clutch, Triangle Belt | Clutch, Triangle Belt |
Dimension | 1800*940*1290mm | 1750*940*1290mm | 1630*750*1150mm |
Weight | 450kg (Diesel Engine Type)390kg (18.5kw Motor Type) | 435kg (Diesel Engine Type)375kg (15kw Motor Type) | 320kg (Diesel Engine Type)280kg (11kw Motor Type) |
Application
Packing & Delivery
Standard package in wooden boxes or containers
Company Profile
The Nile Machinery Co., Ltd. (referred to as THE NILE MACHINERY) was established in 1987 and is affiliated to the multinational corporation--The Nile Group. Its parent company is THE NILE CO., LTD located in Hong Kong.
The Nile Machinery is a comprehensive service enterprise that is mainly engaged in the production, processing, investment and product trade of mining equipment. Its business areas cover the metallurgy, mining, transportation, building materials, electricity, environmental protection, chemicals, new energy, agricultural products storage and processing industries.
The Nile Machinery is a comprehensive service enterprise that is mainly engaged in the production, processing, investment and product trade of mining equipment. Its business areas cover the metallurgy, mining, transportation, building materials, electricity, environmental protection, chemicals, new energy, agricultural products storage and processing industries.

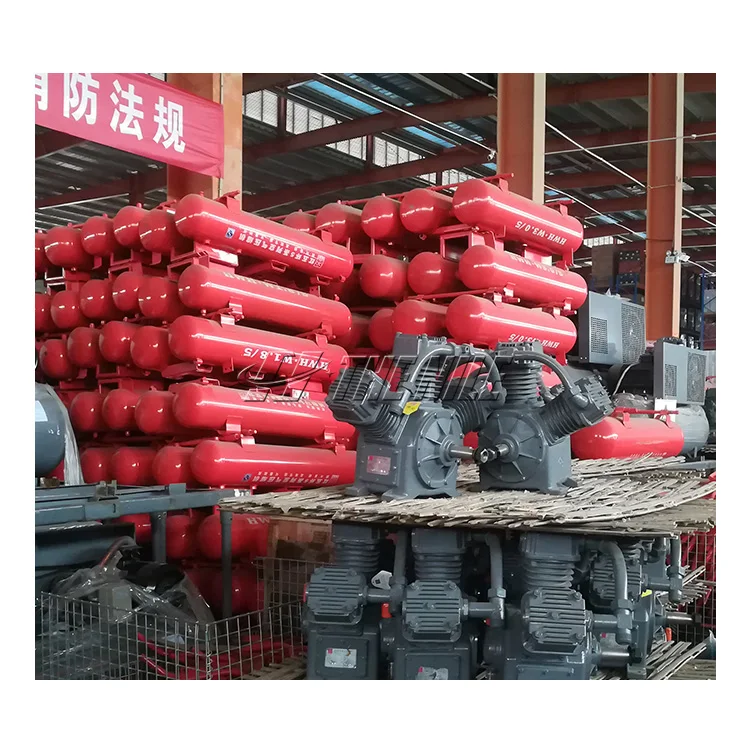

THE NILE Factory
Kenya factory
Our Advantages
Pre-sale services:
(1) Advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the
best processes and program
After-sale services :
(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site
production of 1 month, until the user' satisfaction.
(1) Advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the
best processes and program
After-sale services :
(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site
production of 1 month, until the user' satisfaction.
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our
technicians to your place and you are therefore, responsible for all thecost involved.
Q5: What about the payment method?
A5:T/T, L/C Paypal is available
Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
A1: We are factory.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our
technicians to your place and you are therefore, responsible for all thecost involved.
Q5: What about the payment method?
A5:T/T, L/C Paypal is available
Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
