Products Description

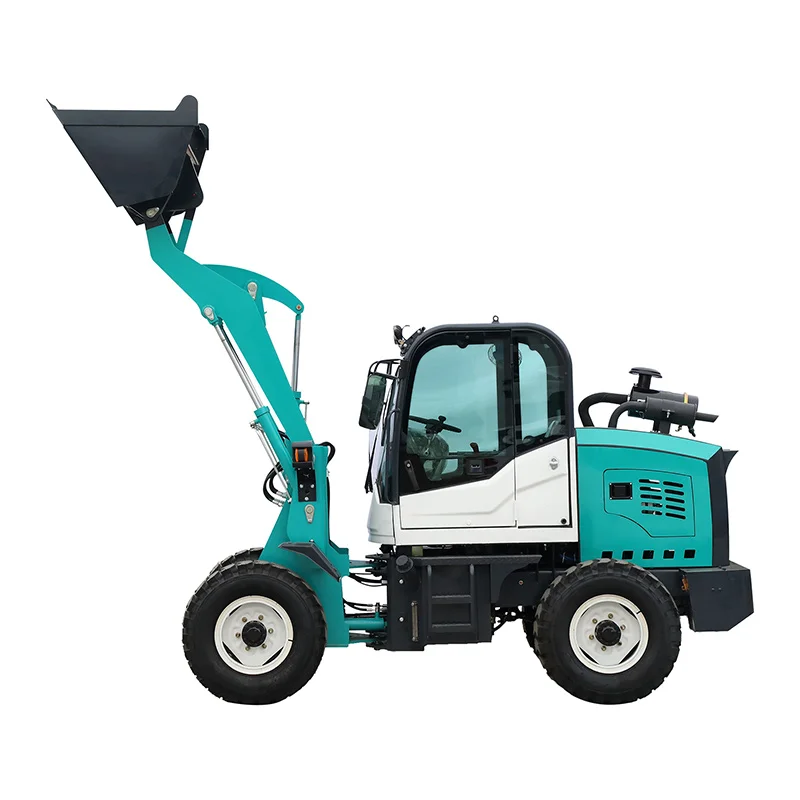

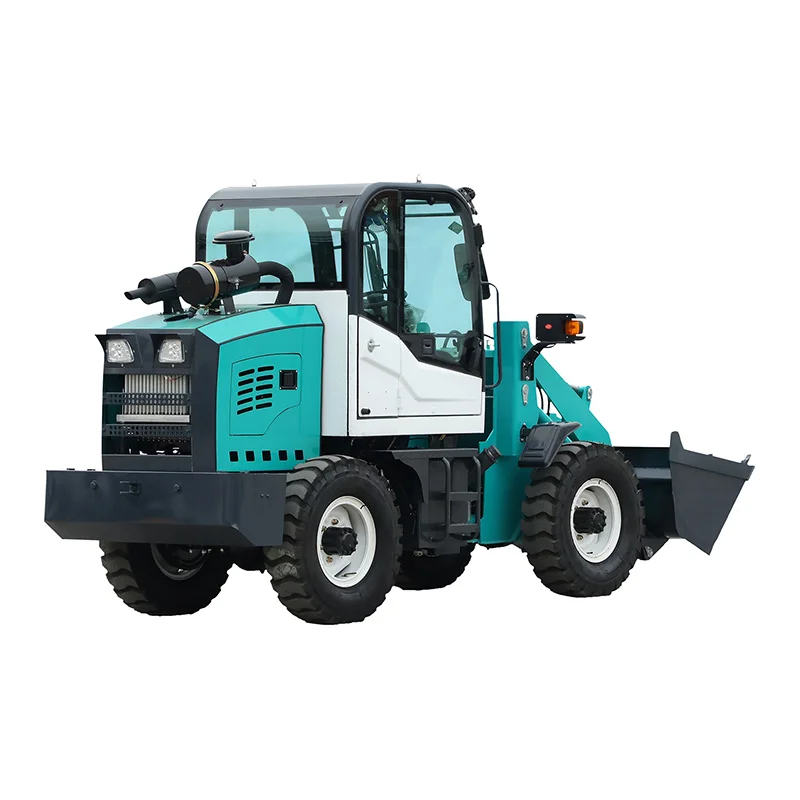

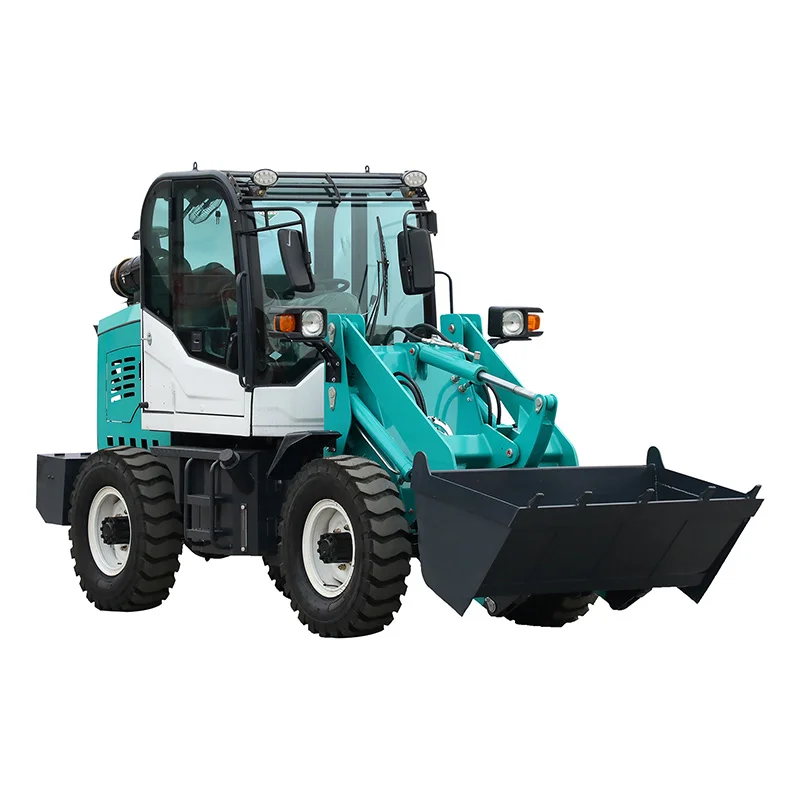

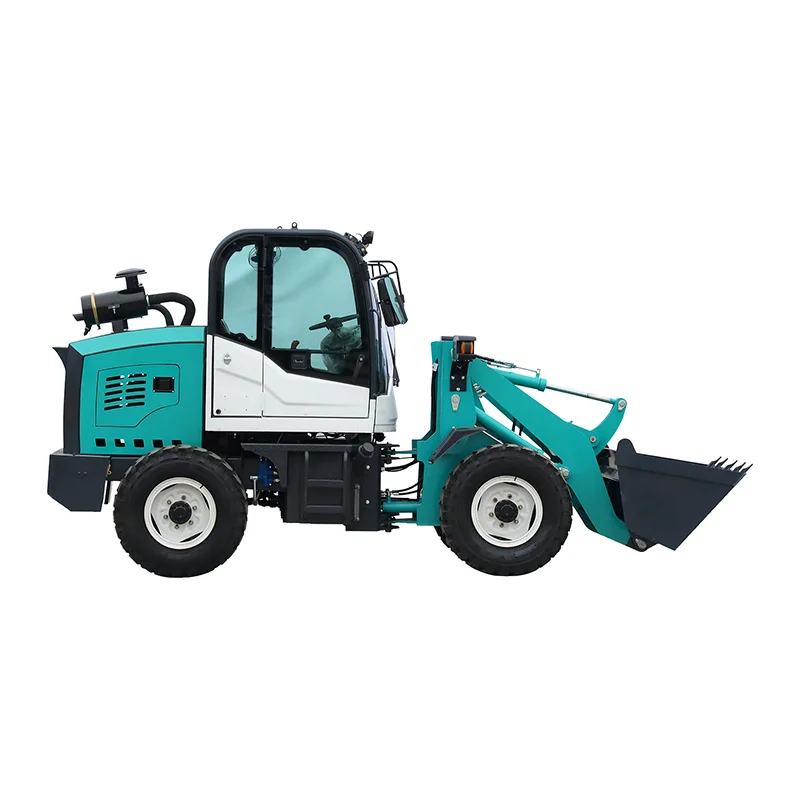

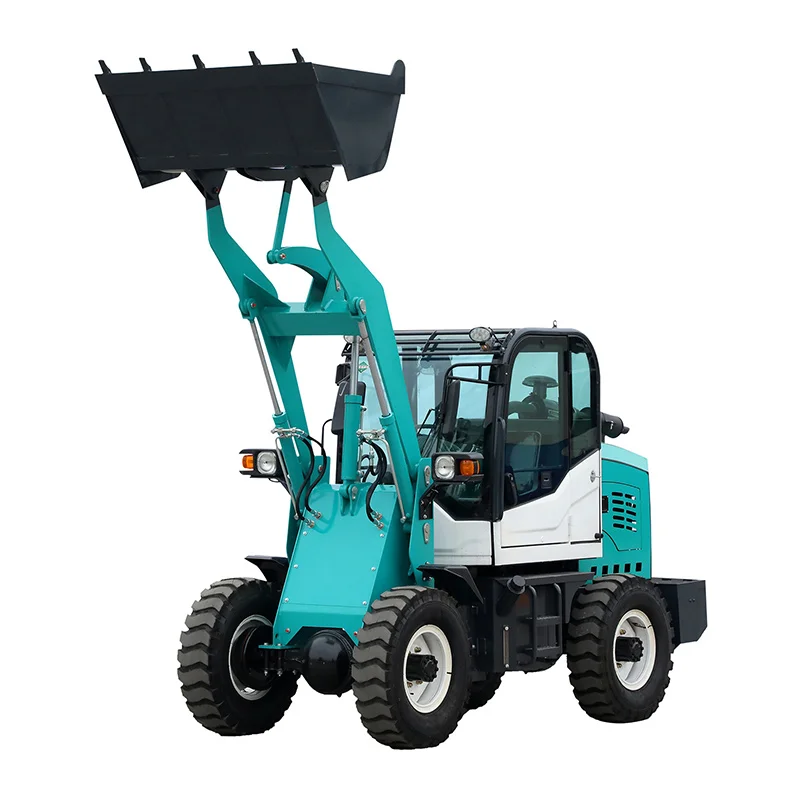

HIGH STANDARD WHEEL LOADER FW910
1. All choose the best domestic and international ingredients, the quality is reliable and meet the needs of humanization.

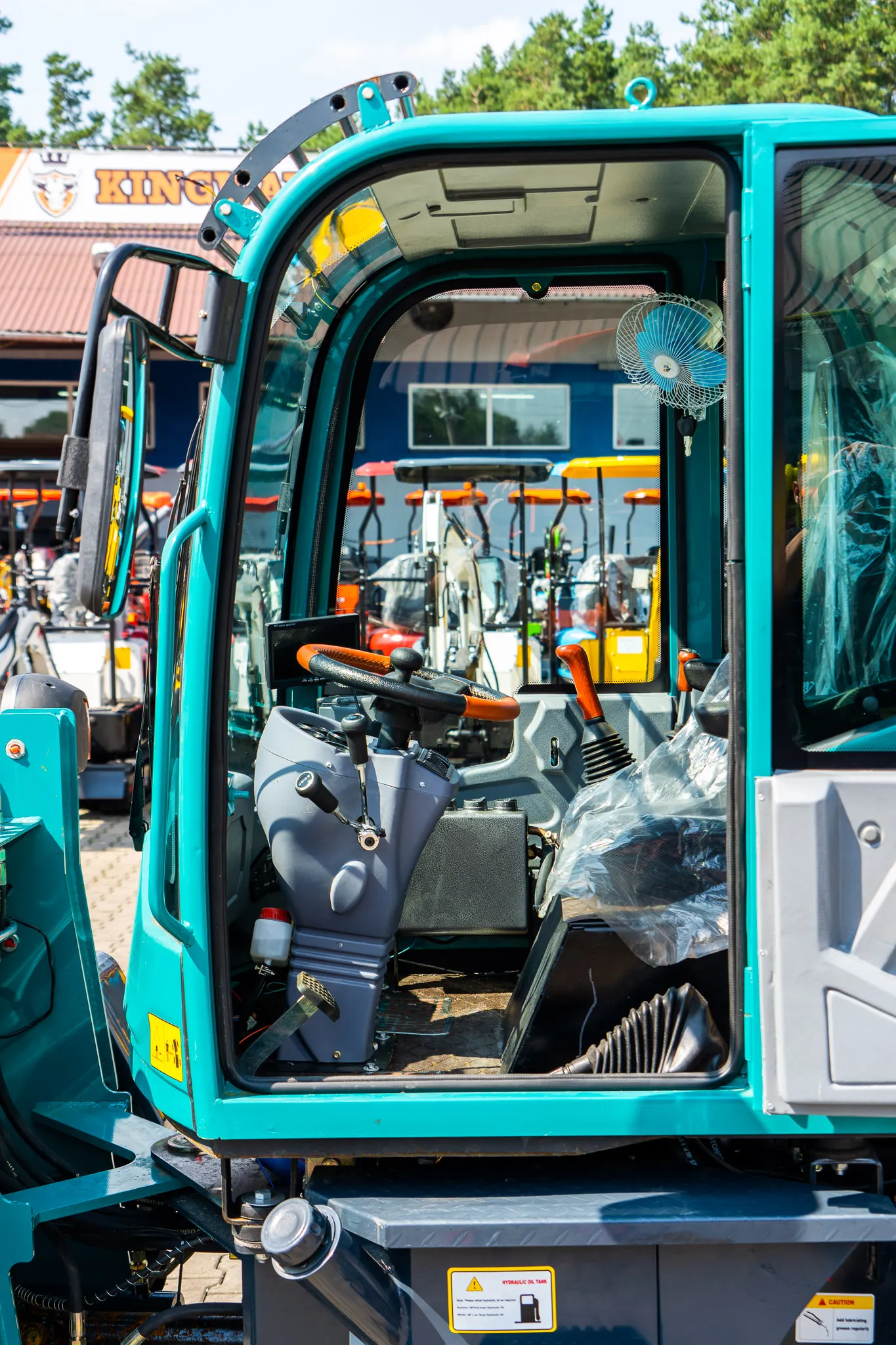

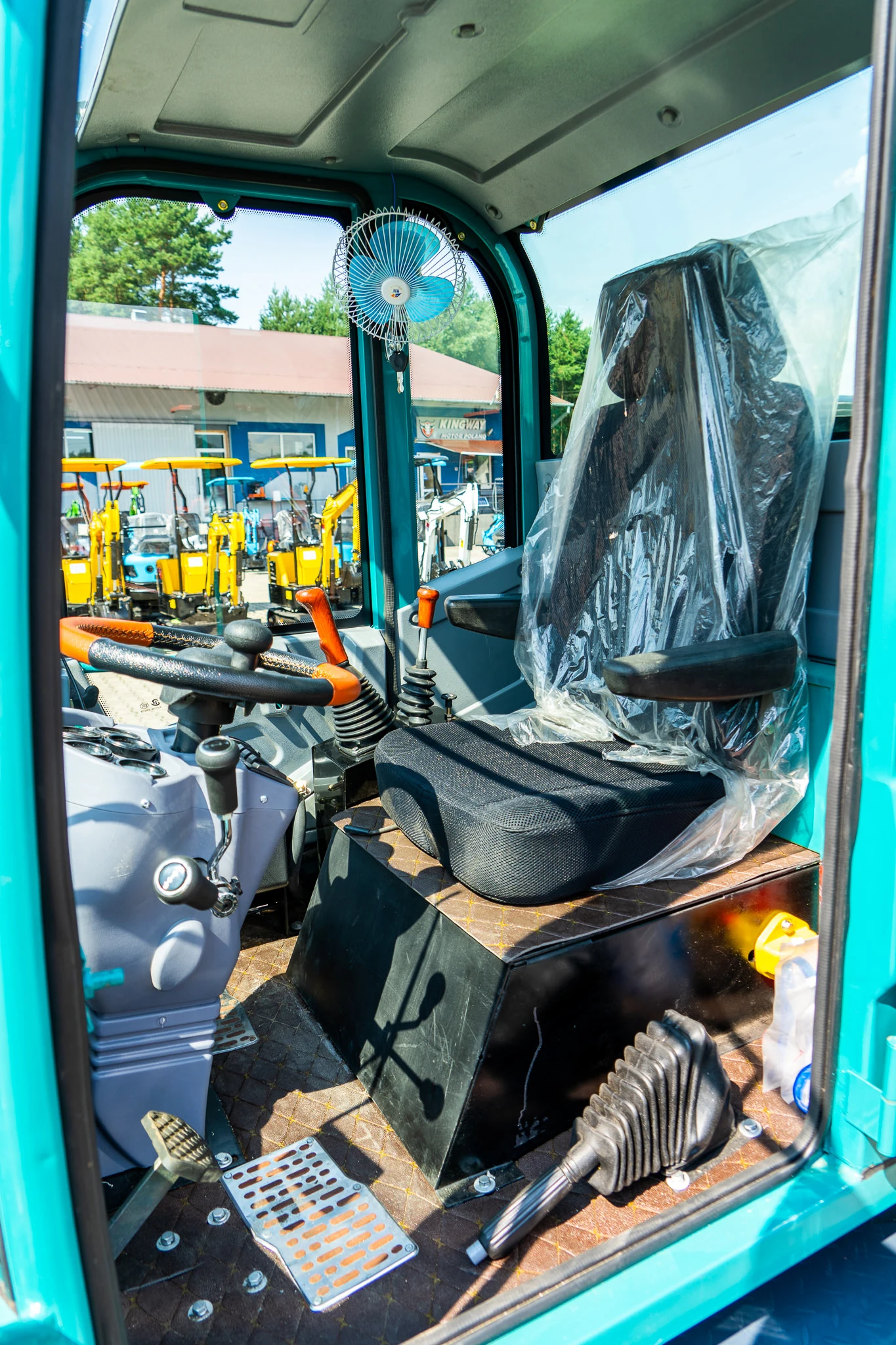

2. European style appearance and luxurious interior cab; full glass side door with wide view.
3. The brake tube is equipped with a protective sleeve, which can effectively prevent the brake tube from being smashed by the material and greatly improve the safety performance; the unique external introduction setting of the refueling nozzle makes it easy to inject oil and is easy to concentrate on filling butter.

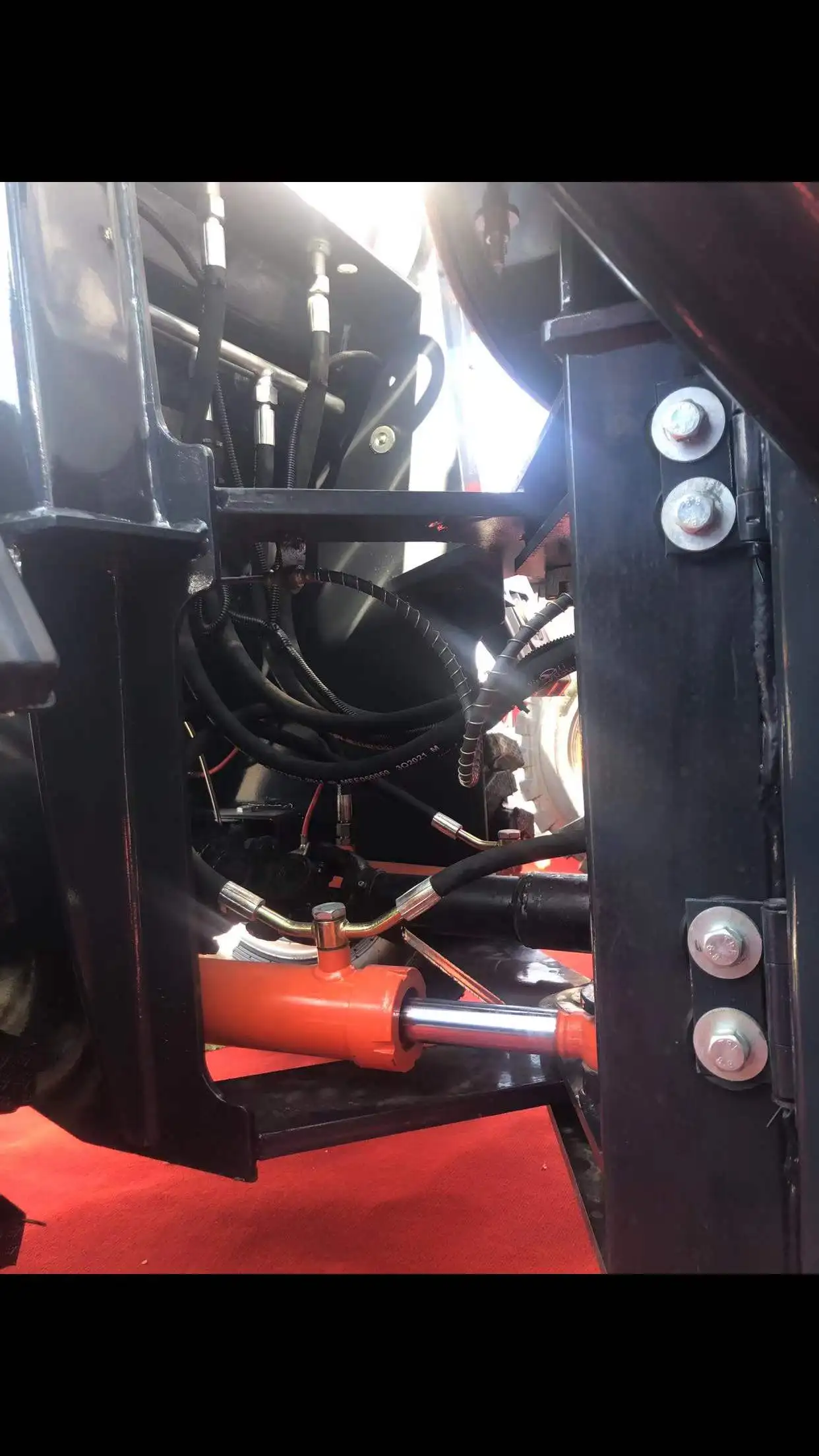

4. Fine pipeline design and rational pipeline layout, beautiful and practical, easy to repair.
5. The bucket is flattened automatically to reduce the fatigue strength of the driver.
1.Our wheel loader has fully hydraulic steering system, power shift transmission, easier operation and easier maintenance.
2.Our wheel loader has Euro iii engine (Chinese famous brand engine, EPA engine and Japanese imported engine is optional).
3.Comfortable operation environment, air conditioner, back camera is optional.
4.Higher dumping and longer arm of wheel loader could be customized.
5.We could customize the painting of wheel loader as per request of clients.
6.Multifunctional Wheel loader.
2.Our wheel loader has Euro iii engine (Chinese famous brand engine, EPA engine and Japanese imported engine is optional).
3.Comfortable operation environment, air conditioner, back camera is optional.
4.Higher dumping and longer arm of wheel loader could be customized.
5.We could customize the painting of wheel loader as per request of clients.
6.Multifunctional Wheel loader.
Overall Performance/Models | FW910 | ||

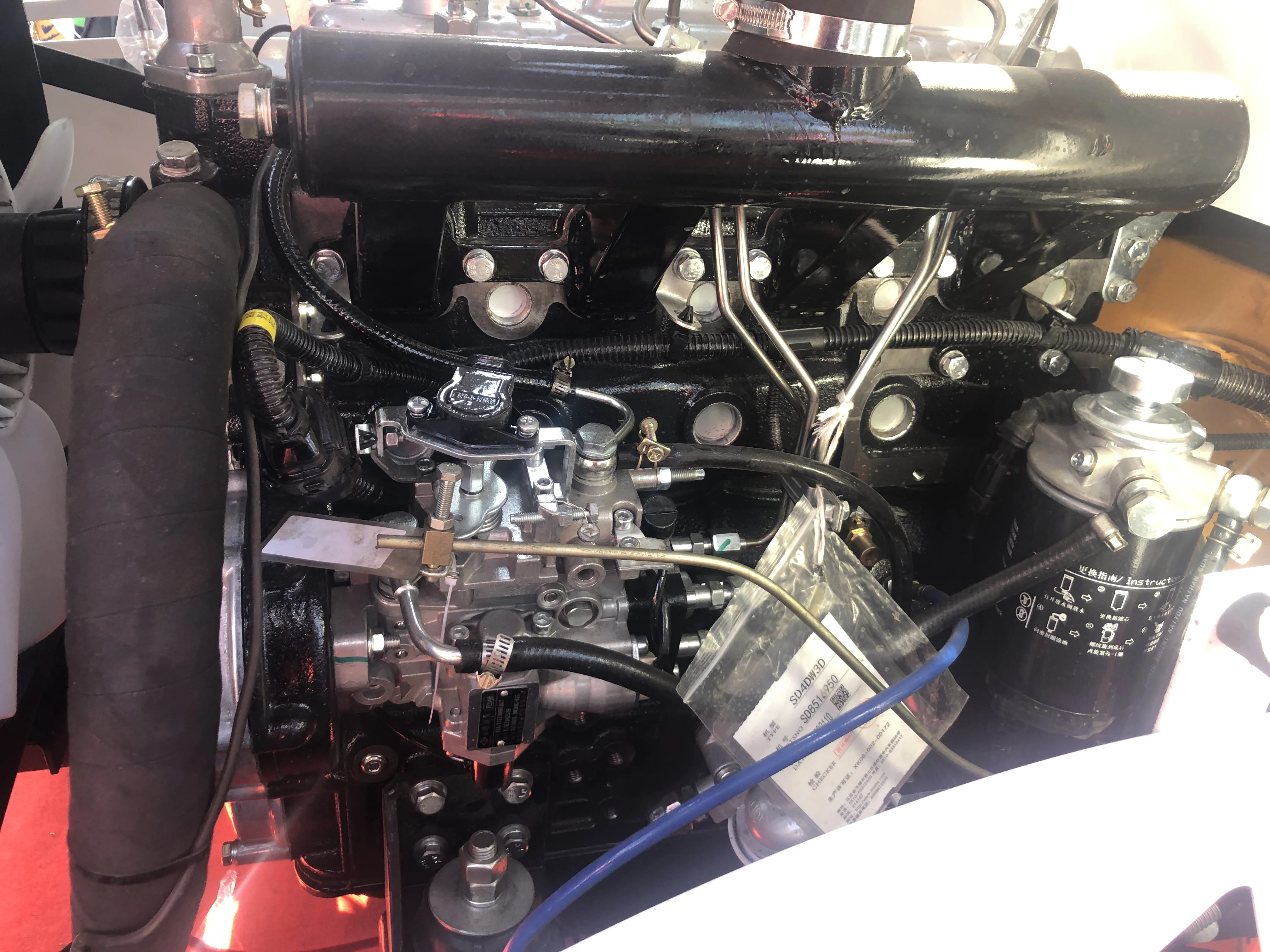

Engine Model | SIDA 490 | ||
Power(Kw) | 42KW | ||
Emission | Euro 2 | ||
Number of Cylinder | 4 | ||
Operating Weight | 2600kg | ||
Machine Size L×W×H | 4900*1300*2200mm | ||
Wheel Base | 2000mm | ||
Wheel Tread | 1150mm | ||

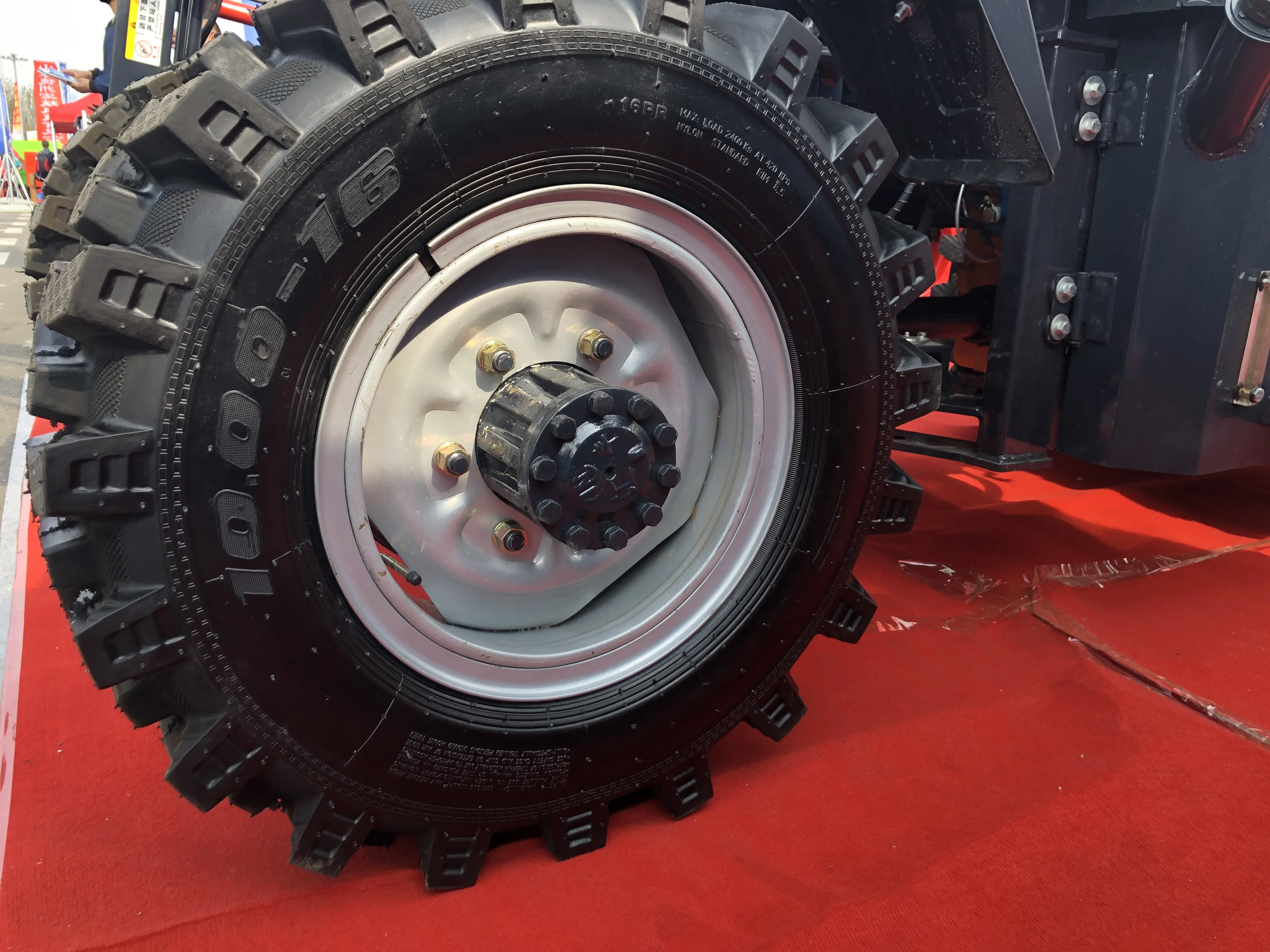

Tire Size | 1000-16 | ||
Rated Load(kgs) | 800kg | ||
Bucket Capacity Range | 0.4-0.6m³ | ||
Standard Bucket Capacity | 0.4m³ | ||
Bucket Width | 1300mm | ||
Dumping Height | 2400mm | ||
Dumping Reach | 600mm | ||
Max. Raising Height | 3000mm | ||
Service | oil drum brake on 4 wheel | ||
Parking Brake | Hand brake | ||
Transmission Type | Automatic | ||

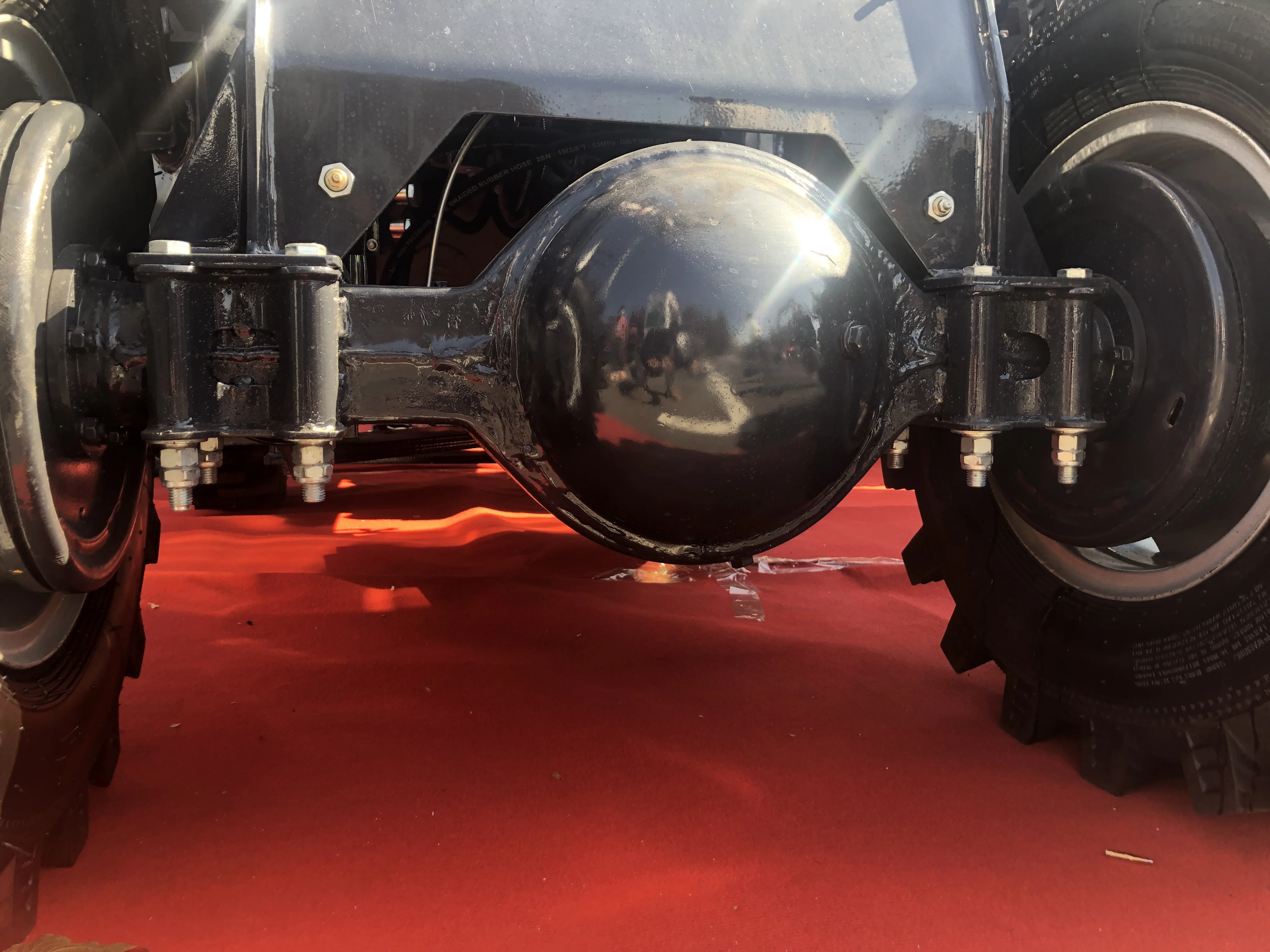

Axle | AWD, Isuzu | ||
Gear Shift | H/L,F/R | ||
Control Lever | 1 | ||
Joystick | |||
Lifting Time | 6s | ||
Lowering Time | 4s | ||
Kolher1903 EPA&Euro5 | 41KW | ||
Xinchai Euro 3 | 36.8KW | ||
Xinchai Euro 5 | 44KW | ||
Huafeng4102 Euro 2 | 65KW | ||
Optional Configuration | A/C, Cabin Heater, 4 in 1 Bucket, Quick Change, Pallet Fork, Log Grapple, Grass Fork etc. | ||
Details Images

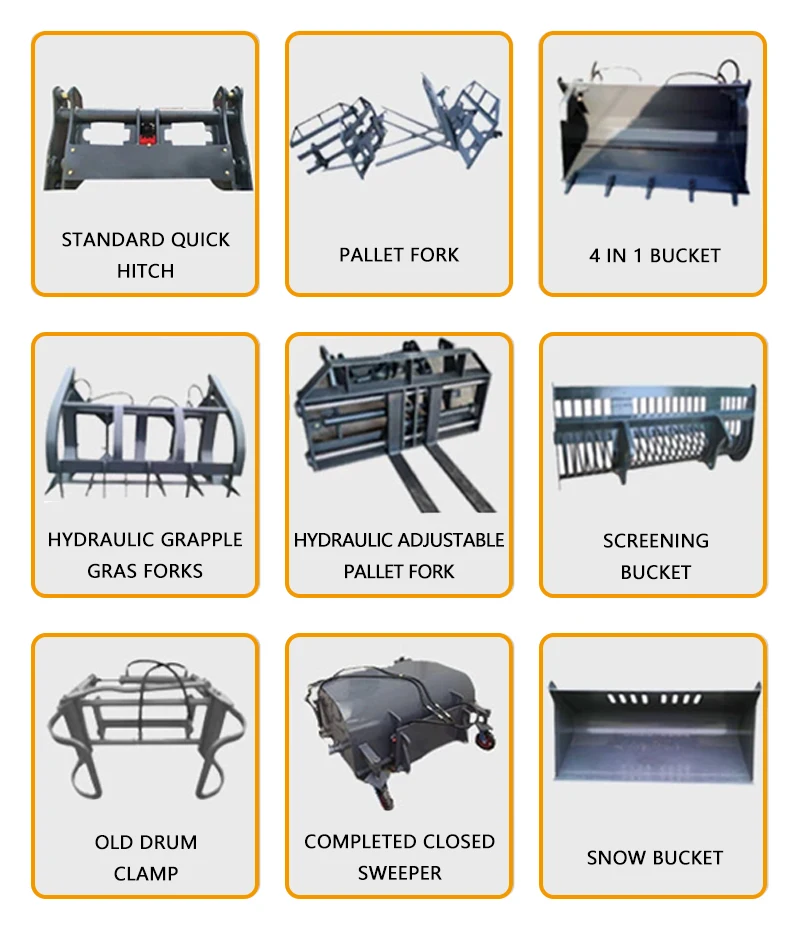

Our wheel loader is multifunctional; We offer many optional attachments which could be used in different fields.
1. STANDARD QUICK
2. PALLET FORK
3. 4 IN 1 BUCKET
4.HYYDRAULIC GRAPPLE GRAS FORKS
5. HYDRAULIC ADJUSTABLE PALLET FORK
6. SCREENING BUCKET
7. OLD DRUM CLAMP
8. COMPLETED CLOSED SWEEPER
9. SNOW BUCKET
3. 4 IN 1 BUCKET
4.HYYDRAULIC GRAPPLE GRAS FORKS
5. HYDRAULIC ADJUSTABLE PALLET FORK
6. SCREENING BUCKET
7. OLD DRUM CLAMP
8. COMPLETED CLOSED SWEEPER
9. SNOW BUCKET
AND SO ON.
Recommend Products
Overall Performance/Models | FW910 |
Rated Load | 800kg |
Rated Power | 42kw |
Dumping Height | 2400mm |
Standard Bucket Capacity | 0.4m³ |
Operating Weight | 2600kg |
Machine Size L×W×H | 4900*1300*2200mm |
Overall Performance/Models | FW910B |
Rated Load | 1000kg |
Rated Power | 42kw |
Dumping Height | 2800mm |
Standard Bucket Capacity | 0.6m³ |
Operating Weight | 2700kg |
Machine Size L×W×H | 5100*1630*2650mm |
Overall Performance/Models | FW912 |
Rated Load | 1200kg |
Rated Power | 42kw |
Dumping Height | 3200mm |
Standard Bucket Capacity | 0.6m³ |
Operating Weight | 3650kg |
Machine Size L×W×H | 5400*1750*2750mm |
Overall Performance/Models | FW915 |
Rated Load | 1500kg |
Rated Power | 42kw |
Dumping Height | 3200mm |
Standard Bucket Capacity | 0.6m³ |
Operating Weight | 3850kg |
Machine Size L×W×H | 5460*1760*2750mm |
Overall Performance/Models | FW938 |
Rated Load | 2000kg |
Rated Power | 76kw |
Dumping Height | 3500mm |
Standard Bucket Capacity | 1m³ |
Operating Weight | 4960kg |
Machine Size L×W×H | 6200*2000*2850mm |
Overall Performance/Models | FW958 |
Rated Load | 2500kg |
Rated Power | 96kw |
Dumping Height | 3800mm |
Standard Bucket Capacity | 1.2m³ |
Operating Weight | 8220kg |
Machine Size L×W×H | 7200*2200*3200mm |
Overall Performance/Models | WM936 |
Rated Load | 3000kg |
Rated Power | 92kw |
Dumping Height | 3100mm |
Standard Bucket Capacity | 1.8m³ |
Operating Weight | 10275kg |
Machine Size L×W×H | 7120*2350*3230mm |
Overall Performance/Models | WM956 |
Rated Load | 5000kg |
Rated Power | 162kw |
Dumping Height | 3100mm |
Standard Bucket Capacity | 3m³ |
Operating Weight | 16500kg |
Machine Size L×W×H | 8085*2950*3450mm |

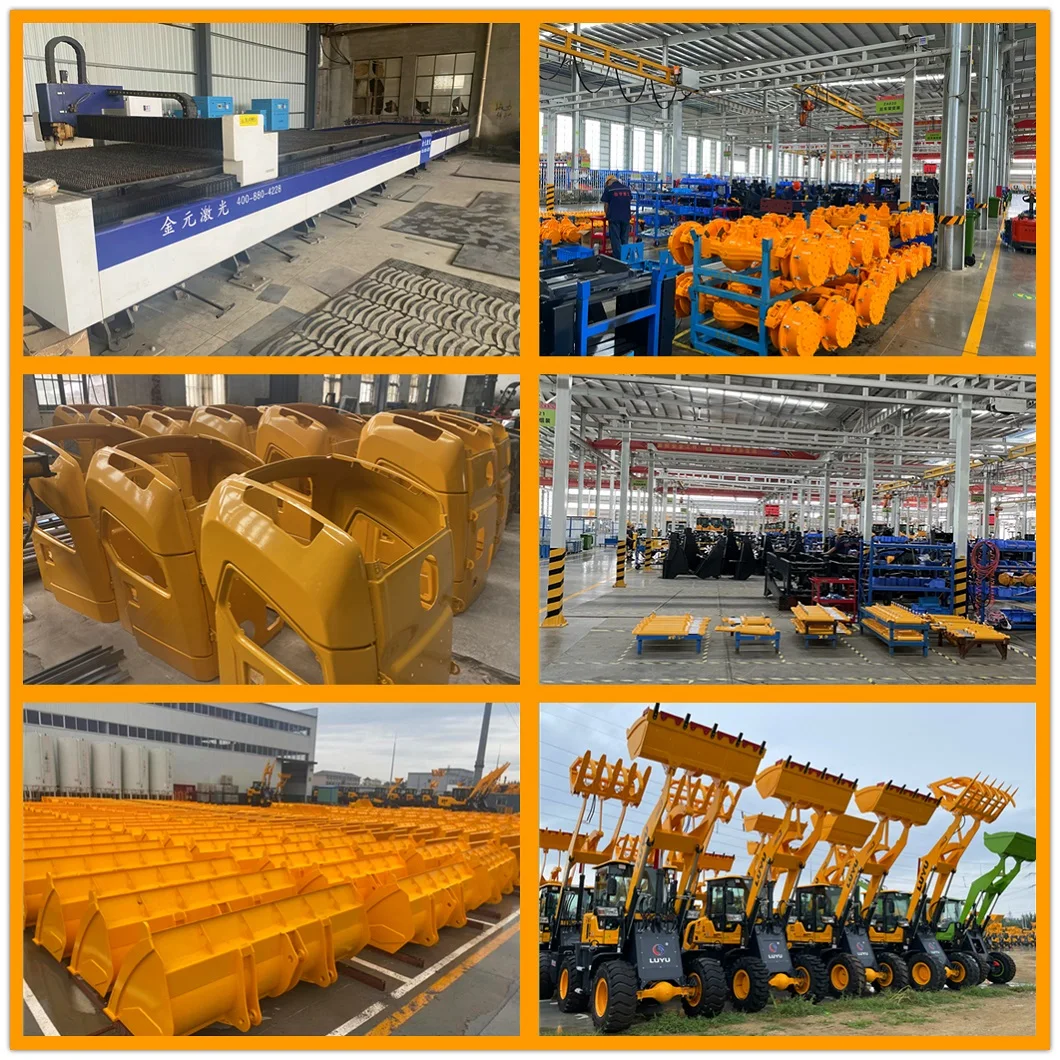

Production Workshop
Company Profile
Certifications
Packaging&Shipping
FAQ
Q1: Are you original manufacture?
Yes, we are an official leading manufacture in construction machinery in China.
Q2: Which country do you export to?
Our models already exported to more than 20 countries in Europe, including Germany, Austria, Poland, Czech, Greece, Sweden... and other countries, Canada, Philippine, Vietnam, Australian. We set our own showroom and warehouse in Poland and Philippine.
Q3: What is the proportion of your products export?
75% of our products are exported to all over the world.
Q4: What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT,L/C, D/P, depending on the cooperation time, country and contract value.
Q5: What kind of logistic service do you supply?
FOB, CIF, DAP, ETC
Q6: What about the delivery time?
7-15 days after receiving the deposit.
Yes, we are an official leading manufacture in construction machinery in China.
Q2: Which country do you export to?
Our models already exported to more than 20 countries in Europe, including Germany, Austria, Poland, Czech, Greece, Sweden... and other countries, Canada, Philippine, Vietnam, Australian. We set our own showroom and warehouse in Poland and Philippine.
Q3: What is the proportion of your products export?
75% of our products are exported to all over the world.
Q4: What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT,L/C, D/P, depending on the cooperation time, country and contract value.
Q5: What kind of logistic service do you supply?
FOB, CIF, DAP, ETC
Q6: What about the delivery time?
7-15 days after receiving the deposit.
