240fps/120fps (кадров/сек/60fps 720P монохромный Глобальный затвор с веб-камерой USB IR-LED плата для

Описание и отзывы

Характеристики



240fps/120fps/60fps 720P Monochrome global shutter USB webcam IR-LED camera board

Mini USB Camera Board Module

This is the 1mega pixels camera module(NLK1MP04 VER:1.00) with sensor on-board, lens module and USB2.0 video/image process controller. It is designed for the webcam application with the low power consumption.

Features

1.1/4" Global shutter Monochrome USB camera

2.Support Audio MIC.

3.Standard UVC/UAC protocal, Plug in/out,Support Windows/Android/Linux system.

4. Support 220fps/120fps/60fps @720P



Main Parameters



Parameter		SPEC.
Optical size Sensor		1/4  inch COMS sensor
Sensor Resolution		1280(H) x 800 (V),720P
Unit pixel size		3um*3um
Color filter		Monochrome(B/W)
Shutter type		Global Shutter
Max. video frame rate (MJPEG)		220fps@640*400, 640*360, 320*240, 320*200 120fps@720P/1280*800, 800*600, 640*480
View Angle		Diagonal=90° ,Horizontal=75°,vertical=60°(w/t distortion)
F Number		2.67mm(TY2019B)
AEC / AGC/ White Balance		Auto
Focus Distance		with fixed lens 50CM-∝
Interface		USB 2.0
Power		USB Bus Power

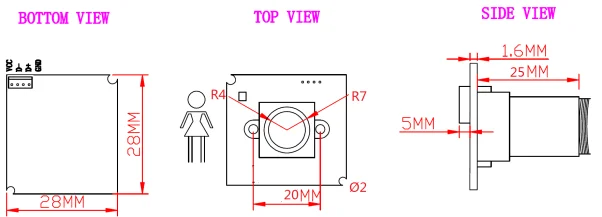

Dimensions (mm) (L x W x H)		28*28*16mm
Operating Temperature		-10℃to +70°C
Operating System Request		Windows XP/ Windows 7/ Windows 10(UVC), Linux(>V2.6 )
Max pixel rate		28Mp/s
ADC accuracy		10-bit
USB 2.0 PHY		On Chip PHY
Power Consumption	Standby	4mA
	Operating	150mA+/-10mA @ 720P































Q1: Can I get some samples? Are they free?
A1: Of course you can get sample for testing before bulk order, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.
Q3: What about payment methods?
A3: Payment terms: Online payment, T/T and Western Union etc.
Q4: Can you list the product of your company?
A4: CCTV camera board,USB Web camera board,LCD memory controller board,LCD display module,Intercom Audio Board,Video Camera board for optical fiber tester
Q5: Where can we download the user manual of your products?
A5: Datesheet will be sent to you by email after get your email.
Q6: Warranty time?
A6: 2 years.
Q7: Can you accept ODM products?
A7: Yes,ODM is our main business. We will make quotation according to your details.
Q8: Product OEM?
A8: Yes, need your Gerber file and Drawing and BOM.
Q9: Customer service?
A9: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
Q10: What shiping methods do you have?
A10: Since our products are small and expensive, the common shiping methods are post air mail or fast express.
