Машина для резки керамической плитки Hongyi 1200 мм используется специальная машина
- Категории: Stone Machinery >>>
- Поставщик: Foshan,Hongyi,Electromechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Hand push ceramic tile inner corner cutting machine specially designed by our factory for 45 degreee corners of ceramic tiles. It does not need to repeated adjustments about ruler, this machine can finish minimum of 3 cm bilateral inner corners, and the inner corners can be easily chamfered on all four sides. This machine Adopt oil bubble type high-precision linear guide, high precision, uniform cutting. The models are including two types: 1200 type and 1800 type, It can be customized according to demand.

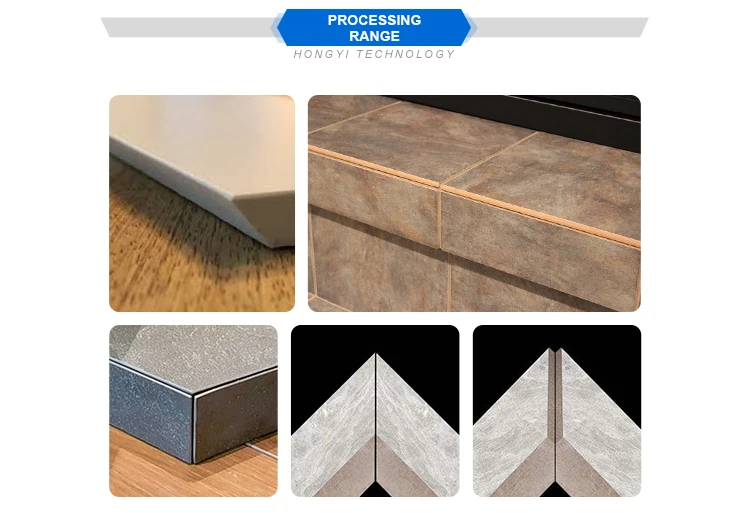

Functions: 45 degree chamfering, begonia corner.
Working size | Chamfering motor power | Size setting method | Weight |
1200*700mm | 3KW/set | without ruler | 350KG |
Maximum chamfering size | Chamfering thickness | Tile fixing method | Machine size |

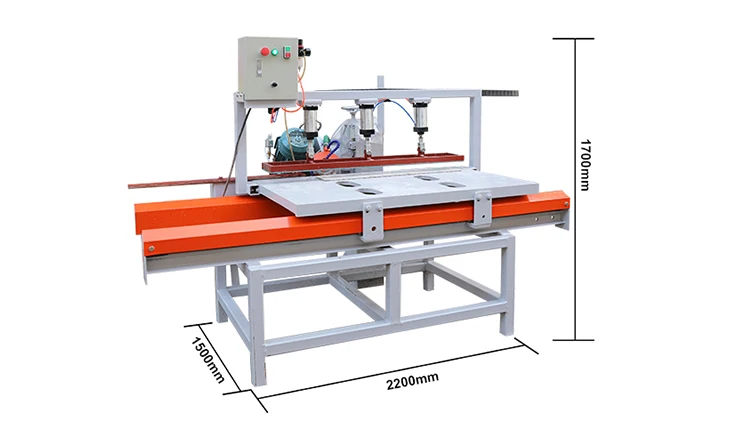

1200mm | 6-30mm | pneumatic pressure plate | 2200*1500*1700mm |
Blade diameter | Cutting 45 degree angle speed | Chamfering speed | Package size |
130mm | 6000RPM | 2.5-3m/min | 2300*1600*1850mm |
No need to adjust the ruler, cut any size
The machine has fast cutting speed, automatic operation, and can be cut at any size without size limit.

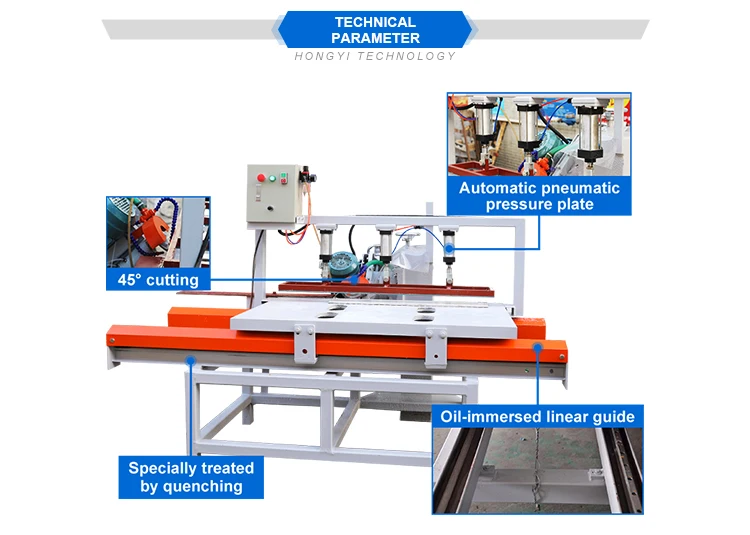

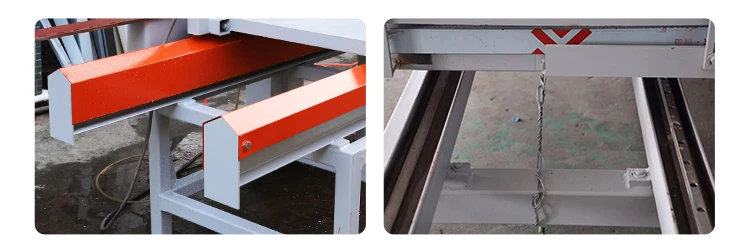

Oil-immersed linear guide
Not easy to rust, more durable
Without size limit
Can be cut at any size
Hand-push CNC single blade multi-function cutting machine
Maximum cutting size 1.8 meters. The guide rail is fully upgraded to: oil-immersed V-wheel guide rail, the accuracy is improved
and the error is within 0.1mm. Using International TBI3210 lead screw. CNC automatic size adjustment.
and the error is within 0.1mm. Using International TBI3210 lead screw. CNC automatic size adjustment.

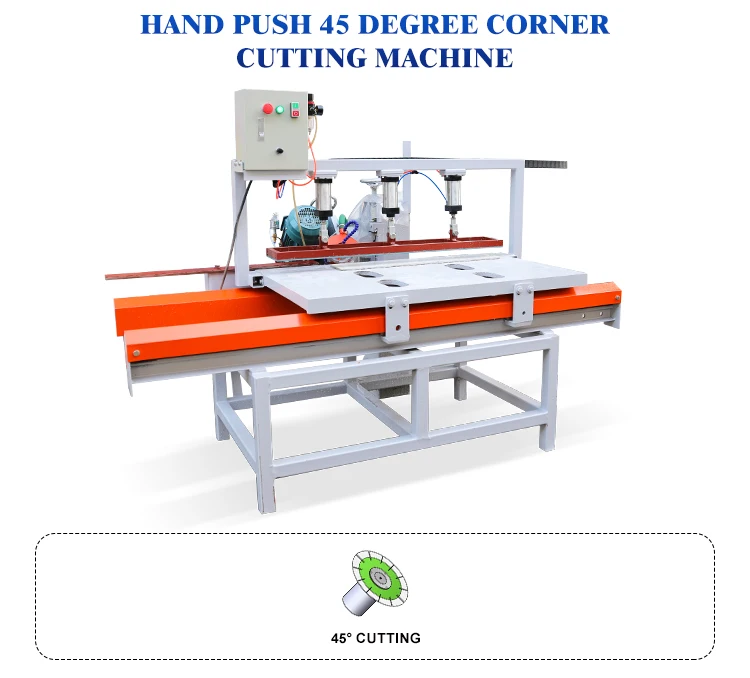

Hand push 45 degree corner cutting machine

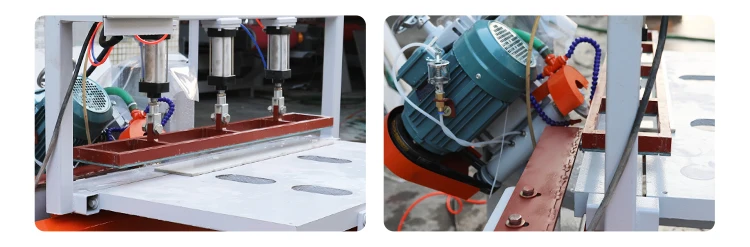

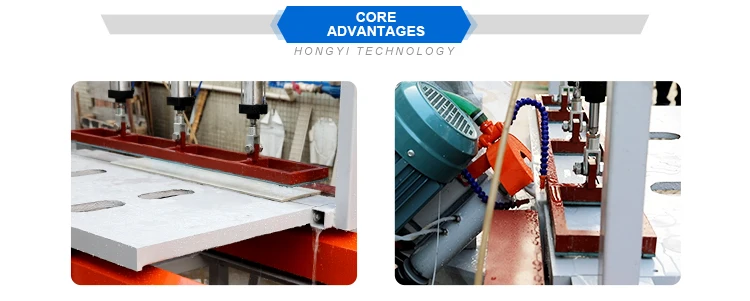

This machine can finish minimum of 3 cm bilateral inner corners. This machine Adopt oil bubble type high-precision linear guide, high precision, uniform cutting. High-power cutting motor, high-speed cutting, without chipping. Pneumatic pressure plate device, High degree of automation.
We have more options
