Производство для малого бизнеса машина переработки шин мини Старые Шины измельчитель отходов
- Категории: Plastic Recycling Machinery >>>
- Поставщик: Zhengzhou,Tianyu,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

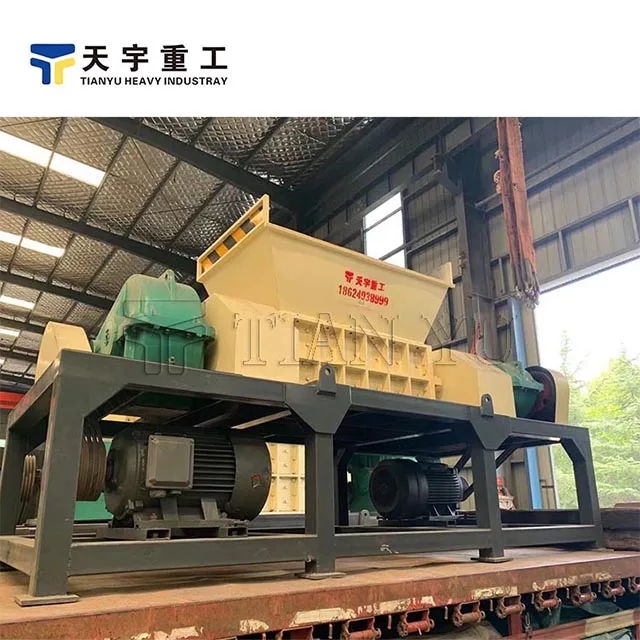

About machine
The shredder machine is an advanced crushing equipment, and according to the actual situation of improvement, research and development, the introduction of mature technology and advanced design of the shredding machine, for waste recycling early crushing, processing to provide reliable quality equipment. The machine can be directly supplied for extrusion as raw materials for production.
Technical Parameters
Model | Blades diameters（mm） | Power (kw) | Weight(t) | Capacity(t/h) |
TSS600 | 200 | 15*2 | 1.8 | 0.5-1 |
TSS800 | 300 | 22*2 | 3.5 | 1-2 |
TSS800 | 300 | 30*2 | 4.2 | 2-4 |
TSS1000 | 300 | 30*2 | 6 | 3-5 |
TSS1200 | 430 | 37*2 | 9 | 5-8 |
TSS1200 | 430 | 45*2 | 11 | 5-8 |
TSS1500 | 530 | 55*2 | 15 | 10-15 |
TSS1800 | 600 | 90*2 | 20 | 15-20 |
TSS2000 | 720 | 110*2 | 35 | 20-30 |

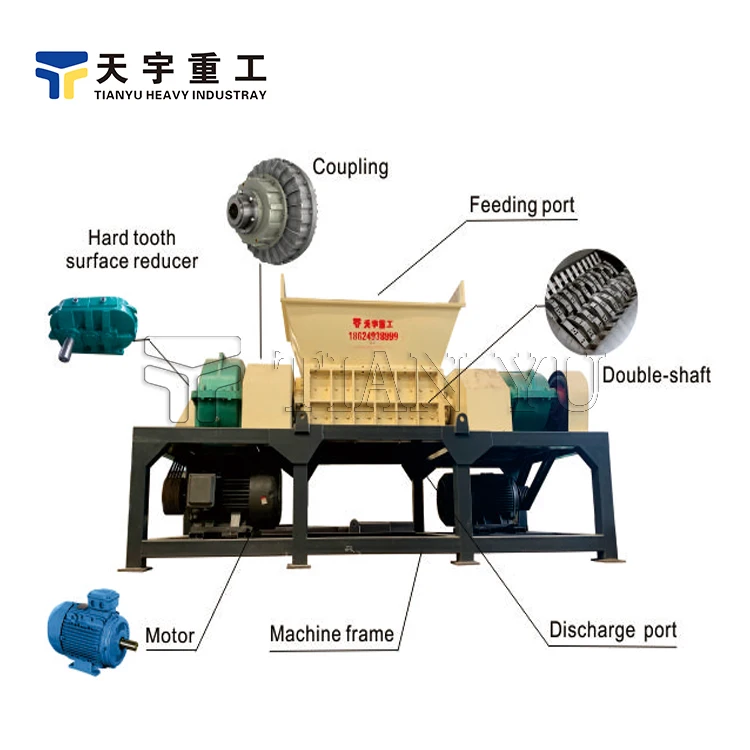

Product Details
Working principle
Material through the feeding system into the inside of the box, box bearing shredding blade, material after shredding blade tearing, shearing and other comprehensive effects, shredding into small pieces of material, discharged from the lower box.
The crushing principle of the shredder machine is that the two shafts are equipped with staggered blades, two shafts in the process of opposite rotation through the cutting of the blade, and the tearing of the blade teeth to achieve crushing. The main shear mode is the shear action of the adjacent knife edge, and the secondary shear mode is the tearing action of the knife tooth.
The crushing principle of the shredder machine is that the two shafts are equipped with staggered blades, two shafts in the process of opposite rotation through the cutting of the blade, and the tearing of the blade teeth to achieve crushing. The main shear mode is the shear action of the adjacent knife edge, and the secondary shear mode is the tearing action of the knife tooth.
Machine Features
1. The machine has a big feeding mouth, which can put the big materials easily.
2. The frame made from precision machined extra-thick sheet, can resist high torque, very strong.
3. Shredder box adopts the overall processing, high precision,small error,reduce vibration and noise pollution.
4. The moving blades use high quality carbon steel. Free and professional blade design to make sure high shredding quality.There are many specifications for shredder blades, which can be customized according to different materials.
5. Motor brands are diverse, such as Siemens, Schneider, Panasonic,and China local famous brand.It can be changed by customer’s requirement.
6. Adopting PCL, set start, stop, reverse and overload automatic reverse control function, which makes it more safer and easier to operate.
7. Hard tooth surface reducer has high transmission efficiency and strong carrying capacity.
8. The machine has low noise and dust, which can meet environmental standards.
9. The machine is delivered as a whole machine which no need to be installed.
2. The frame made from precision machined extra-thick sheet, can resist high torque, very strong.
3. Shredder box adopts the overall processing, high precision,small error,reduce vibration and noise pollution.
4. The moving blades use high quality carbon steel. Free and professional blade design to make sure high shredding quality.There are many specifications for shredder blades, which can be customized according to different materials.
5. Motor brands are diverse, such as Siemens, Schneider, Panasonic,and China local famous brand.It can be changed by customer’s requirement.
6. Adopting PCL, set start, stop, reverse and overload automatic reverse control function, which makes it more safer and easier to operate.
7. Hard tooth surface reducer has high transmission efficiency and strong carrying capacity.
8. The machine has low noise and dust, which can meet environmental standards.
9. The machine is delivered as a whole machine which no need to be installed.
Application & Effects
Suitable for shredding materials,such as:
1. All kinds of hollow containers:rubber tires, plastic buckets, packing drums, plastic beverage cans, packing boxes,2. Plastic pipe material: large pipe, pipe fitting and PE pipe.
3. Used home appliances: washing machine, TV, refrigerator shell.
4. Waste templates: plastic pallets.
5. Waste plastic films: agricultural plastic film、PP woven bags.
6. Industrial scraps: recycle plastic scraps.
4. Waste templates: plastic pallets.
5. Waste plastic films: agricultural plastic film、PP woven bags.
6. Industrial scraps: recycle plastic scraps.

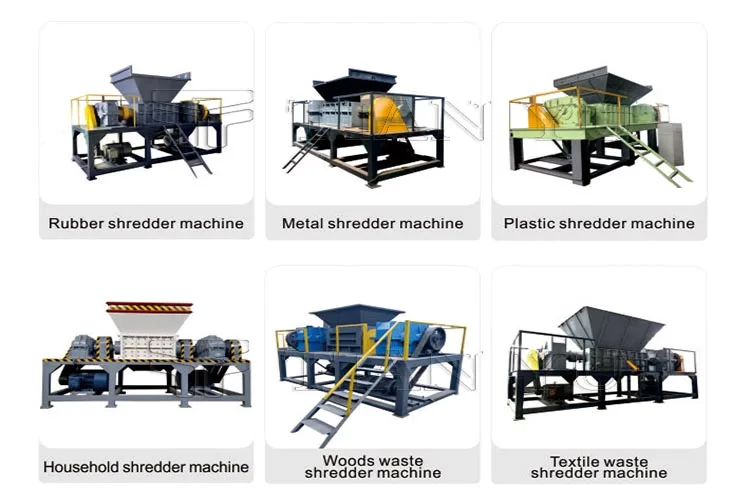

Hot sale products

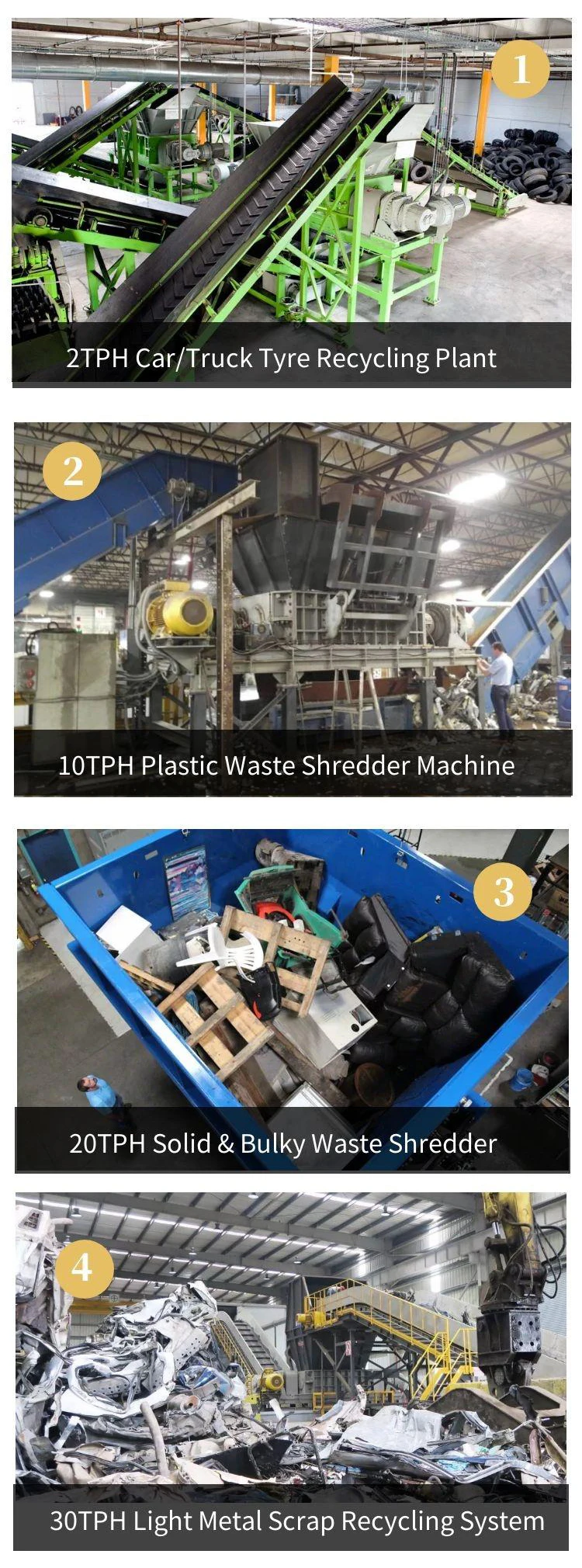

Working Site
FAQ
Q1: Are you trading company or manufacturer?
A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.
Q3: How about the quality of your products?
A:Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q4: What Is Our Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.
Q3: How about the quality of your products?
A:Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q4: What Is Our Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
A:Yes, the warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q5: Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment and operation training. All of our engineers have passports.
Q6: Can you test our samples?
A:Yes. You can send your samples to us for test and analysis.
A:Yes, the warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q5: Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment and operation training. All of our engineers have passports.
Q6: Can you test our samples?
A:Yes. You can send your samples to us for test and analysis.
