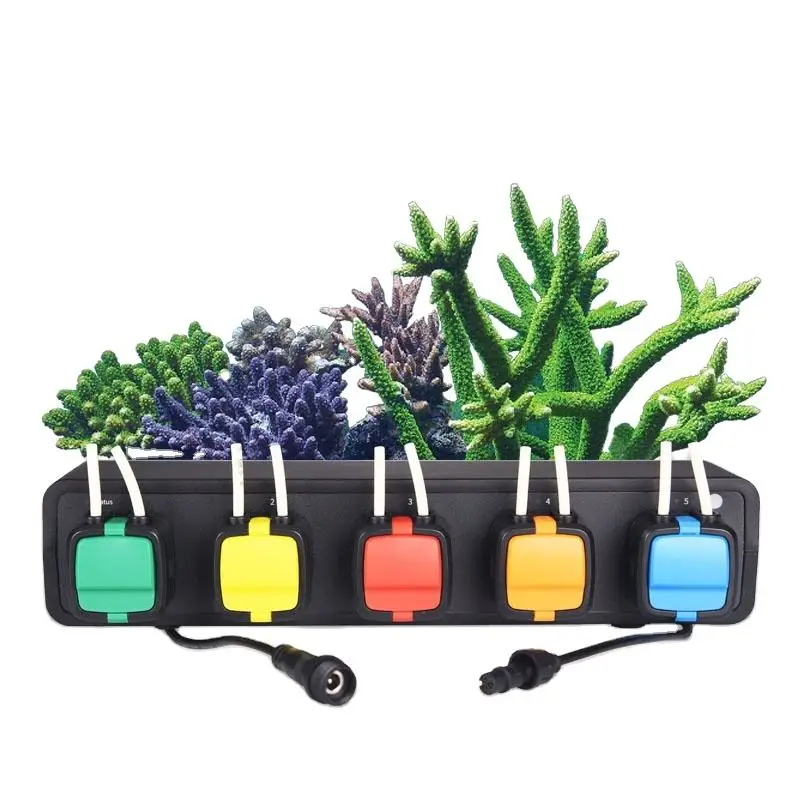

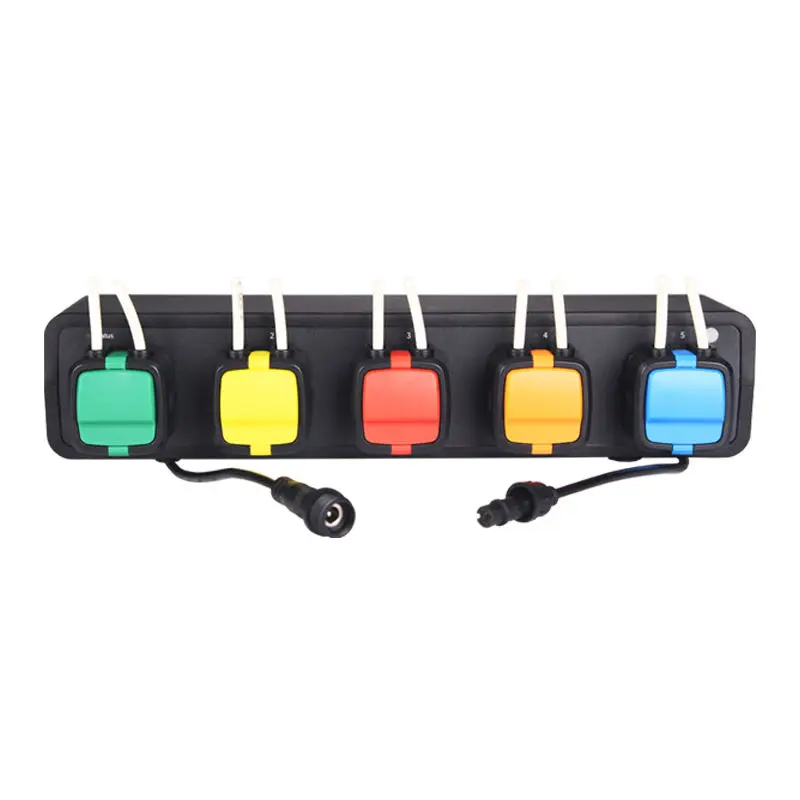

Kamoer remote new App controlled Wi-Fi dosing pump the X5S the most compact 5 channel dosing pumps available in the marketplace.

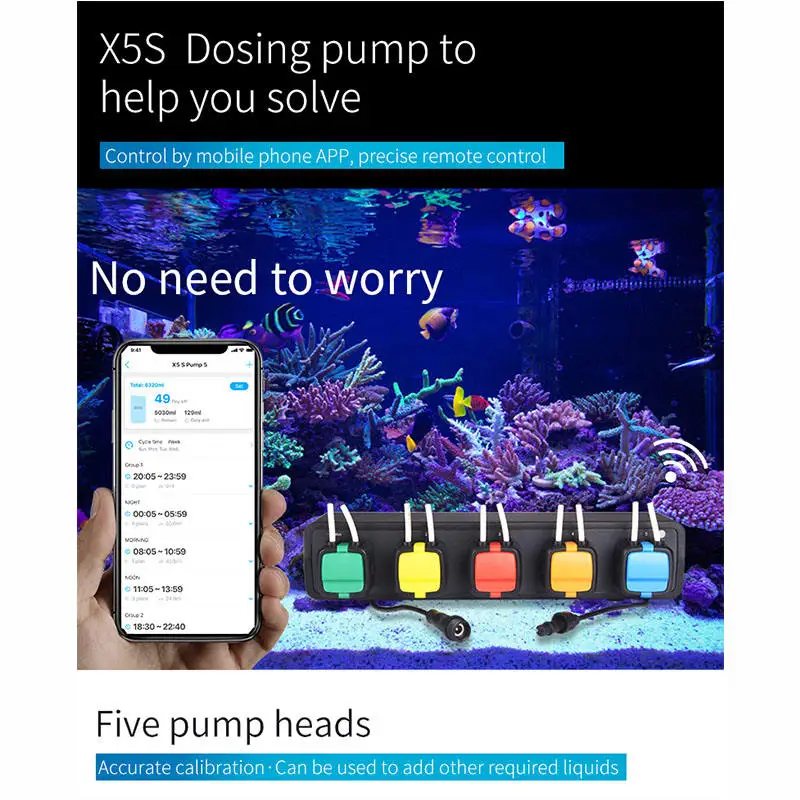

The pump will provide simple, flexible and precise control of supplement additions to your aquarium through the easy to use Kamoer remote mobile App (Android and IOS).
The X5S with conventional dosing motors/heads

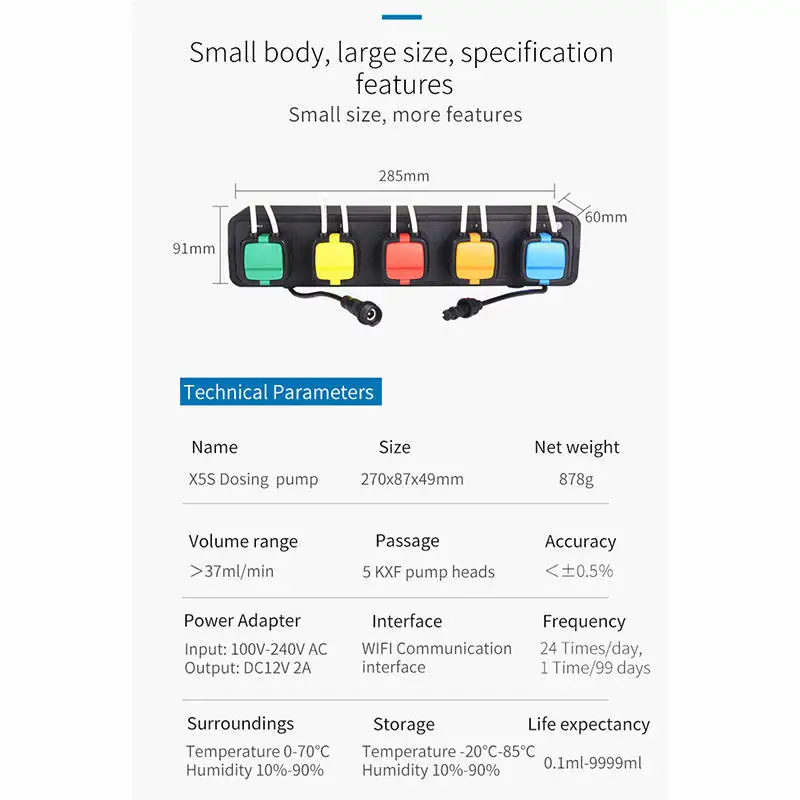

These pumps are incredibly small, under 250mm wide and only 50mm deep.
WIFI REMOTE Control of dosing pump via iPhone/Android device Smallest form factor Software updatable via WIFI Battery Back-up – settings saved if power lost High quality PharMed® tubing used in pump heads Flow Rate Calibration for each pump
Dosing Functions:
1 - 24 dosing times per day User defined start/stop Dosing Period per day (does not have to be 24 hours, for example, user can set to auto dose from midnight to 6am only) Daily/every “x” days specified days of week Dosing Frequency Auto/Custom/Manual dosing options Anti - Interference Delay between pump dosing Monitors the amount of liquid remaining in each dosing container
1.Pump head
2.WIFI status indicator
3.Water inlet
4.Water outlet
5: Pump running status indicator
6: Reset button
7: Waterproof connector for power supply (DC12V 2A)

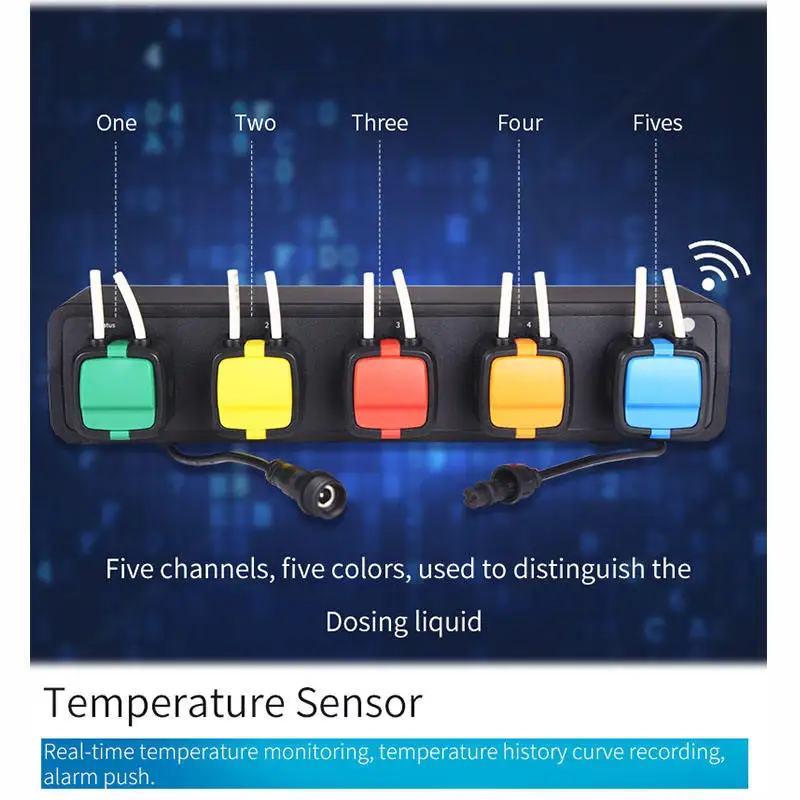

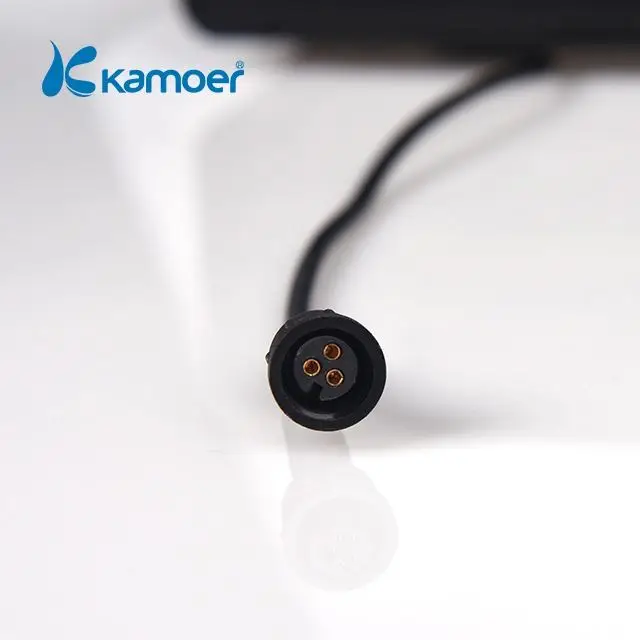

8: Temperature sensor connection line
Indicator description
Note: The X5 S uses red and blue indicator lights. When the blue status light is on or blinking, the red light does not need to be on.
Status Indicator(Blue)
Has been lit
Connected to the cloud via a router
Darken
Disconnected from the router
Flashes quickly
Network configuration mode. At this time, the app can configure the titration pump to access the router.
