Product Overview
Oxygen Cylinder Filling Station for Filling Gas Tank
FEATURES AT A GLANCE
1. Completely 100% oil free, no oil required.
2. Oxygen for VPSA PSA and LOX gas source
3. No pollution, keep the same purity into gas
4. Low cost, low maintenance spend, simple operation
5. 4000 hours piston ring working life under low pressure conditions, 1500-2000 hours working life under high pressure conditions
6. Low speed, long life, average speed 260-350 rpm
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No. | Description | Specification |
1 | Medium | Oxygen |
2 | Structure | W Reciprocating piston type |
3 | No. of compression stage | 3stage |
4 | Flow Rate | 15Nm3/h |
5 | Suction Pressure | 4bar |
6 | Discharge Pressure | 150bar |
7 | Rotational Speed of Crankshaft | 560 r/min |
8 | Cooling Way | Air |
9 | Rated Power | 11kw |
10 | Driven Way | Belt |
11 | Installation | Skid-mounted |
PRODUCT CONFIGURATION

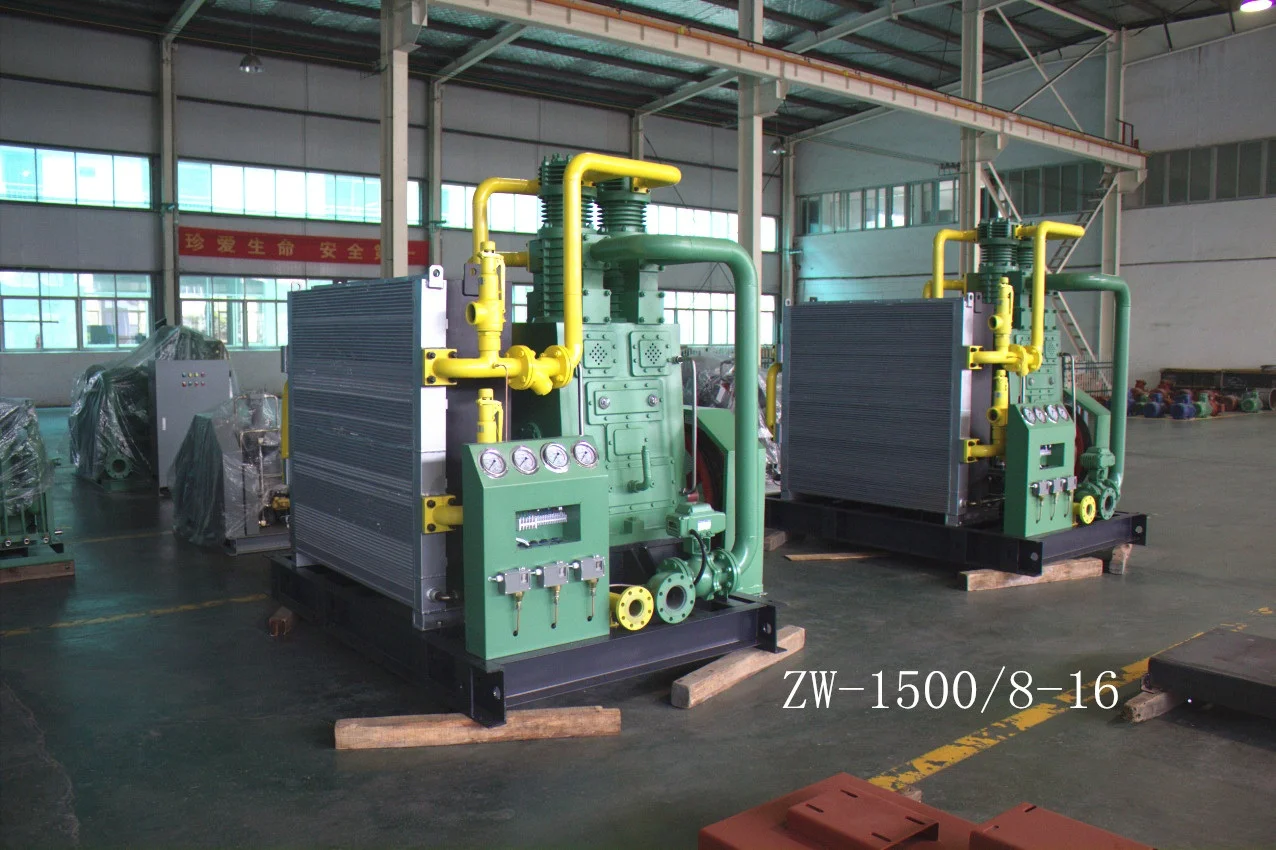

Front

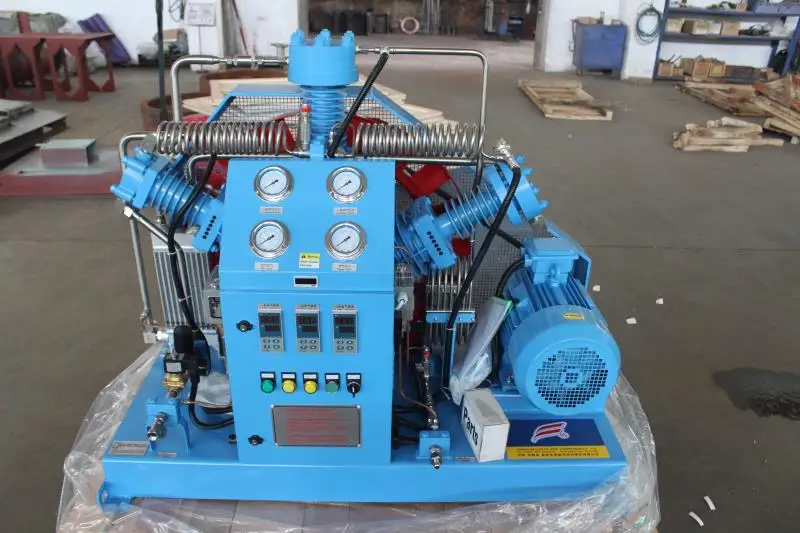

Side

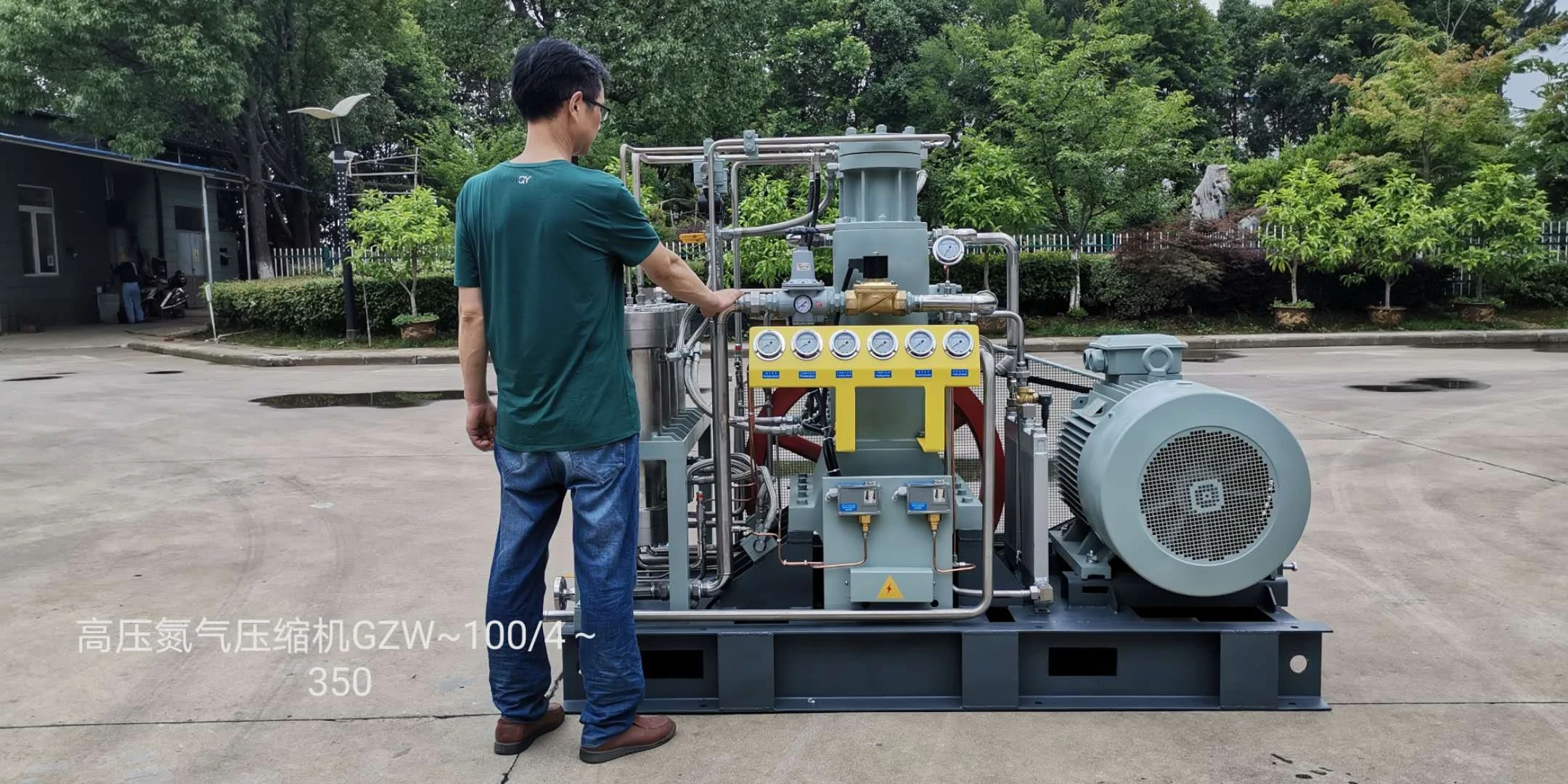

Details
Description
We can configure data remote display and remote control according to customer’s requirement. Our Oxygen Compressor/Oxygen Cylinder Filling Station can be used in hospital oxygen centers to increase the pressure of oxygen lines in rooms, and to boost oxygen and fill cylinders. It can also be used for industrial acetylene combustion cutting, waste steel cutting in steel works, supporting boiler oxygen combustion, and circulating the steam oxygen in low temperature liquid oxygen tank to the tank for various working conditions.
According to the customer's oxygen usage, Our Oxygen Compressor/Oxygen Cylinder Filling Station are divided into 5 types according to the cylinders form:
♣ Level-1 compression, single cylinder
♣ Level-2 compression, double cylinder
♣ Level-3 compression, triplex cylinder
♣ Level-4 compression, four cylinder
♣ Level-5 compression, vertical style
Oil-free low pressure Oxygen Compressor/Booster, could be used in industrial boiler combustion support, hospital centralized oxygen supply booster, and other fields. The pressure ranging is from 0.2~3bar to 10bar-15barg.
Oil-free high pressure Oxygen Compressor/Booster, could be used for high pressure oxygen bottle filling, so as to facilitate the oxygen storage and transport. According to the customers' demand, the filling pressure is divided into 15mpa, 20mpa, and up to 30mpa. The filling is flow from 1Nm3/h to 300Nm3/h, especially suitable for the filling of PSA oxygen generator. It has characteristics of clean, totally oil-free, simple operation, reliable quality, low speed, and low noise. The Compressor/Booster could be working in continuous working conditions for a long time, which is the best choice of oxygen compressor.
Oxygen Compressor/Booster, according to the cooling way, can be divided into air cooled and water cooled, customers can choose from it according to the actual local situation.
Successful Project
Project in Peru
Project in Australia
Project in Colombia
