Product Description
Only need to connect the equipment with liquid inlet and outlet of reaction device, from the top inlet port of the machine to add the heat transfer medium, then turn on the "Add Liquid" button can easy to remove the air in the system. Finally , set the temp requirements, the system can run automatically . The heat transfer medium in a closed system, with expansion container, the liquid in the expansion container not participate in the circulation, no matter how high or low temp is , expansion tank temp is from temp to 50 degree Celsius . Can reduce the risk of heat absorption of moisture and volatile in the operation. In case of no changing the heat transfer medium, minus 90 to positive 300 degree celsius can be covered .
Product features
1. The design of full closed pipeline , adopt high efficiency plate heat exchanger, reducing the demand for heat conduction fluid whle providing system's heat utilization rate ,to achieve temperature rapid rise and fall.
2. The whole liquid circulation is a closed system, there is no water vapor absorption at low temperature, no oil mist generated at high temperature.
3. Controller with LCD display, the temperature setting value and the actual value can be displayed simultaneously, as well as over temperature alarm value, efficient and fast ,simple liquid filling .
4. To ensure rapid cooling under high temprature , can achieve 300C to minus 90C continuous temperature control.
5. The circulating pipeline is fully enclosed , no oil mist and water absorption, to ensure the safety of the experiment person and the life of the conductive liquid.
6. Refrigerat9ion unit using the American Copeland or France TECUMSEH compressor, high temperature magnetic drive circulation pump, stable performance , reliable quality.
7. It has the function of self-diagnosis ; refrigerator overload protection; high pressure switch , overload reply and thermal protection device . Multiple security functions.
8. High lift design to meet long distance transmission medium.
9. Using a vareity of environmentally friendly refrigerants to meet environmental requirements.
Specification
Model | HRB-50 | HRB-70 |
Temp range | -25~200C | 90 to 300 degree celsius |
Pump flow | 35L/min | 35L/min |
Pressure | 2bar | 2bar |
Heating power | 5kw | 7kw |
Cooling capacity | 5kw@200C | 7kw@200C |
5KW@100C | 7kw@200C | |
4.5KW@0C | 6.2kw@0C | |
2.8KW@-20C | 4.2kw@-20C |

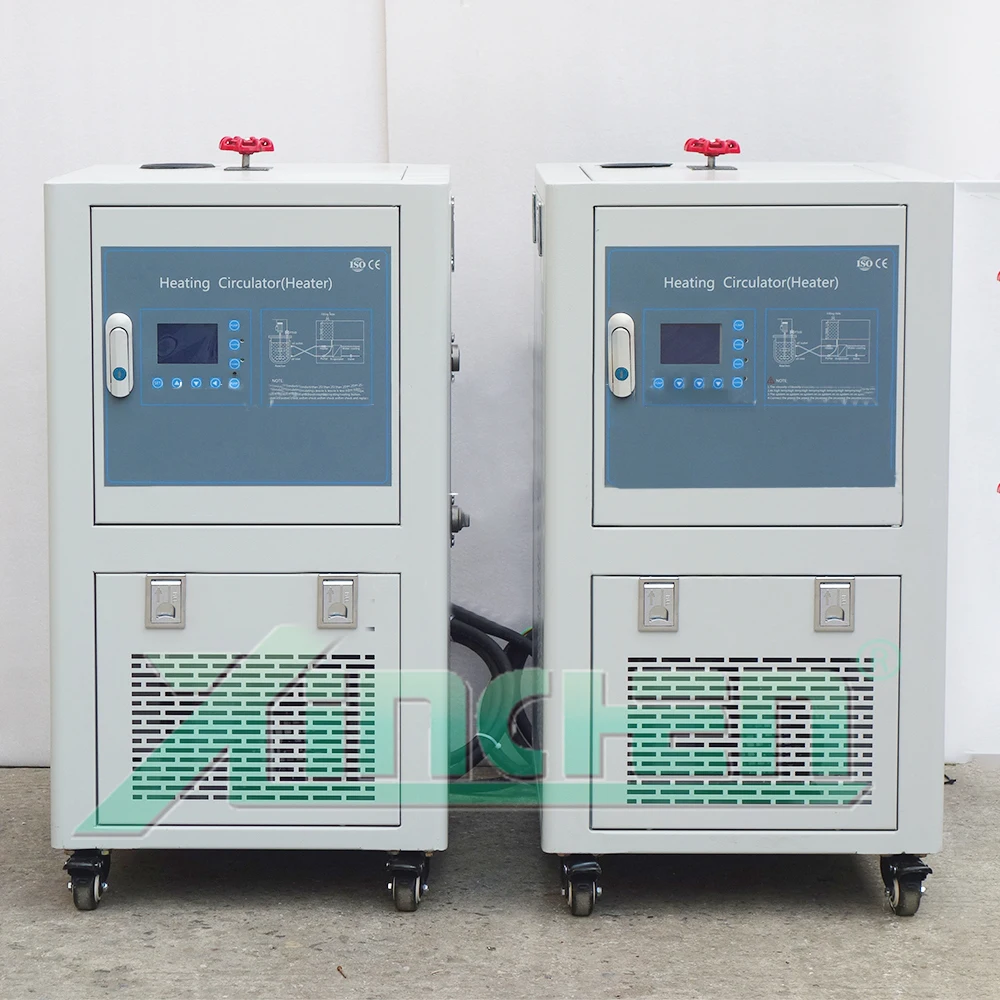

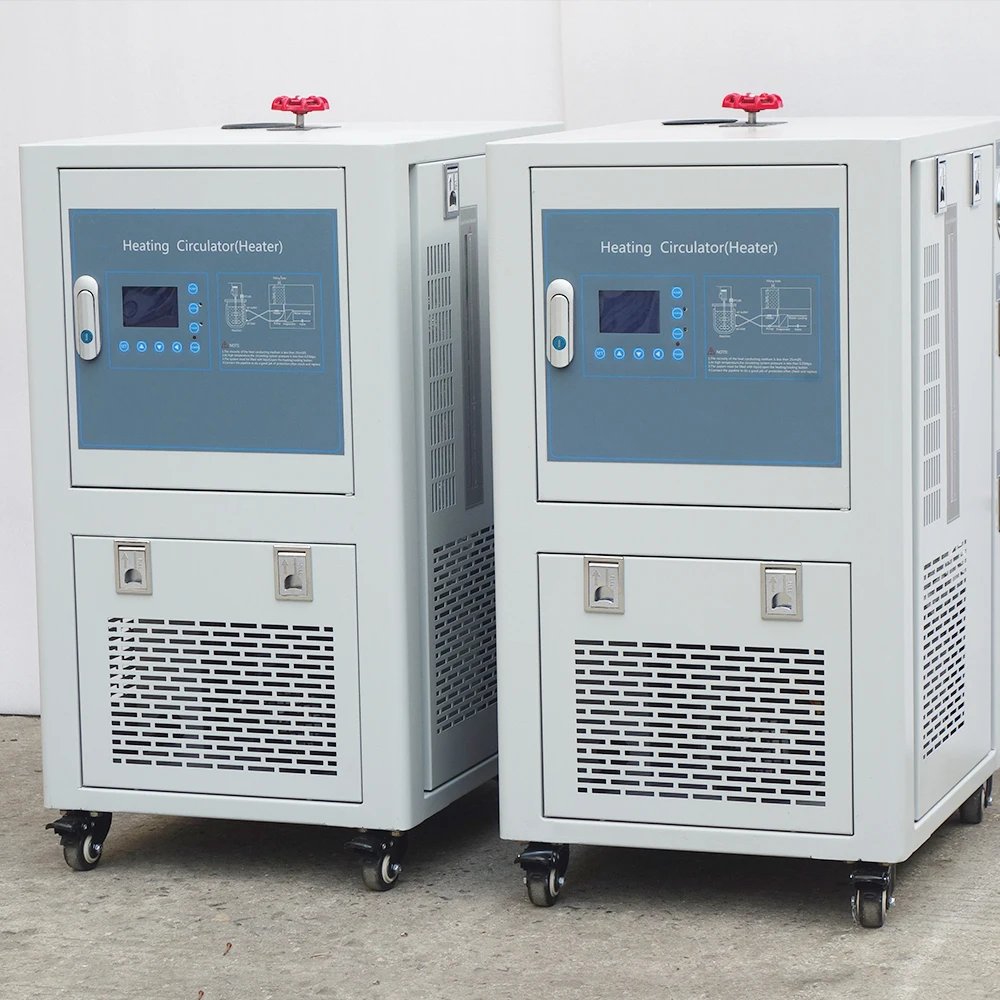

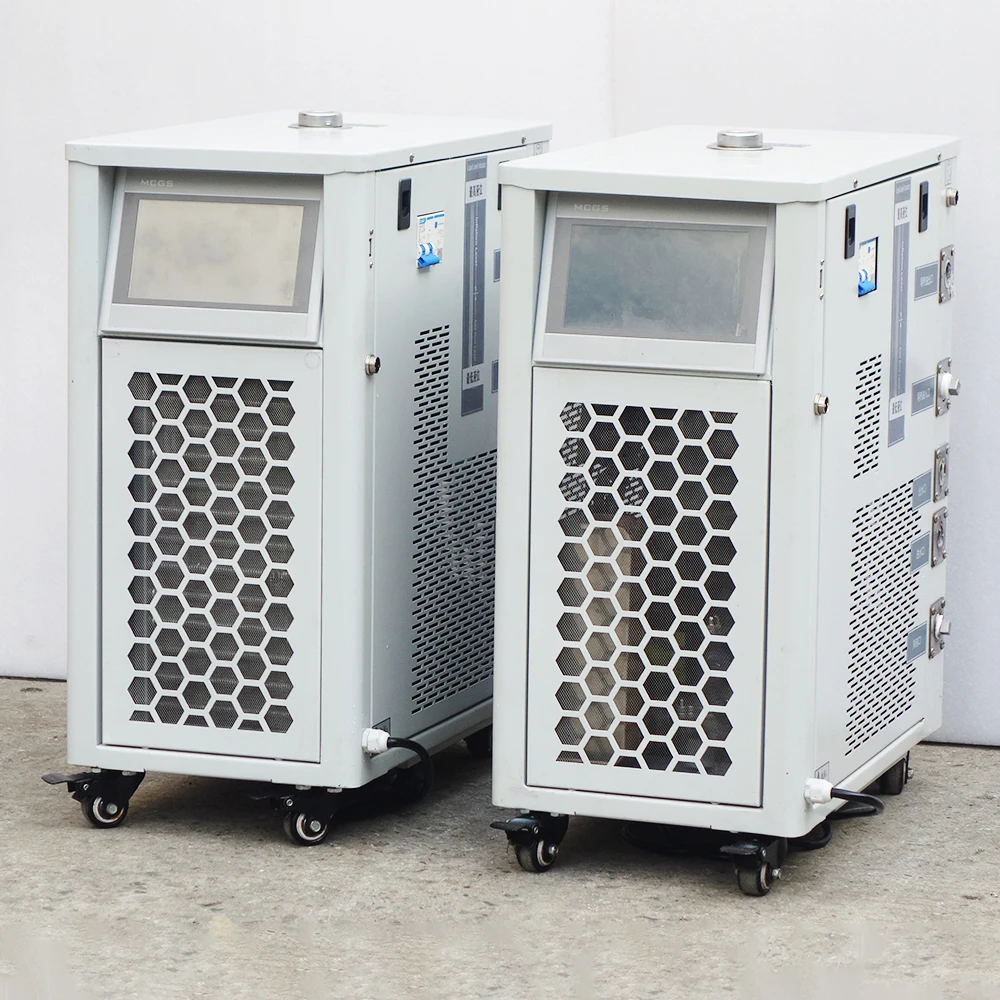

Details Images
Packing & Delivery
Related products
Company Profile
FAQ
Q1: Can you provide OEM or ODM service?
A1: Yes, we have strong developing team to support OEM and ODM service. We can provide all kinds of customized services according to your request.
Q2: What's your MOQ?
A2: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q3: What is your terms of delivery?
A3: FOB/ CIF /Door to Door/By air as you like.
Q4: The period, scope and condition of the warranty?
A4: 1.1 We offer I years warranty on the date of shipping from China. During the warranty time, because of manufacturing quality problem, we offer replacement, maintenance service.
1.2 The damage caused by the transportation problem shall be borne by the seller.
Q5: How to solve the problem of your equipment?
A5: Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to solve it. If there is a broken, we will send you a new part and it is free in the warrant period.
Q6: How to shipping the replacement parts?
A6: We will according the actual situation to choose the suitable shipping ways. For small parts we shipping by Express .
A1: Yes, we have strong developing team to support OEM and ODM service. We can provide all kinds of customized services according to your request.
Q2: What's your MOQ?
A2: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q3: What is your terms of delivery?
A3: FOB/ CIF /Door to Door/By air as you like.
Q4: The period, scope and condition of the warranty?
A4: 1.1 We offer I years warranty on the date of shipping from China. During the warranty time, because of manufacturing quality problem, we offer replacement, maintenance service.
1.2 The damage caused by the transportation problem shall be borne by the seller.
Q5: How to solve the problem of your equipment?
A5: Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to solve it. If there is a broken, we will send you a new part and it is free in the warrant period.
Q6: How to shipping the replacement parts?
A6: We will according the actual situation to choose the suitable shipping ways. For small parts we shipping by Express .
