115 В 6 в 9 30 Вт встроенные печатную плату изоляционные трансформаторы китайский

115 В 6 в 9 30 Вт встроенные печатную плату изоляционные трансформаторы китайский

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

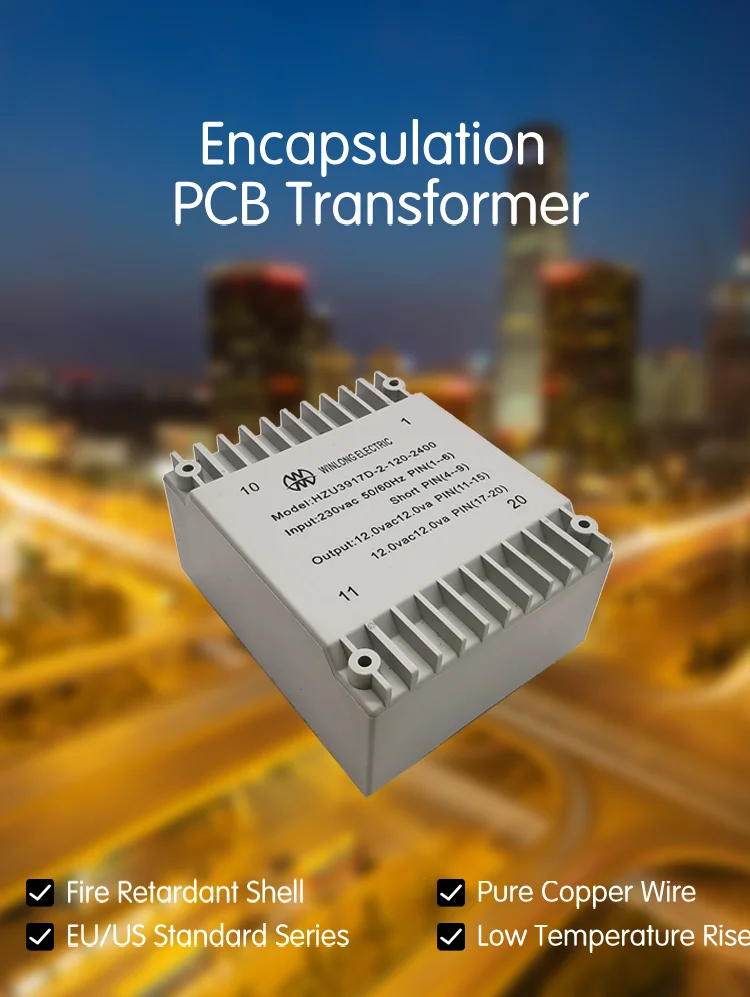

Product Name:	PCB Encapsulated Power Transformer
Model No.:	WUI39/21
Frequency:	50/60Hz
Input voltage:	AC 110V 115V 220V 230V CUSTOMIZED
Output voltage:	AC 4V 6V 9V 12V 15V 18V 24V 2X6V 2X9V 2X12V 2X18V 2X24V or CUSTOMIZED
Capacity:	30VA
Dimension:	L 57mm x W 68mm x H 35mm
Weight:	530g
Dielectric Strength:	4500V
Isolaton Class:	130℃/B
Short-circuit protection:	(fuse , thermal switch )Optional
Phase:	Single Phase
Working Temperature:	-40℃ to 125℃
Test Items:	Turns Ratio
		Inductance leakage
		Phase Test
		Inductance leakage
		DC resistance test
		Withstand voltage
		Insulation resistance
Applications:	electric curtain, air conditioner,washing machine control panel, emergency lighting,humidifier cold storage temperature controller, remote control electricity, water meters,switching power supply industry,electrical equiptments industry,medical equipments industry,communication equipments industry, solar energy & inverter equipments industry,electric car charger industry,vehicle electronic equipment industry,etc.
Features:	Safety
		Vacuum filled casting
		Split bobbin design
		Short circuit proof
	Features:	Large transmission power
		Low loss
		Low temperature rise
		Stable performance
