KQS2-45 ручной блоковый машины Эко-Заводская взаимозамыкающая машина для кирпича глиняного
- Категории: Construction & Building Machinery >>>
- Поставщик: Shandong,Kaidong,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

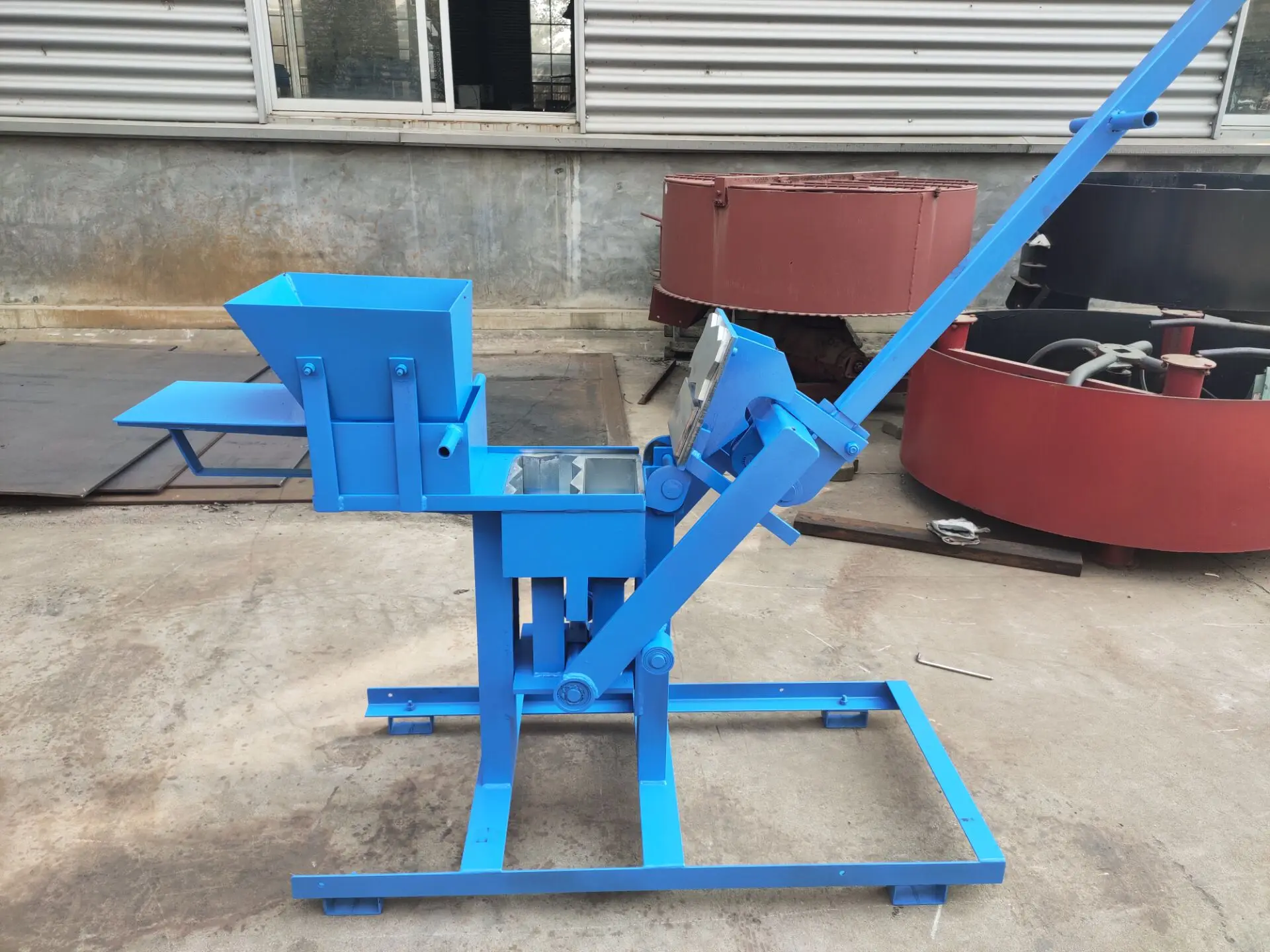

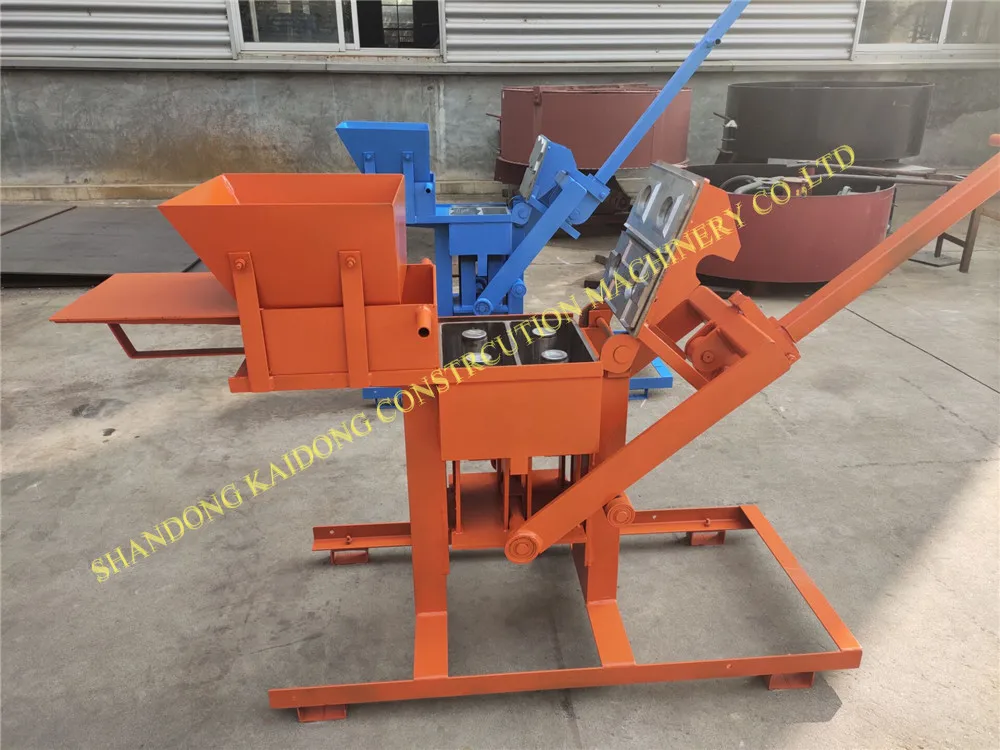

manual block making machine
clay brick making machine , raw material use clay ,solid ,mud ,non-burnt brick
1. KQS2-40 production capacity.
No | Size(LxWxH) | Pcs/Mould | Pcs/Hour | Pcs/Shift |
1 | 300x150x100mm | 2 | 120 | 960 |
2. KQS5-10 forming technical parameters
Dimension of host machine | 1200x600x1200mm | Host machine power | 0KW |
Moulding period | 10-15s | pressure force | 10MPa |
Weight of the machine | about 150 kg | Mixer model | KQ350 |
3.KQ350 mixer
No. | Item | Specification |
01 | Model | JD350 |
02 | Charge volume(L) | 0.35 m3 |
03 | Discharge volume(L) | 0.56 m3 |
04 | Capacity(m3/h) | ≥4m3/h |
05 | Max diameter(pebbles/break stone)mm | 40mm |
06 | power | 7.5 KW |
07 | Machine diameter | 1200mm |
08 | weight | 0.42Ton |
4.Belt conveyor:
Item |
Specifaction |
Length | 6000mm |
Width | 500mm |
Speed (m/min) | 1.25 m/min |
Specification (ton/hour) | 30-40 ton/hour |
power(kw) | 1.1kw |
