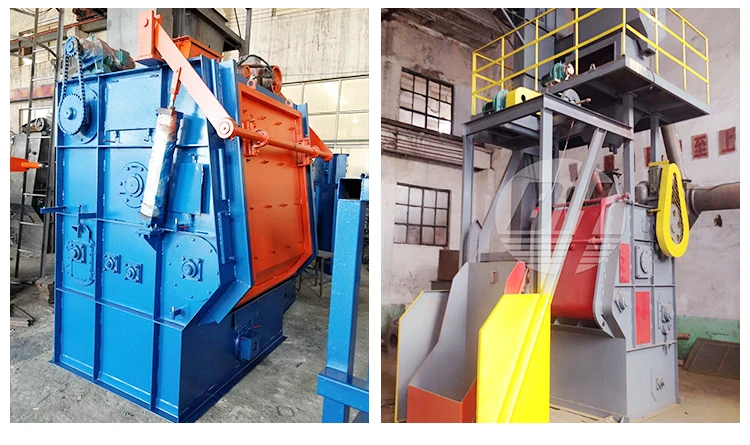

Q3210 автоматическая загрузка и разгрузка Оборудование Для Дробеструйной
- Категории: Metal & Metallurgy Machinery >>>
- Поставщик: Qingdao,Binhai,Jincheng,Foundry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

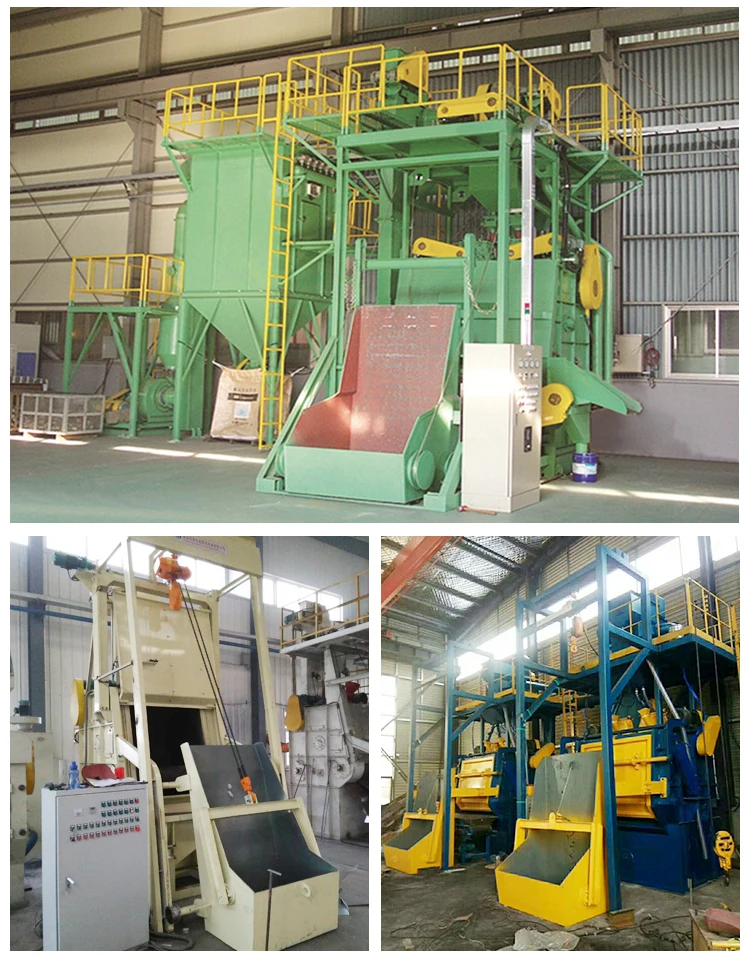

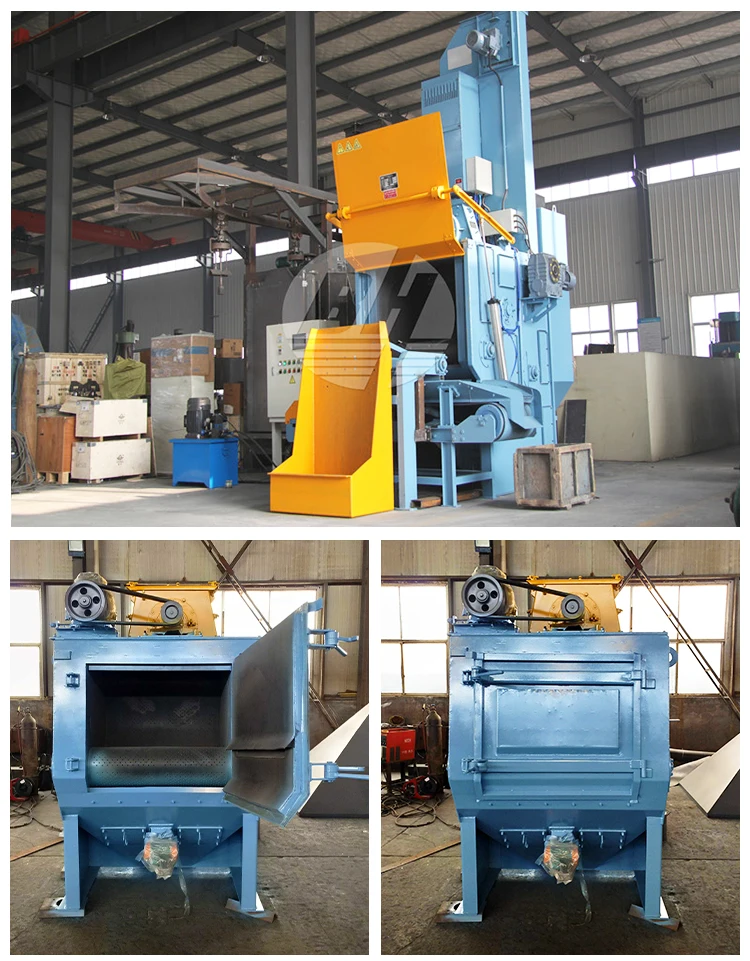

Tumble Belt Type shot blasting machine product information | ||||||||||
Item | Q326 | QR3210 | QR3210ZS | QS3215 | QS3220 | |||||
Productivity | 600-1200kg/h | 2000-3000kg/h | 2000-3000kg/h | 4000-5000kg/h | ||||||
Number of turbines | 1Pcs | 1Pcs | 1Pcs | 2Pcs | 2Pcs | |||||
Feeding amount per time | 200Kg | 600Kg | 600Kg | 1000-1500kg | 1500-2000kg | |||||
Maximum weight of single piece | 15Kg | 30Kg | 30Kg | 50Kg | 60kg | |||||
Diameter of end disk | Φ650mm | Φ1000mm | Φ1000mm | Φ1000mm | Φ1200mm | |||||
Power of turbine | 7.5kw | 15kw | 15kw | 11kw*2 | 15kw*2 | |||||
Abrasive flow rate | 125Kg/min | 250Kg/min | 250Kg/min | 180Kg/min*2 | 250Kg/min*2 | |||||
Ventilation capacity | 2200m³/h | 5000m³/h | 5000m³/h | 11000mm³/h | 15000mm³/h | |||||
Power consumption | 12.6kw | 24.3 | 28kw | 45kw | 55kw | |||||
With loading /unloading device | Without | Without | With | With | with | |||||
