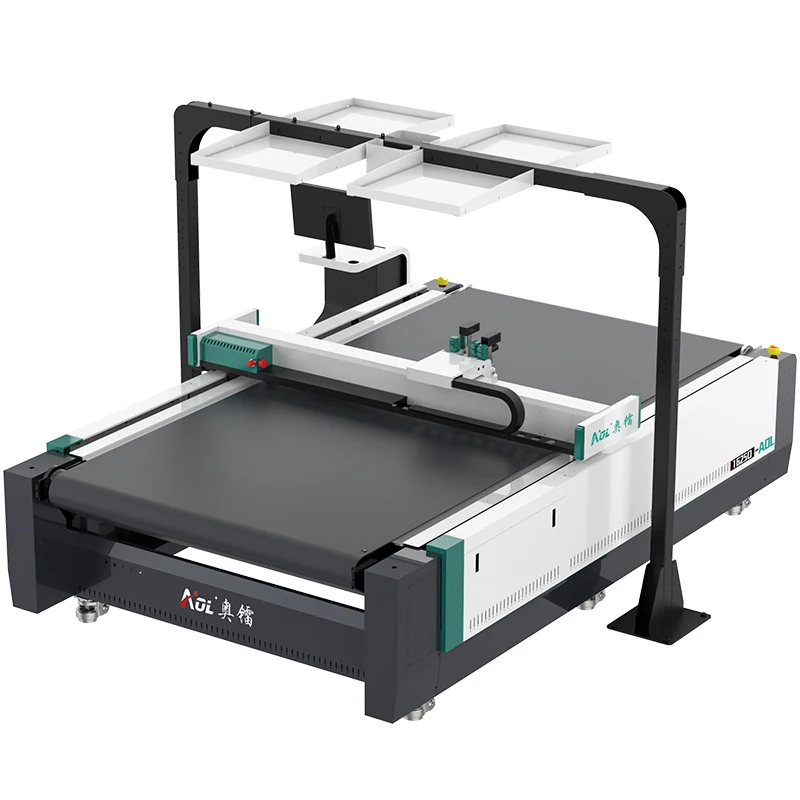

AOL sale vibrating tool leather digital cutter machinery


2020-B-4

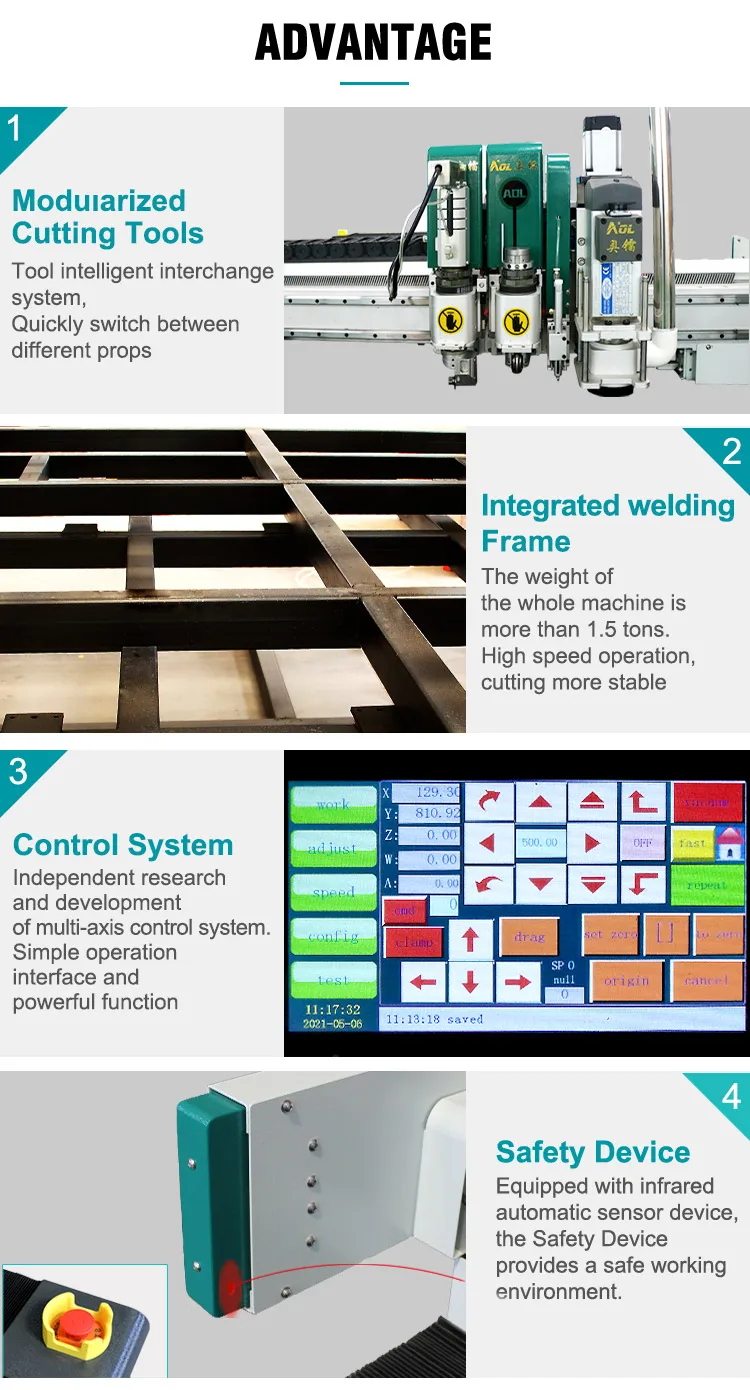

product advantages


1.High-tech: ultra-high frequency vibration knife technology to achieve perfect cutting.
2.High speed: cutting a 35-piece car surrounded by a foot pad, just five minutes, cut a set of 150-piece car seat cover, just 20 minutes, cut a car cushion just 6 minutes, cut a set Car mats only 80 seconds.
3.High efficiency: no need to die, die-cutting machine, you can complete the leather and other flexible materials die-cutting, indentation, forming work, can save a lot of manpower, die and die-cutting machine costs.





Samples








Product Parameters









































































Technical parameters / model



AOL-1625-ZS6



AOL-1825-ZS8



Effective working area



1600x2500mm



1800x2500mm



Multi-function tool



Vibrating knife full cut, semi-cut cutting, indentation, drawing mark, cursor positioning, camera positioning edge cutting, V-groove various angle cutting



safety devices



Safety devices use infrared sensing, safe and reliable



Cutting speed



200-2000mm/s



Cutting thickness



≤50mm Other thicknesses can be customized according to the material



Applicable materials



Various KT boards, Chevron boards, honeycomb boards, car stickers, adhesives, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, etc.



Material fixing method



Vacuum partition adsorption



Transmission port



Network port



Transmission system



Yaskawa servo motor, linear linear guide, timing belt, lead screw



rated power



11kw



Rated voltage



380V±10%/220V±10% Optional



Control System



Chinese and English LCD touch screen



Operating environment



Operating environment Temperature 0-40°C Humidity 20%-80%RH



Support file format



AI,PLT,DXF,CDRetc



Overall size



3570x2290x1165mm



3570x2500x1165mm



4





Applied material


Cutting material


Standard advanced tool changer module, which is extremely versatile and easy to change tools.


Kraft paper----Sample-making of garment components,processing---- Oscillating knife, creasing tool


White paperboard----Sample-making of garment components,processing copies---- Oscillating knife, creasing tool


M.G. wrapping paper----Sample-making of garment components,processing---- Oscillating knife, V-cut tool


Red hard leather paper----Sample-making of garment components,processing---- Oscillating knife, V-cut tool


PVC board----Sample-making of garment components,processing,clothing dust cover---- Drag tool


Cellulose insole board----Sample-making of garment components,processing----Oscillating knife


PU leather----Sample-making of garment components,processing---- Oscillating knife


Canvas----Sample-making of garment components,processing---- Wheel-cut tool


Artificial leather----Sample-making of garment components, processing---- Oscillating knife


Sponge----Sample-making of garment components, processing---- Oscillating knife


Blended fabric----Sample-making of garment components, processing---- Wheel-cut tool


Cotton and hemp material----Sample-making of garment components, processing---- Wheel-cut tool


Oxford cloth----Sample-making of garment components, processing---- Wheel-cut tool


Fur----Sample-making of garment components, processing---- Oscillating knife


Knit----Sample-making of garment components, processing---- Wheel-cut tool














Our Services


1)One year free warranty(except consumable parts), main parts are free of charge
when problems happened because of quality problem during this period.
2).Life time free maintenance service.
3).Consumable parts(like blade, table cover) alway supply at cost price when needed.
4).A free operation training in our factory, and if don't have enough time, we will send
a detailed training video.
5).24 hours online service, free technical support with different languages.
6).Door to door technical support when needed.





Packaging & Shipping



Our Package Advantage  of CNC leather cutting machine with fast speed
1. Our Wooden Case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.


7-81b





FAQ


FAQ  of CNC leather cutting machine with fast speed


1. Are you a trading company or a factory?


 We are manufacturers.
2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and
operation training. All of our engineers have passport.
4. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service
