JWIPC I5 8259U черный OPS компьютерный слот в компьютерном модуле для обучения интерактивная доска поддержка 4k
- Категории: Industrial Computer & Accessories >>>
- Поставщик: Jwipc,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
ODM/OEM
We can support OEM/ODM service, and Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
We also have 8th 10th 11th 12th OPS Module and Thin Client, Thick Client, Digital Signage Player,Android Box, 4G/5G Cloud Mini Computer and so on. If you have inquiry of different Mini PC, freely click here or below picture to contact us.
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
We also have 8th 10th 11th 12th OPS Module and Thin Client, Thick Client, Digital Signage Player,Android Box, 4G/5G Cloud Mini Computer and so on. If you have inquiry of different Mini PC, freely click here or below picture to contact us.
Products Description
Powered by the latest 8th generation Intel Coffee Lake platform CORE processor and dual DDR4 Memory, the S064H is a great OPS digital signage player for customers who are looking for a high-quality digital signage solution that delivers real value.
European size standard 80 pin ops pc mini pc module embedded computer for flat panel whiteboard I3 I5 I7 8th ops pc
■ Intel OPS standard module
■ Supports Intel 8th Gen processor
■ Dual channel DDR4 Memory
■ 2 x M.2 2280 SSD slot
■ 4 x USB3.0/USB Type-C
■ M.2 2230 WIFI/BT slot
■ Displays: 1 x HDMI1.4, 1 x HDMI2.0 (80pin)
■ 12V/19V DC in
Processor System | CPU | Intel® Coffeelake U SOC, TDP 28W I5-8259U |
BIOS | AMI UEFIBIOS | |
Graphics | Chipset | Intel Iris plus Graphics 655 |
VRAM | 32GB (Max) | |
Multi displays | Support Dual displays | |
Interface | 1 x HDMI1.4 , resolution 4K @ 30Hz | |
1 x 80pin JAE Con. (HDMI2.0) , resolution 4K @ 60Hz | ||
Memory | Type | 2xSO-DIMMDDR4 |
Max | 32GB | |
Ethernet | Lan IC | Realtek 8111H Gigabit Ethernet |
Interface | 10/100/1000Mbps | |
Connector | 1 x RJ45 | |
Wireless | Type | PCIe+USBWi-Fi/BT module |
Interface | 1xM.2 2230forWifi+BT module | |
Storage | Type | SSD |
Interface | 1 x M.2 2280 SSD | |

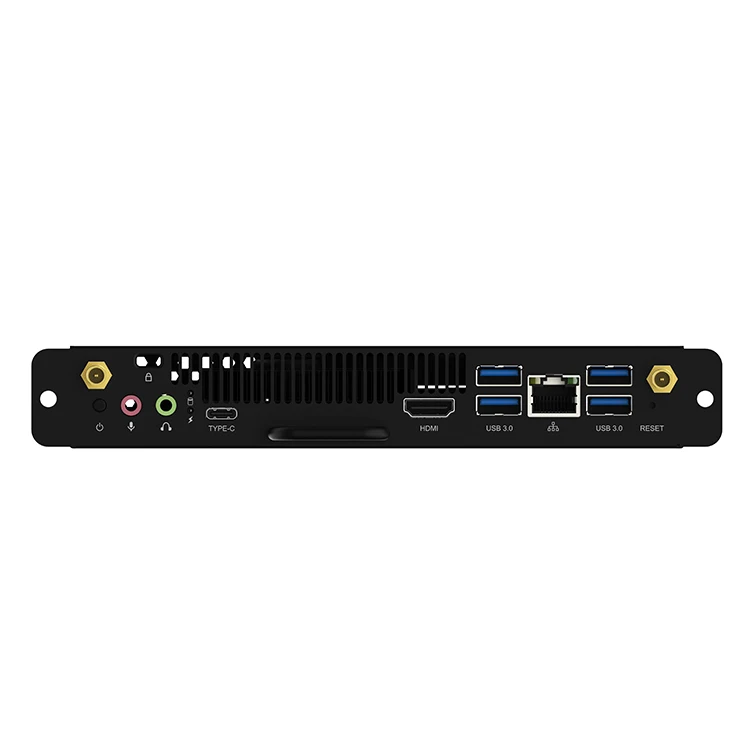

IO Interface | Front panel | 1 x HDMI1.4 4 x USB3.0, 1 x USB2.0 Type-C 1 x RJ45 1 x MIC IN, 1 x Line out 2 x Wi-Fi/BT ANT 1 x Power button, 1 x Reset button |
Rear panel | 1 x JAE 80pin : 1 HDMI 2.0, 2 USB2.0,1 USB3.0, TTL, Audio, 1x2.5/5.5 DC IN JACK | |
Software | OS Supports | WINDOWS 10/LINUX |
Watchdog | Support | |
vPro/AMT | N/A | |
TPM | Optional , TPM2.0 | |
Power | Power input | 12V/19VDCIN, 2.5/5.5 DC Jack & JAE 80pin DC IN |
Size | Comply with ops standard module, 119x 180x30 mm | |
Environment | Operating Temp. | -5~45℃ |
Operating Humidity | 10%〜90% non-condensing | |
Storage Temp. | -20~70℃ | |
Operating Humidity | 5%~95% non-condensing |
JWIPC S064H Intel® Open Pluggable Specification (OPS) PC with optional 8th Gen Intel® Core™ i5 & i7 processors. Dual-channel DDR4 memory supports up to 32GB. Two HDMI channels, one of which supports a 4K ultra-clear display, bring you a better digital signage playback experience. The machine supports the Intel Gigabit Ethernet network to meet the needs for more stable network transmission, and the M.2 WiFi module provides customers with more choices. Watchdog and TPM technology, its equipment can achieve a long stable operation and remote maintenance while ensuring safety.
