Low Noise Mini Electric Hoist Winch Pure Copper Motor Industrial Lifting Winch With Wireless Remote For Factory Lifting Winches



Mini Electric Winch for Sale



Mini Electric Winch is a small and light lifting device that uses a drum to wind a steel rope to lift or pull a heavy object. The winch can lift the weight vertically, horizontally or obliquely. The winch is divided into three types: manual winch, electric winch and hydraulic winch. Among them, the most practical is electric winch. It can be used alone or as a component in machinery such as lifting, road construction and mine hoisting. At the same time can be used in the production of factories,buildings,mechanical installation of docks,and warehouses,cargo lifting,vehicle loading and unloading, etc. It is widely used because of its simple operation, large amount of rope winding, and convenient displacement.

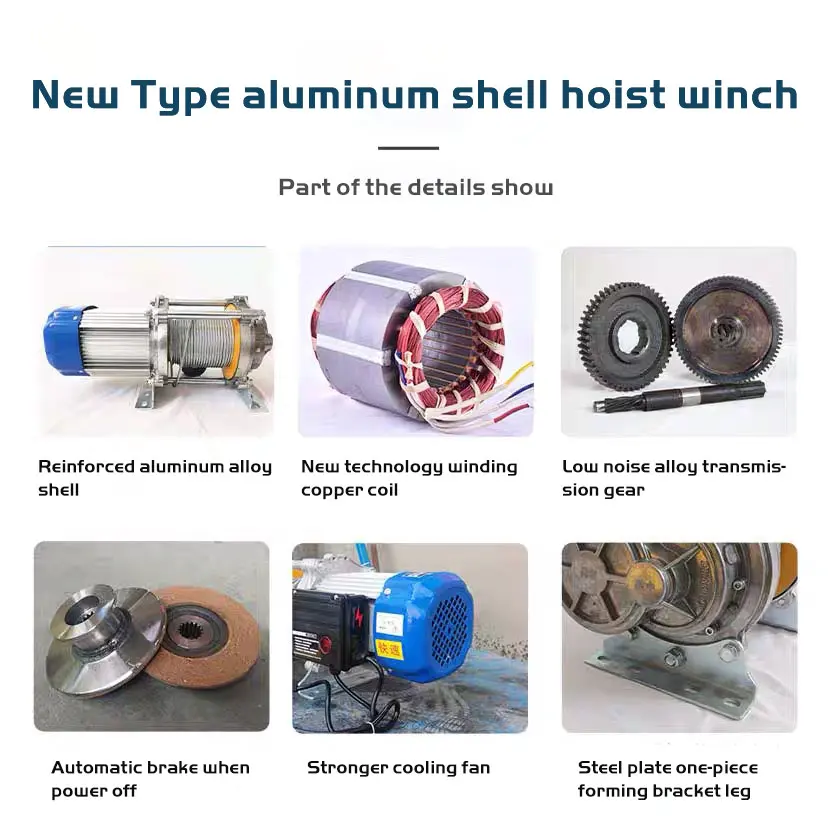

Main Material Feature:

1. The pure copper thermostatic motor greatly improves the working efficiency of the motor and saves energy and efficiency.

2. Increase cooling fan, heat dissipation effect is good, improve work efficiency and service life on the basis of keeping the motor stable, quiet and low noise.

3. Anti-rotation wire rope, galvanized surface processing, smooth and not easy to corrosion, multi-strand composition, bearing force, more safe.

4. Aluminum casing, low noise, fast heat dissipation, light weight, ensure the efficient operation of the motor.





Main Product Advantage:

The product has the characteristic brake promptly, small volume, light, compact, portable, easy to maintain.

1.Widely used in warehouse, construction and many kinds of producing-line.

2.Electric mini winch is easy to load and unload with steel wire rope winch for lifting goods.

3.Electric mini winch wire rope length can be 100m, lift capacity can be 3ton.

4.Electric mini winch is used to pulling and lifting,except exclusive-use.

5.Electric mini winch simple structure.





Technical parameters:



Product type	Rope Type	Voltage (V)	Power (kw)	Weight (kg)	Speed (m/min)	Height (cm)	Rope diameter (mm)
300-600	Single	380	0.6	300	16	30/60	5
	Double			600	8
400-800	Single	220	1.6	400	14	30/60	6
	Double			800	7
500-1000	Single	380	1.1	500	14	30-100	6
	Double			1000	7
500-1000	Single	380	1.5	500	25	30-100	6
	Double			1000	12.5
500-1000	Single	380	1.5	500	12	30-100	6
	Double			1000	6
750-1500	Single	380	1.5	750	18	30-100	7.7
	Double			1500	9
1000-2000	Single	380	3	1000	16	30-100	11
	Double			2000	8
2500-3000	Single	380	3	2500	16	30-100	13
	Double			3000	8

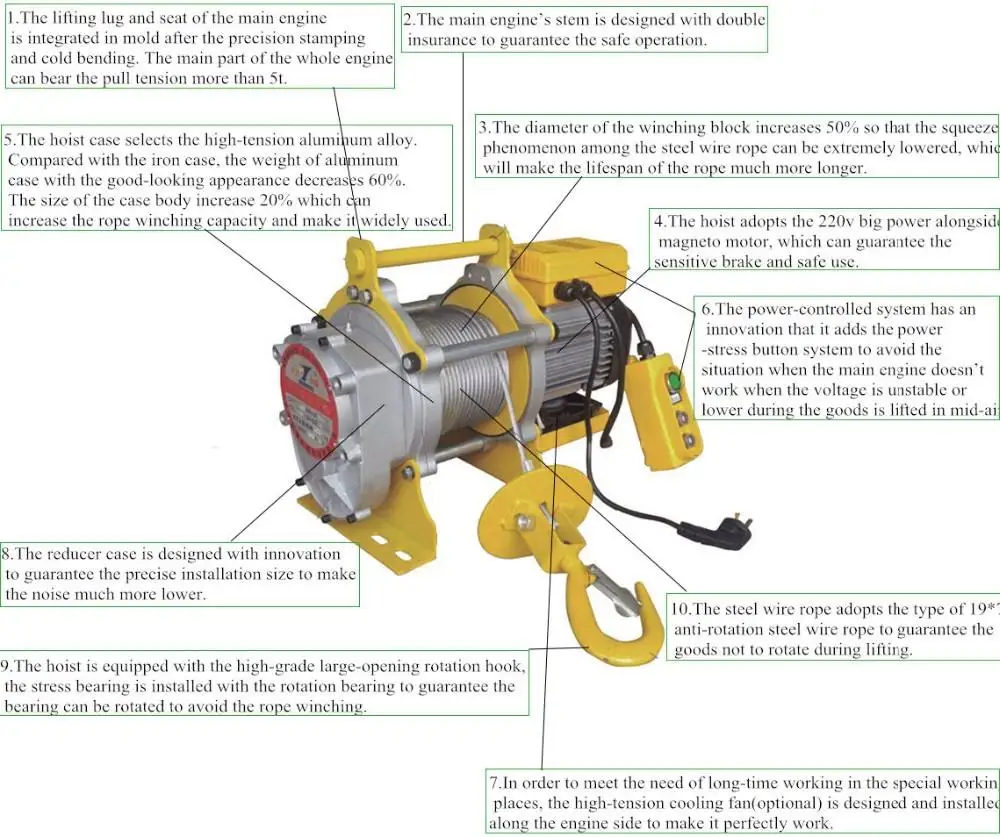

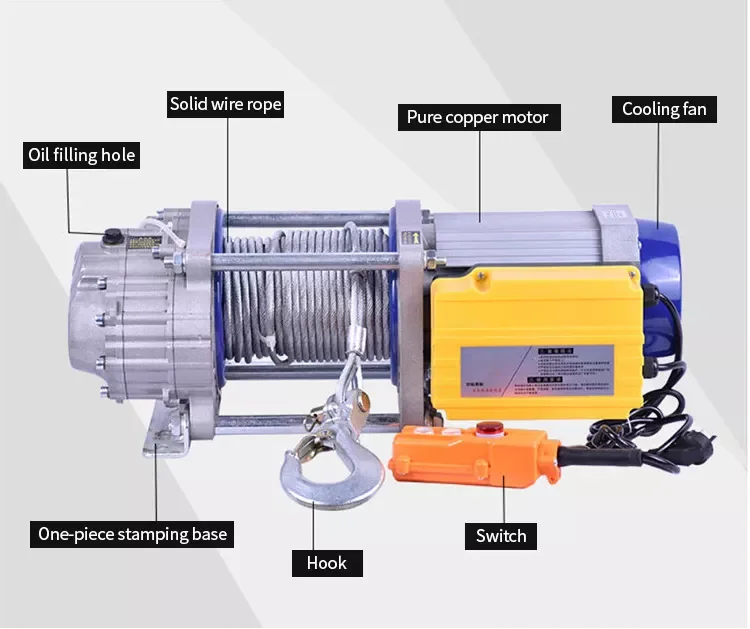

Main Configuration Part:

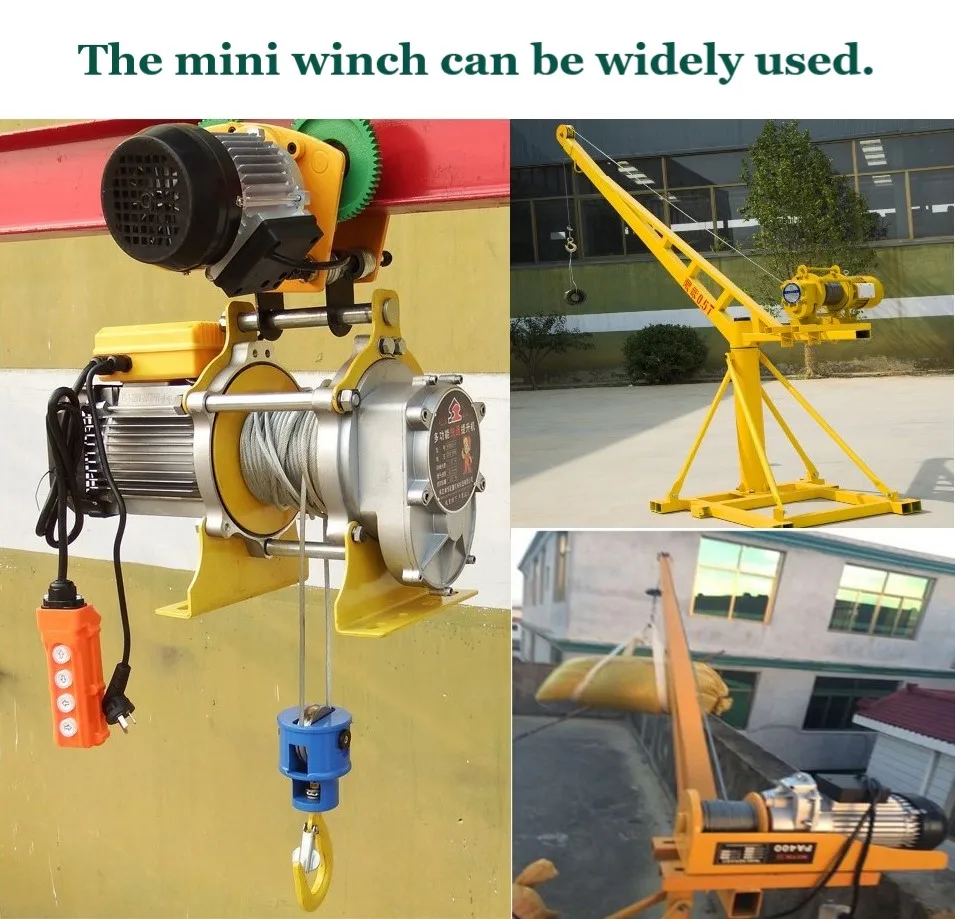

Main usage scenarios:





Design and Construction Rules
All the standards which are required for the hoist winch are the FEM standard, DIN standard and Chinese National standard.

Europe Main National Standards
--  89/392/EEC standard (93/68/EEC)
--  91/368/EEC standard
--  73/23/CEE standard
--  "EMC" standard 89/336/EEC
--  EN 60204-1
--  EN 292 mechanical safety
--  ISO 2141
--  ISO 2766
International Standards
--  June 9, 1993 / Sept. 22, 1993 notice
--  July 29, 1992, 92-765, 92-766, 92-767 notice
--  DIN 5684
--  DIN 15400; DIN 15401
--  NFE 26-010
--  NFE 26-030
Technical Standards
--  FEM 9.511    Mechanical group
--  FEM 9.661    Hoisting and traveling components size and quality standard
--  FEM 9.671    Wire rope quality standard
--  FEM 9.681    Travel motor choice
--  FEM 9.682    Hoisting motor choice
--  FEM 9.755    Electric hoisting equipment
--  FEM 9.811    Electric crane standard
--  FEM 9.901    Hoisting components design reference
--  IEC 34-1      Traveling and allocation performance
--  IEC 34-5      Protection grade standard
--  IEC 947-5-1   Low voltage equipment
China Main National Standards
Design rules for hoist winch      GB/T 3811-2008
Safety rules for lifting appliances          GB 6067-2010
Common crane technical condition          GB 7592-87

Mini winch





Notes: If you want to ask any questions about this product directly with us, pls click here !



Send your Inquiry Details in the Below, Click " Send " Now!

If you would like us to provide an accurate quote within 12 hours, please write down the following information:

1.Where the winch will be installed?

2. Pulling objects by horizontal direction or lifting objects by vertical direction?

3. The pulling weight/lifting weight is_____t

4. The pulling length/lifting height is____m.

5. Power is_____v, _____hz, _____phase.

6. What objects will be lift by the winch?





FAQ



1. What information should I provide to get the price?

Specific parameters such as lifting capacity, lifting height, working voltage, working conditions, etc.

2. Can you customize product ?

Yes, of course. we are manufacturer, and we have a lot of experienced engineers,They can design products according to customer.

3. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

4. How to ship to the destination?

Usually,we transport goods by sea at low cost.If it is urgent,cargo can be transported by air.



The manufacturing technology level is leading in China.the production scale and capacity are in the forefront of the same industry. Our mission is to supply the full solution for all types of lifting systems.
