Лучшая цена H uawei S5720 серии 24 портов 10G сетевой коммутатор gigabit 98010629
- Категории: >>>
- Поставщик: Zhejiang,Shenghua,Telecom,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

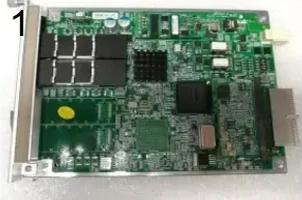

We can provide all models service board. If you need, pls send us inquiry directly !!! |
Product Description
WE PROMISE:
1.Quality: All products from HUAWEI and new.
2.Reply on time: Your inquiry related to our products or price will be replied within 24 hours.
3.OEM&ODM: We can help you to design and put your good idea into products.
4.Warranty: 1-years warranty.
5.Technology support: On-site technical support, Telemaintenance, Free call and E-mail technology supports.
2.Reply on time: Your inquiry related to our products or price will be replied within 24 hours.
3.OEM&ODM: We can help you to design and put your good idea into products.
4.Warranty: 1-years warranty.
5.Technology support: On-site technical support, Telemaintenance, Free call and E-mail technology supports.
6.Training service support: Provide free training service on installation and debugging technology supports.
S5700-LI Series

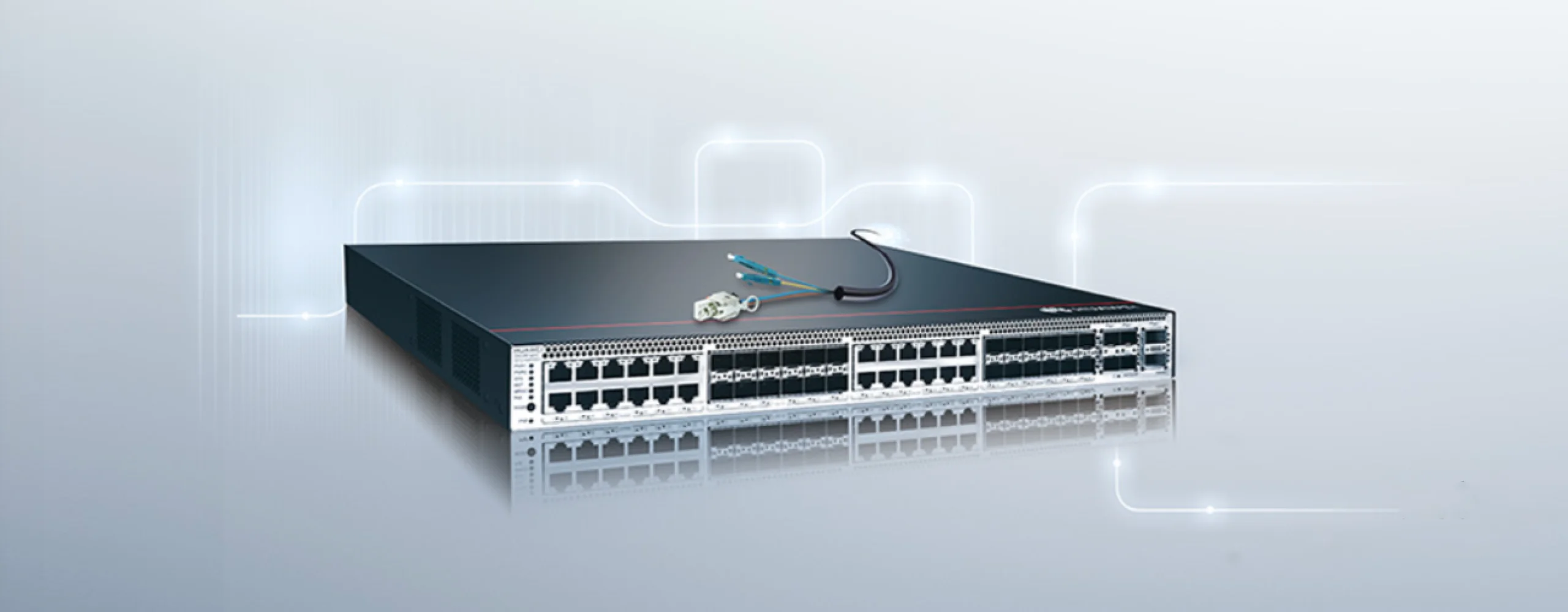

Huawei S5700 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in extensive enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.

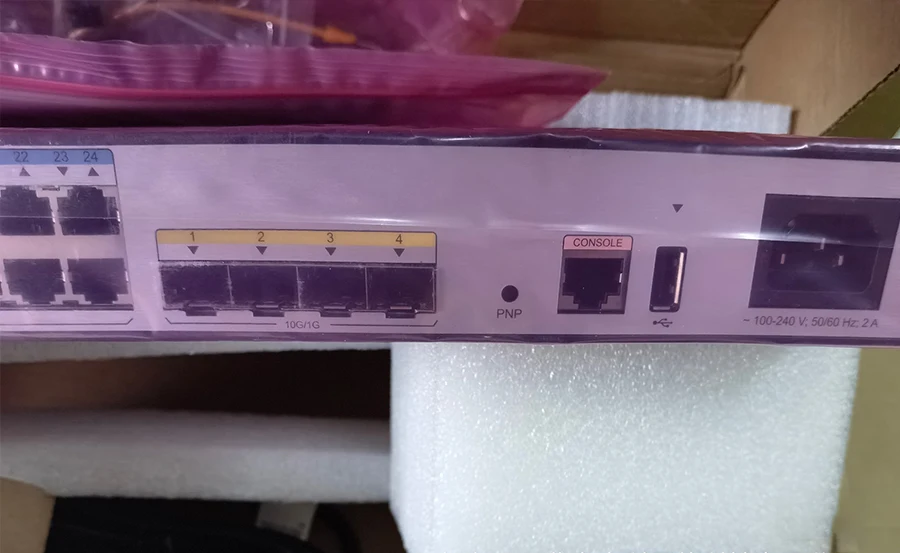

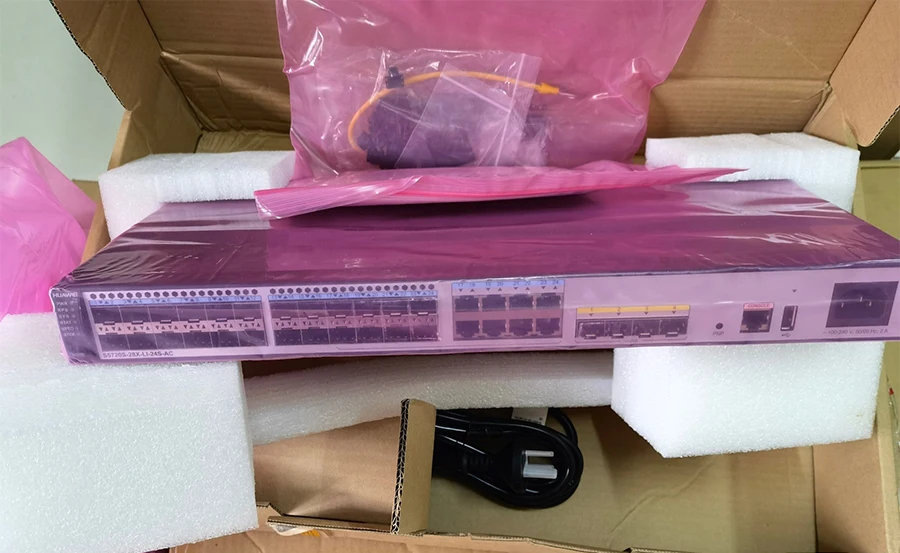

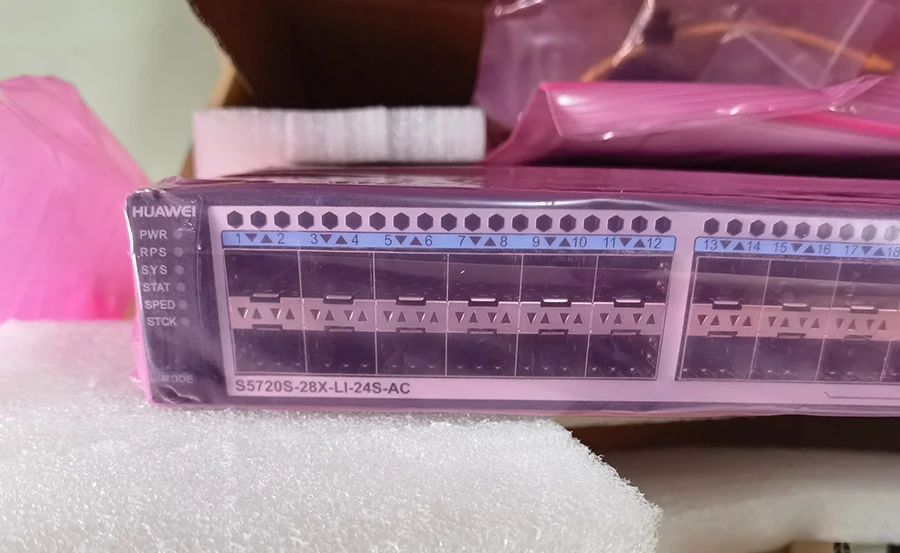

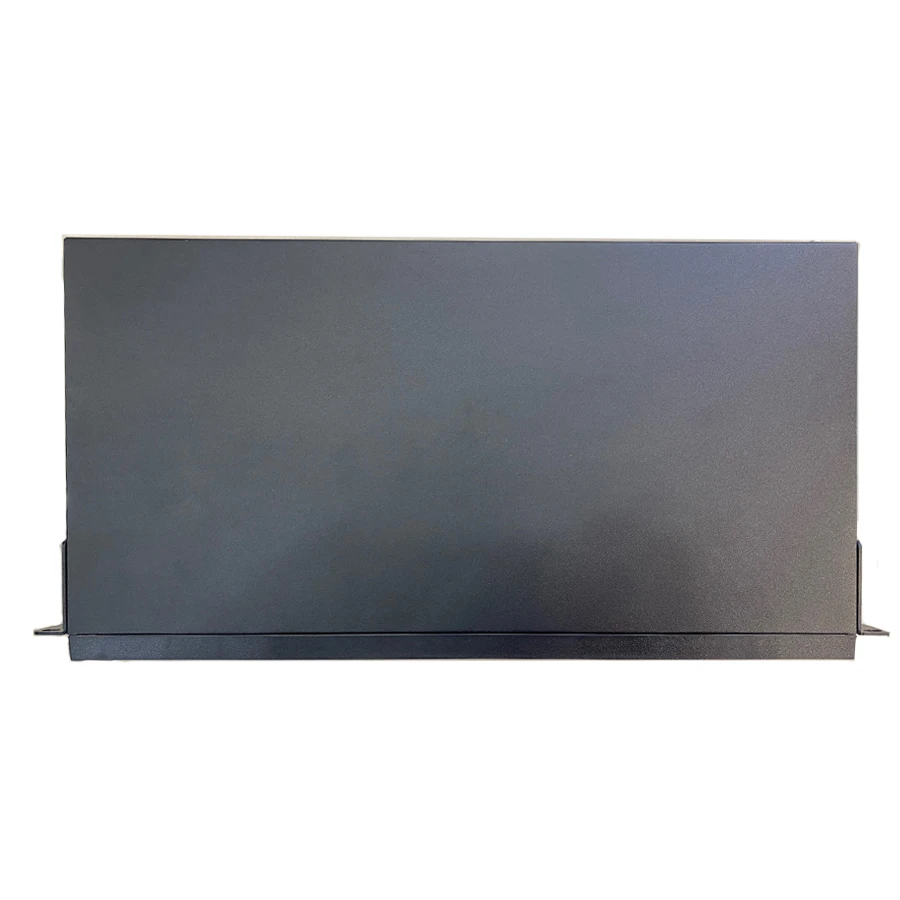

S5720-28X-LI-24S-AC
Specification
Item | Description |
Memory (RAM) | 512 MB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 41 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±7 kV |
Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.8 mm (1.72 in. x 17.4 in. x 8.85 in.) |
Weight (with packaging) | 4.1 kg (9.04 lb) |
Stack ports | GE SFP optical ports and 10GE SFP+ optical ports except combo ports on the front panel |
RTC | Not supported |
RPS | Supported |
PoE | Not supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum power consumption (100% throughput, full speed of fans) | 41.7 W |
Typical power consumption (30% of traffic load) | 28.9 W |
Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Short-term operating temperature | -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 43 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | EMC certification |
Safety certification | |
Manufacturing certification | |
Part number | 98010629 |
Company Profile
Shenghua Telecom Technology Co., Ltd.（Holo-Telecom LTD）/HUAWEI Authorized agent.
Shenghua Products
Shenghua is a Global Provider of Telecommunication Equipment and Services.And Extending Business to ICT (Information and Communication Technology) Field.
We buy&sell Original NEW&REF telecom equipment from carriers and market to other companies who need them.We offer carrier class telecommunication hardware at 80-90% OFF list.
We provide network design&planning, configration, troubleshooting, maintenance and training service in world wide.
Shenghua Products& Stock
More than $5million Huawei products in stock.
Delivery your order within 72hours base on quick response ability.
Focus on High-end telecom products including IP Data,Transmission,Wireless,Server&Storage and spare parts.
Shenghua Team
Most Shenghua Employees from Huawei& ZTE.
Sales team over 5years experience advise you select products.
Engineers team over 5years experience offer remote or local installation and configuration service.
Expert team over 10 years experience help you plan your network.

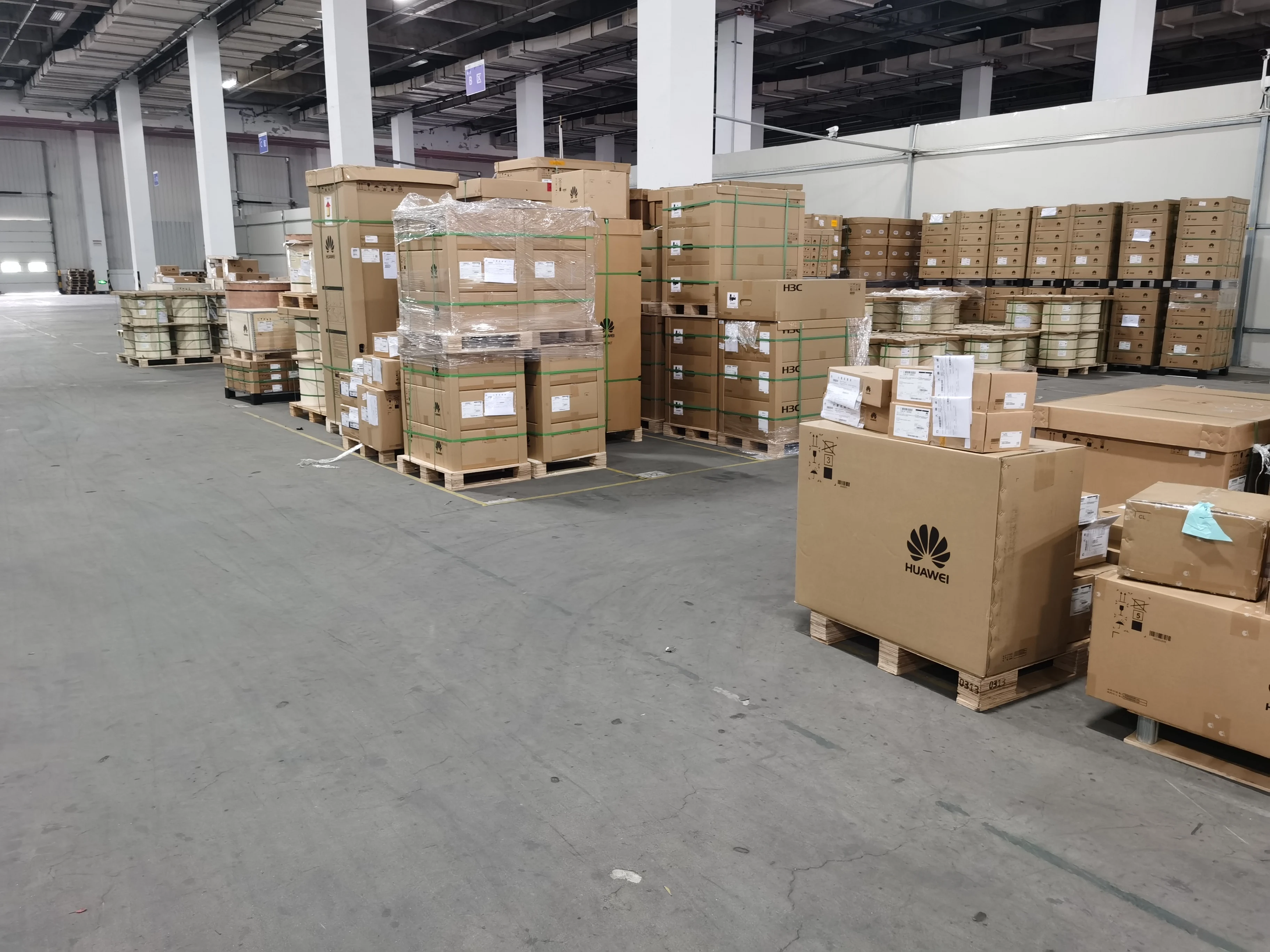

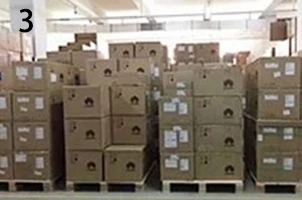

Our warehouse
Packing & Delivery

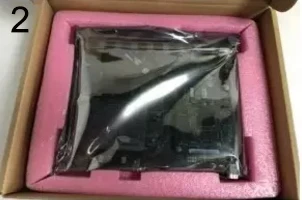

Packing:

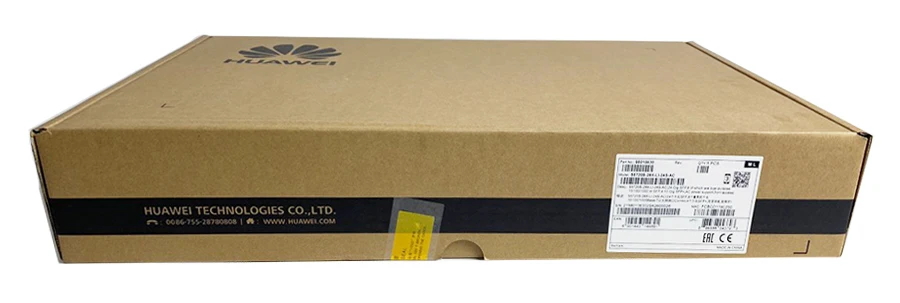

1. Original Carton Package. 2. As your requirement.
Delivery:
1. 3-7 Working days after received the payment.
2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )
1. 3-7 Working days after received the payment.
2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )
FAQ
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). If you are very urgent to get the
price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes. Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T, Western Union, Money Gram, and Paypal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea, by air or by express (EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers benefit;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
-We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). If you are very urgent to get the
price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes. Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T, Western Union, Money Gram, and Paypal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea, by air or by express (EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers benefit;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
