Product Description

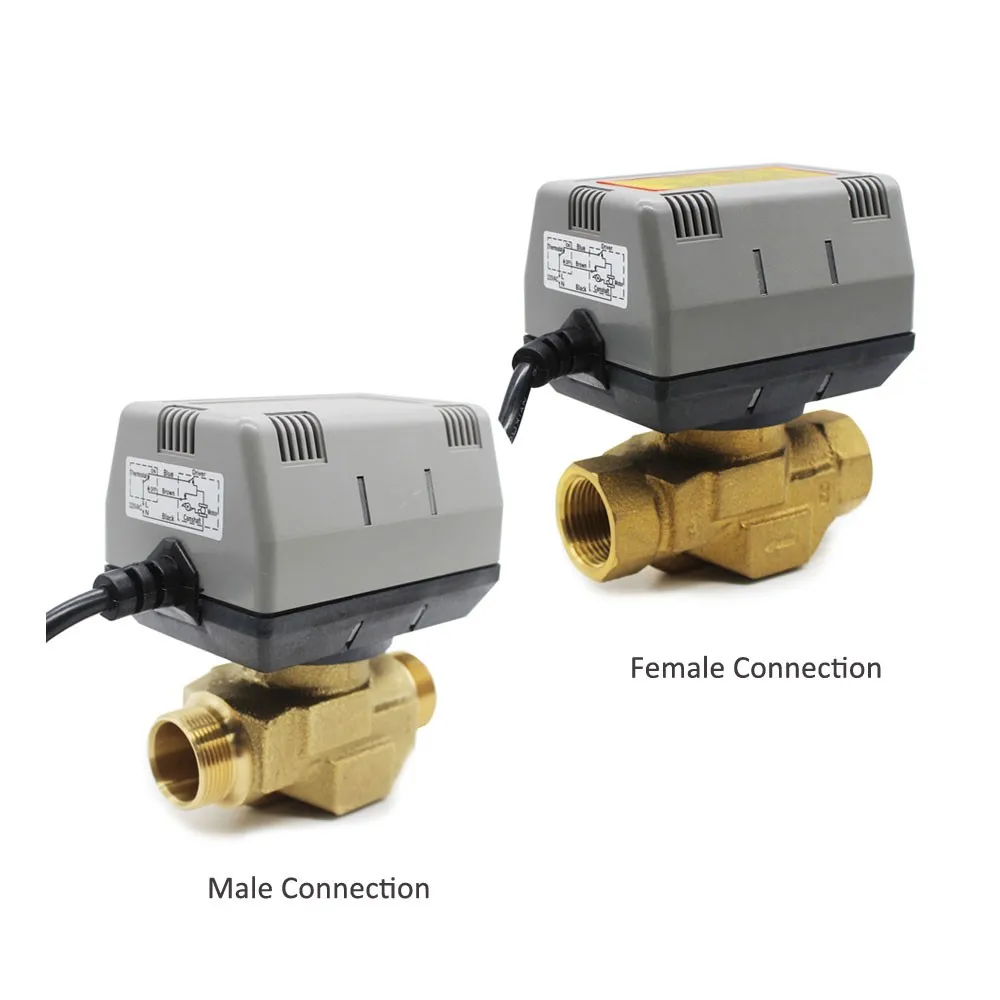

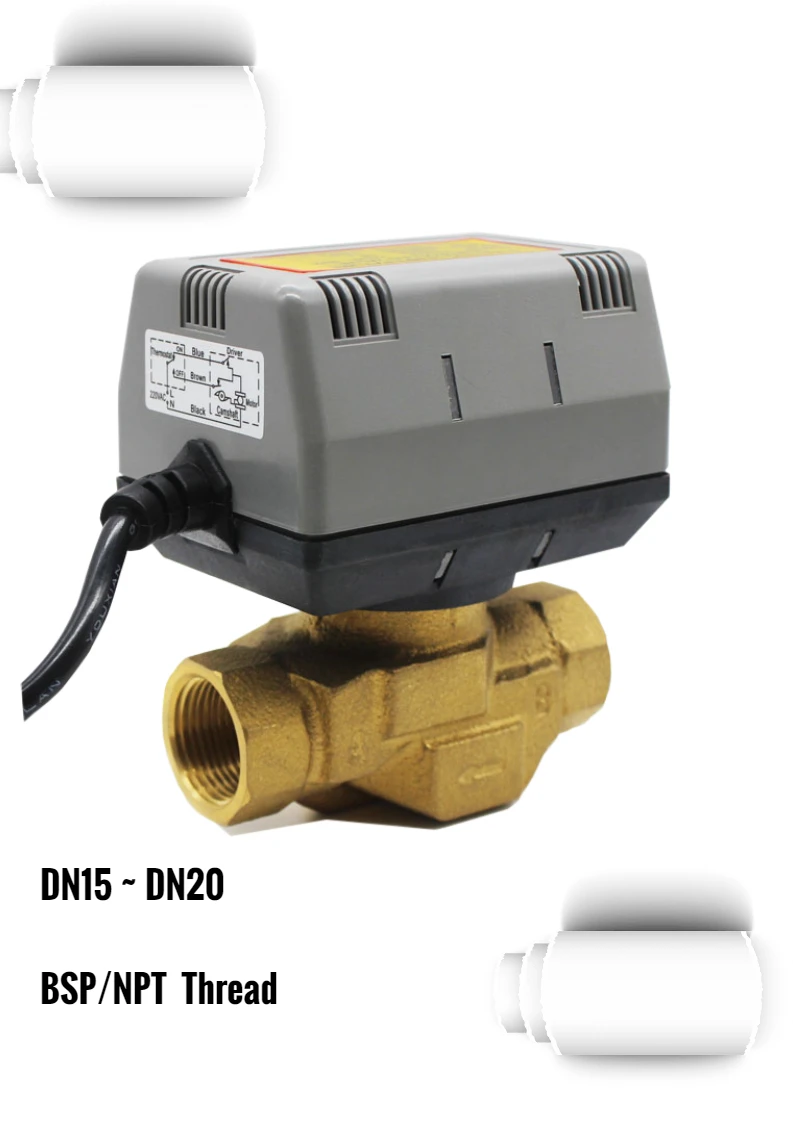

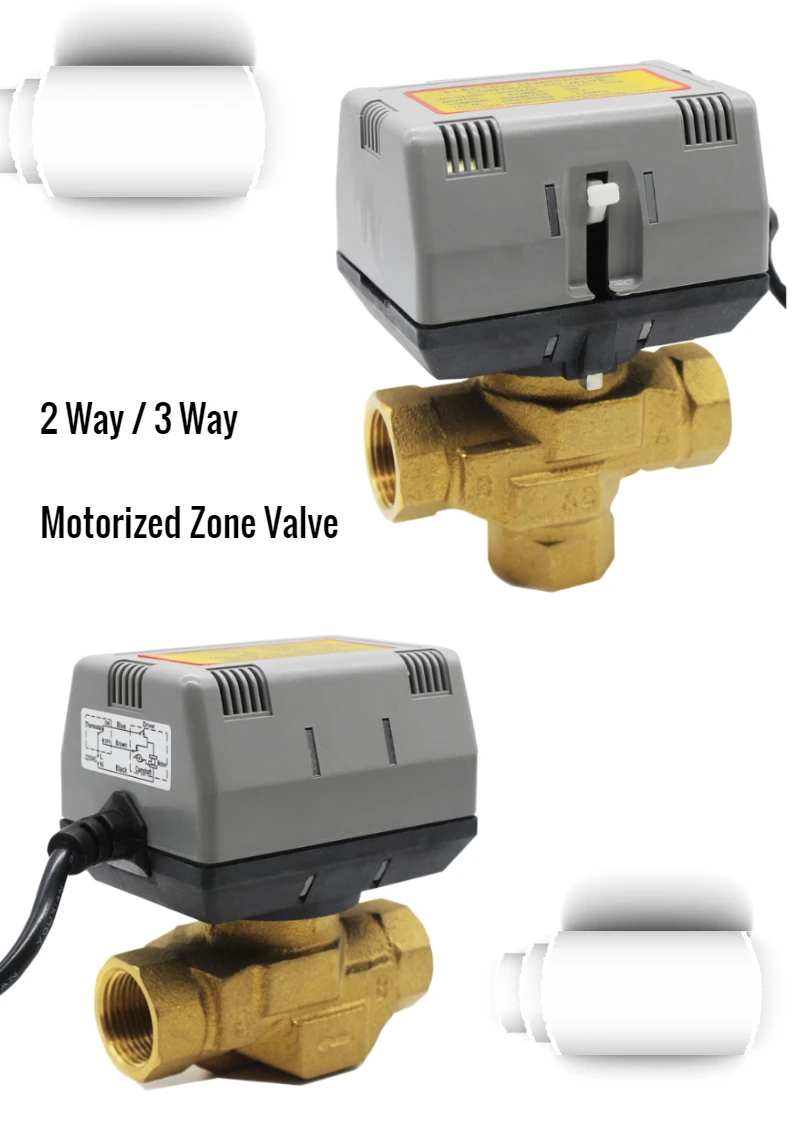

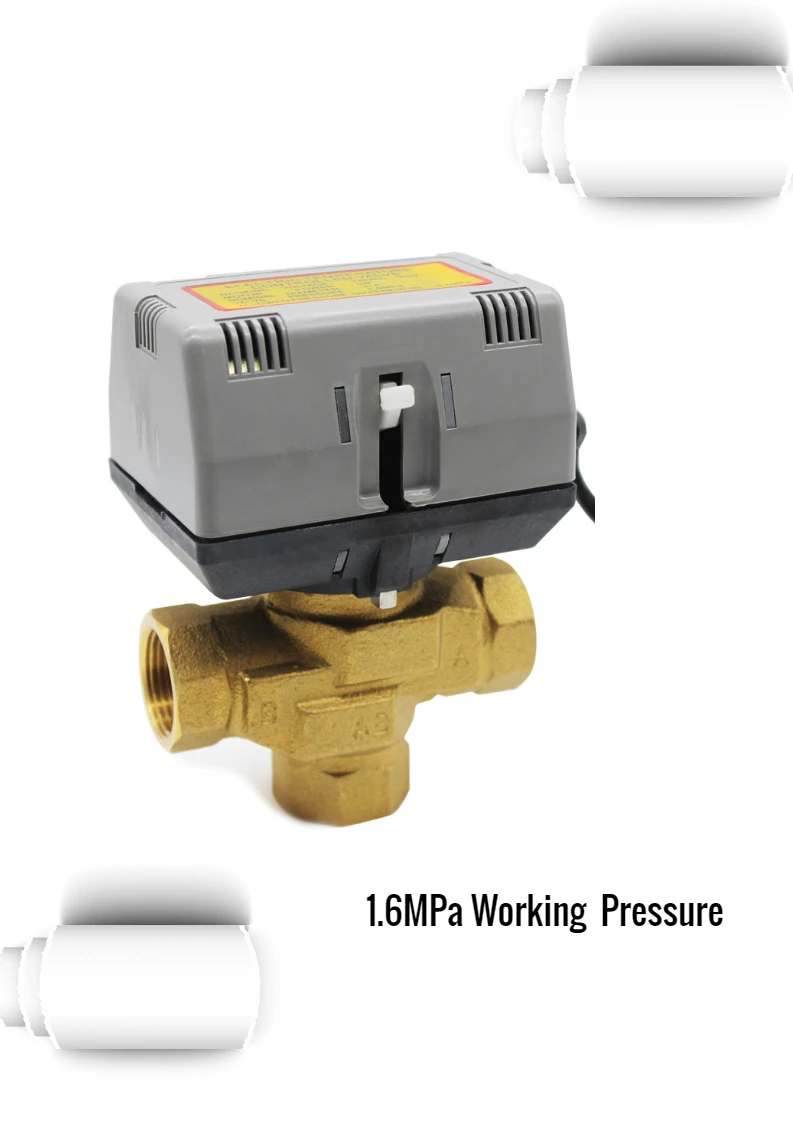

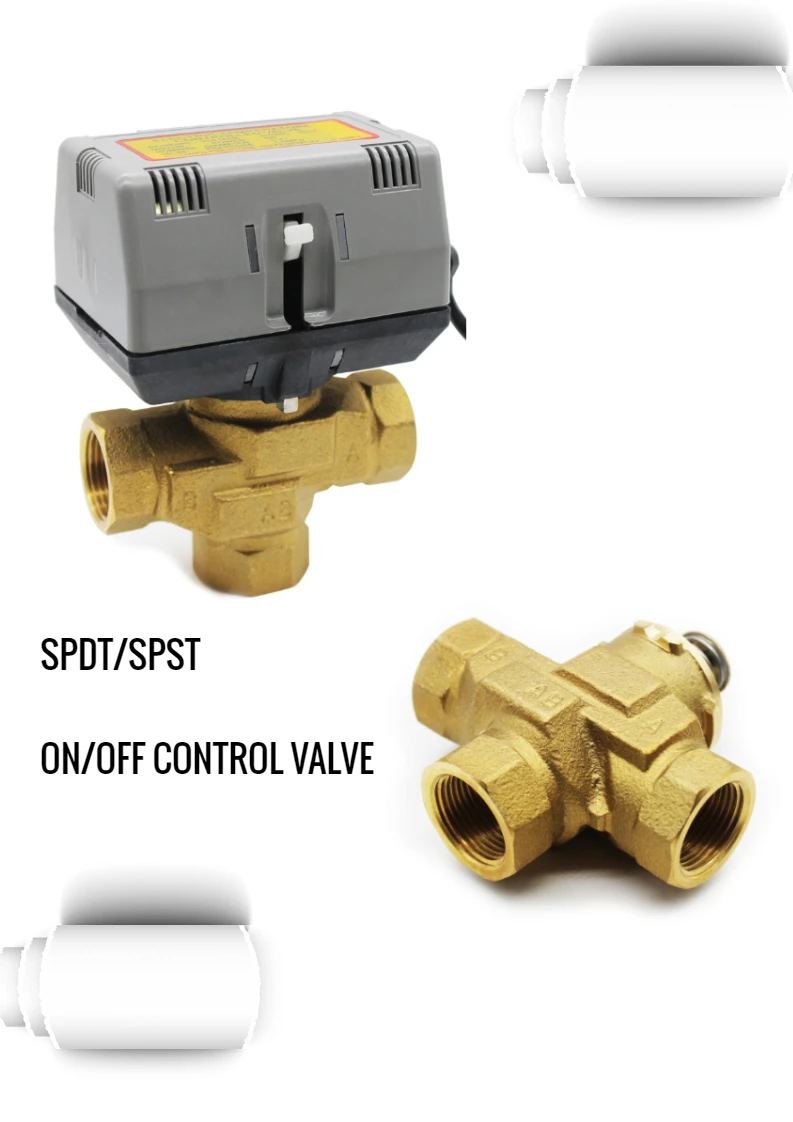

Electric Actuator gate Valve 2 Way DN20 motorized Control brass water Valve For Fan Coil Unit
HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.
>> Models & Specifications of Actuator
Model Rated Power Supply
HTW-V61-8503: AC220V±10%, 50/60Hz
HTW-V61-8203: AC110V±10%, 50/60Hz
HTW-V61-8003: AC24V±10%, 50/60Hz
>> Models & Specifications of Valve Body
Model | Configuration | Kvs | Connection Type | Differential Pressure(MPa) |
HTW-V61-215 | normally closed two-way | 2 | G1/2 | 0.20 |
HTW-V61-220 | normally closed two-way | 3.2 | G3/4 | 0.10 |
HTW-V61-225 | normally closed two-way | 5.7 | G1 | 0.06 |
HTW-V61-315 | mixing three-way | 3.2 | G1/2 | 0.20 |
HTW-V61-320 | mixing three-way | 4.6 | G3/4 | 0.10 |
HTW-V61-325 | mixing three-way | 4.8 | G1 | 0.06 |
Packing & Delivery
Packaging Details:
1.Inner package:Chinese/English/neutral package,special requirements based on clients.
2.Outer package:standard exporting package,special requirements based on clients.
3.One pcs per box.
2.Outer package:standard exporting package,special requirements based on clients.
3.One pcs per box.
Company Profile
FAQ
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
