Промышленный Слот шины со стандартной промышленной архитектурой материнская плата 2 ISA и 5 PCI Материнская 775 процессор 865gv модель
- Категории: Motherboards >>>
- Поставщик: Shenzhen,Immediate,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики

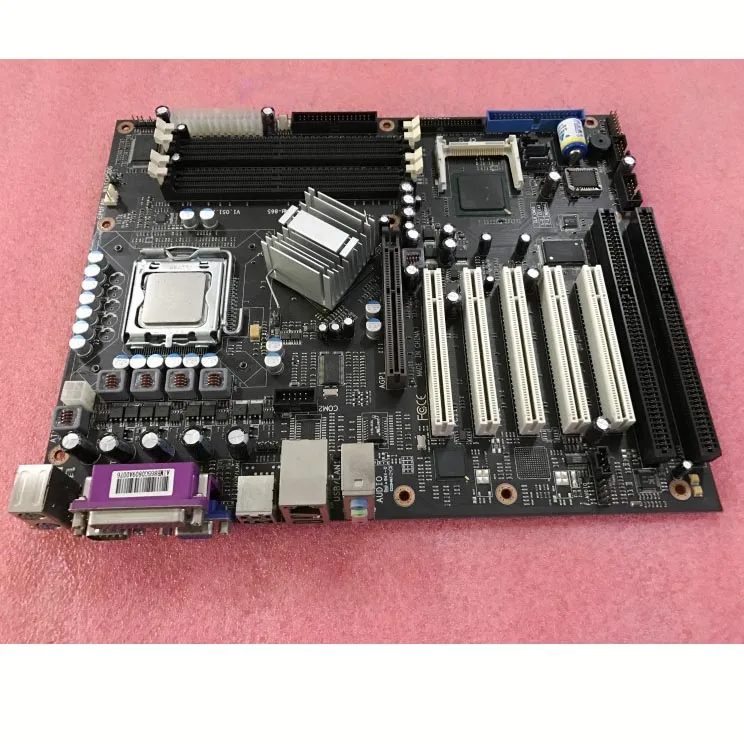

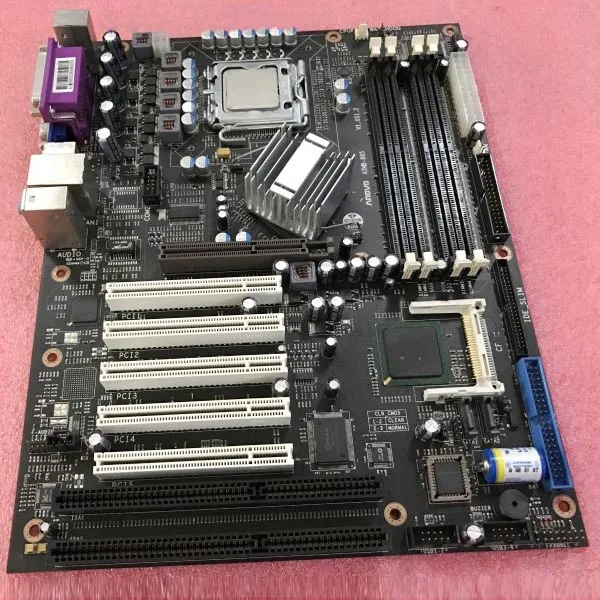

Intel 865 with 775 CPU Motherboard with 2 ISA Slots 4 PCI
ISA slot motherboard
| CPU | 775 CPU |
| Chipset | Intel 865 + ICH7 chipsets ITE IT8712F LPC controller |
| Memory | four 240-pin DDRII sockets support DDRII 400/533/667 SDRAM up to 4GB |
| VGA | Integrated Graphics controller in 945GV GMCH Integrated Intel Graphics Media Accelerator 950 1 VGA Port it can accelerate DirectX 9 performance of hardware,400MHz core frequency,up to 224MB display memory. |
| Ethernet | Onboard two RTL8111C 10/100/1000Base-T Ethernet controllers Full-Duplex supported |
| IDE SATA & FDD | 1 enhanced PCI IDE channels which support up to 2 IDE devices 4 SATA devices Support ATA-100, data transfer rate up to 100MB/s 1 FDC supports 1.2M/1.44M/2.88M FDD |
| PCI-E PCI ISA AUDIO COM &LPT | Support 1 PCI-E X16 devices Support 5 PCI devices Support 3 ISA devices Support 7.1 HD Audio Support 2 COMs Support 1 LPT |
| System BIOS | Award BIOS with 4MB firmware hub ACPI/PnP supported Software WatchDog supported |
| I/O output | 2*COM ports & 1 Printer port 1*DB-15 VGA port PS/2 mouse and keyboard connectors Double Deck downstream USB 2.0 ports 2*RJ-45 LAN ports |
| Expansion slots | 5*PCI slots 2*ISA slots |
| Form Factor | Flex-ATX @ 305 mm (L) × 220mm (W), 4 Layers |
