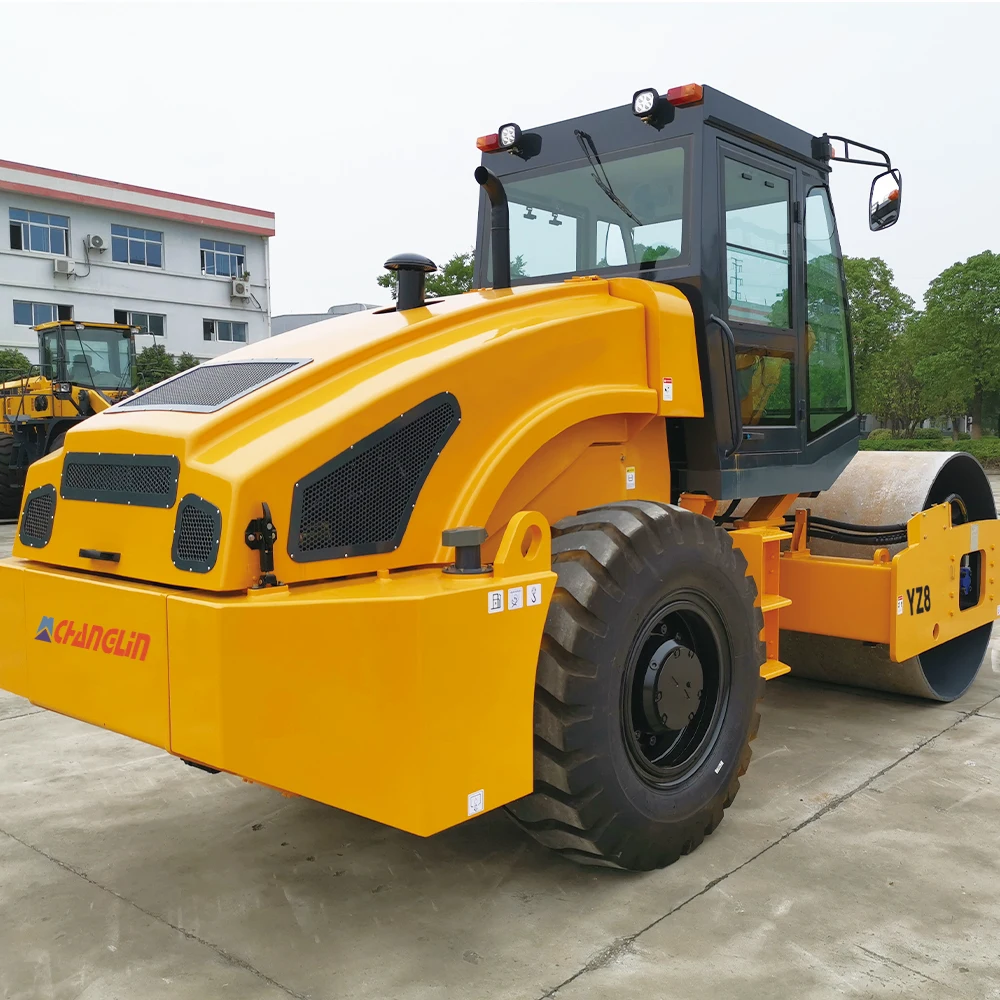

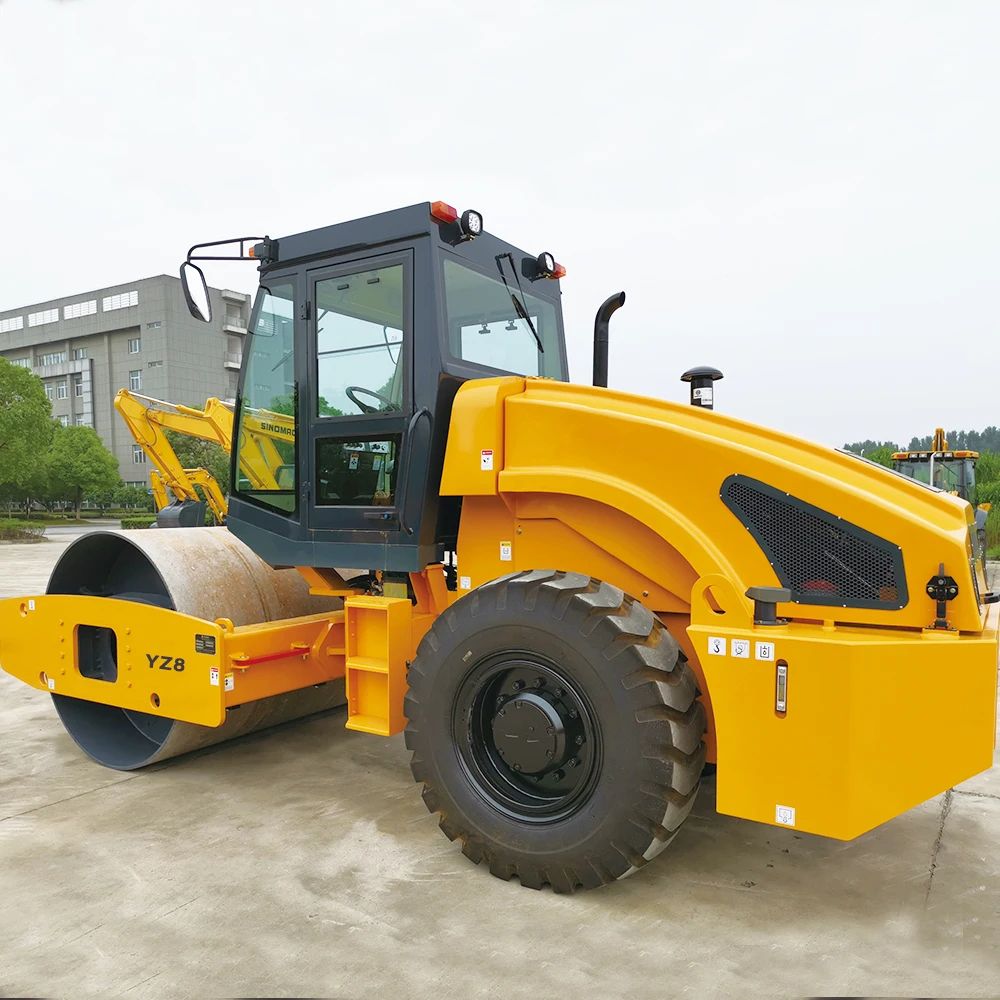

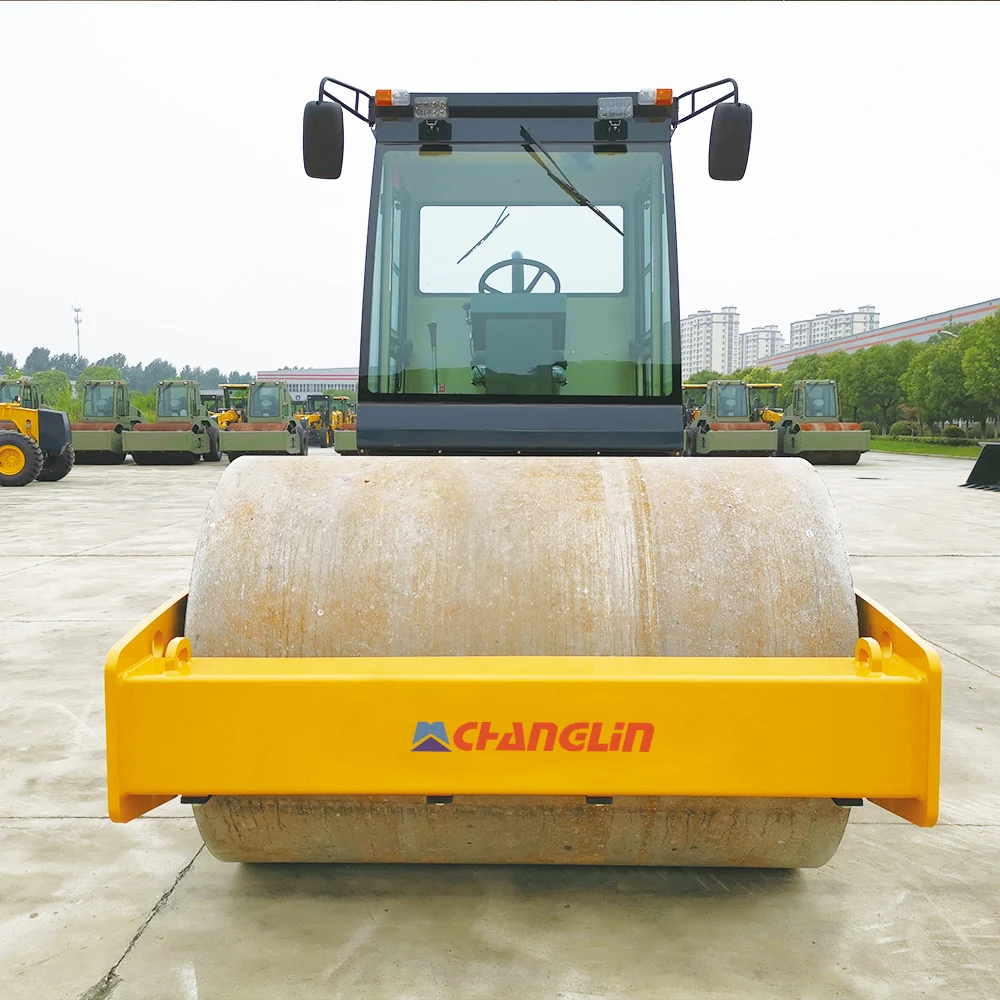

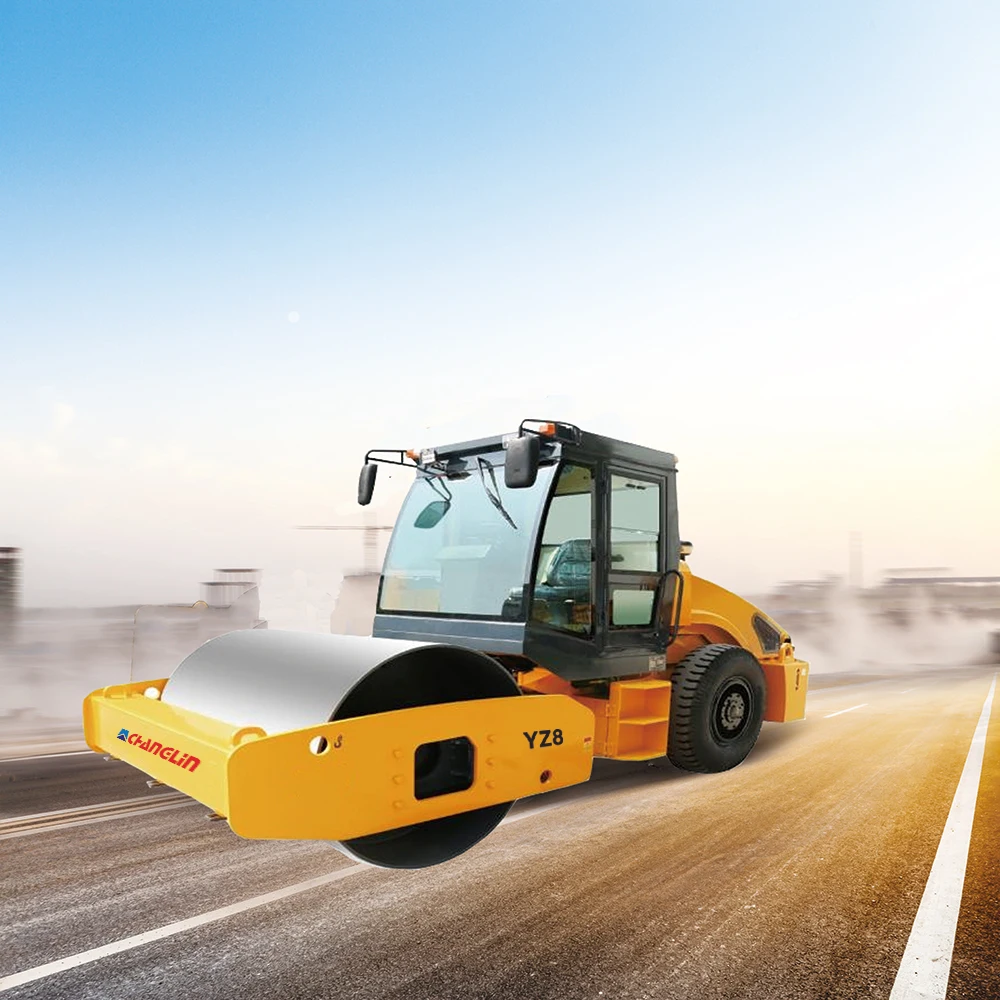

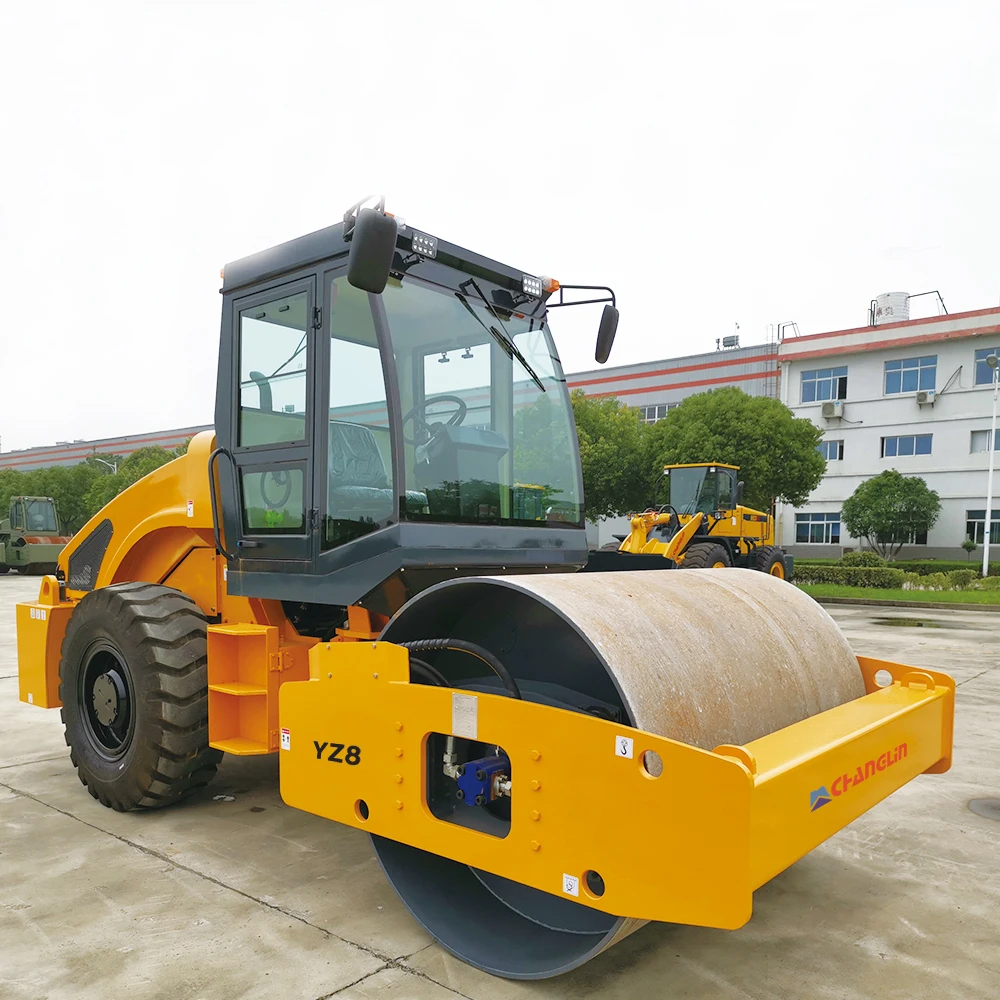

Sinomach 10 тонн строительные дорожные катки уплотнитель асфальта с двигателем weichai 8000
- Категории: Road Roller >>>
- Поставщик: Sinomach-Hi,International,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Application
Suitable for compaction of large-scale engineering foundations such as high-grade roads, dams, railways, airports, etc. It can crush non-stick materials such as sand, gravel, gravel, rock fill and semi-stick materials.
Main Features:
·Equipped with 4-cylinder supercharged Weichai power, with large power reserve, high efficiency, energy saving and environmental protection, and the emission reaches the national standard II;
·Mechanical drive, forward3 reverse2 speeds
·Hydraulic vibration, electric control, vibration, large centrifugal force, good compaction performance;
·Hydraulic steering, articulated frame, light and flexible steering, light and flexible operation
·Equipped with a special gearbox for the roller with a synchronizer, which has large transmission torque and light shifting;
·Gas-assisted hydraulic caliper disc driving brake, mechanical parking drum brake, safe and reliable
·The rear hood can be turned up at a large angle for easy maintenance
·Hydraulic components use well-known brands and reliable performance
·Optional different pattern tires; optional other brands of diesel engines; standard cab, optional air conditioning. Optional bump type steel wheel
Operating weight (kg) | 10000 |
Vibratory drum diameter (mm) | 1430 |
Compaction width (mm) | 1980 |
Static line pressure (N/cm) | 240 |
Min. ground clearance (mm) | 380 |
Wheel base (mm) | 2900 |
Min. turning radius (mm) | 5800 |
Gradeability | 30% |
Vibratory amplitude(mm) | 1.6/0.8 |
Vibratory frequency (Hz) | 30 |
Centrifugal force (kN) | 225/105 |
(Forward)(km/h) | 2.0/4.2/8.7 |
(Reverse) (km/h) | 2.0/4.2 |
Tyre model | 17.5-25-12PR |
Engine model | WP4G110E221 |
Rated power | 82kw@2200rpm |
Dimension (mm) | 5570*2160*3010 |
