Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики







Supporting service
1. HL promises to the buyer that the warranty period is 2 years or 100,000 kilometers
2. In North American and Southeast Asian markets, HL offices can provide customers with timely delivery and 24-hour after-sales service

Quality control
HL Bearings passed the IATF 16949 approval by TUV Group in 2005. For many years, the quality system has been operating effectively


Sales direction and channels
HL currently mainly cooperates with domestic Fuhua Axle, China National Heavy Duty Truck, Shaanxi Fast, foreign well-known enterprises such as Dana, Meritor, AGCO, Federal Mogul, Regal Beloit and so on. In the future, HL will continue to cooperate with OEM supporting companies in global automobiles, heavy-duty trucks, construction machinery, agricultural machinery,
petrochemicals,machine tools, gearboxes, and transmission systems, and at the same time, enter new energy vehicles, wind power, rail transportation, aviation and other emerging industries.
HL’s product processing range and accuracy
The machining size major product tapered roller bearing is ID 10mm, OD 400 mm; for cylindrical roller bearings and deep groove ball bearings, the machining range is ID 20mm, OD 180mm; the tolerance level is from P0 to P5 class.
Complete models and types Please contact me if you have any needs





Shaft
Diameter

Bearing Designation

Mass

Approx
Boundary Dimensions
Basic Load Rating
 Limiting Speed


Current Code

Original Code
Fw
D
C
Dynamic

Static

Oil
mm
g
mm
N
rpm









20
HK2010
27941/20
11.8
20
26
10
5900
7200
10000
BK2010
25941/20
14
20
26
10
5900
7200
10000
HK2011
12
20
26
11
7500
9200
9000
HK2012
37941/20
14.1
20
26
12
7600
10100
10000
BK2012
35941/20
16.7
20
26
12
7600
10100
10000
HK2014
47941/20
15.7
20
26
14
9700
18100
9000
HK2016
57941/20
19.3
20
26
16
11700
29100
10000
BK2016
55941/20
22.3
20
26
16
11700
29100
10000
HK2018
67941/20
23.3
20
26
18
7900
12800
9000
HK2020
7942/20
24.1
20
26
20
13700
24000
10000
BK2020
75941/20
27.1
20
26
20
13700
24000
10000
HK2025
7943/20
28
20
26
25
9100
14800
9900
HK2030
41
20
26
30
21800
40000
10100
BK2030
43
20
26
30
21800
40000
10100
HK20X27X18
20
27
18
26000
47200
9900
HK20X27X20
20
27
20
26300
47800
9900
HK20X27X30
20
27
30
28500
48800
9900
HK20X28X16
47942/20
28.5
20
28
16
29600
49800
9900
HK20X29X18
41
20
29
18
30900
54600
9900
Please contact me for more product models


The correct measuring method for tolerance of inscribed circle diameter of needle roller:
1. In measuring, the inspected bearing and standard part should be under same temperature. The standard temperature for inspection is 20 .
2. As for the inspection of single minor inside diameter deviation Fwmin for package bearing roller set, it shall be inspected with limit plug gauge.


Model category


Tapered roller bearing inch series
02474/02420——47687/47620
480/472——795/792
JL68145/11Z——JLM813049/10
L21549/L21511——LM78349/10A
M12649/10——U399A/U365L(SET20)
Tapered roller bearing metric series
30202——33220
Tapered roller bearing Set series
SET11-SET508
Complete models and types Please contact me if you have any needs




Inspection of Bearings
In accordance with ZBJ11020 standard and inspection regulations of the world needle roller bearing manufacturing company (such as Japan NTN, KOYO, Germany INA, American TORRINGTON). Since the punched outer ring has thin wall and is easy to be deformed in heat treatment, it is unnecessary to inspect the outside diameter of bearing before installation. Only when the inspected bearing is pressed into the standard housing bore, the final size and geographic accuacy can be obtained. The tolerance of housing bore size shall be in conformity with regulations (see Table -1). The inscribed circle diameter for needle roller will conform to the range of tolerance F8.






Construction

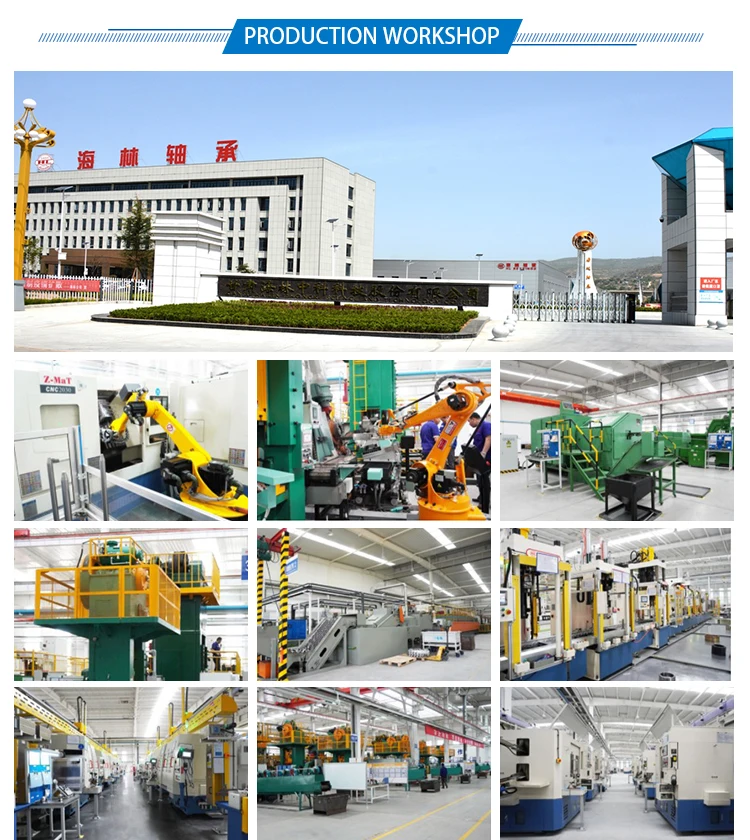

At the end of 2020, HL will relocate to a new production base, covering an area of 220,000 square meters, with a total investment of 150 million US dollars. There will be a national class bearing technology research and development center and R&Dand workshop,a nationally recognized laboratory, four modern dust-free production workshops and an intelligent storage logistics center. In the new production base, the technology R & D center and R & D workshop and the nationally recognized laboratory will have approximately US $ 15 million investment. The R & D center will be equipped with 40 senior R & D teams, using ROMAX simulation analysis technology to optimize product design and improve product life, simultaneously,independently designing and developing samples for products with customers' special needs. The laboratory is equipped with imported metallographic microscopes,three-coordinates machine, length measuring instrument, residual Austenite detectors, scanning electron microscopes and other physical and chemical testing equipment, vibrometers, performance testing machines and life testing machines.




The outer ring of drawn cup needle roller bearing is punched with the high-quality steel sheet. The outer ring has thin wall . The drawn cup needle roller bearing has the characteristics of small radial section area, large load carrying capacity, less inertia and economic manufacture. It is suitable for small section height, or when the housing bore isn't used for raceway, this type is recommended to use. The bearing is assembled into the housing bore under a certain pressure without further axial location.
The drawn cup needle roller bearing generally takes its shaft diameter as the internal raceway. However, the proper LR type inner ring can be used in accordance with application condition.
The drawn cup needle roller bearing has two structures - with retainer and with full of needles. They are divided into open-end type and close-end type. The structure with retainer has the single seal ring and double seal ring. The structure with full of needles has a large load carrying capacity.
CWN can provide all drawn cup needle roller bearings listed in this catalogue, including standard size and non-standard metric size, and inch-series as well as the high-precision drawn cup needle roller bearings with special requirements such oil hole in outer ring, double-row needles, nylon retainer, inner ring, seal ring, etc. (special technical requirement on order).




Quality control
1.HL Bearings passed the IATF 16949 approval by TUV Group in 2005. For many years, the quality system has been operating effectively.
2. With international bearing industry standards to ensure the interchangeability and consistency between the
supplied products and the world brand products.
3. HL's research and development center continuously optimizes product design, so that products continue to develop in the direction of light weight, reliability, low noise, long life and unitization.




Company Profile
Gansu Hailin Zhongke Science and Technology Co., Ltd, is reformed in 2001 from Tianshui Hailin Bearing Factory that established in 1996. It is a large scaled backbone enterprise in Chinese Bearing Industry, one of 500 top enterprises in Chinese Machinery Industry,the first-batch export enterprise of mechanical and electrical products, the largest professional manufacturer of tapered roller bearings in China and export leading enterprise in Gansu province.






FAQ


1. who are we?
We are based in Gansu, China, start from 2003,sell to Domestic Market(50.00%),North America(35.00%),South America(6.50%),Southern Europe(4.50%),Africa(3.00%),Mid East(00.00%),South Asia(50.00%). There are total about 1000+ people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Tapered Rroller Bearings,Deep Groove Ball Bearings,Cylindrical Roller Bearings,Hub Bearings,Unit And Truck Hub Assembly

4. why should you buy from us not from other suppliers?
Tianshui Hailin Imp. and Exp. Corp. is a comprehensive company invested by Gansu Hailin Zhongke Science and Technology Co., Ltd in 1992. its annual business volume is more than 50 million US dollars covering 30 countries and regions.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
