Product Description
Road Marking Equipment For Coating Sport Field Line Painting Machine
Specification
Model | LS-1260 |
Capacity of paint mixing drum | 100KGS |
Temperature | 170-250℃ |
Glass Bead storage box: | 10 kg / box |
Marking bucket | Standard 150 mm configuration |
Line width | 50-500mm |
Line thickness | 1.0-2.5mm |
Line speed | 2km/h |
Size | 1300*950*950 mm |
Weight | 135kgs |
Simple structure, flexible operation, easy to push, especially for zebra crossing, obviously superior to similar products,equipped with sub-benchmark, to deal with all kinds of complex roads.

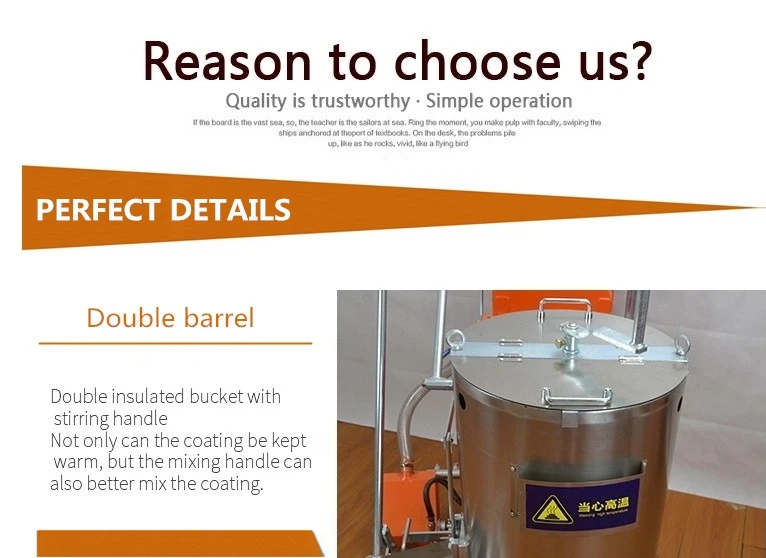

1. Paint barrels: double stainless steel heating insulation barrels, capacity 105 kg, plug-in manually mixer devices, removable devices.
2. Glass Bead storage box: 10 kg / box.

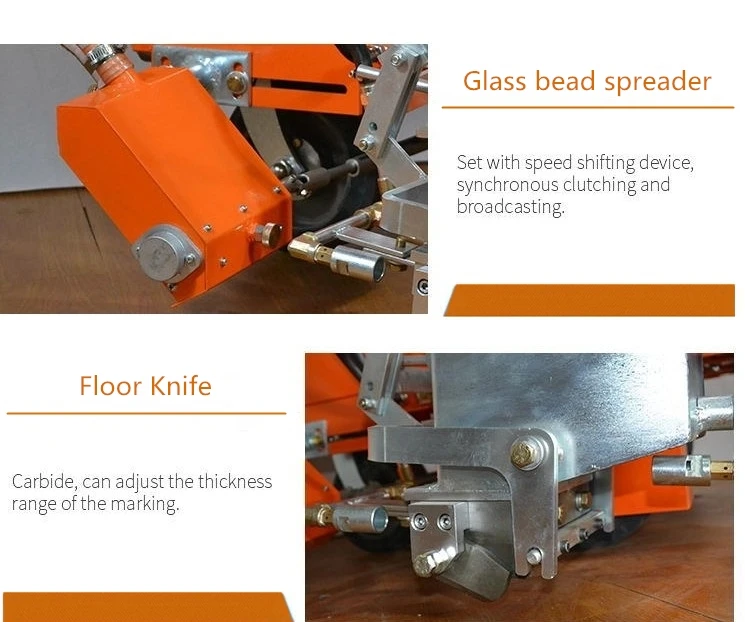

3. Glass beads beads sow browser: synchronous clutch spread with speed gearshift device.

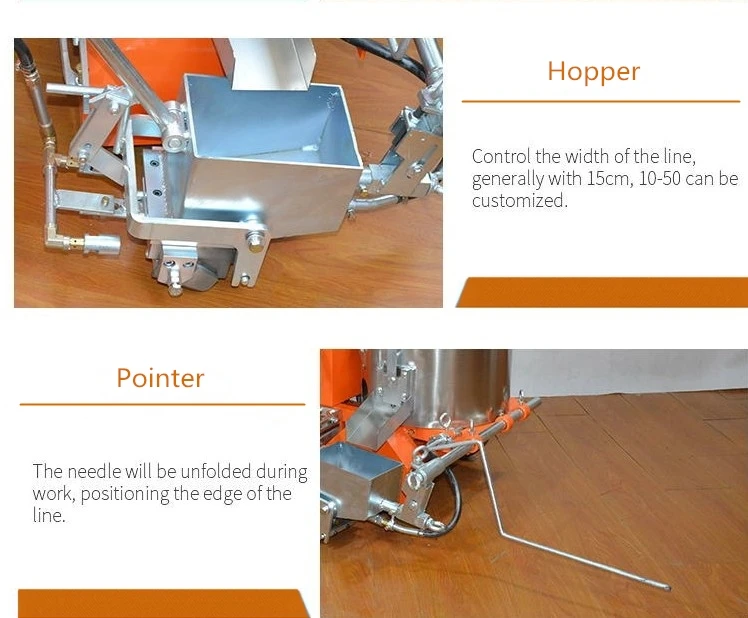

4. Crossed Doo: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm.Be exchangeable.
5. Landing knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1.2-4mm.
6. Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction.
7. Heating method: liquefied petroleum gas.
8. Subscript Line Width: engineering requirements in accordance with the replacement of different specifications crossed hopper

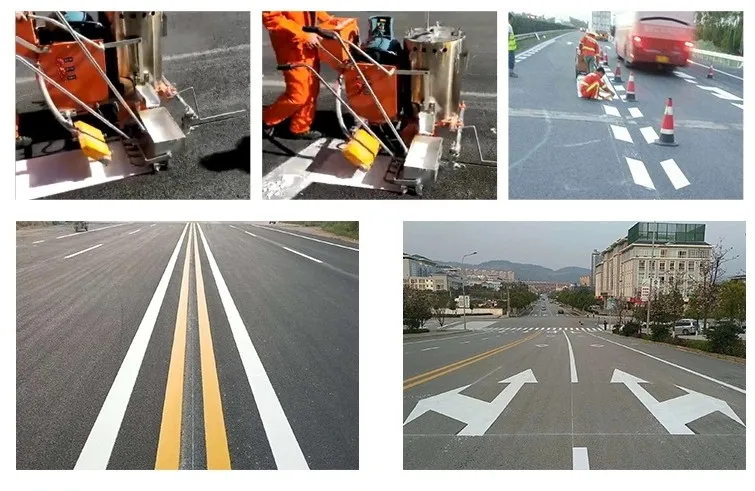

Application:It is widely used in the marking of highway, city road, district parking lot and so on
Details Images
Packing & Delivery
Company Profie
Tongling Longshun Environmental Protection Equipment Co.,Ltd. was founded in 2012, our company is a professional supplier of roadway safety and traffic facilities products, we are engaging in the Pavement maintenance equipment products' production,construction and sale . Our products focus on the pavement maintenance and "Let the road more safety "is our purpose,Our products are sold to worldwide ,our product got CE approval and CNAS certification, Our market includes EU,USA, South America,Middle East, East South Asia, Africa,Russia, Australia ETC.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
It's not free. Customers should charge the freight cost of express or delivery .
4. Q: What is your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Deposit percent can be negotiate relying on your amount .
