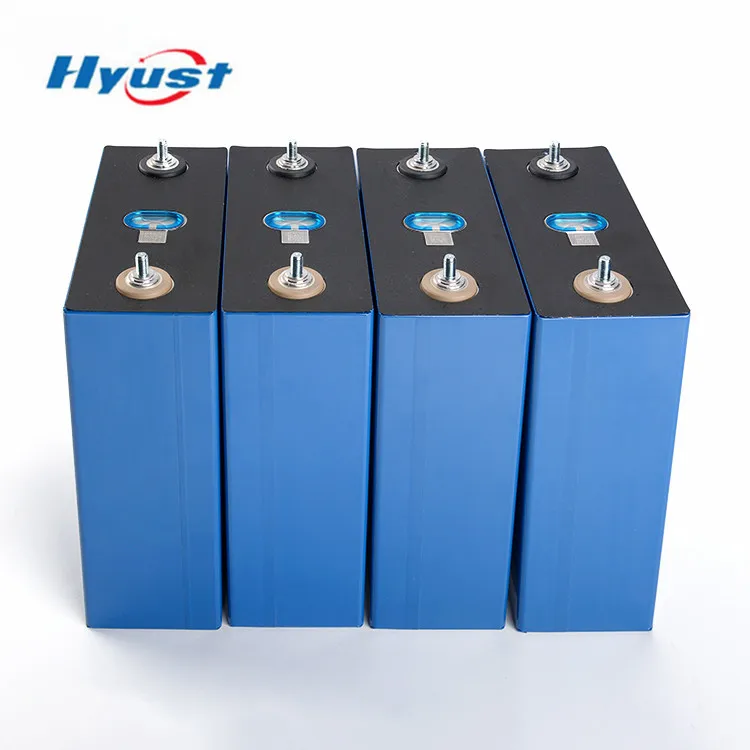

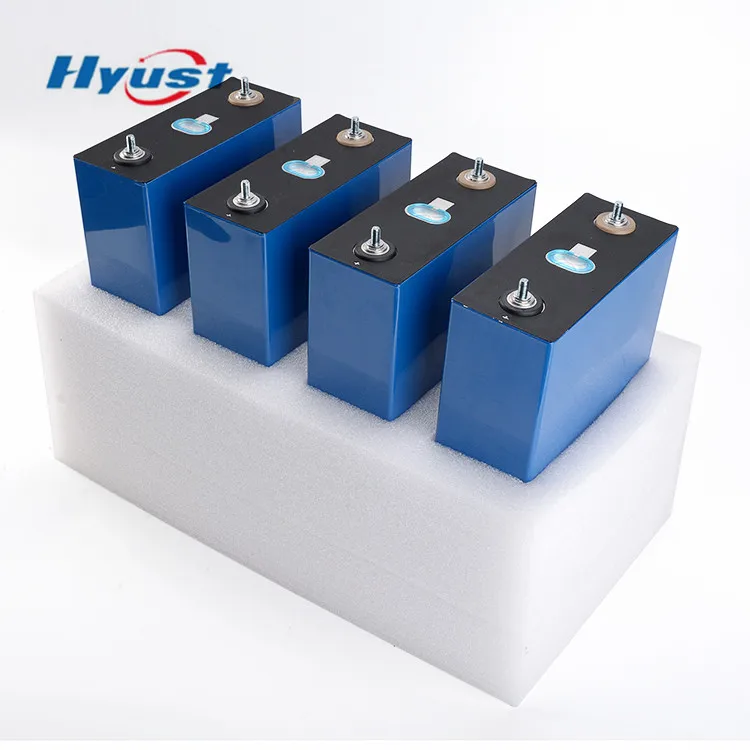

Free Shipping EU Warehouse 3.2V Lifepo4 CATL 302Ah 310Ah Battery Cell
Grade A and Brand New
Free Busbar and Bolts included
5-Year Wattanty

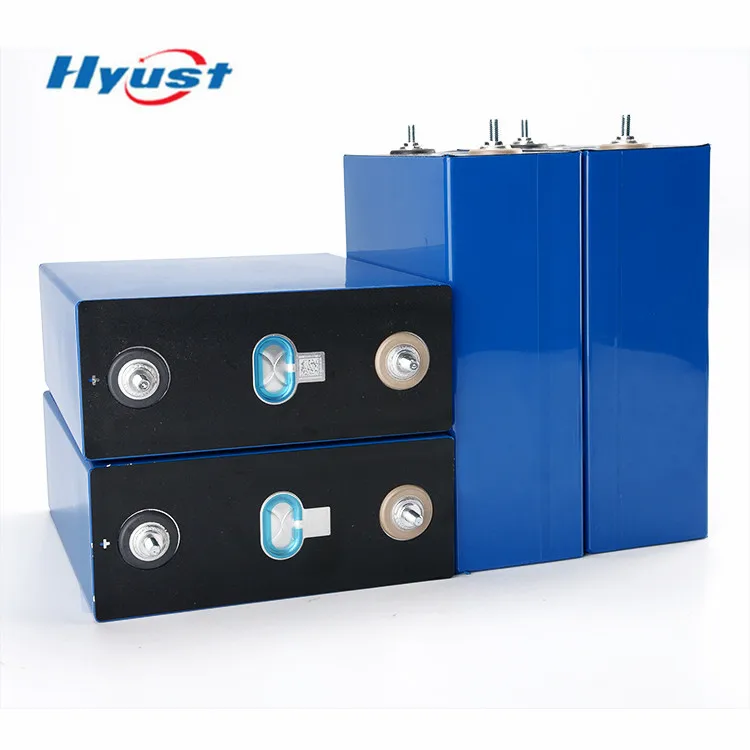

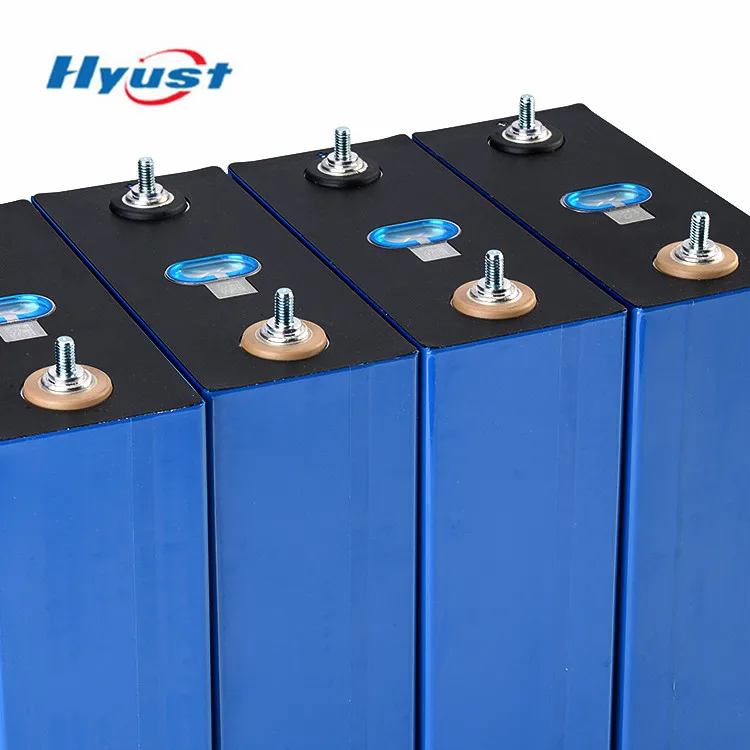

Model: LiFePO4 CATL 3.2V 302Ah Cell
|
|
Max Charger Voltage: 3.65V
|
AC Impedance Resistance: ≤0.22mΩ
|
Max Discharge Current: 2C for 60S,1C for continuous
|
Discharging Temperature: -30~60℃
|
Max Charge Voltage(V): 3.65V
|
End voltage(Cut off): 2.5V
|
Weight: 5.3±0.05kg
|

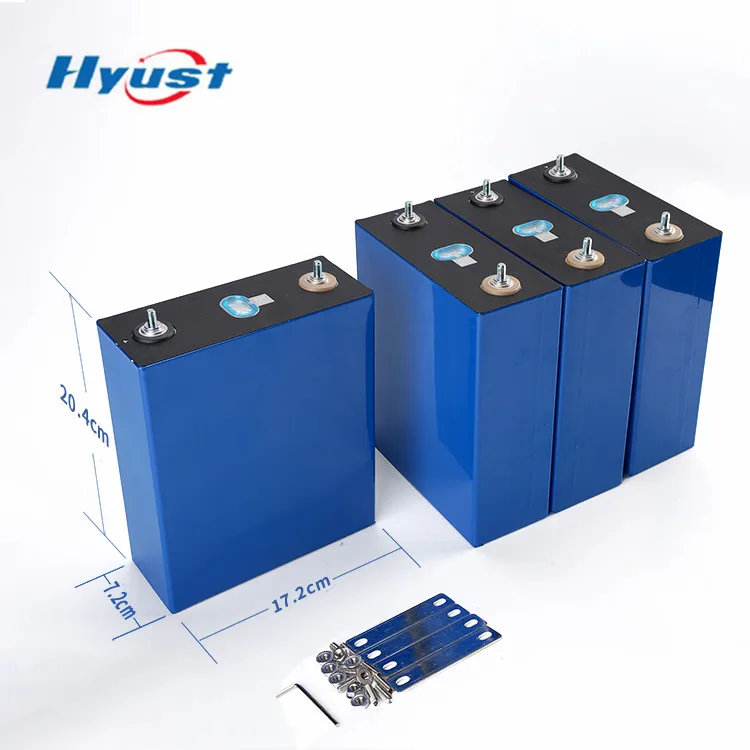

Dimension(L*W*H): 73*175*206mm
|
Cycle Life: ≥ 6500 times
|
Nominal Capacity(mAh): 302Ah
|

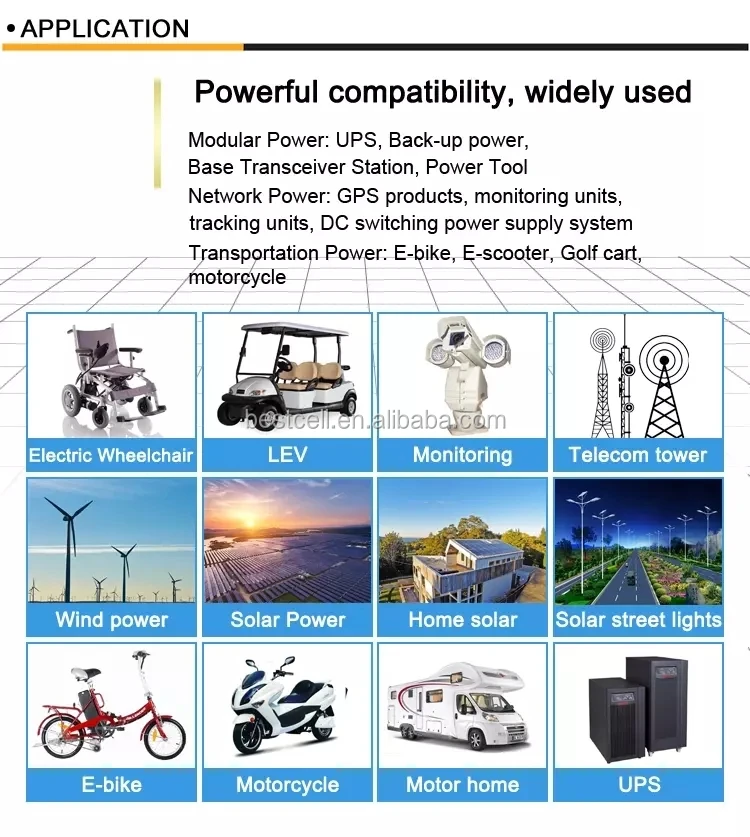

Suitable for
|
Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools...Solar and wind power system, RV, caravan
|
Note:
1.This item is CATL 3.2V 302Ah item,the QR code is intact,Grade A,Brand new.
2.The price come with Bus bars and Bolts,One Battery will
come with one set bus bar and bolt(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 sets busbars and bolts)If need more, please contact us online.Thank you!

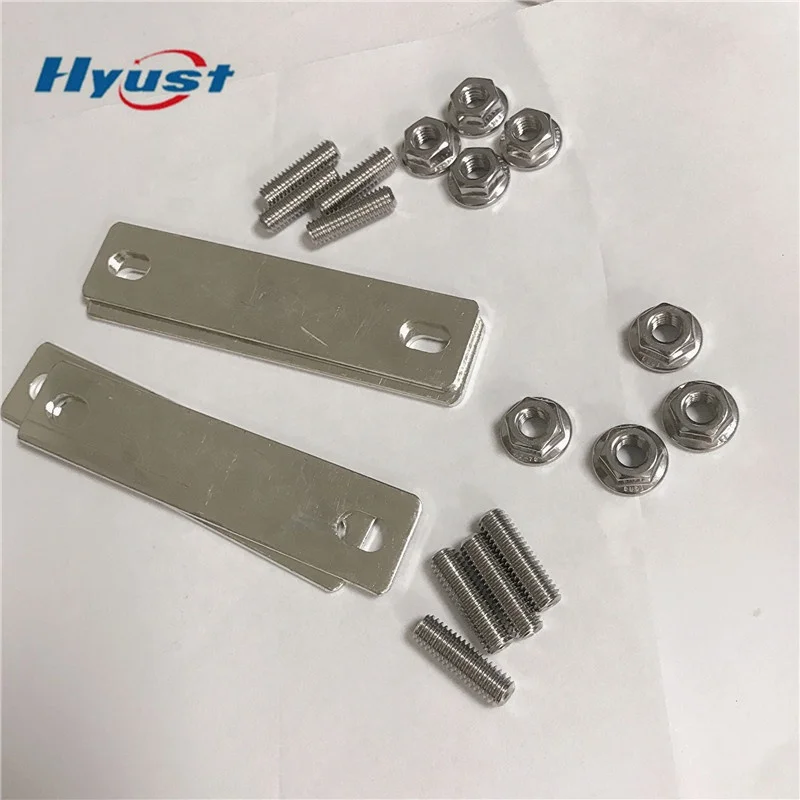

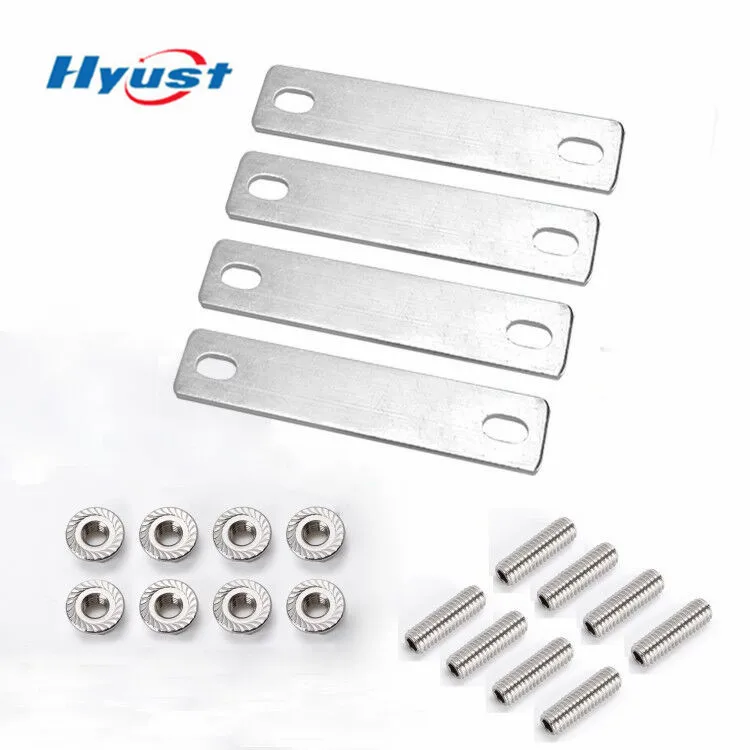

3.The busbars size:90*20*2mm & hole distance: 70mm(cooper plated with nickel)
Screw size:M6*10mm
4.We will test all the battery Voltage and Internal resistance
The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
We will mark basic specification on the battery before shipping

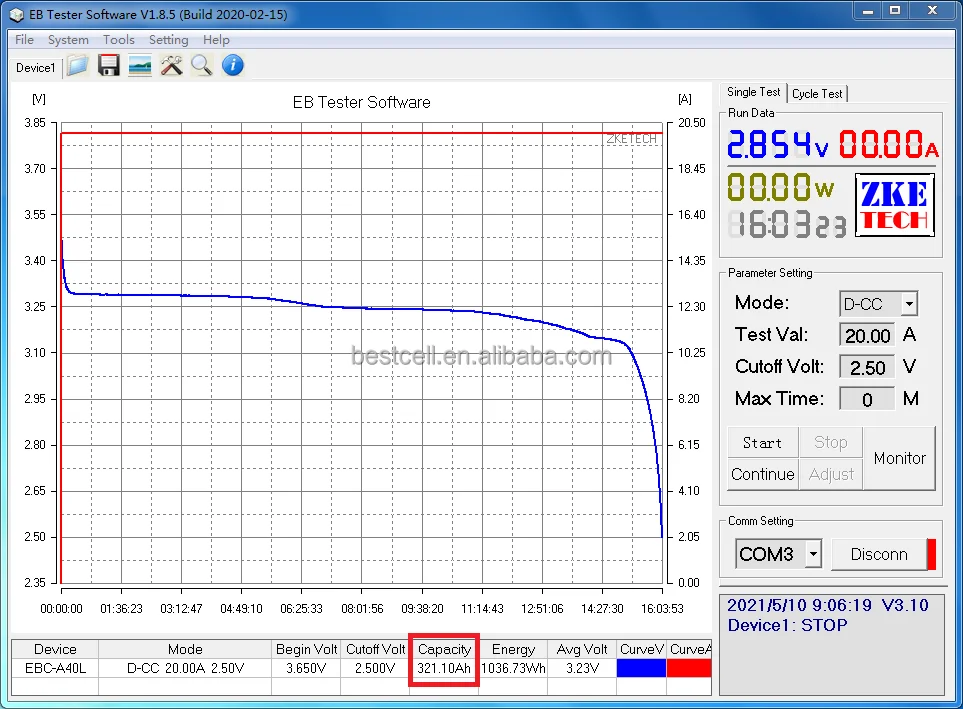

Tested capacity over 320Ah at 20A discharge
Reminder :
DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to
assembled
or unbalanced assembly is not accepted refund. please consider before taking orders, place order means you have agreed. thank you
for your cooperation!
DIY assembled battery note
Professionals will detected voltage/resistance/appearance and other issues before every shipment, we can only ensure that the
single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not
provide return nor refund. If you found problems you can contact us for return or refund. Battery can only be unused (the
electrode intact, no welding, no wear, the appearance good) to provide return. Any return behavior buyers need to be responsible
for shipping fee.
These situations not provide return nor refund
1: after the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead
to battery damage, charger failure, the assembly error or unbalanced assembly, etc. 2: For damage caused , such as battery
bulge/welded, battery pack without protection BMS caused by charging. Tip: These products are batteries only, without protection
board,you need to purchase a match one! You can check our shop and search BMS.
Courier and logistics
In addition, because the battery is prohibited product, many courier and logistics are unable to send, the arrival will indeed be
slower, so please wait patiently after place an order. Can Not give us bad feedback due to the courier company or because of the
courier service slow or other factors. open dispute will be unacceptable. Sorry for any inconvenience.
Before Welding:
After Welding:
High Capacity Lifepo4 302Ah 300Ah CATL Lifepo4 3.2V Battery Cell for Power System









FAQ
1. How about the quality&warranty time?
All brand product are 100% import. All products provided 12 months warranty. Lifepo4 cells with 5 year warranty.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity, the more, the cheaper.
3. How about the lead time?
Usually, we have stable stock in warehouse. The goods can be sent within 2-7 days.
4. How long of the shipping time?
It always need 3-10 days by express such as DHL and UPS, 15-50 days by China Post , 20-30 days by sea.
5. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service is warmly provided.
