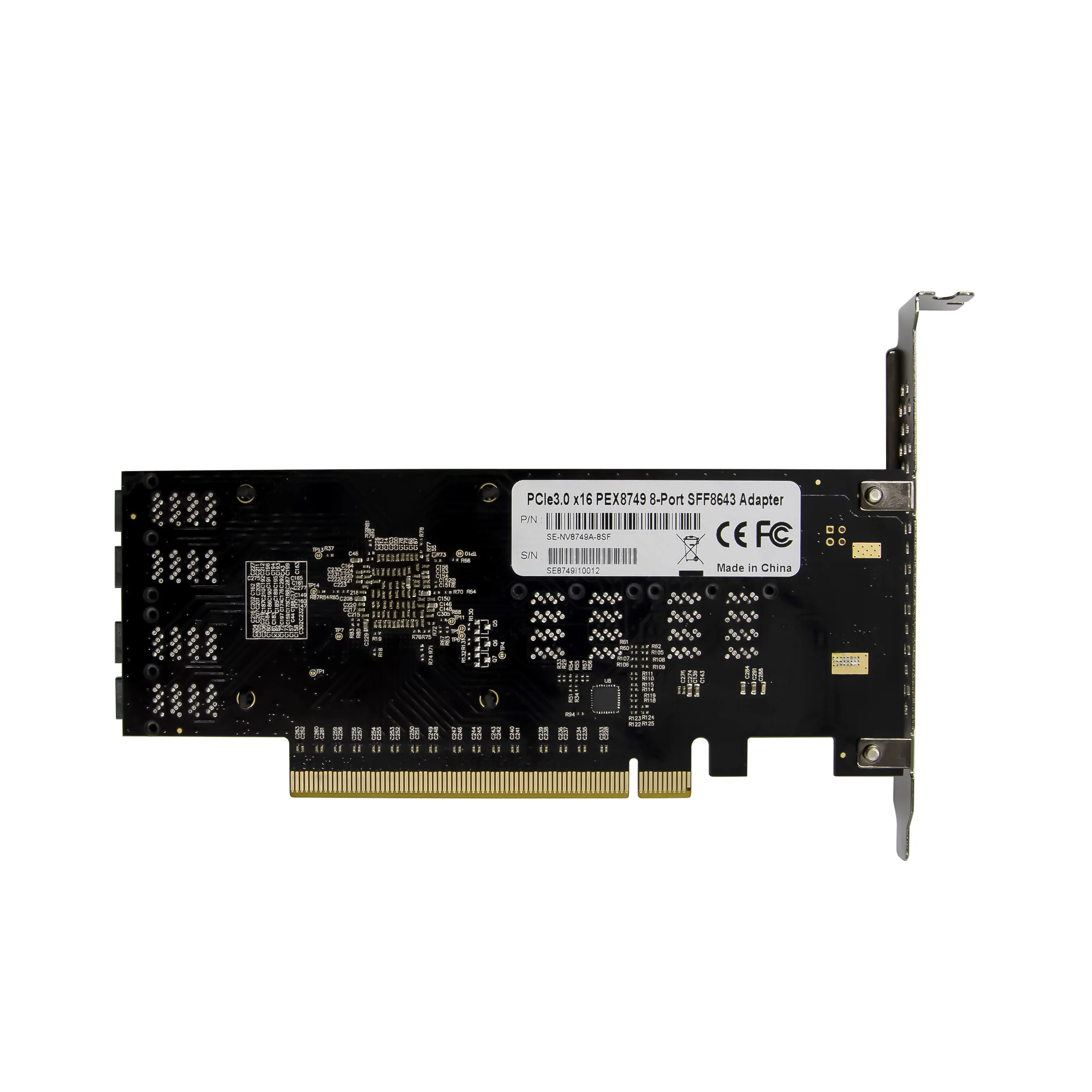

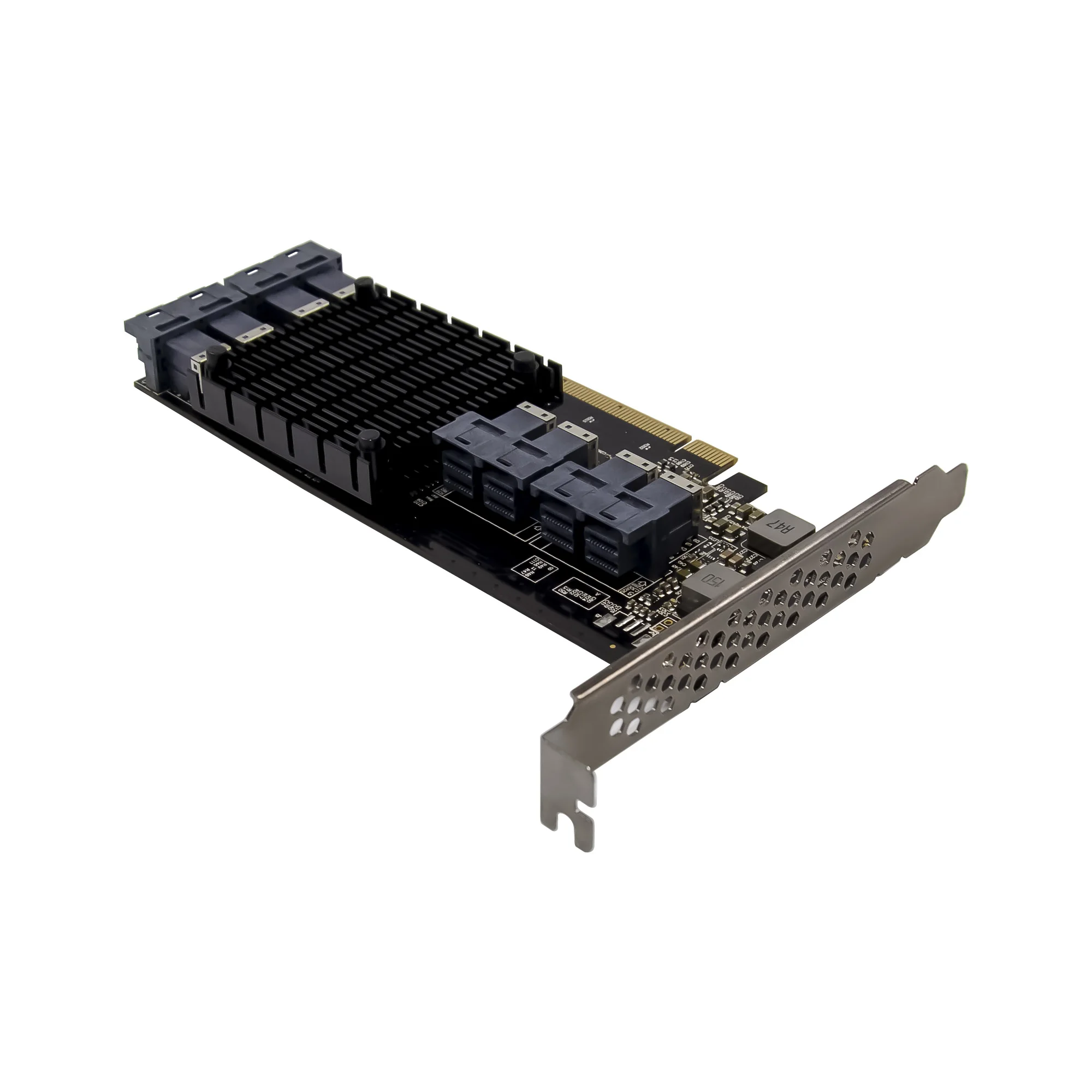

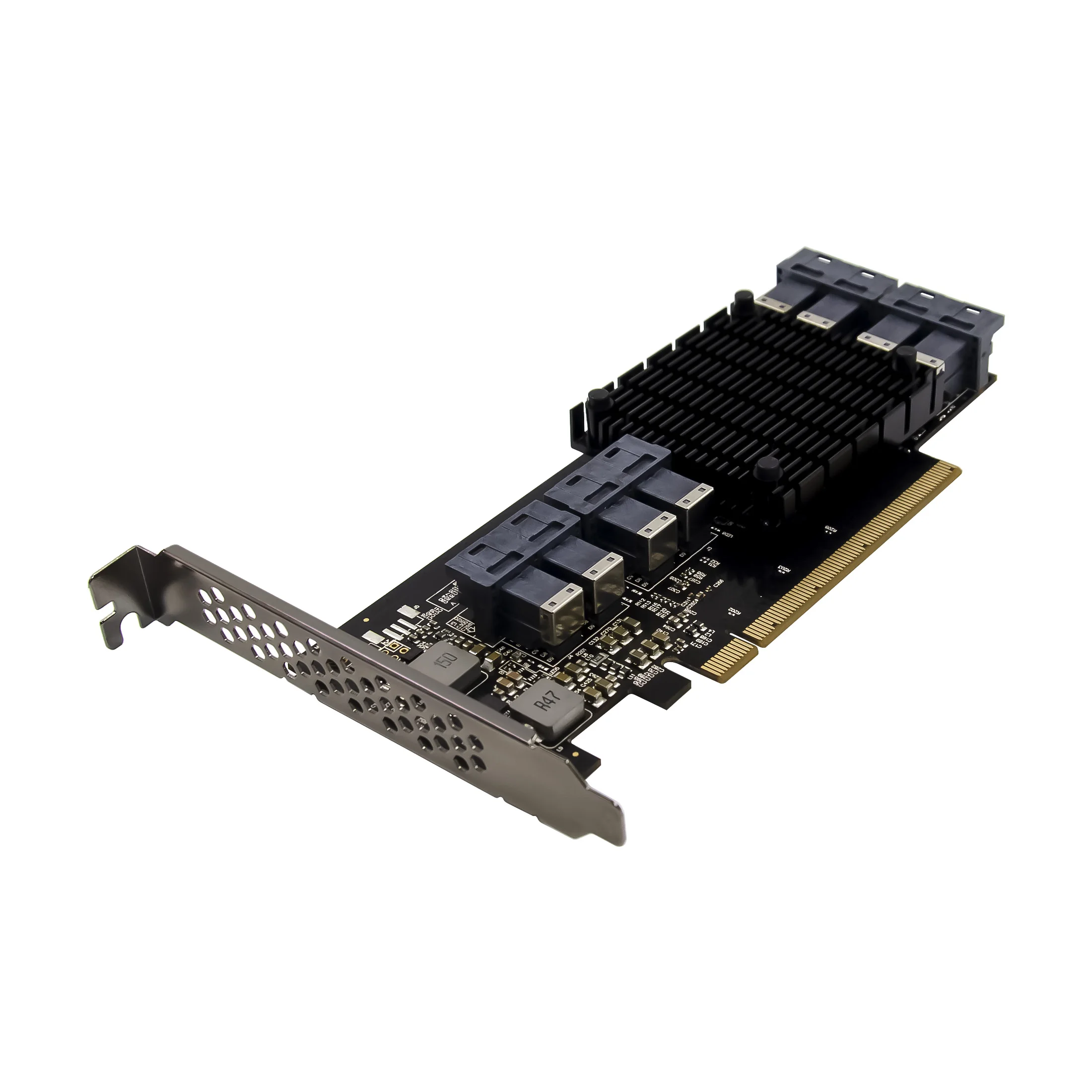

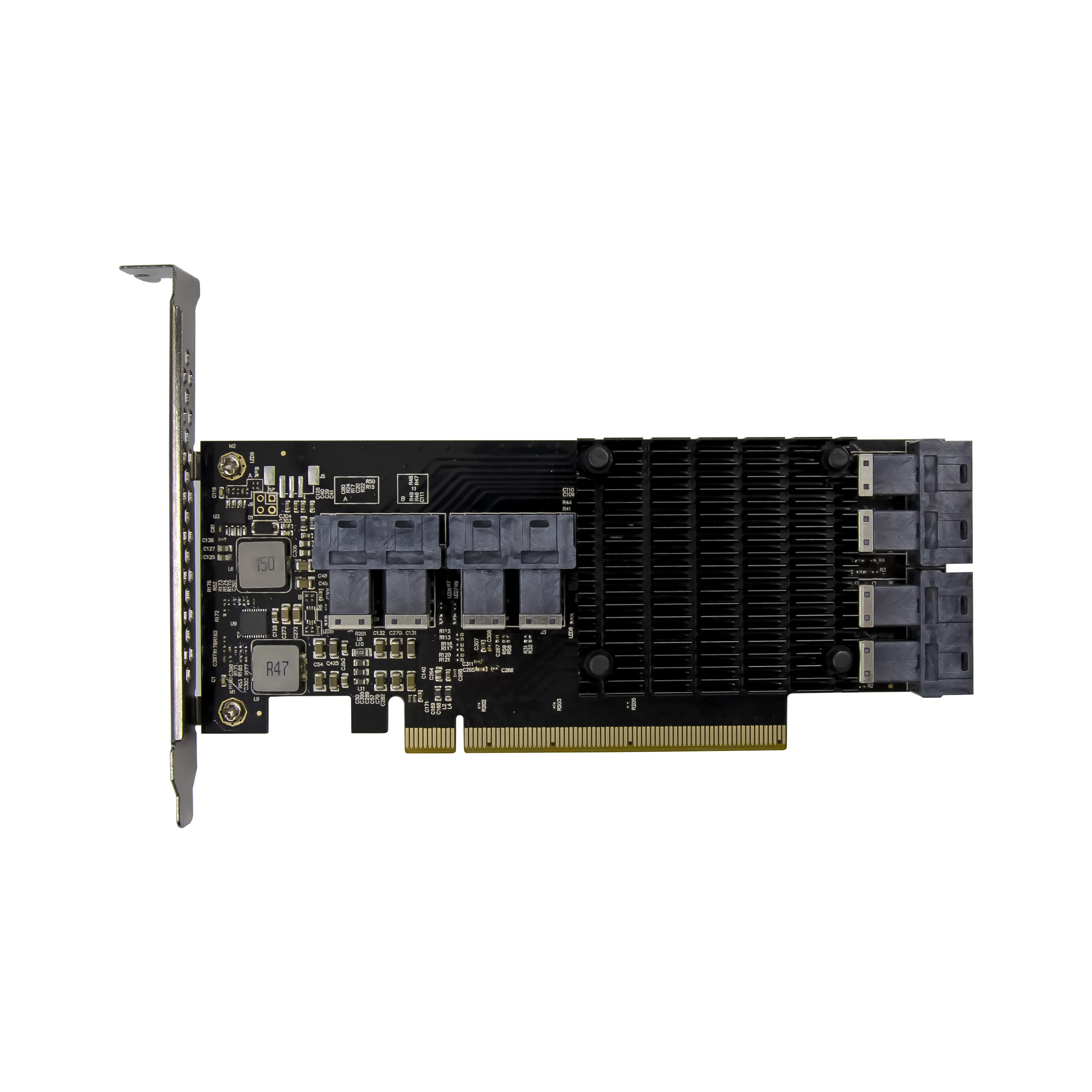

ST538 PCIe X16 8 x SFF8643 PEX8749 U.2 карта узловой шины

Specification

* Compliant with PCI Express SpecificationRevision0
* Backwards compatible with PCIe 2.0 ,PCIe 1.0 and PCIe1.0a
* PCI Power Management Specification Revision1.2
* Supporting transferrate of 2.5Gb(250MB/s),5Gb(500MB/s),and 8Gb(1GB/s)per lane
* PCI Express interface: x16 lane with bus bandwidth up to 128Gb/s
* Supports NVM Express(NVMe)
* Support for 8-Port x4 lane SFF8643 NVMe SSD device or PCI-E expansiondevice
* Each port with Maximum transmit speeds up to 32Gb/s
* Automatic detection of lane configuration on boot-up
* All ports support hot-plug, surprise remove
* ECRC and Poison bit support
* operating temperature range:0~55°C
* Support operating system: Linux kernel3.17 or above, MAC OSX, Vmware, FreeBSD,Win7,Win Server2008,Win8,Win8.1,Win
Server2012,Win10,Win Server2016 32or 64bit

System Requirements
* Linux kernel3.17 or above, MAC OSX, Vmware, FreeBSD,Win7,Win Server2008,Win8,Win8.1,Win Server2012,Win10,Win Server2016 32or
64bit
* One available PCI Express x8/x16 slot
