Neofibo GYXY Outdoor Duct Aerial Uni-tube Light-armored Cable outdoor fiber optic multi mode fibre cable
Products Description
Description:

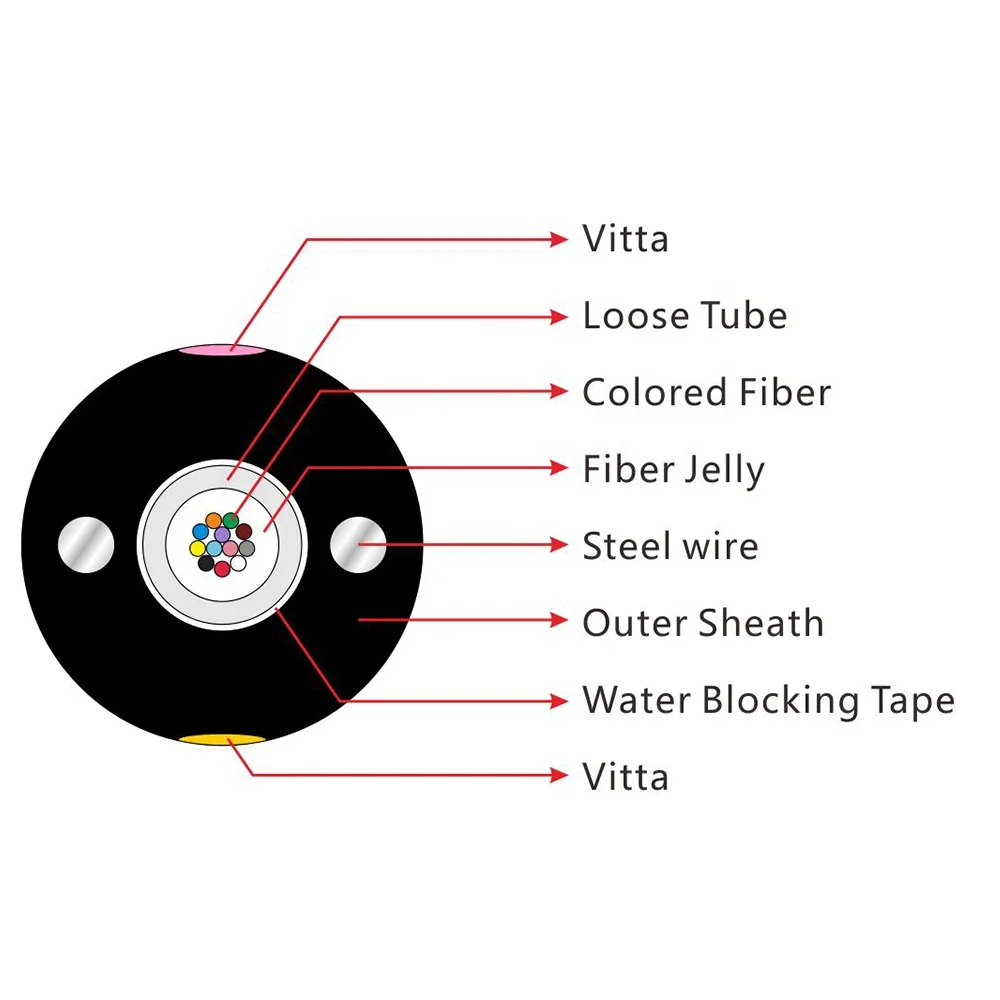

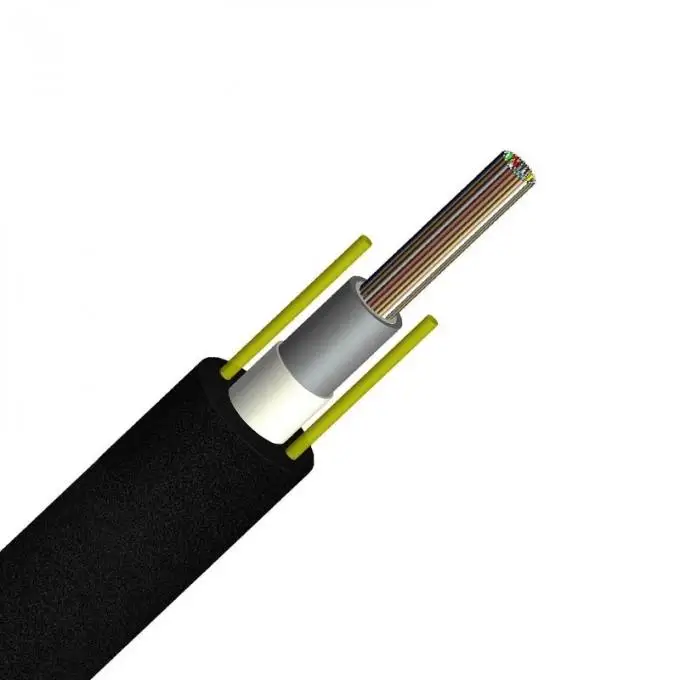

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
Key Features:
* Good mechanical and temperature performance.
* High strength loose tube that is hydrolysis resistant.
* Special tube filling compound ensure a critical protection of fiber.
* Two parallel steel wires ensure tensile strength.
* PE sheath protects cable from ultraviolet radiation.
* Small diameter, light weight and friendly installation.
* Long delivery length.
* High strength loose tube that is hydrolysis resistant.
* Special tube filling compound ensure a critical protection of fiber.
* Two parallel steel wires ensure tensile strength.
* PE sheath protects cable from ultraviolet radiation.
* Small diameter, light weight and friendly installation.
* Long delivery length.
Can be required:Fiber sort/Fiber brand/Sheath color/The fiber and tube color/Cable packing length/Marking word/Other
Order information:
Cable Type | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
GYXY | 2~12 | 9.5 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYXY | 2~12 | 10.2 | 100 | 1000/3000 | 1000/3000 | 10D/20D |
Other structure：

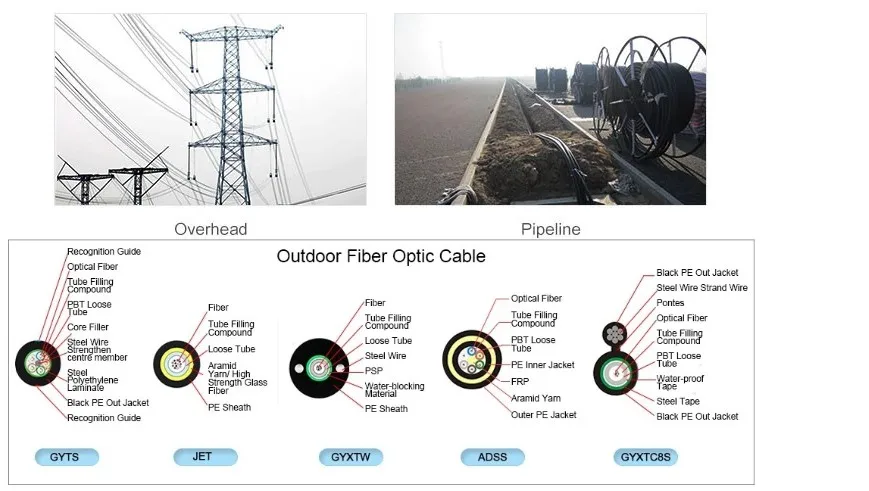

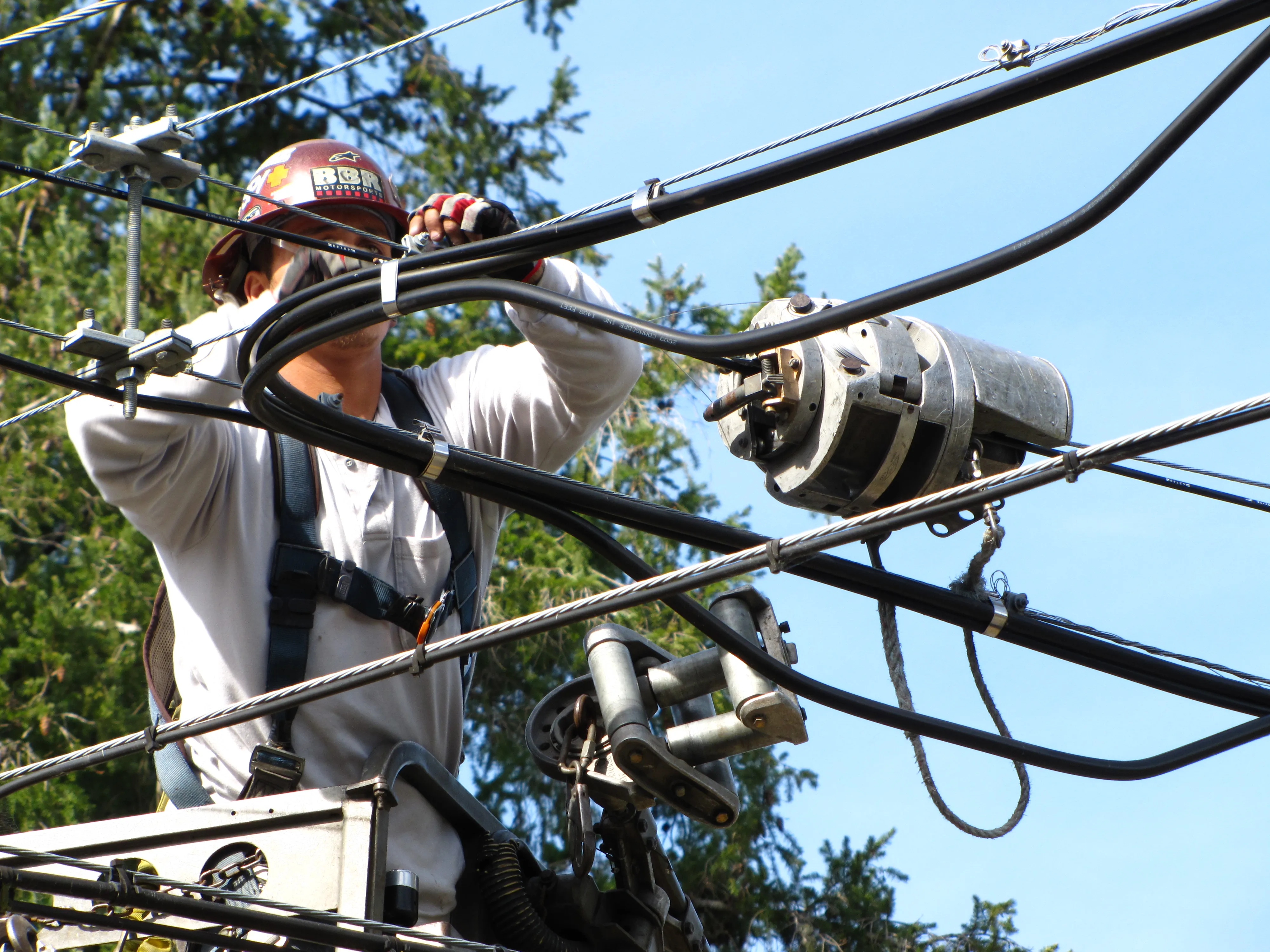

Application
This specification covers the general requirements of Central Loose Tube Outdoor Cable for aerial or duct.
Product Paramenters
1.Fiber color:
Number of fiber per tube 8cores | 1 | 2 | 3 | 4 | 5 | 6 | ||||||
Blue | Orange | Green | Brown | Grey | White | |||||||
7 | 8 | 9 | 10 | 11 | 12 | |||||||
Red | Black | Yellow | Violet | Pink | Aqua | |||||||
Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. | ||||||||||||
2.Environmental Characteristics
• Transport/storage temperature: -40℃ to +70℃
• Compound flow: No filling compound or coating compound drop out of optical cable at 70℃
• Water penetration: No water comes out within 24 hours after 1m water head is applied to the entire cross section of 3m long optical cable
• Compound flow: No filling compound or coating compound drop out of optical cable at 70℃
• Water penetration: No water comes out within 24 hours after 1m water head is applied to the entire cross section of 3m long optical cable
3.Delivery Length
Standard length: 2,000m; other lengths are also available
Certifications

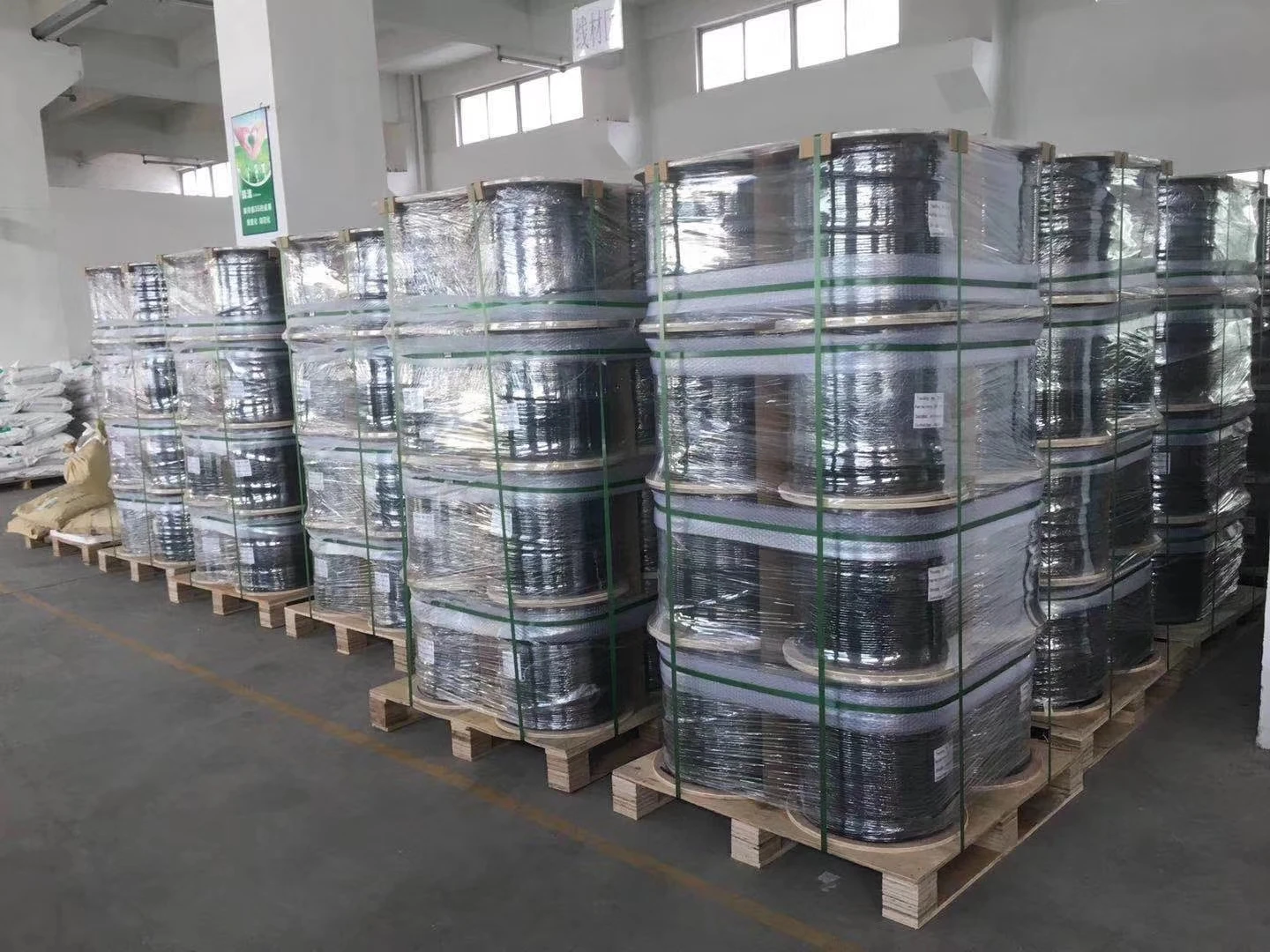

Product packaging

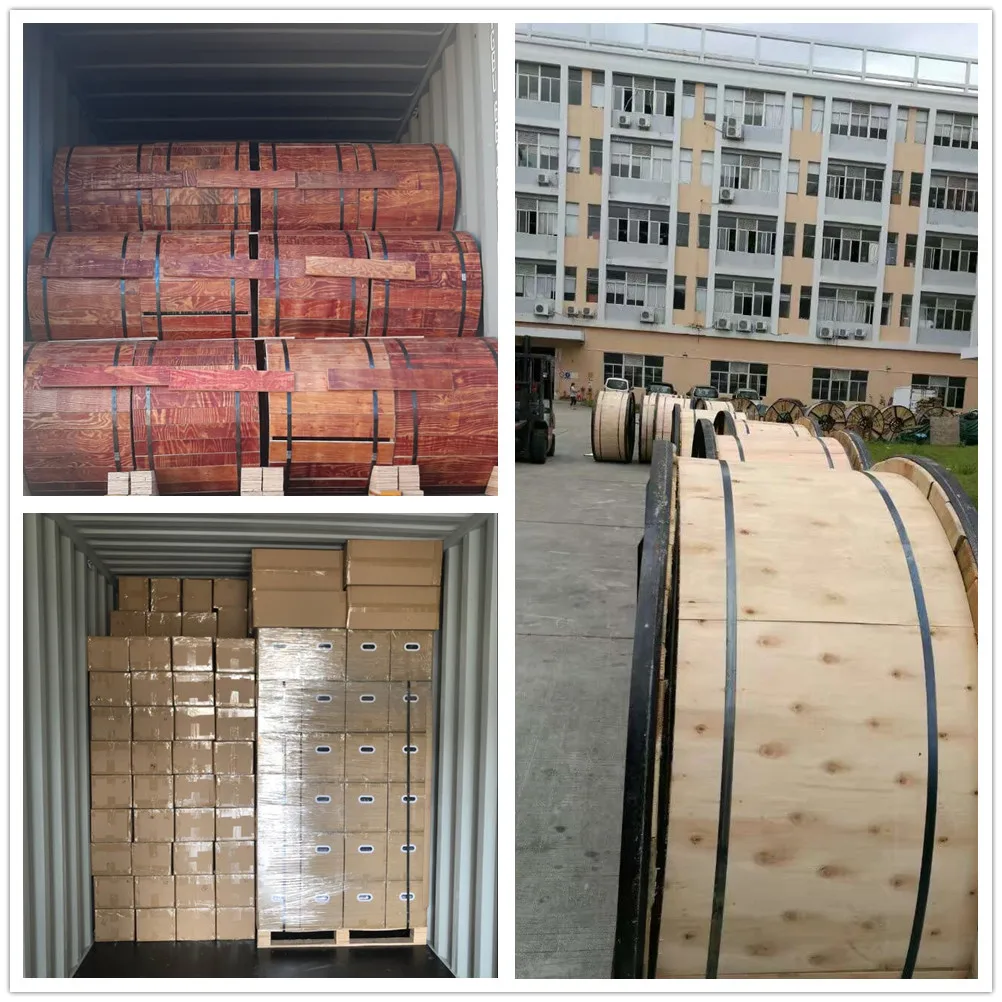

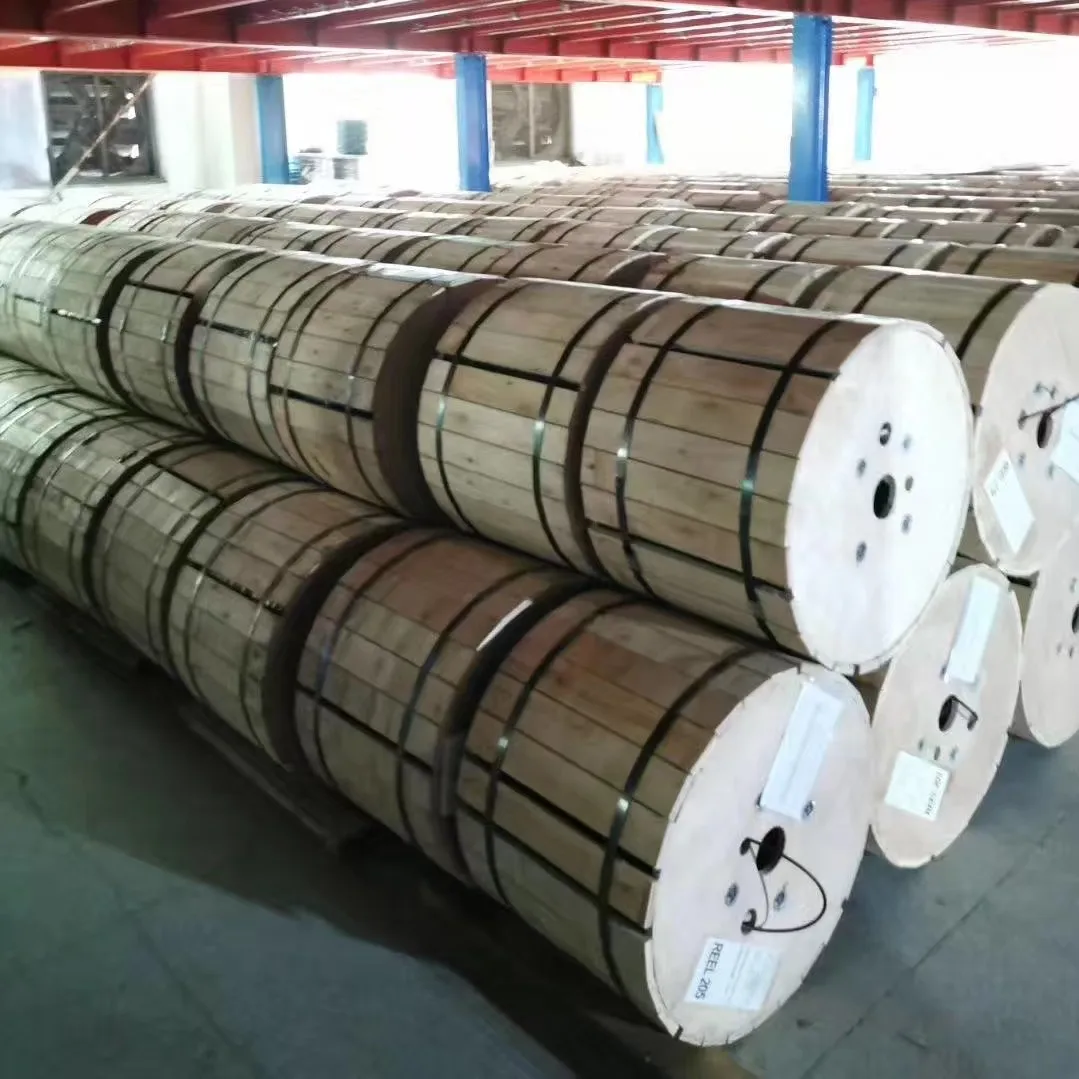

Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum.Drum size can be designed,details will calculation for suitable for containers

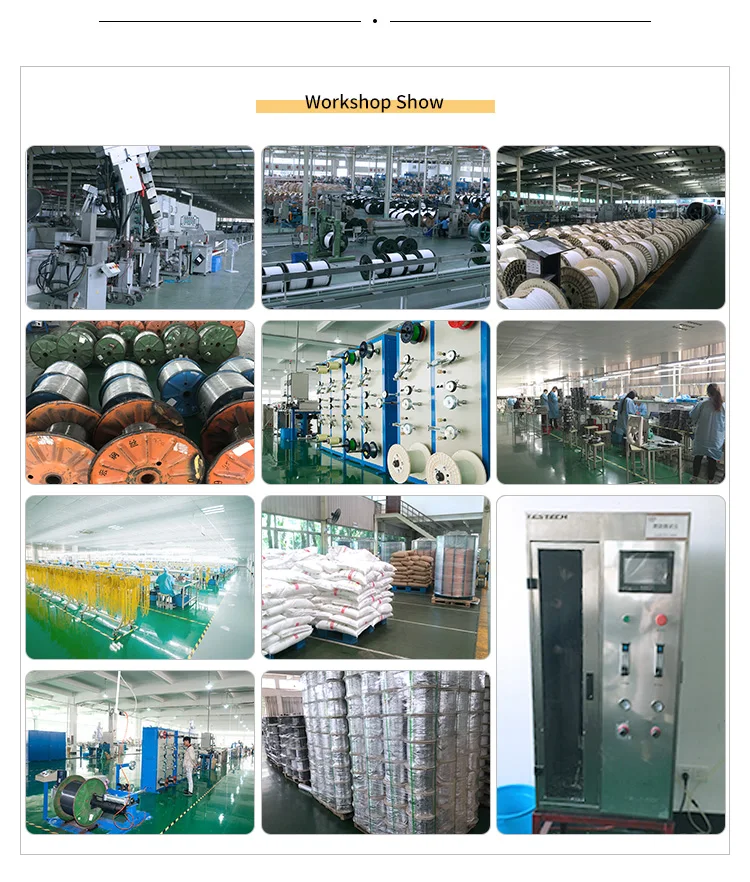

Production Process

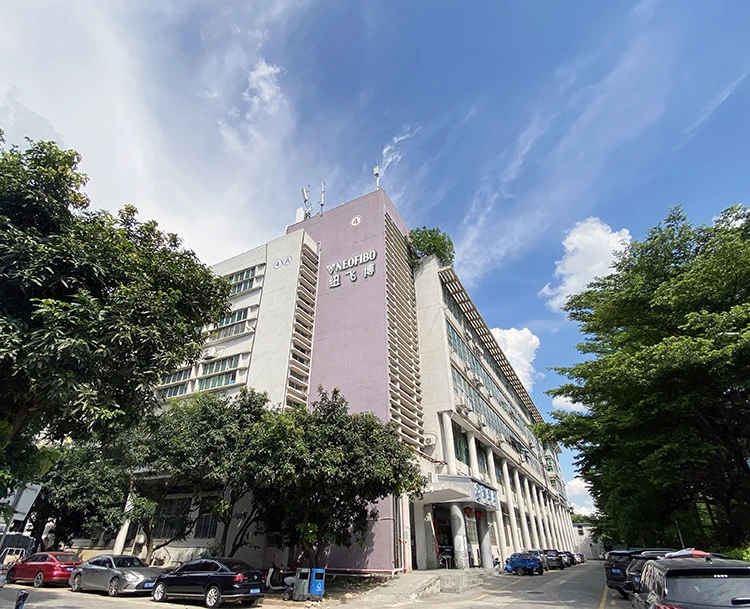

Company Profile
Shenzhen Neofibo Technology Limited
Neofibo is founded in 2008, locates Shenzhen China.Neofibo is a professional manufacturer of fiber optic cable and patch cord over 13 years.We can OEM or design any structure of fiber optic cable for you.We have independent testing Lab, All kinds of mechanical performance testing items can be done in our Lab . Condident in our quality .We believe that customer’s satisfaction has always been our guiding principle and our aim is to provide the best quality of products with fair prices. Trust us, we can be your reliable partner and supplier in telecommunication field.
