GB 12618 высокопрочные заклепки с определенным удержанием головки из красной меди
- Категории: Rivets >>>
- Поставщик: Shenzhen,Heng,Yi,Jia,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
GB 12618 High Strength A Certain Nail Head Retention Red Copper Brass Blind Pop Rivets

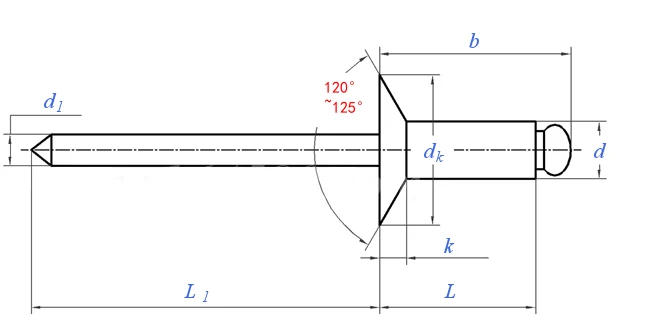

Product Paramenters
D | Φ2.4 | Φ3.2 | Φ4 | Φ4.8 | Φ6.4 | ||
d | |||||||
d | Max | 2.48 | 3.28 | 4.08 | 4.88 | 6.48 | |
Min | 2.25 | 3.05 | 3.85 | 4.65 | 6.25 | ||
dk | Max | 5 | 6.7 | 8.4 | 10.1 | 13.4 | |
Min | 4.2 | 5.8 | 6.9 | 8.3 | 11.6 | ||
k | Max | 1 | 1.3 | 1.7 | 2 | 2.7 | |
d1 | Max | 1.6 | 2.1 | 2.55 | 3.05 | 4 | |
L1 | Min | 25 | 25 | 25 | 27 | 27 | |
b | Max | L(max)+3 | L(max)+3 | L(max)+3.5 | L(max)+4 | L(max)+5.5 | |
Mounting hole size | Min | 2.5 | 3.3 | 4.1 | 4.9 | 6.5 | |
Max | 2.6 | 3.4 | 4.2 | 5 | 6.6 | ||
Minimum Shear Load (N) | 250 | 500 | 850 | 1160 | 2050 | ||
Tensile load/N(Min) | 350 | 670 | 1020 | 1420 | 2490 | ||
Mandrel breaking load/N(Max) | 1100 | 1800 | 2700 | 3700 | 6300 | ||
Nail head holding test load/N | 10 | 15 | 20 | 25 | 50 | ||
Customer Photos
Recommend Products
Company Profile
Factory
Office
Engineer's Office
Packing & Delivery
Carton/PE film packaging for Aluminum Closed End Blind Rivets
Packaging Aluminum Blind Rivets
Sealed Carton
Ready for shipment Blind Rivets
If you want to get more information, please contact us. Click here!
