Product Description

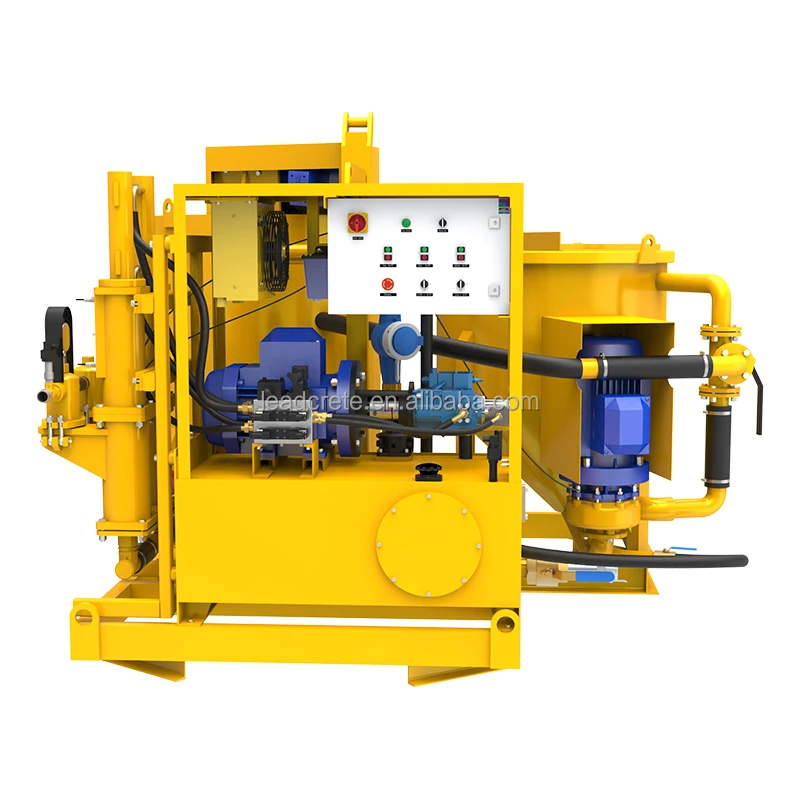

LGP550/800/150/70 DPL-E High quality manufacturers produce anchor grout mixer pump consists of a mixer, agitator, and grout pump.
This setup is suitable for a wide range of applications such as anchoring, sleeve pipe and back fill grouting. For higher outputs and increased quality control, the plants are also available in semi-automated and fully automated versions.




Technical parameters


Name
LGP550/800/150/70 DPL-E










Grout Pump
Output Capacity
9m3/h
Max. Aggregate size
8mm
Pressure and output
70bar,50L/min 20bar,150L/min
Motor power
11Kw
Voltage
380V, 50HZ, 3phase
Hydraulic tank
140L
Pump module
Double
Cooling water flow rate
5~6L/min
Cooling water connection
BSP1/2”
Pressure connection
BSP2”
Suction connection
BSP2 1/2”


Mixer
Capacity
600L
Circulation Capacity
1400L/min
Motor Power
11Kw
W/C
>0.5
Water Connection
BSP1”

          Agitator
Capacity
800L
Power
2.2Kw

                      Dimension
Weight
1650Kg
Dimension
2100x2100x2250mm


Product Feature


1Extremely compact mixing and injection system with central lifting point for easy transport and minimum installation time.
2.High productivity due to ergonomically positioned operating elements.
3.High reliability and low-maintenance operation with good accessibility to the wear parts.
4.Automatically to lubricate the seals of grout pump plungers and mixer centrifugal pump.


Product Details






Application

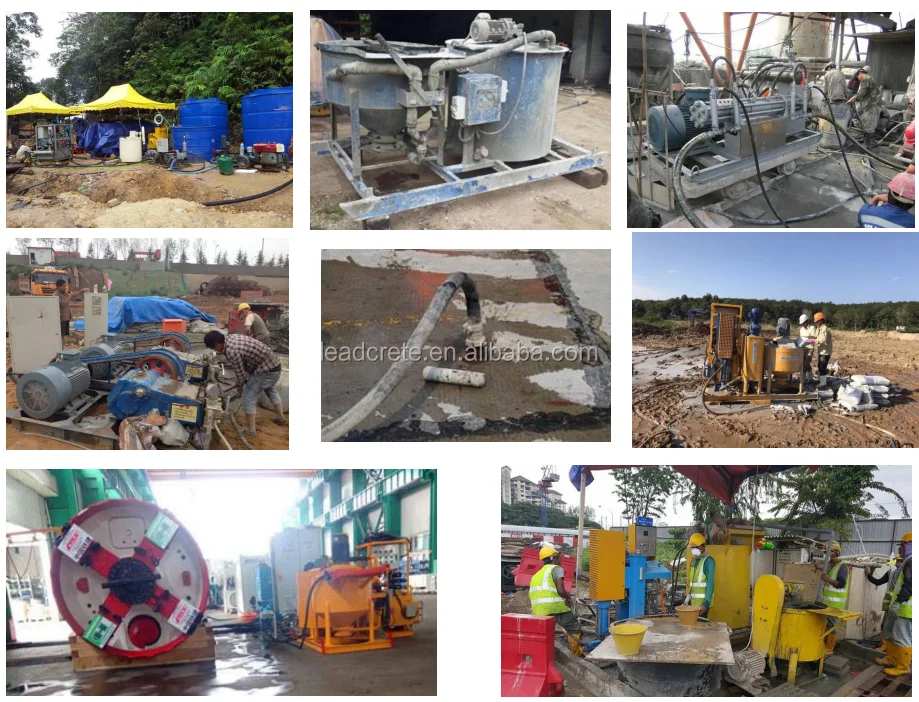

Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting.
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement,
1.Grouting of anchors, soil nails, tension cable as well as for sleeve pipe, rock and contact injections.
2.Preparation and pumping of bentonite suspensions or pipe jacking and microtunneling.
