8000/10000 Вт Евророзетка автоматический регулятор напряжения стабилизатор для домашнего использования 220 В
- Категории: Voltage Regulators\/Stabilizers >>>
- Поставщик: Zhongshan,JNVO,Electrical,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
8000/10000W Europe Socket Auto Voltage Regulator, Home Use Voltage Stabilizer 220V AC
Hot Products
Hot selling Home Used Single Phase AVR automatic voltage stabilizer 230v

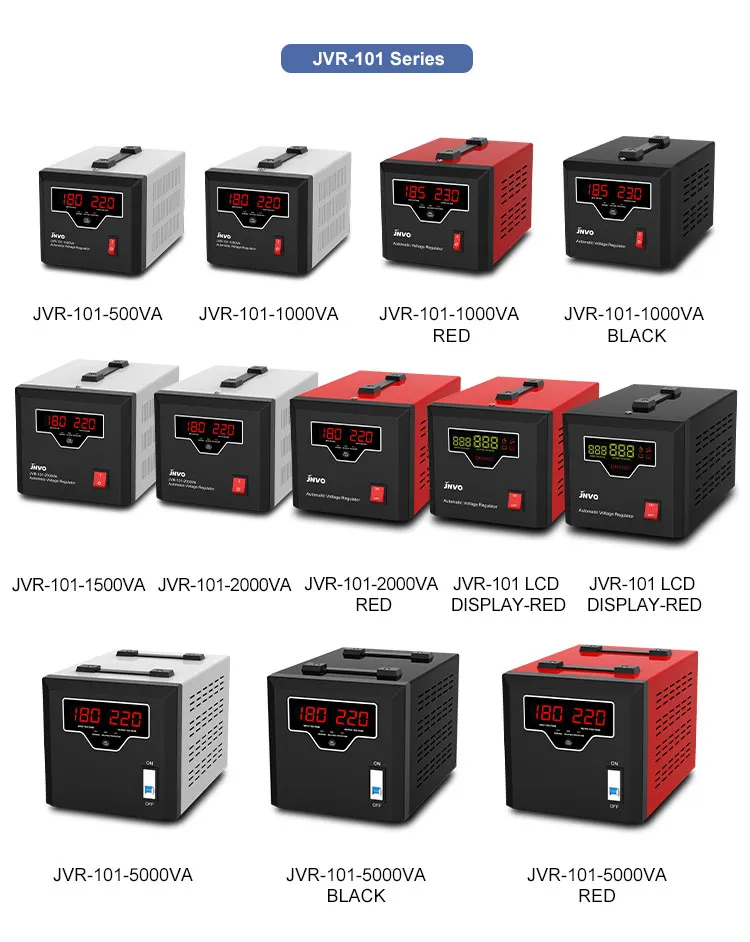

| Model No | JVR-101-0.5KVA | JVR-101-1KVA | JVR-101-1.5KVA | JVR-101-2KVA | JVR-101-3KVA | JVR-101-5KVA |
| Capacity | 0.5KVA/300W | 1KVA/600W | 1.5KVA/900W | 2KVA/1200W | 3KVA/1800W | 5KVA/3000W |
| Machine Size | L222*W162*H134mm | L254*W170*H152mm | L240*W335*H210mm | |||
| Inner Box Size | L275 *W185*H185mm | L305*W205*H203mm | L383*W278*h268MM | |||
| Carton Size | L585*W290*H395mm | L435*W320*H425mm | L580*W400*H295mm | |||
| Qty/Ctn | 6pcs | 4pcs | 2pcs | |||
| Technology | ||||||
| Technology | Zero cross transfer technology | |||||
| Transformer | Toroidal transformer | |||||
| Certification | CE,SON,CB,SASO | |||||
| Efficiency | >95% | |||||
| Material | ||||||
| Front Panel | Plastic | |||||
| Cabinet | Metal | |||||
| Input Voltage&Output Voltage | ||||||
| Option A | 230V: Input 140-275V, Output 230V-13%/+10% (198-253V); or | |||||
| 220V: Input 140-260V, Output 220V=8% (202-238V) | ||||||
| Option B | 230V: Input 100-280V, Output 230V-13%/+10% (198-253V); or | |||||
| 220V: Input 100-280V. Output 220V±10% (198-242V) | ||||||
| Option C | 230V: Input 80-280V, Output 230V±10% (207-253V); or | |||||
| 220V: Input 80-280v, Output 220V±10% (198-242V) | ||||||
| Option D | 220V: Input 50-250V, Output 220V±13% (193-248V), only available for 1000VA | |||||
| Option E | 120V: Input 80-140v, Output (100-132V) | |||||
| Input Frequency | 45-65Hz | |||||
| Display&Indication | ||||||
| Input Voltage | Digital | |||||
| Output Voltage | Digital | |||||
| Green LED | Power on | |||||
| Yellow LED | Power onDelaying (output is being suppressed) | |||||
| Red LED | Protecting (output is cut off) | |||||
| Protection | ||||||
| Over Voltage | Outout cutoff + red LED + "H" shown in digital display | |||||
| Under Voltage | Output cutoff + red LED + "L" shown in digital display | |||||
| Coil Over Temperature | Output cutoff +red LED +"C" shown in digital display | |||||
| Short Circuit | Circuit breaker trip off | |||||
| Overload(optional) | Circuit breaker trip offOutput cutoff+ red LED + "F" shown in digital display | |||||
| Surge(optional) | 1 x MOV (L-N) or 3 x MOV (L-N, L-E, N-E) | |||||
| Delay Time | 6s/180s selectable | |||||
| Optional Peripheral | ||||||
| USB Charging Port | 5VDC, 1000mA | |||||
| Smart Cooling Fan | Standard for 8000VA-10000VA, optional for 2000VA-5000VA | |||||
| 110V Output | Only available for 500VA-5000VA | |||||
| Manual Bypass Switch | Only available for 3000VA-10000VA | |||||
| Color | White, black, grey, red, silver, blue | |||||
| Ambient | ||||||
| Operating | 0°C-40°C | |||||
| Temperature | -15°°C-45C | |||||
| Operating Humidity | 10%-90%, Non-condensing | |||||
