Product Description
L2+ Fully Managed POE Switch with 24 x Gigabit RJ45+2 x 1Gb SFP+2 combo ports
Sepcification:

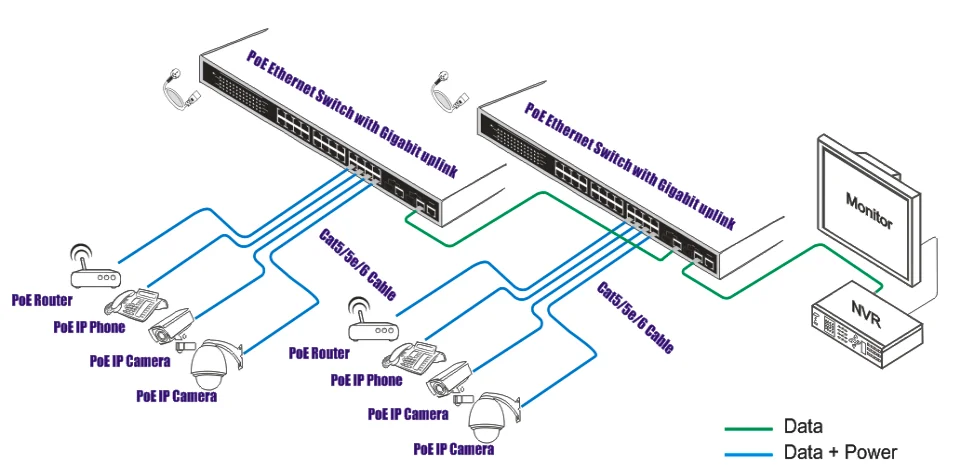

The S2930R-24P is a 24 ports 10/100/1000M RJ45 and 2 \tGigabit combo ports (RJ45/SFP) + 2 Gigabit SFP ports Full Managed POE which is designed by Shenzhen Hi-Net Technology Company. It is used for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections. It provides 24 10/100/1000Mbps Auto-Negotiation RJ45 ports, 2 Gigabit combo ports (RJ45/SFP) + 2 Gigabit SFP and 24 POE ports. The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.
The S2930R-24P is a 1U high 19'' case-shaped device. It is with the internal industrial power supplies, have two optional power supplies-270W, 450W. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.
The S2930R-24P is a 1U high 19'' case-shaped device. It is with the internal industrial power supplies, have two optional power supplies-270W, 450W. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.
Features:
Automatic MDI/MDI-X crossover dor plug-and-play
24 port supports both 10/100/1000 Mbps speed auto negotiation
2 Gigabit combo ports (RJ45/SFP) + 2 Gigabit SFP
Full duplex IEEE802.3x and half duplex backpressure fiow control
24 PoE ports with Power Sourcing Equipment (PSE) operation
Auto-detection of PD (powered devices) and automatic power management
Ethernet Ports 4KV Surge protection (optional)
Build-in AC-DC power supply
Supports operating temperatures from 0°C ~ 40°C
Rack mounting or Desktop
24 port supports both 10/100/1000 Mbps speed auto negotiation
2 Gigabit combo ports (RJ45/SFP) + 2 Gigabit SFP
Full duplex IEEE802.3x and half duplex backpressure fiow control
24 PoE ports with Power Sourcing Equipment (PSE) operation
Auto-detection of PD (powered devices) and automatic power management
Ethernet Ports 4KV Surge protection (optional)
Build-in AC-DC power supply
Supports operating temperatures from 0°C ~ 40°C
Rack mounting or Desktop
Hardware Technology
Standards | IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at |
Processing Type | Store & forward; wire speed switching |
MAC Addresses | 8 K |
Memory Bandwidth | 56 Gbps |
Frame Buffer | 4096 kbit |
Flow Control | IEEE 802.3x flow control, back pressure flow control |
Interface
RJ-45 ports | 24x10/100/1000 Mbps |
SFP ports | 2 Gigabit combo ports (RJ45/SFP) + 2 Gigabit SFP |
LED Indicators | Power, Link/Act, Speed, PoE |
Surge protection | RJ-45 ports 4kV (optional) |
Power Input
AC Input Voltage Range | 100 ~ 240 VAC 50-60 Hz |
Surge protection | AC Input port 6kV (optional) |
Power Consumption | 20W (without PD loading) |
PoE Technology
PoE Compliance | 100% IEEE 802.3af, 802.3at compliant |
PoE Classification | PSE (Power Sourcing Equipment) |
PoE Voltage | +52 VDC |
PoE Power Budget | 240W / 370W /480W depending on power input |
PoE Power | Up to 30 W per port |
PoE Operation | Automatic detection and power management |
PoE Pin Assignments | V+ (Pin 3, 6), V- (Pin 1, 2) |
PoE Disconnect Mode | DC disconnect |
Software Technology
Port Feature | Port Control, Port Isolation, Port Self-loop Detection |
Port Mirroring | Multi to 1 Sniffer |
VLAN | Port-base & 802.1q Tag-base VLANs |
Link Aggregation | Up to 8 maximum aggregation groups, each containing up to 4GE |
Traffic control | IEEE 802.3x full-duplex flow control |
Rate Limit | Unit: 64kbps |
Spanning Tree | Support STP, RSTP, MSTP |

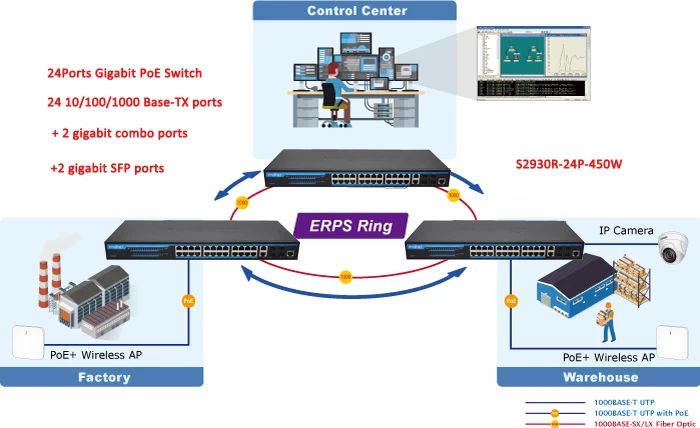

Ring Protocol | Support EAPS |
Multicast | Support 256 Multicast groups, Support IGMP Snooping |
Layer 3 Switching | Support Static ARP & Static Routing, up to 32 L3 VLAN Interface |
QoS | 4 output queues on each port Support flexible queue scheduling algorithms: WRR, Q+WRR Support port-based / MAC-based / 802.1p / DSCP classification |
ACL | Support Standard IP / Extend IP / MAC IP / ARP, up to 512 entries |
Security | Support MAC-based 802.1X authentication Support AAA/RADIUS authentication Support WEB/Telnet password protection Support Accessing privilege mode password protection |
SNMP | Support |
Configuration File | Support Download/Upload configuration File via WEB |
Upgrade Firmware | Support Upgrade Firmware via WEB |
Management Interface | Support WEB, SNMP, CLI, Telnet, Console |
Mechanical
Casing | Metal |
Dimensions (W x L x H) | 440 mm x 330mm x 45 mm |
Installation | Rack mounting or Desktop |
Environment
Operating Temperature | 0℃ ~ 40℃ |
Storage Temperature | -40℃ ~ +85℃ |
Ambient Relative Humidity | 10% ~ 90% RH, non-condensing |
S2930R-24P-450W | 24x10/100/1000 Mbps PoE with 2 Gigabit combo ports (RJ45/SFP) + 2 Gigabit SFP L2+ Managed PoE Switch (450W) |
Detailed Images

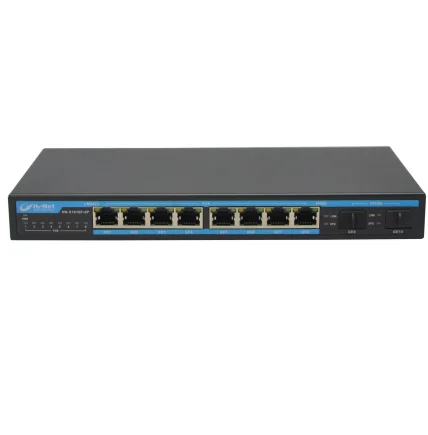

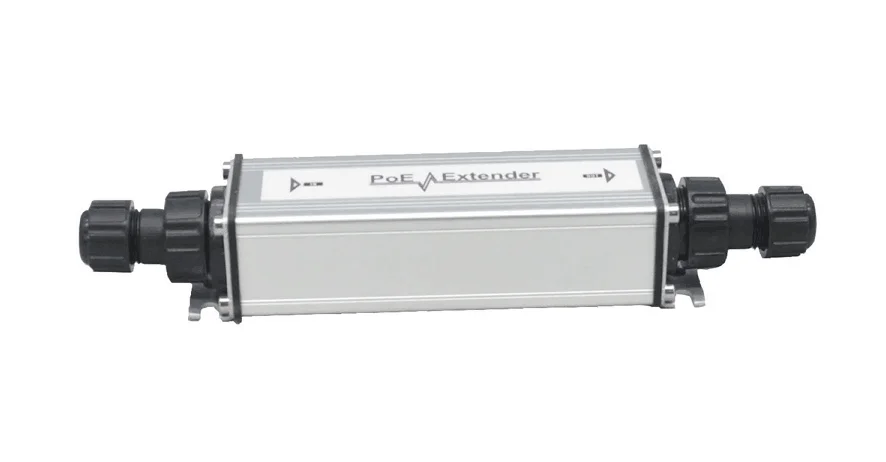

Related products
